Magic Chef
Gas Range

Model # CGS1740ADL Official Magic Chef gas slide-in range

Here are the diagrams and repair parts for Official Magic Chef CGS1740ADL gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

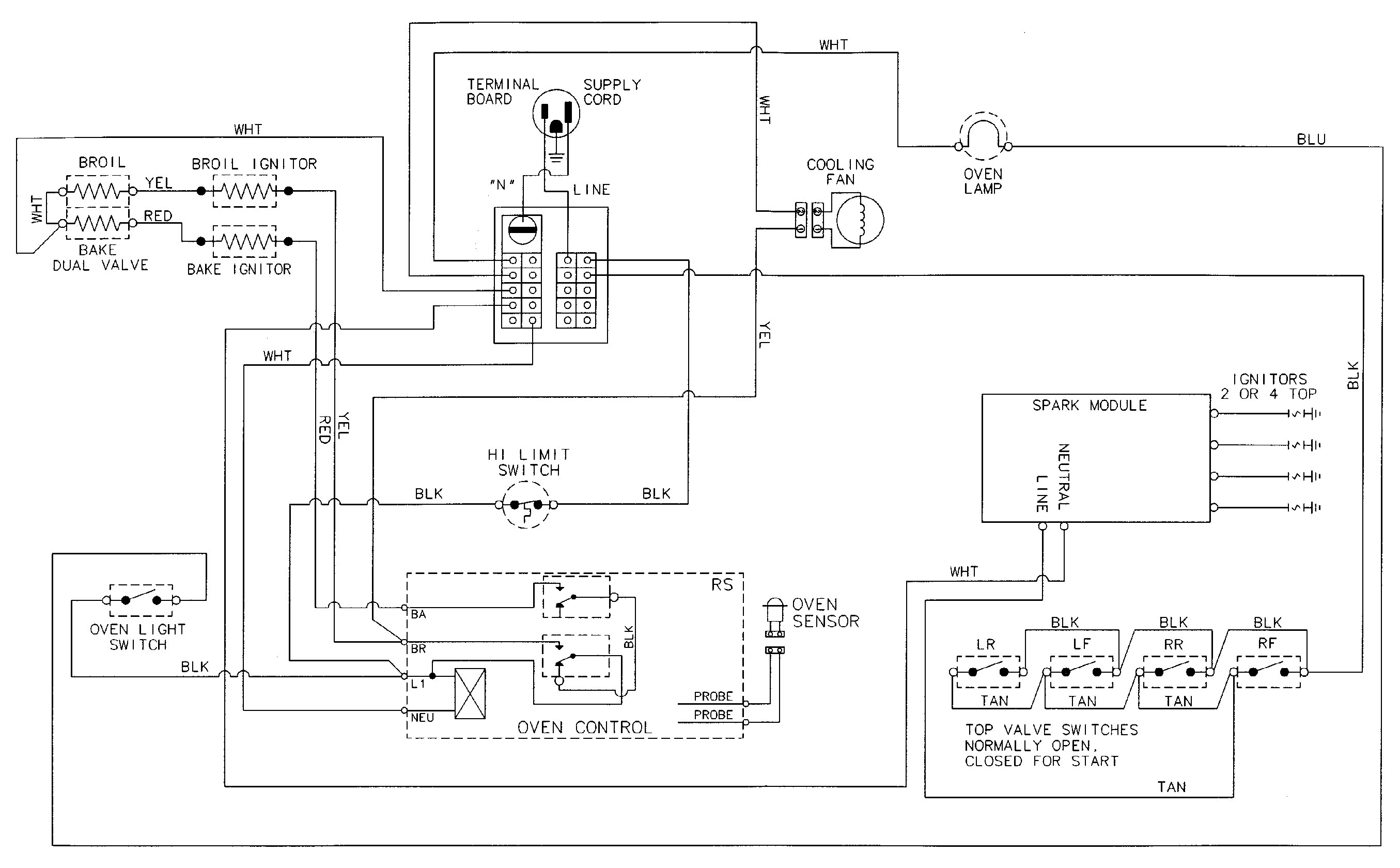

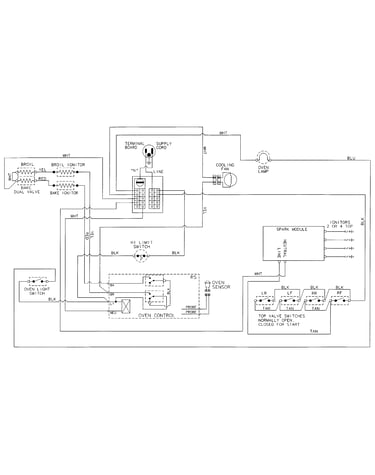

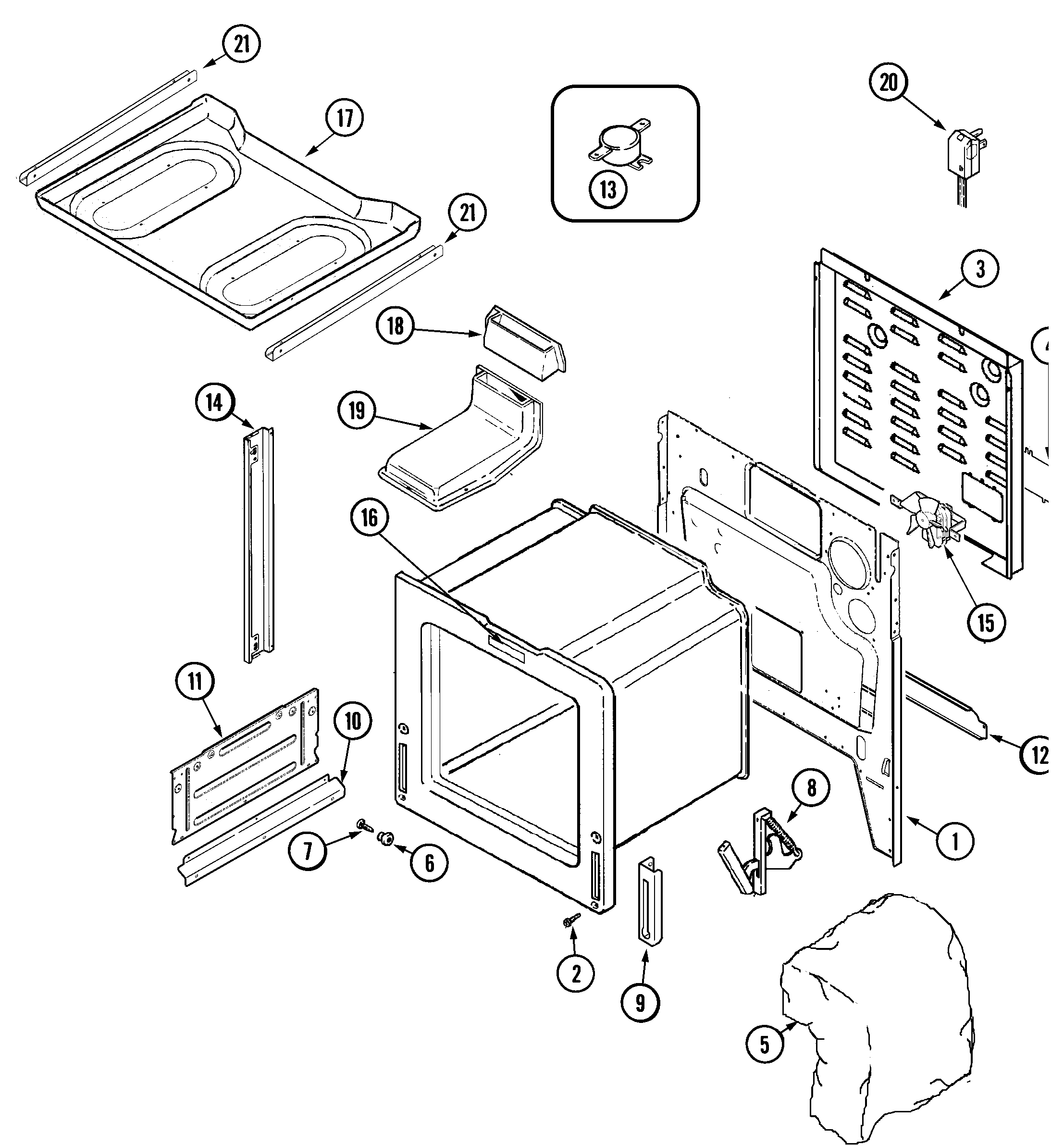

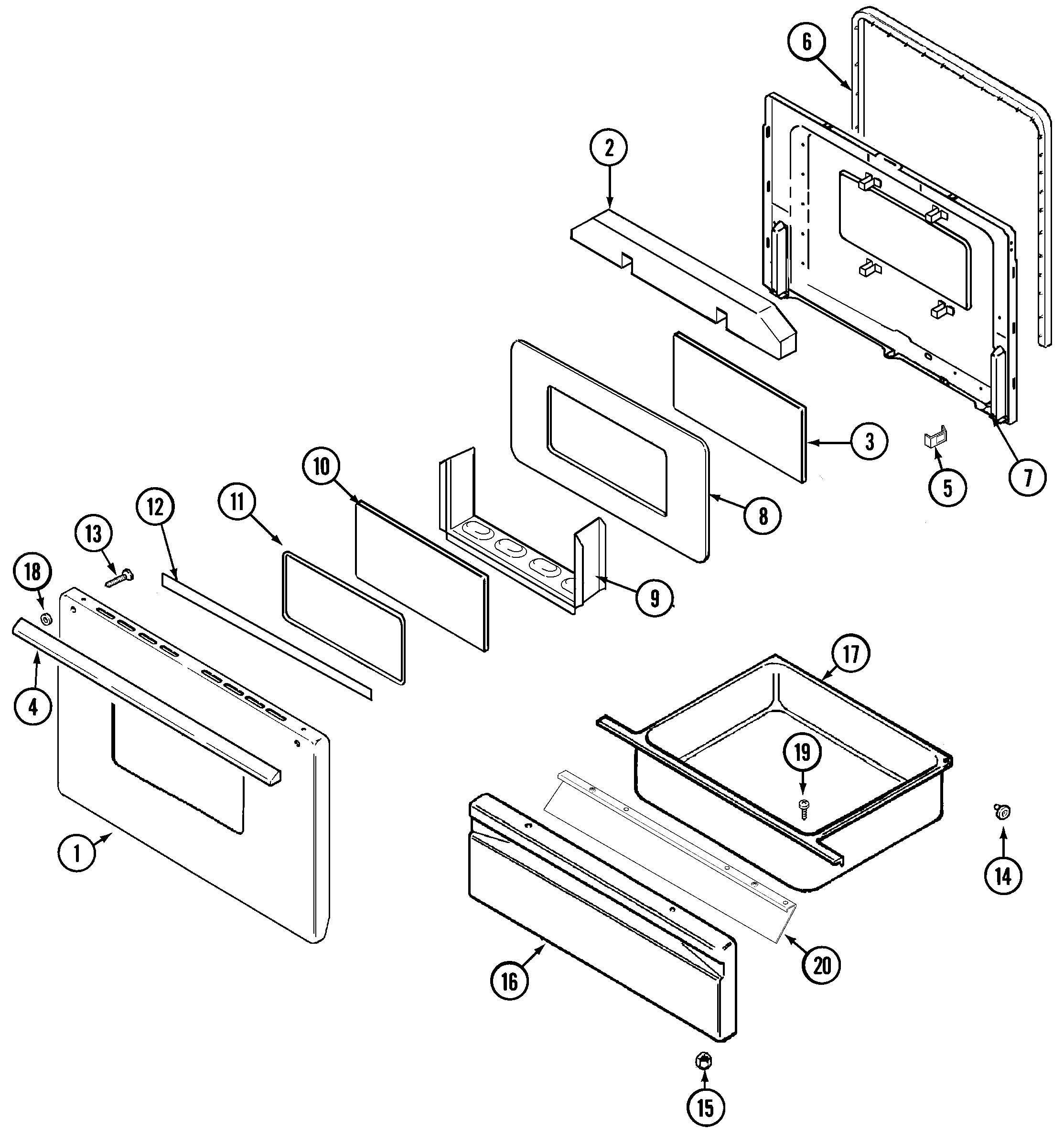

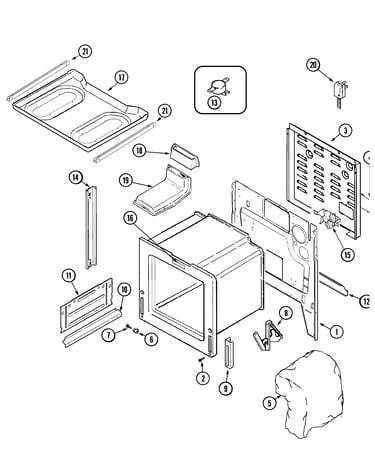

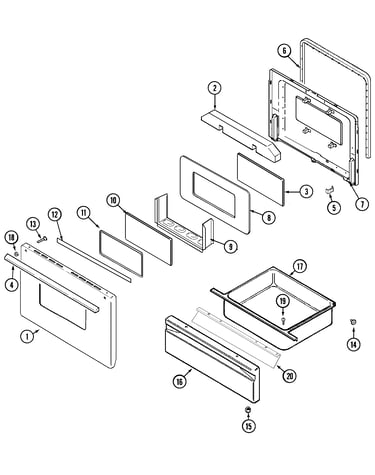

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Oven Bulb 7407P103-60
#22

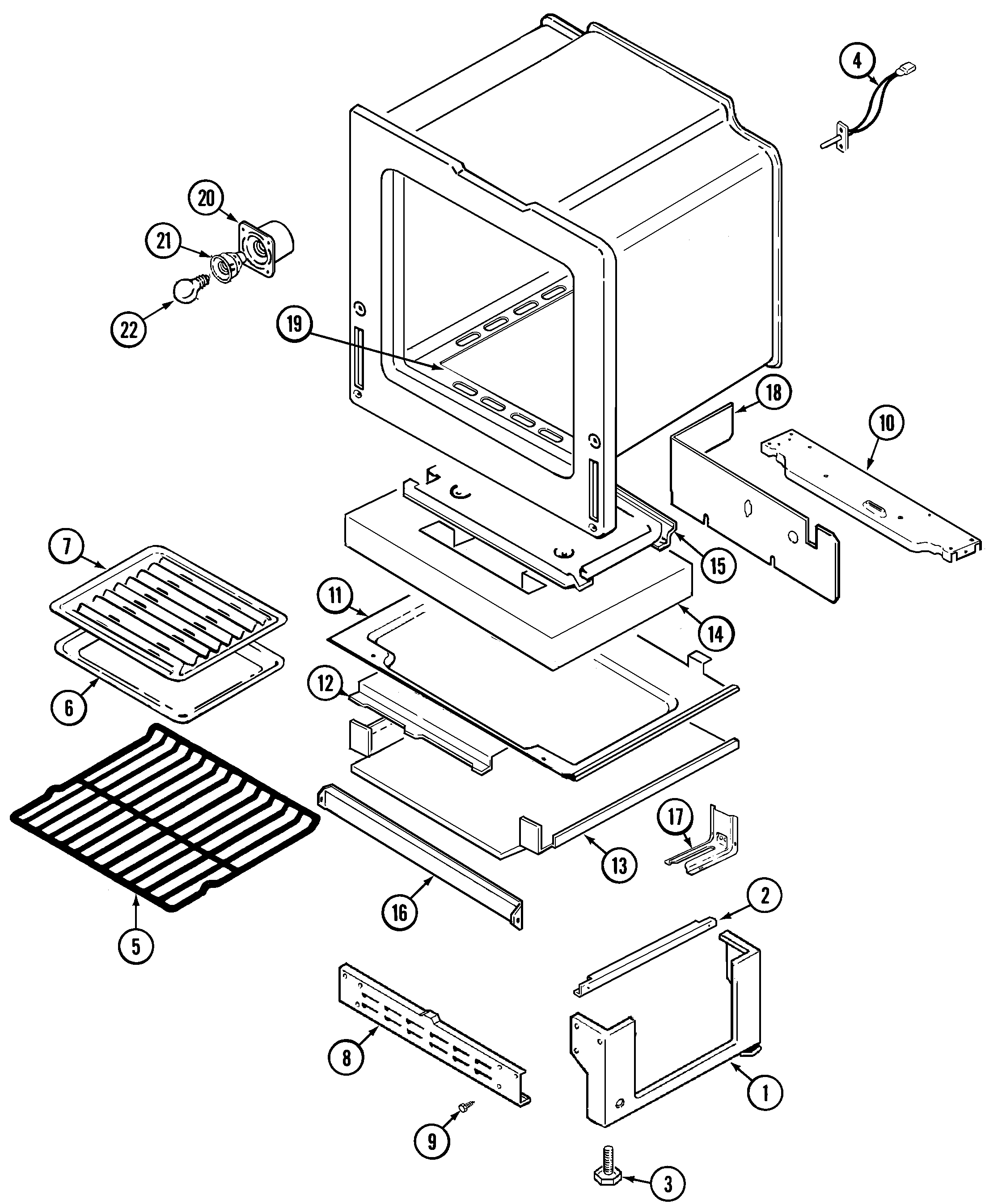

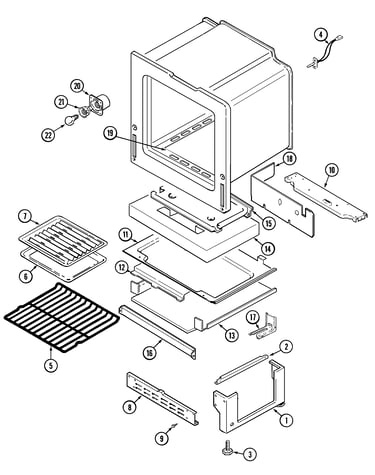

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Igniter 7432P075-60
#24

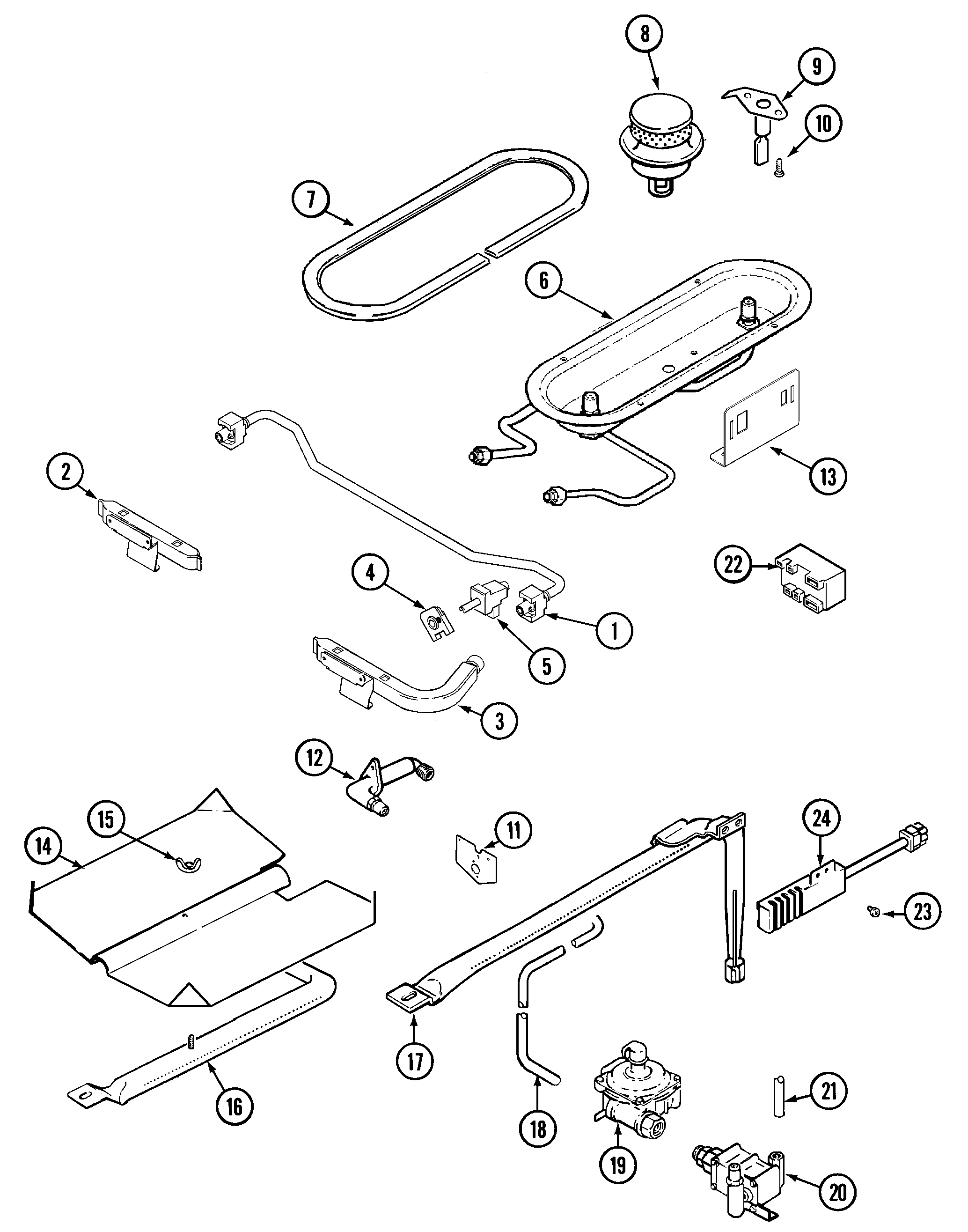

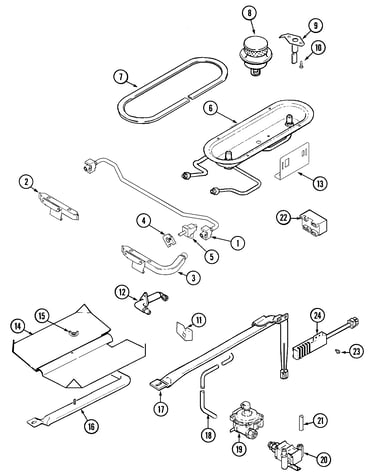

Gas controls diagram

Igniter

Part #7432P075-60

Replaced by #74007498

?
Manufacturer substitution
This part replaces 7432P075-60. Substitute parts can look different from the original.
BEST SELLER
$59.77 |
9% OFF Phone Price : $65.77
In Stock
Oven Sensor 74004944
#4A

Oven/base diagram

Oven sensor

Part #74004944

Replaced by #12001655

?
Manufacturer substitution
This part replaces 74004944. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Oven Probe 74003413
#4

Oven/base diagram

Oven probe

Part #74003413

Replaced by #12001655

?
Manufacturer substitution
This part replaces 74003413. Substitute parts can look different from the original.
BEST SELLER
$31.35 |
16% OFF Phone Price : $37.35
In Stock
Spark Module 74004283
#22

Gas controls diagram

Spark module

Part #74004283

Replaced by #8215557

?
Manufacturer substitution
This part replaces 74004283. Substitute parts can look different from the original.
BEST SELLER
$97.33 |
11% OFF Phone Price : $109.33
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P338-60
#13A

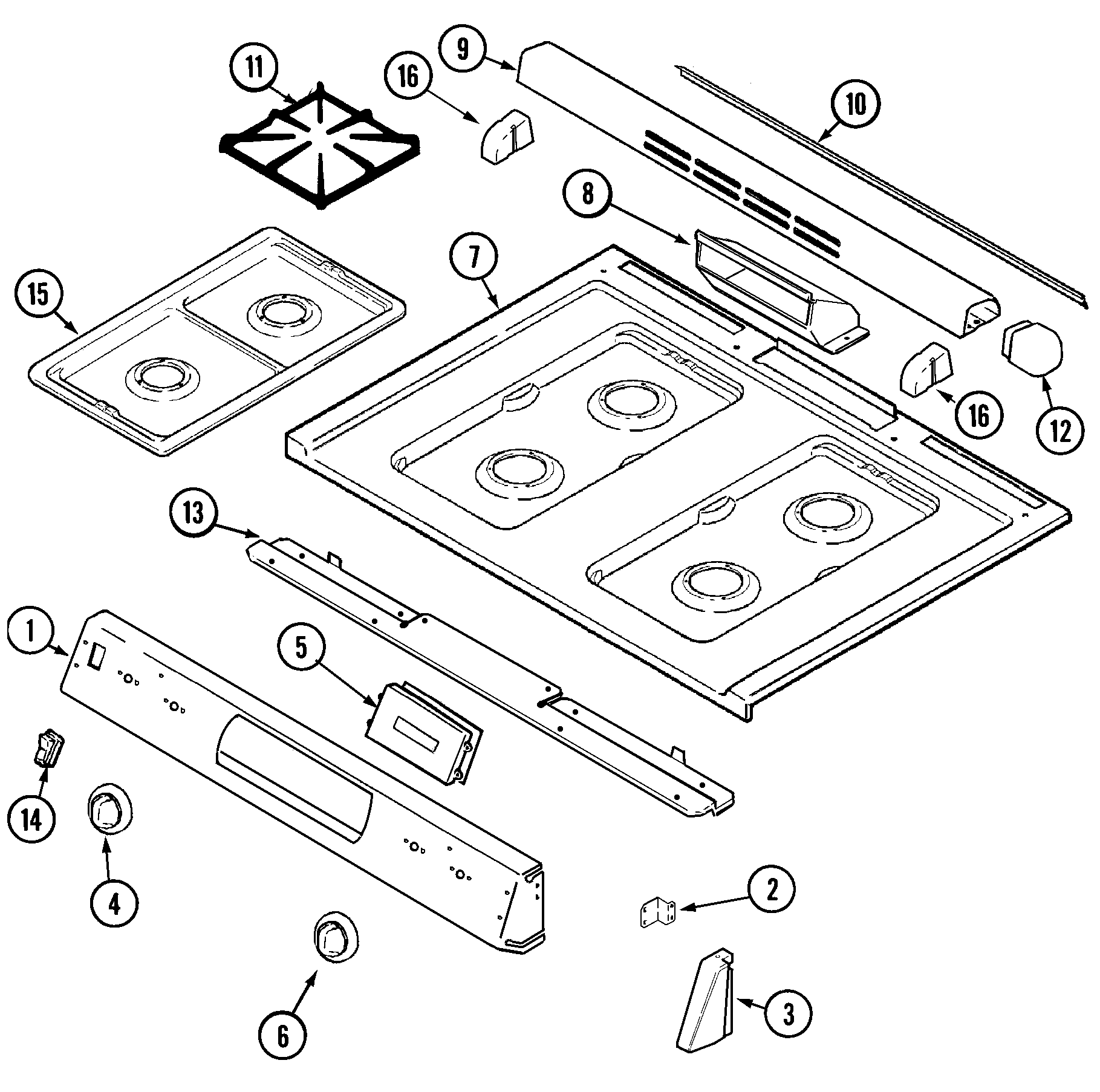

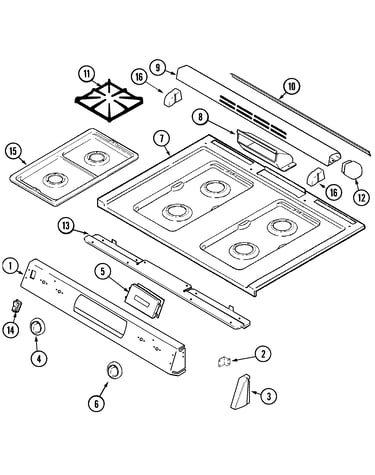

Top assembly (adh, adl) diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P282-60
Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Bracket, Ant 74002311
#17

Oven/base diagram

Bracket, ant

Part #74002311

Replaced by #WP3801F656-51

?
Manufacturer substitution
This part replaces 74002311. Substitute parts can look different from the original.
This item is not returnable
$5.03 |
17% OFF Phone Price : $6.03
In Stock
Pressure Regulator 7510P067-60
#19

Gas controls diagram

Pressure regulator

Part #7510P067-60

Replaced by #WP74006429

?
Manufacturer substitution
This part replaces 7510P067-60. Substitute parts can look different from the original.
$145.61 |
8% OFF Phone Price : $157.61
In Stock
