Model # 973114130 Official Craftsman cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 973114130 cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

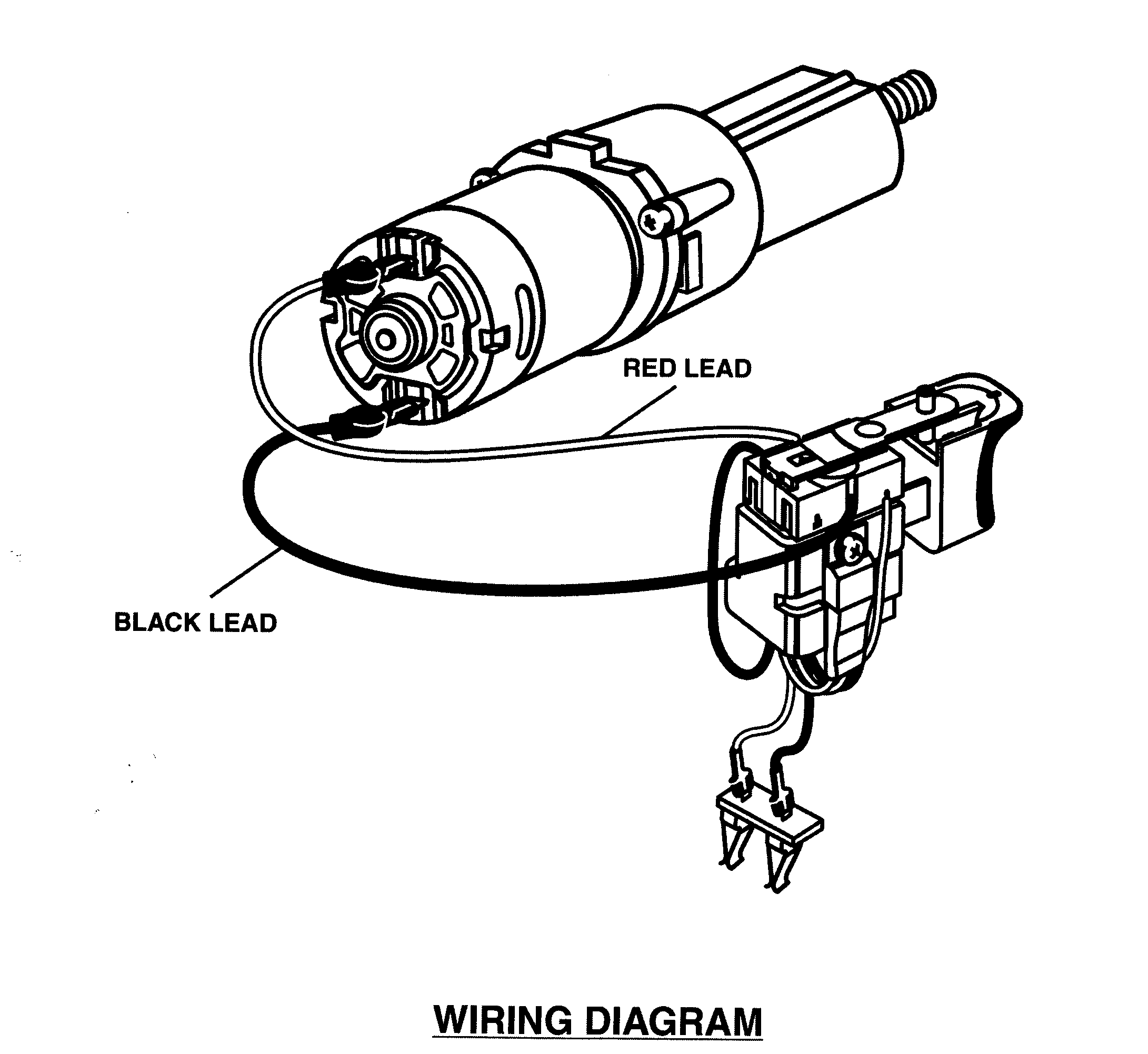

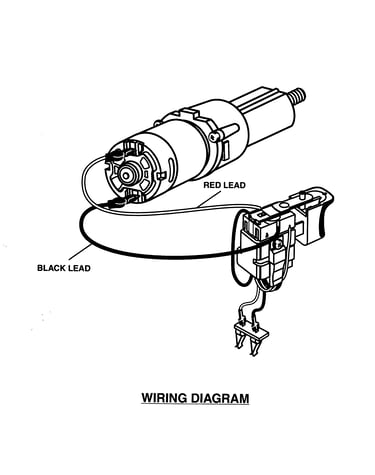

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Craftsman Switch 2701252
#15

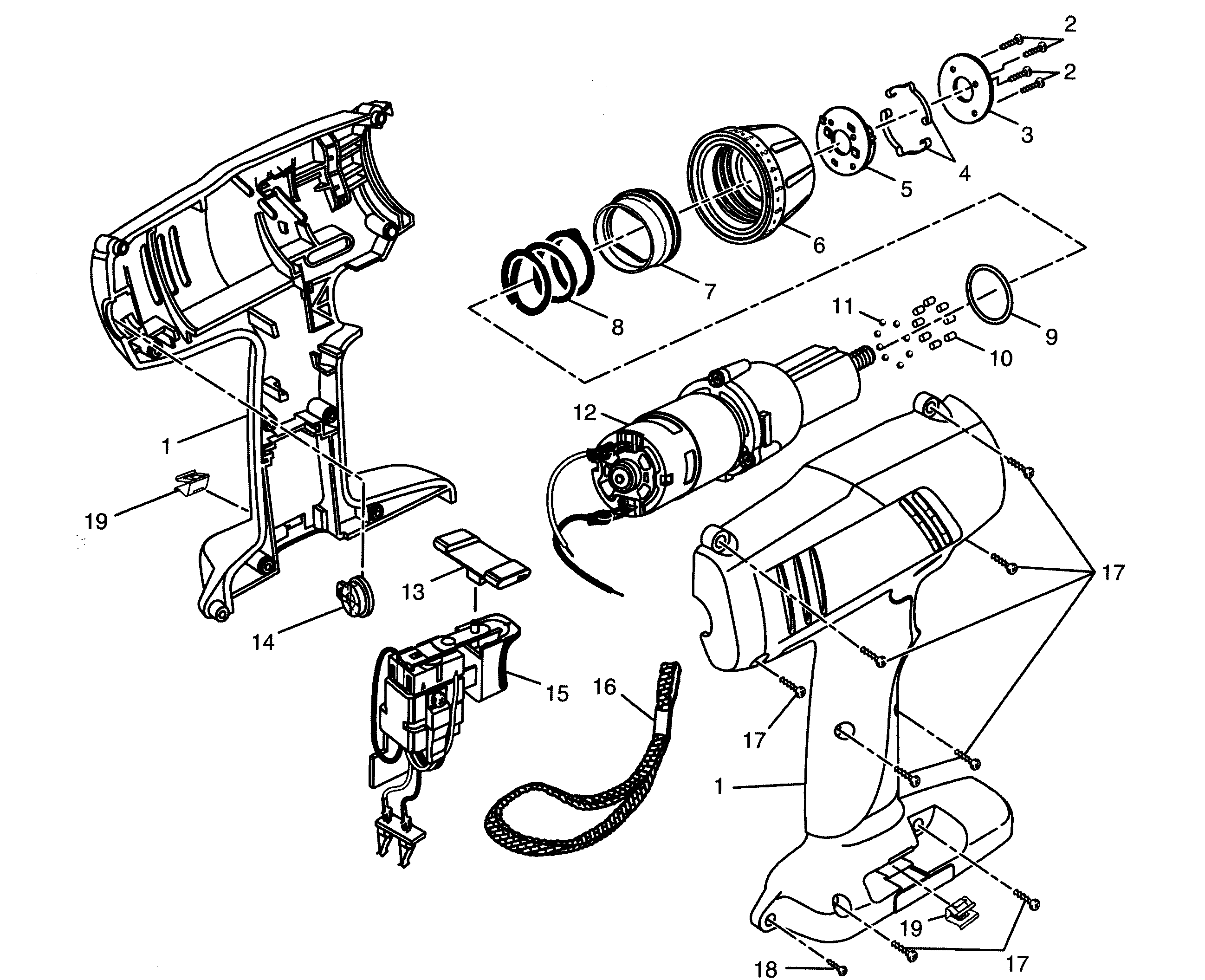

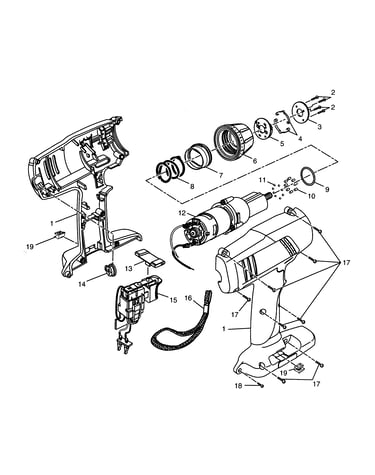

Motor assy diagram

Craftsman switch

Part #2701252

The manufacturer no longer makes this part, and there's no substitute part

Pin 6843505
#10

Motor assy diagram

Pin

Part #6843505

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 5501403
#7

Motor assy diagram

Sleeve

Part #5501403

The manufacturer no longer makes this part, and there's no substitute part

Retainer 6375301
#3

Motor assy diagram

Retainer

Part #6375301

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620501
#2

Motor assy diagram

Screw

Part #6620501

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 984688-001
#6

Motor assy diagram

Clutch cap

Part #984688-001

The manufacturer no longer makes this part, and there's no substitute part

Repair Sheet 983000-050R
#NI

Motor assy diagram

Repair sheet

Part #983000-050R

The manufacturer no longer makes this part, and there's no substitute part

Tool Bag 9021107
#NI

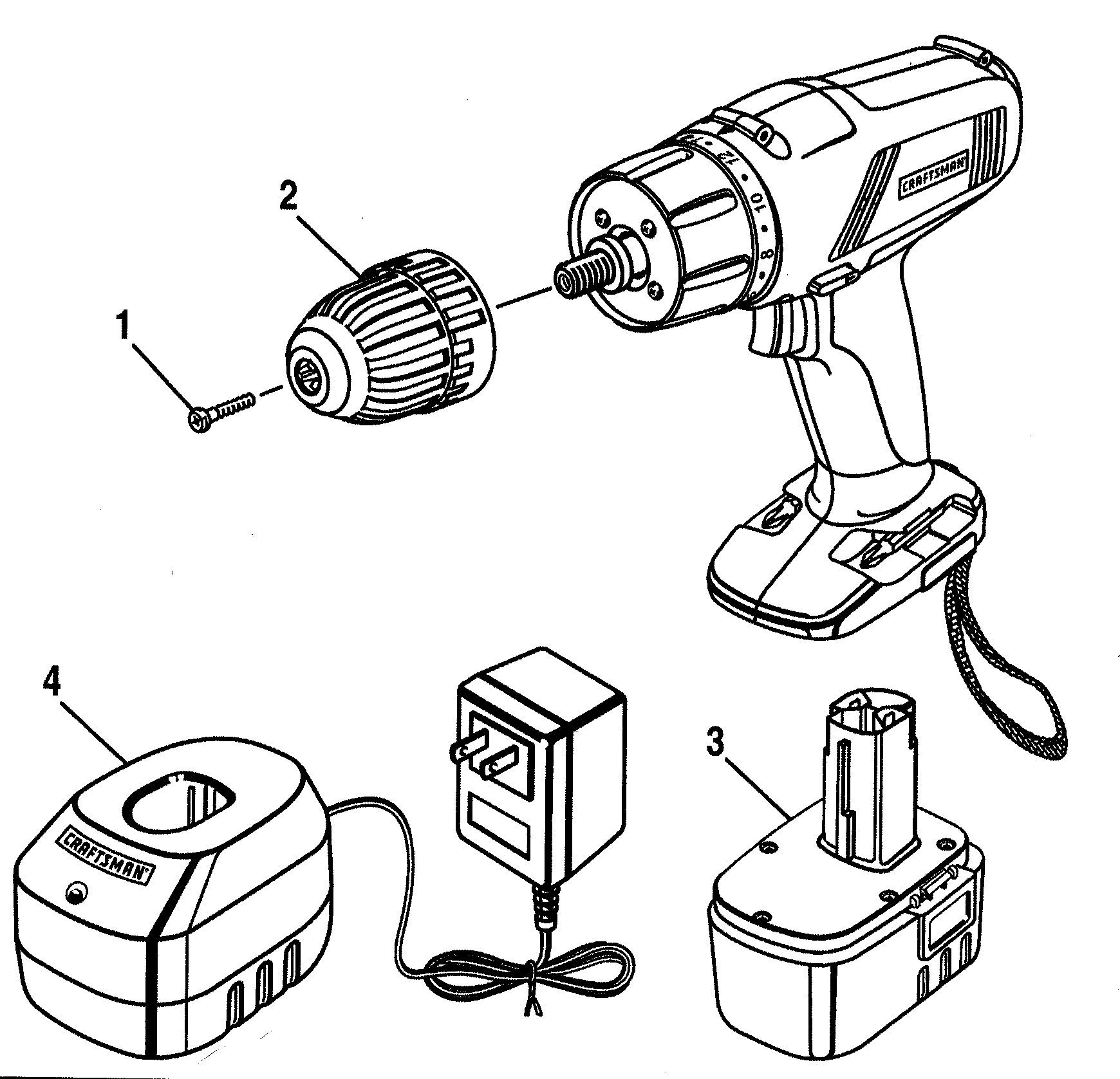

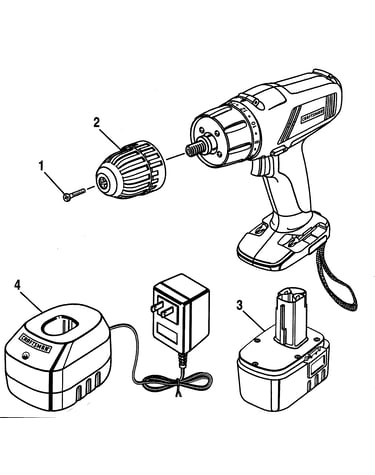

Drill diagram

Tool bag

Part #9021107

The manufacturer no longer makes this part, and there's no substitute part

Ball 6722001
#11

Motor assy diagram

Ball

Part #6722001

The manufacturer no longer makes this part, and there's no substitute part

Plate 6392201
#4

Motor assy diagram

Plate

Part #6392201

The manufacturer no longer makes this part, and there's no substitute part
