Craftsman
Power Sander

Model # 315116111 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 315116111 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Brg Plate 999175-001
#9

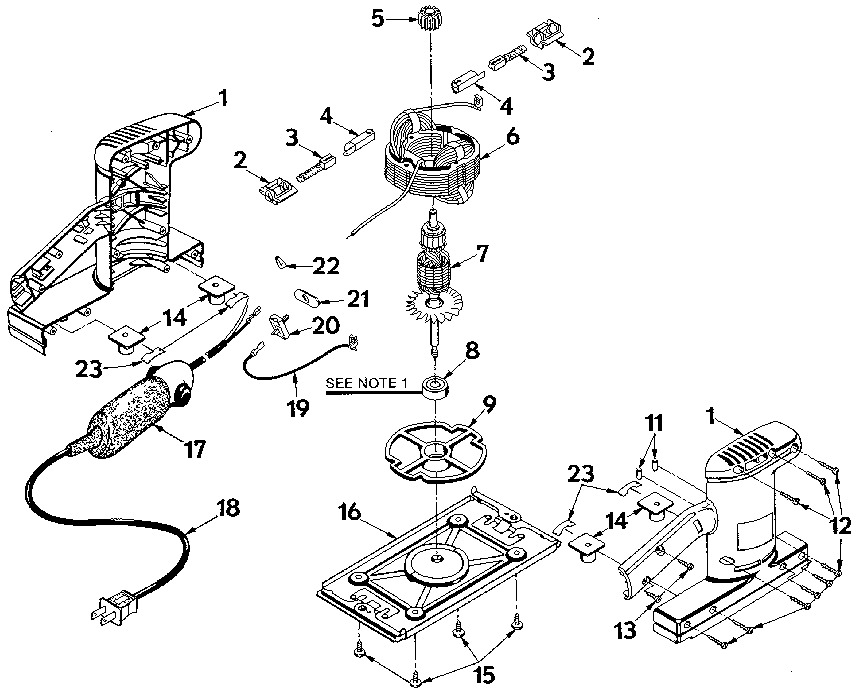

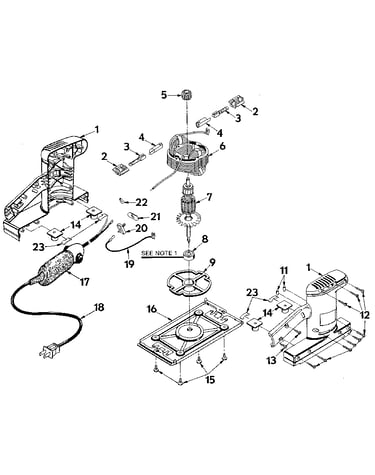

Unit parts diagram

Brg plate

Part #999175-001

The manufacturer no longer makes this part, and there's no substitute part

Hsg. Asm. 969266-000
#1

Unit parts diagram

Hsg. asm.

Part #969266-000

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 623173-001
#22

Unit parts diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

Retainer 999184-001
#2

Unit parts diagram

Retainer

Part #999184-001

The manufacturer no longer makes this part, and there's no substitute part

Sp Clip 967227-001
#23

Unit parts diagram

Sp clip

Part #967227-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 610120-004
#13

Unit parts diagram

Screw

Part #610120-004

The manufacturer no longer makes this part, and there's no substitute part

Cord Assembly 998051-000
#18

Unit parts diagram

Cord assembly

Part #998051-000

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 999195-001
#1

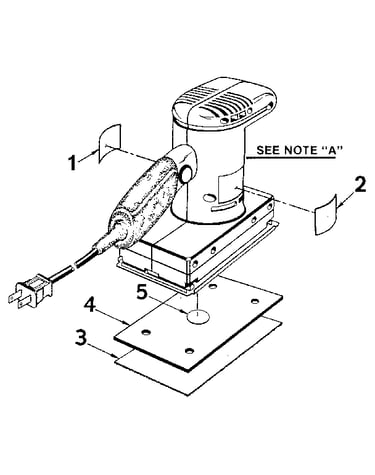

Cushion assembly diagram

Logo plate

Part #999195-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 969264-001
#2

Cushion assembly diagram

Data plate

Part #969264-001

The manufacturer no longer makes this part, and there's no substitute part

Actuator 999182-001
#21

Unit parts diagram

Actuator

Part #999182-001

The manufacturer no longer makes this part, and there's no substitute part
