Room Air Conditioner

Model # AC610AMT1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AC610AMT1 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AC610AMT1 Air Conditioner
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Level Bolt WZ2X29
#969

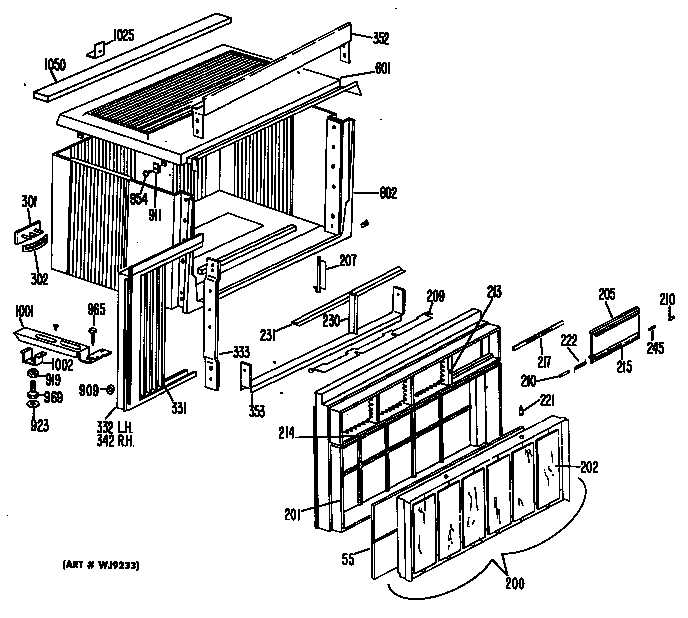

Cabinet/grille diagram

Level bolt

Part #WZ2X29

$15.43
In Stock
Screw WZ4X247
#954

Cabinet/grille diagram

Screw

Part #WZ4X247

This item is not returnable
$6.49
In Stock
Screw WZ4X283

#NI

All parts diagram

Screw

Part #WZ4X283

This item is not returnable
$6.49
In Stock
Screw WZ4X375

#NI

All parts diagram

Screw

Part #WZ4X375

This item is not returnable
$4.49
In Stock
Retaining Ring WJ2X281
#909

Cabinet/grille diagram

Retaining ring

Part #WJ2X281

This item is not returnable
$2.16
In Stock
Nut WZ7X49
#919

Cabinet/grille diagram

Nut

Part #WZ7X49

This item is not returnable
$6.49
In Stock
Screw WZ4X224

#NI

All parts diagram

Screw

Part #WZ4X224

Replaced by #WZ4X224D

?
Manufacturer substitution
This part replaces WZ4X224. Substitute parts can look different from the original.
$22.69
In Stock
Com Overload WJ23X93
#20

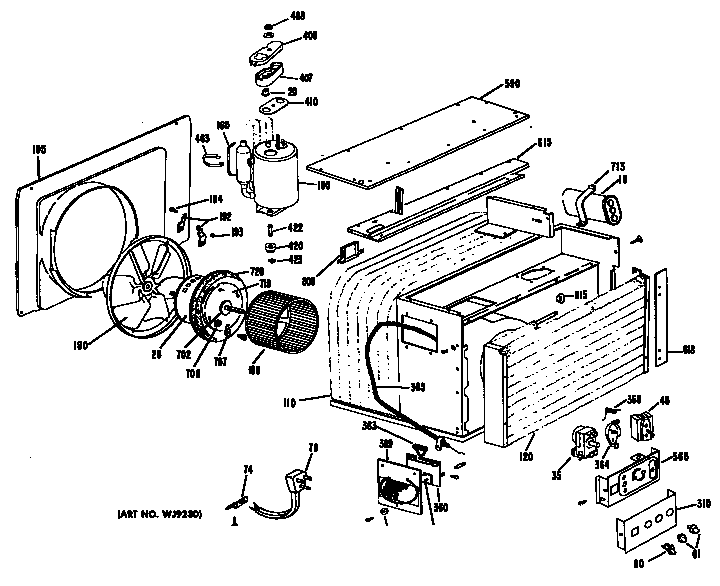

Chassis diagram

Com overload

Part #WJ23X93

Replaced by #WJ23X174

?
Manufacturer substitution
This part replaces WJ23X93. Substitute parts can look different from the original.
$72.73
In Stock
Clamp WJ3X284

#NI

All parts diagram

Clamp

Part #WJ3X284

Replaced by #WR1X1843

?
Manufacturer substitution
This part replaces WJ3X284. Substitute parts can look different from the original.
$15.09
In Stock
