Kenmore
Dryer

Model # 1107207401 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 1107207401 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

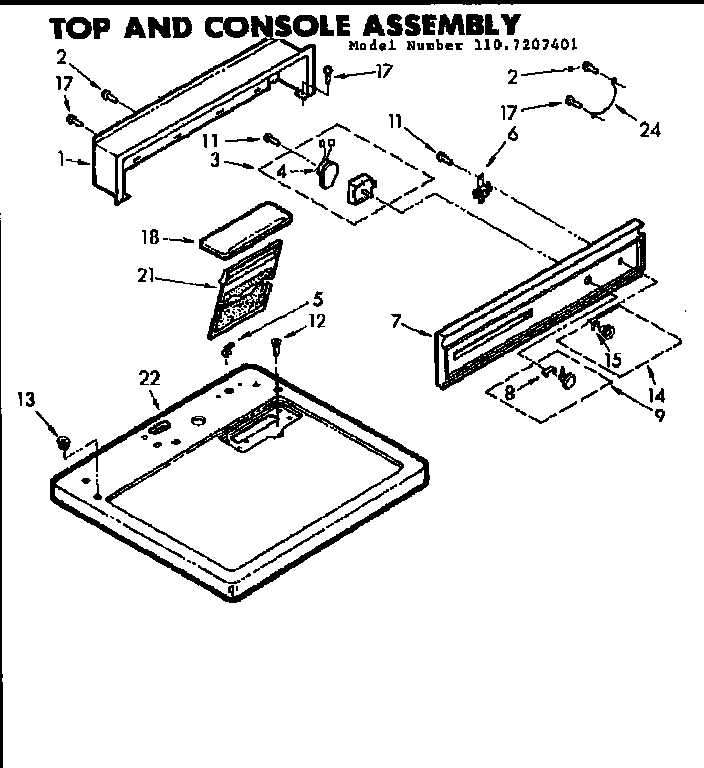

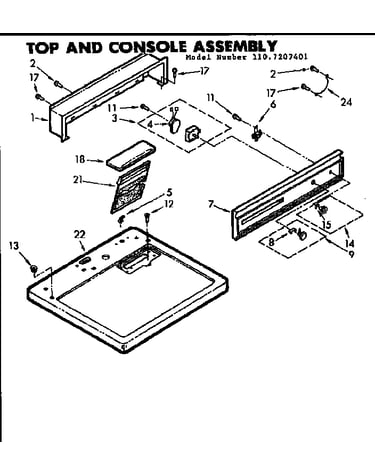

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 162 parts  |
Drum Belt 349533
#56

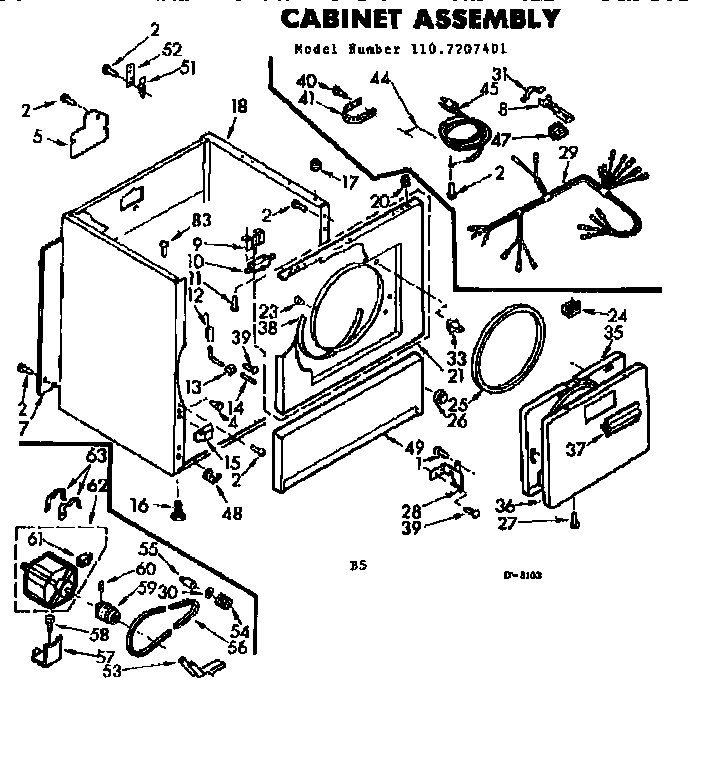

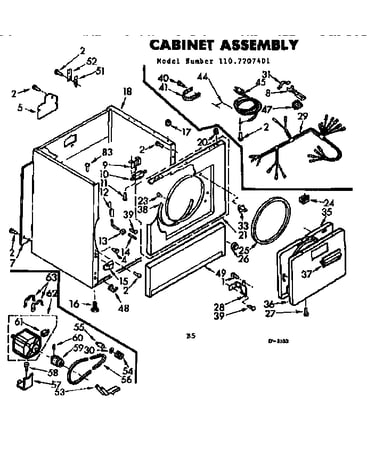

Cabinet assembly diagram

Drum belt

Part #349533

Replaced by #341241

?
Manufacturer substitution
This part replaces 349533. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Bracket 337510
#53

Cabinet assembly diagram

Bracket

Part #337510

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Shaft Pulley 337407
#55

Cabinet assembly diagram

Shaft pulley

Part #337407

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Pulley 347226
#54

Cabinet assembly diagram

Pulley

Part #347226

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 347226. Substitute parts can look different from the original.
BEST SELLER
$15.98 |
11% OFF Phone Price : $17.98
In Stock
Motor 343234
#62

Cabinet assembly diagram

Motor

Part #343234

Replaced by #279827

?
Manufacturer substitution
This part replaces 343234. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Blower Wheel 343939
#10

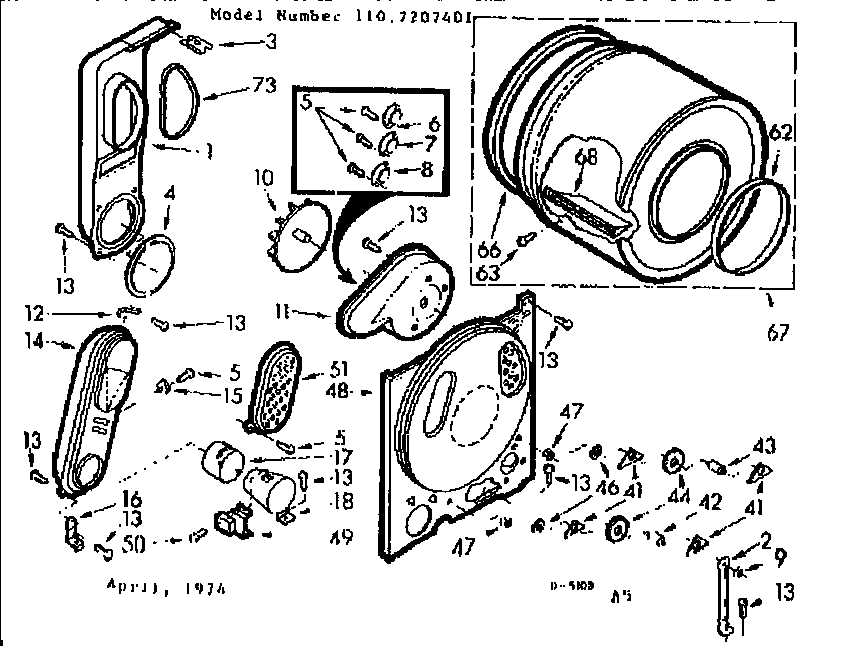

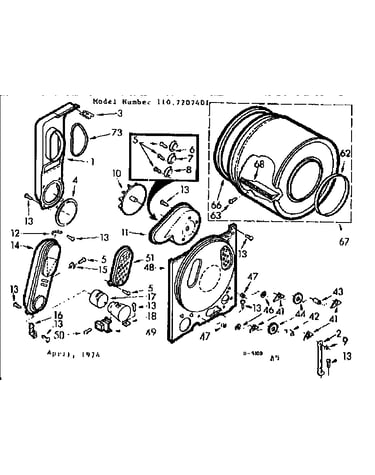

Bulkhead assembly diagram

Dryer blower wheel

Part #343939

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 343939. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Dryer Igniter 338900
#21

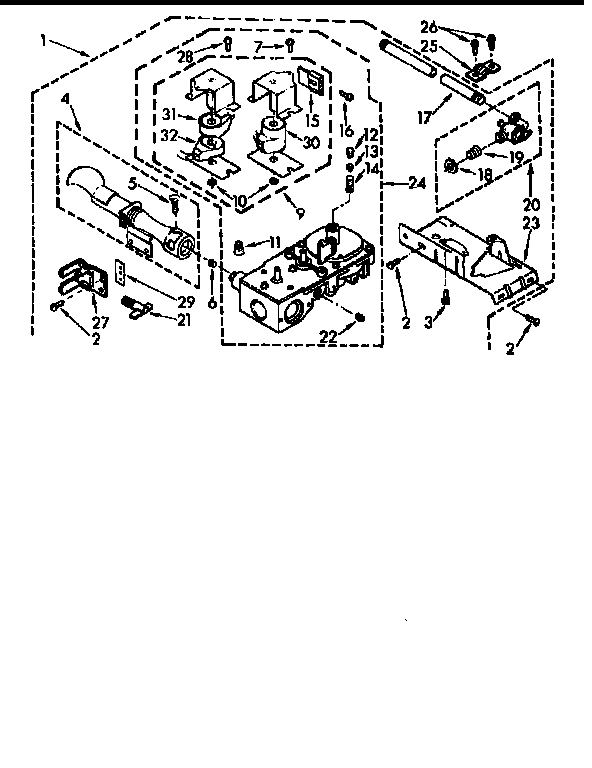

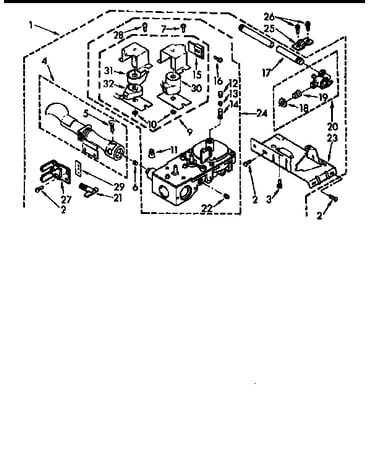

Burner assembly diagram

Dryer igniter

Part #338900

Replaced by #279311

?
Manufacturer substitution
This part replaces 338900. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Igniter Bracket 343128
#27

Burner assembly diagram

Igniter bracket

Part #343128

Replaced by #279311

?
Manufacturer substitution
This part replaces 343128. Substitute parts can look different from the original.
BEST SELLER
$24.00 |
20% OFF Phone Price : $30.00
In Stock
Tri-ring 339491
#41

Bulkhead assembly diagram

Tri-ring

Part #339491

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces 339491. Substitute parts can look different from the original.
BEST SELLER
$6.53 |
13% OFF Phone Price : $7.53
In Stock
Switch 344475
#10

Cabinet assembly diagram

Switch

Part #344475

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 344475. Substitute parts can look different from the original.
BEST SELLER
$24.22 |
20% OFF Phone Price : $30.22
In Stock
