Model # PCG23NJMFFWW Official GE refrigerator - m series
Here are the diagrams and repair parts for Official GE PCG23NJMFFWW refrigerator - m series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

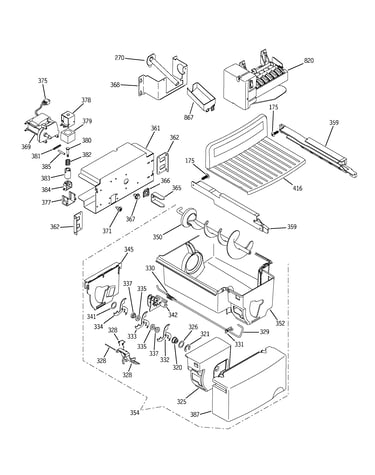

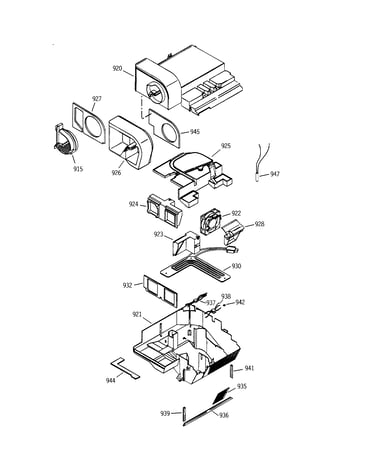

SELECT DIAGRAM

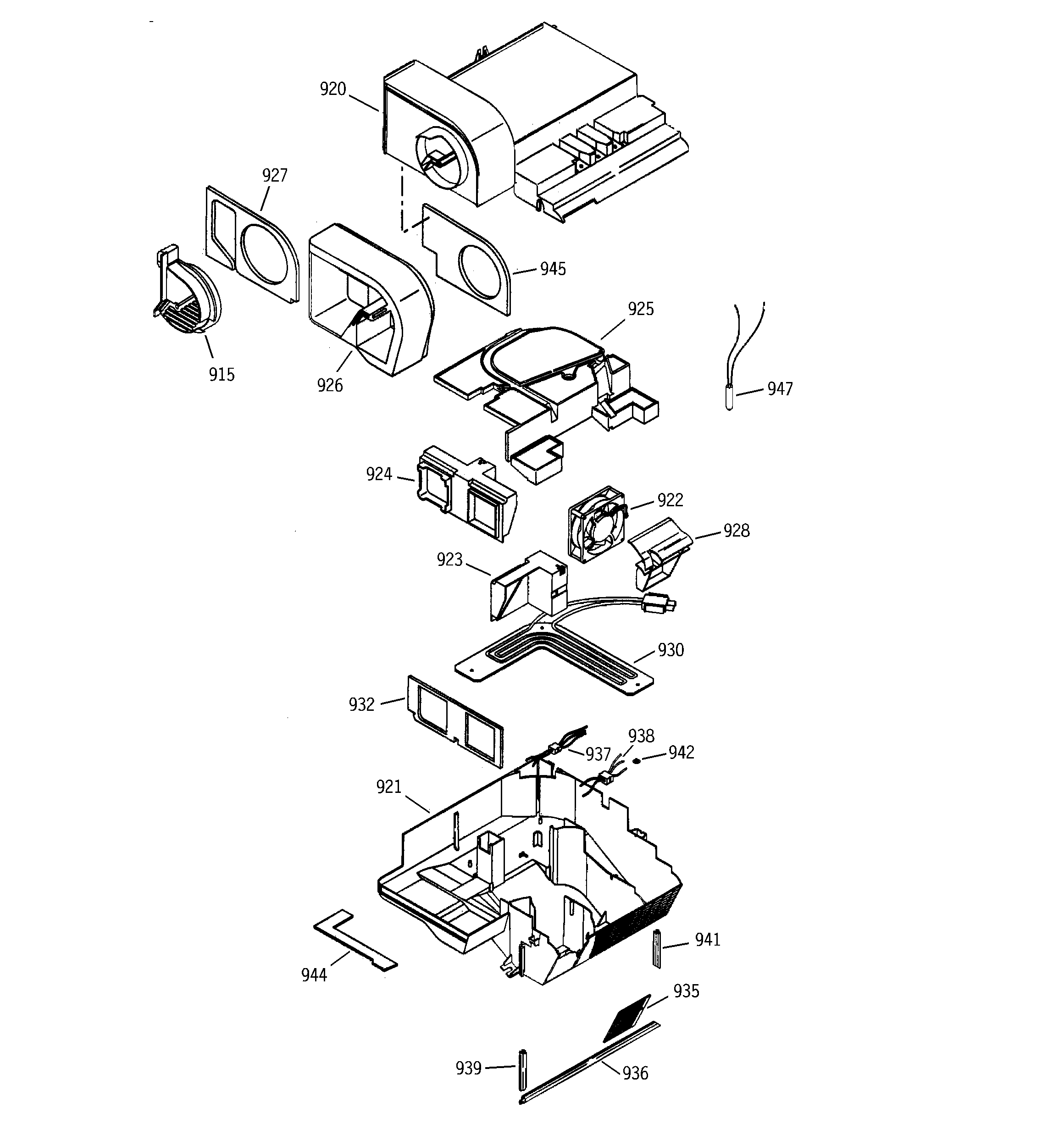

Browse Parts forPCG23NJMFFWW Refrigerators
- #740

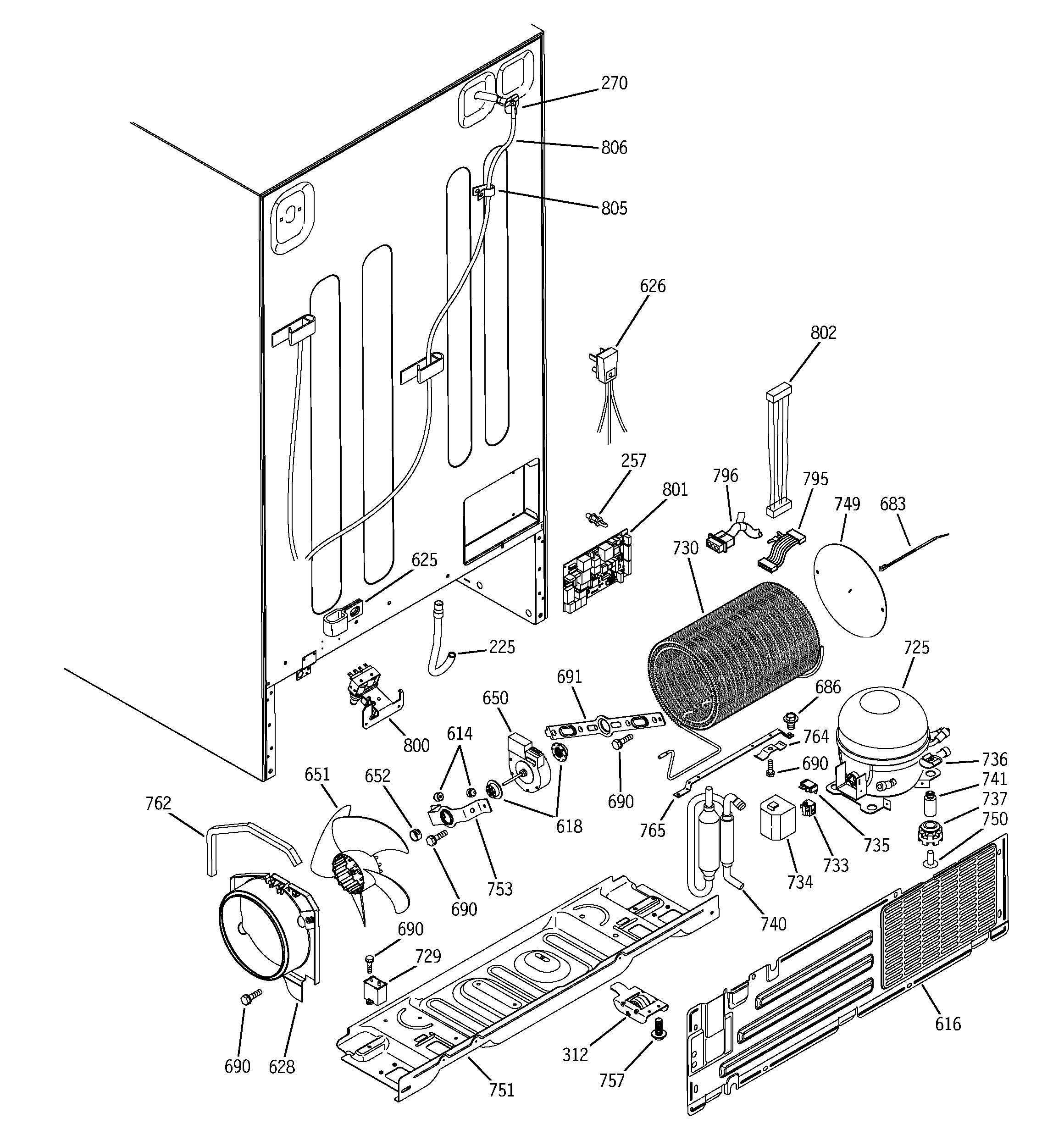

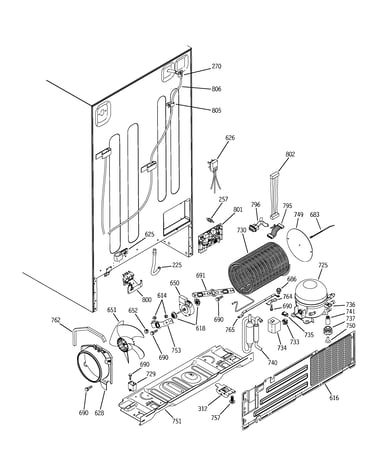

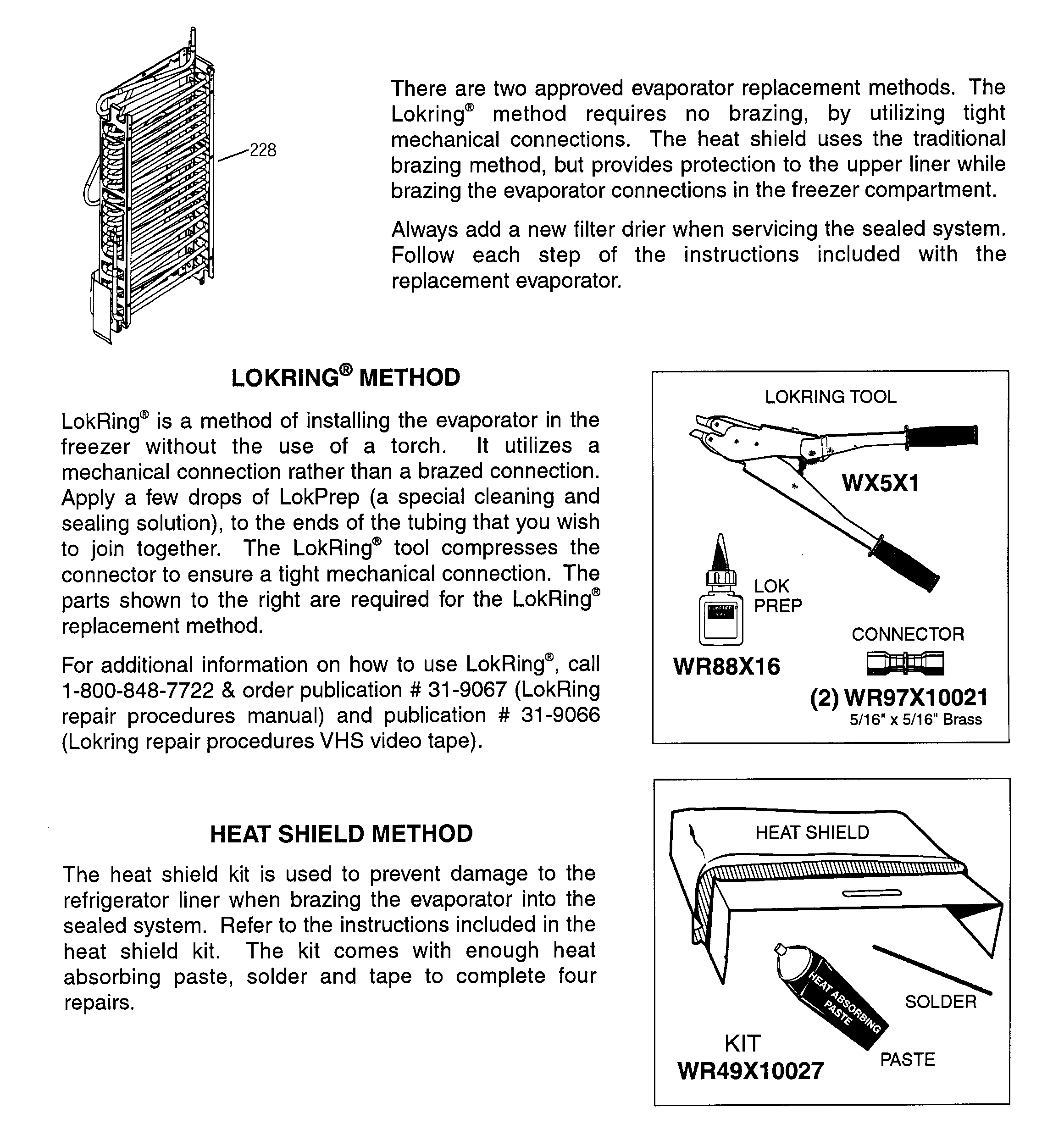

Sealed system & mother board diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #240

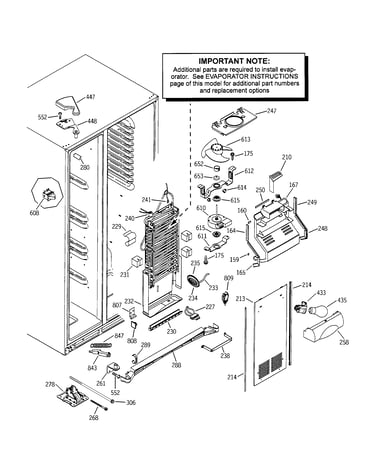

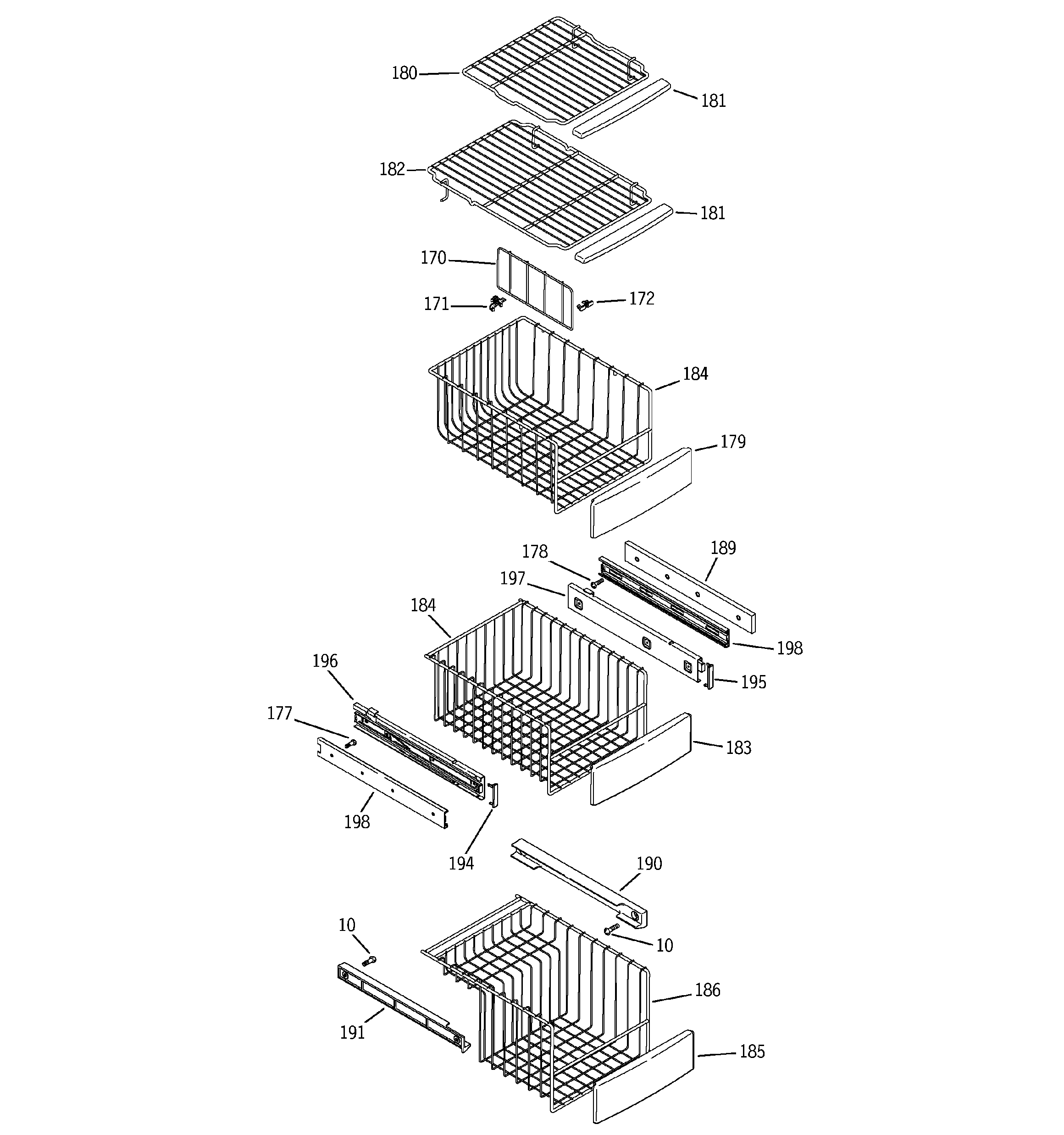

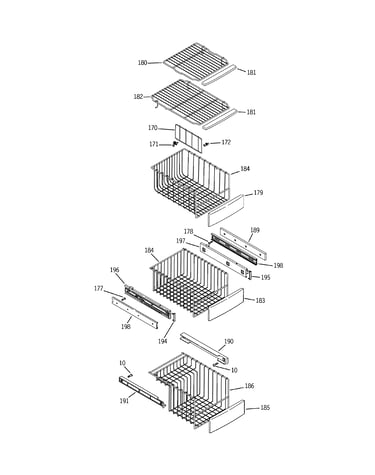

Freezer section diagram
Refrigerator defrost thermostatPart #WR50X10028
Replaced by #WR50X10068
?Manufacturer substitutionThis part replaces WR50X10028. Substitute parts can look different from the original.$22.27 |21% OFF Phone Price : $28.27In Stock - #36

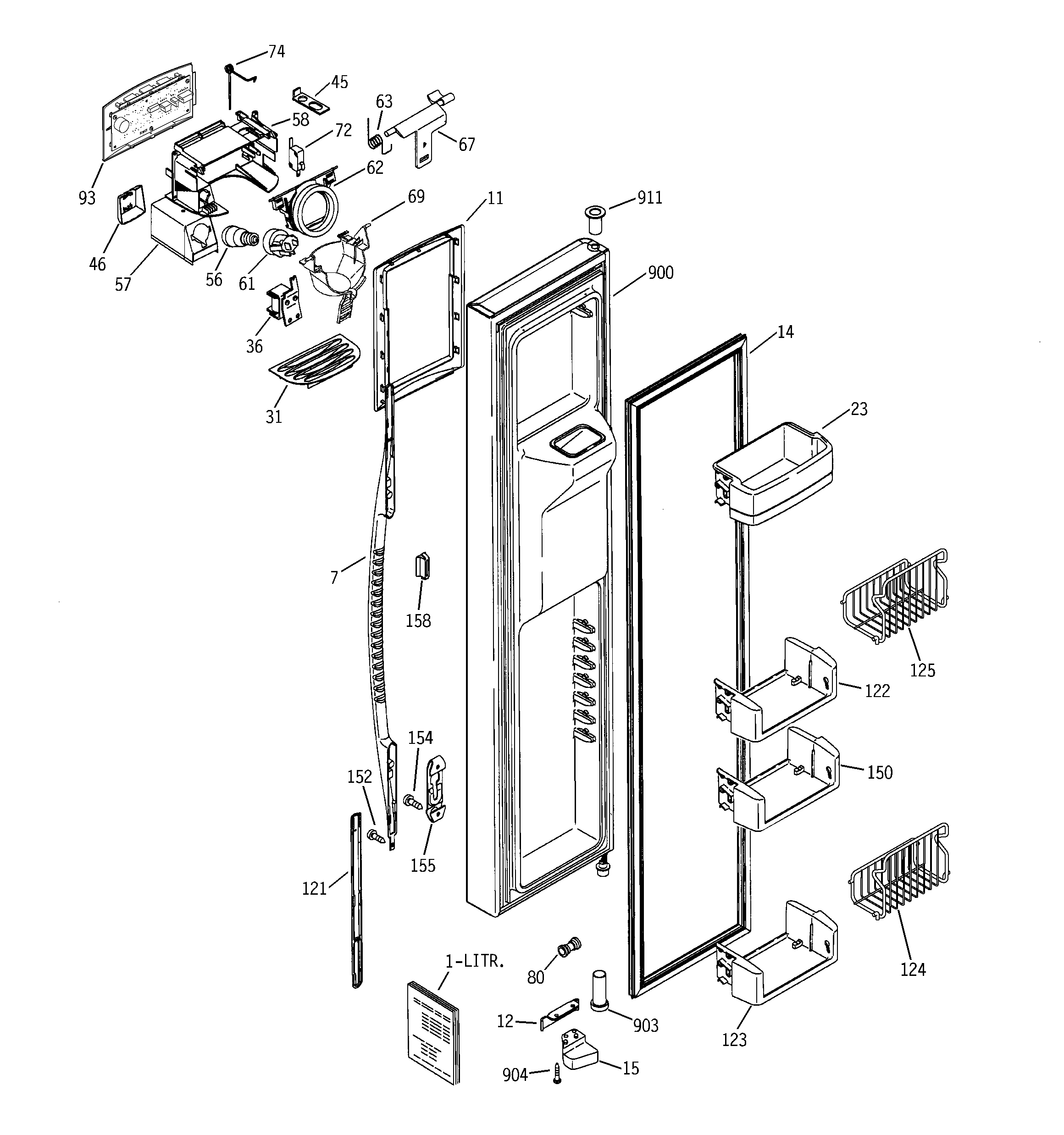

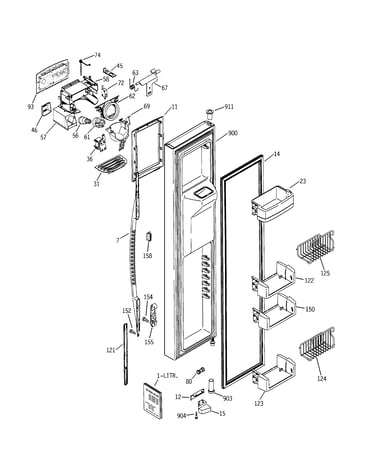

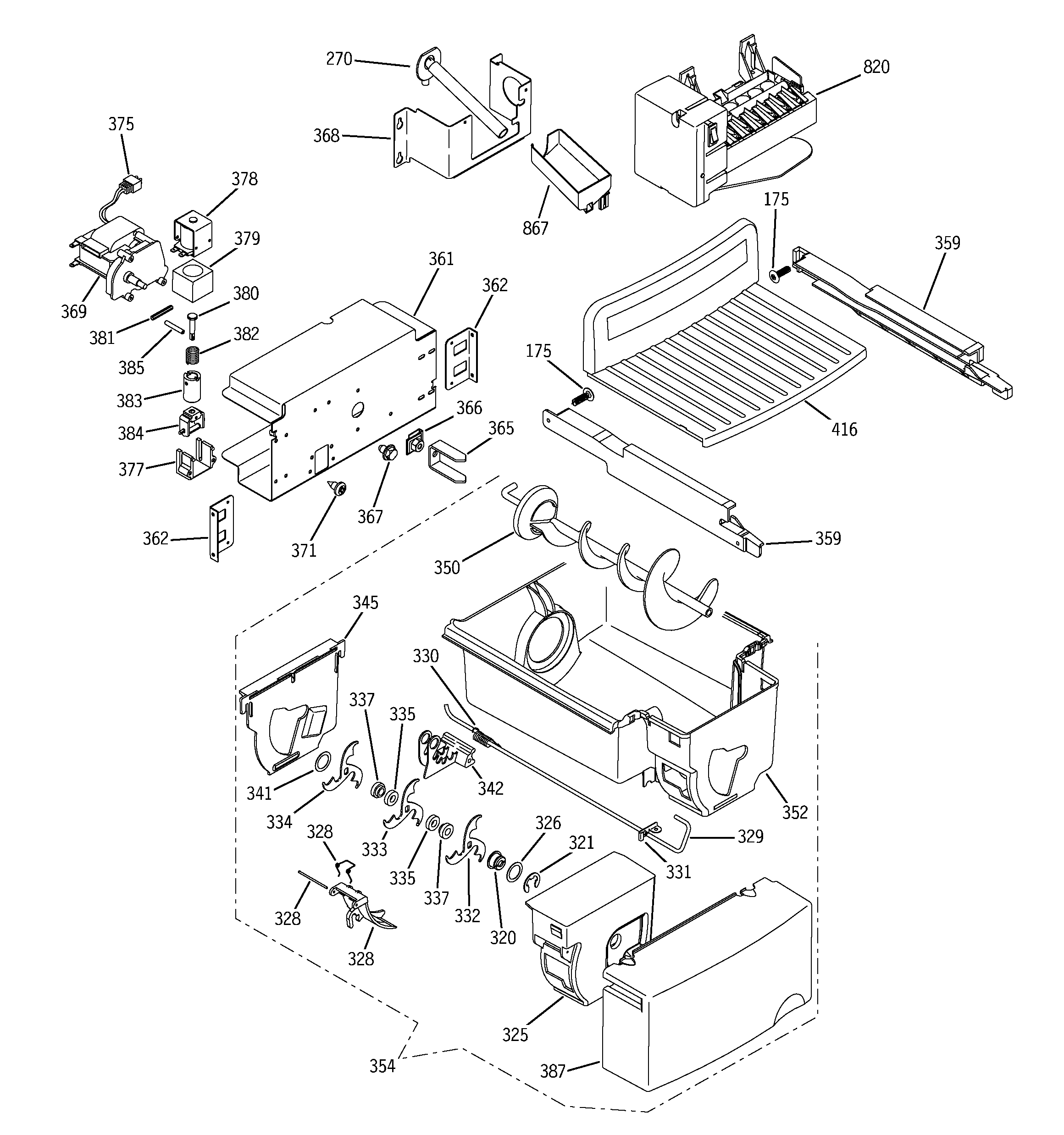

Freezer door diagram
Refrigerator solenoidPart #WR62X10020
Replaced by #WR62X10055
?Manufacturer substitutionThis part replaces WR62X10020. Substitute parts can look different from the original.$59.56 |9% OFF Phone Price : $65.56In Stock - #610

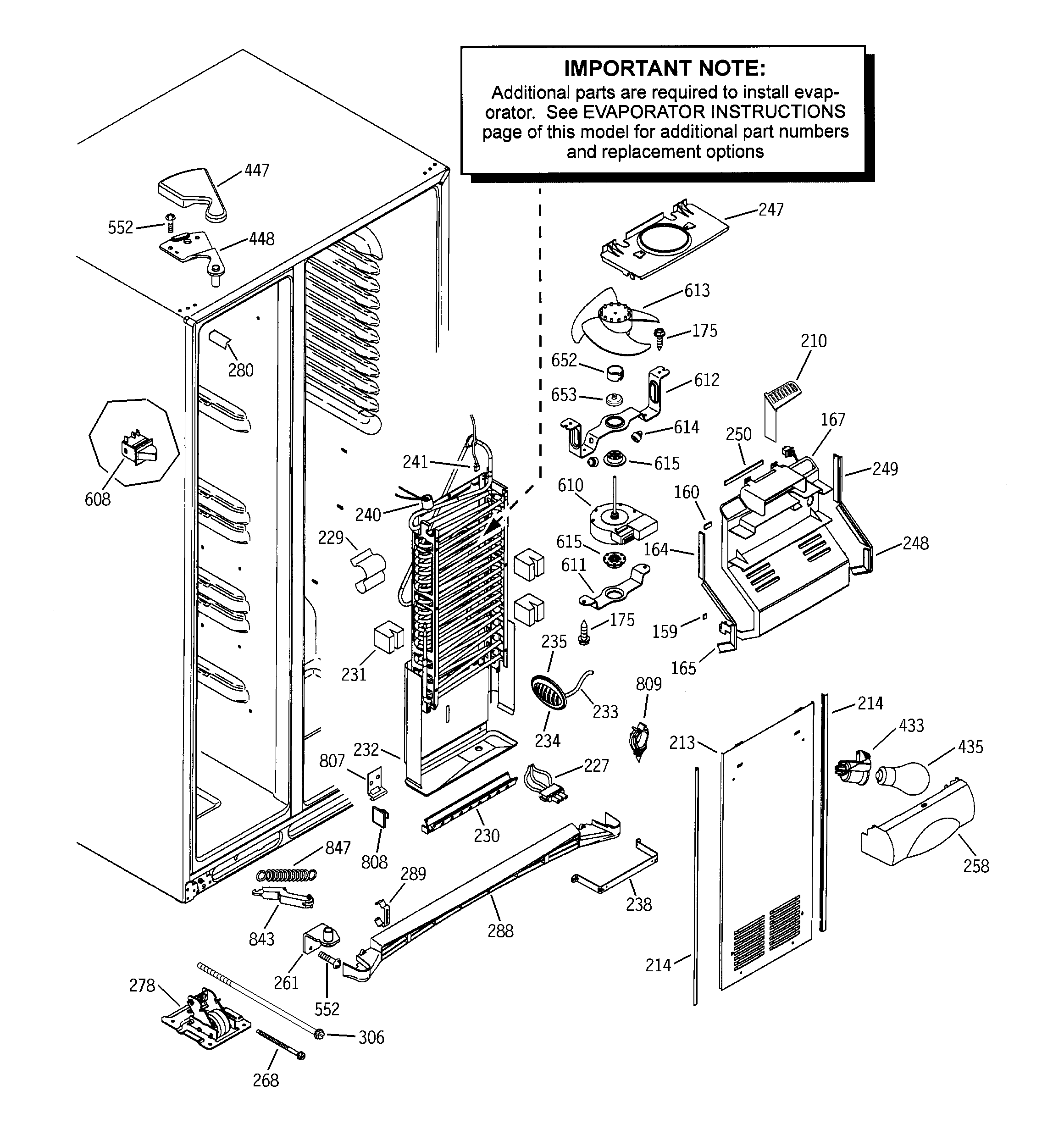

Freezer section diagram
Refrigerator evaporator motorPart #WR60X10099
Replaced by #WR60X10307
?Manufacturer substitutionThis part replaces WR60X10099. Substitute parts can look different from the original.$129.95 |8% OFF Phone Price : $141.95In Stock - #62
Freezer door diagram
Dr reces asmPart #WR17X3093
Replaced by #WR17X11653
?Manufacturer substitutionThis part replaces WR17X3093. Substitute parts can look different from the original.$14.15 |12% OFF Phone Price : $16.15In Stock - #613
Freezer section diagram
Refrigerator evaporator bladePart #WR60X10075
Replaced by #WR60X30922
?Manufacturer substitutionThis part replaces WR60X10075. Substitute parts can look different from the original.$79.66 |7% OFF Phone Price : $85.66In Stock - #67
Freezer door diagram
Ge profile refrigerator dispenser ice chute door crankPart #WR17X10706
$8.69 |10% OFF Phone Price : $9.69In Stock - #63
Freezer door diagram
Ge profile refrigerator dispenser lever springPart #WR02X10585
$8.97 |10% OFF Phone Price : $9.97In Stock - #812

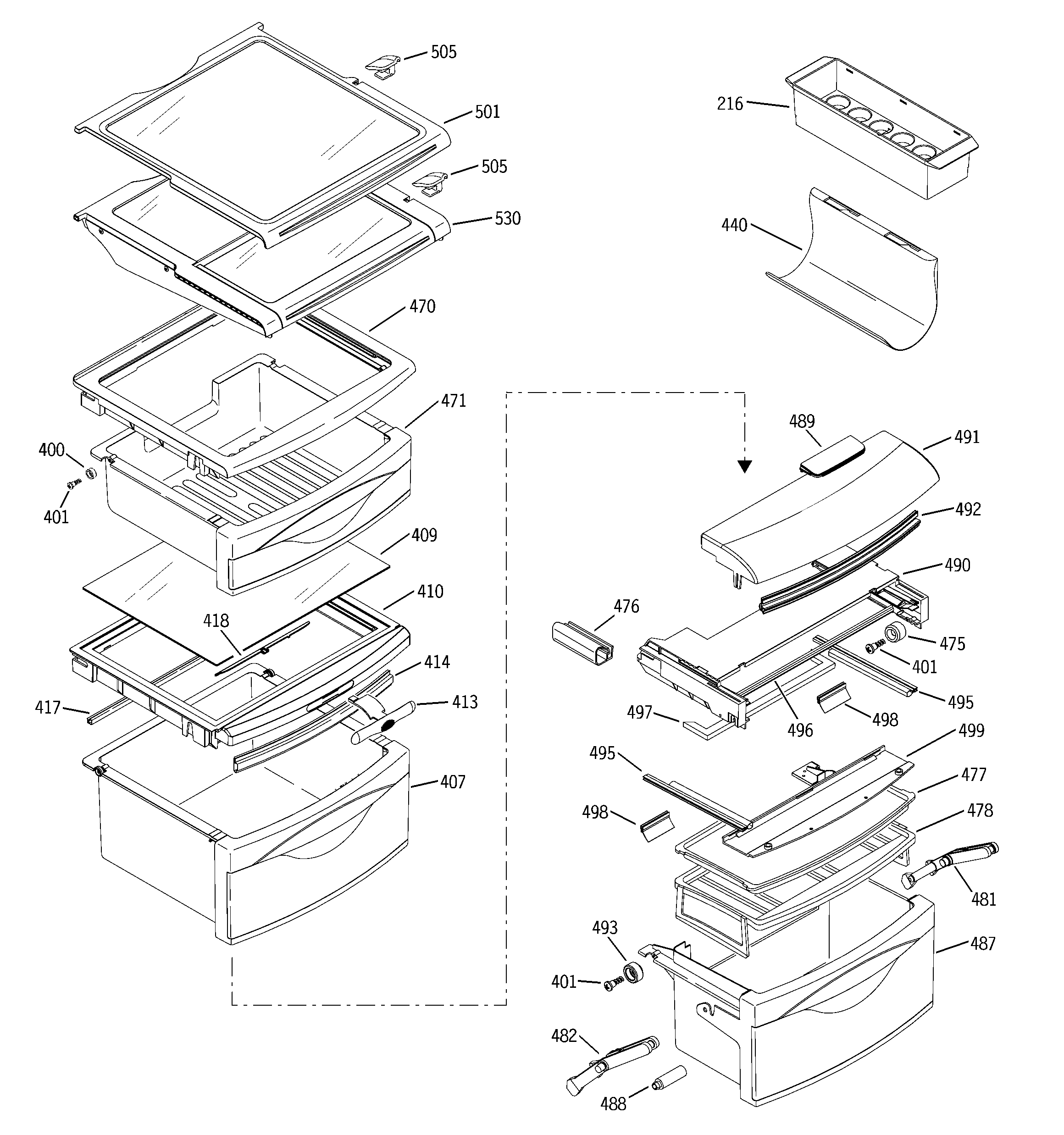

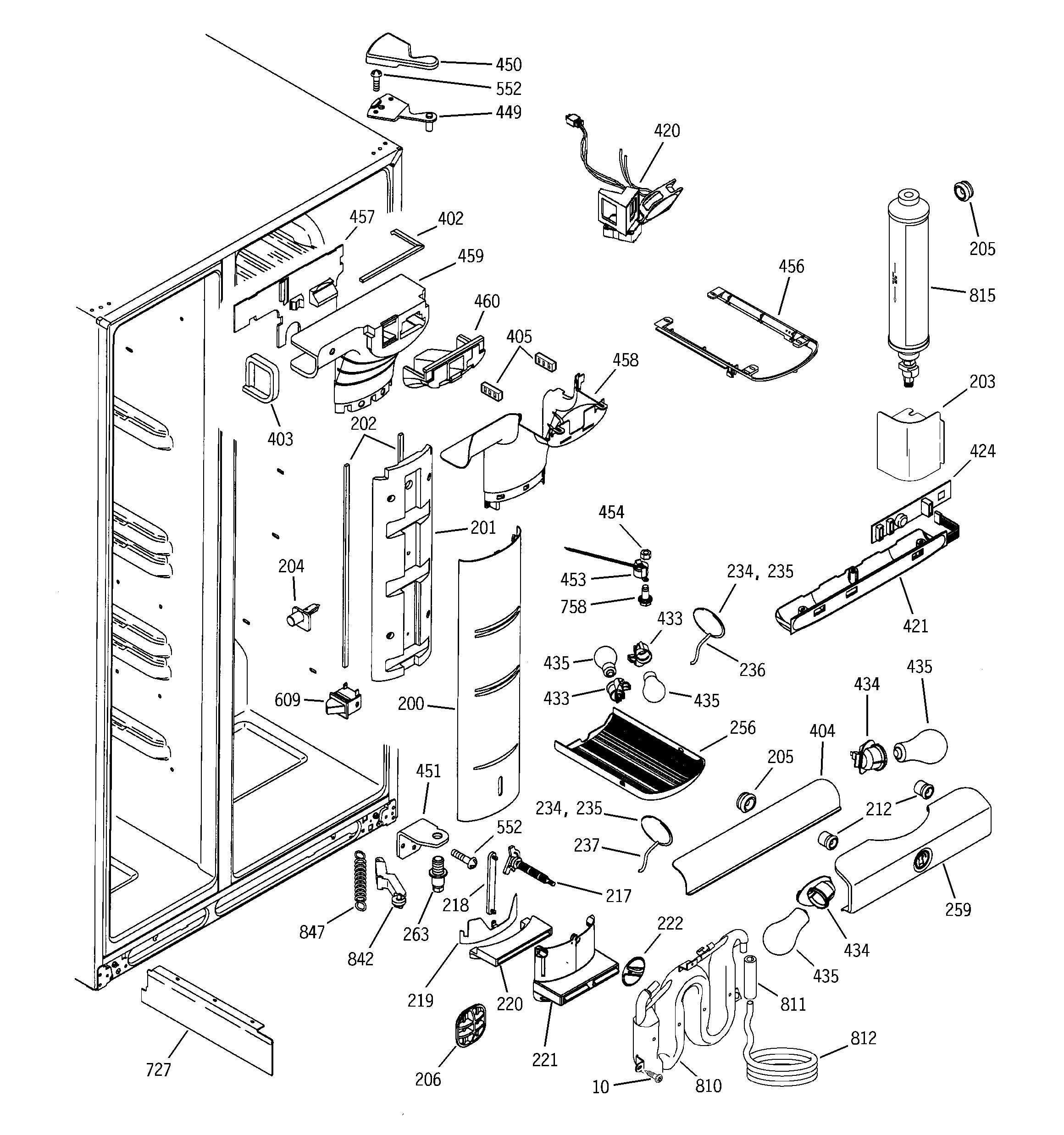

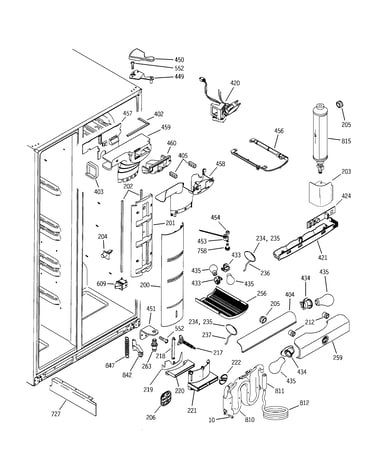

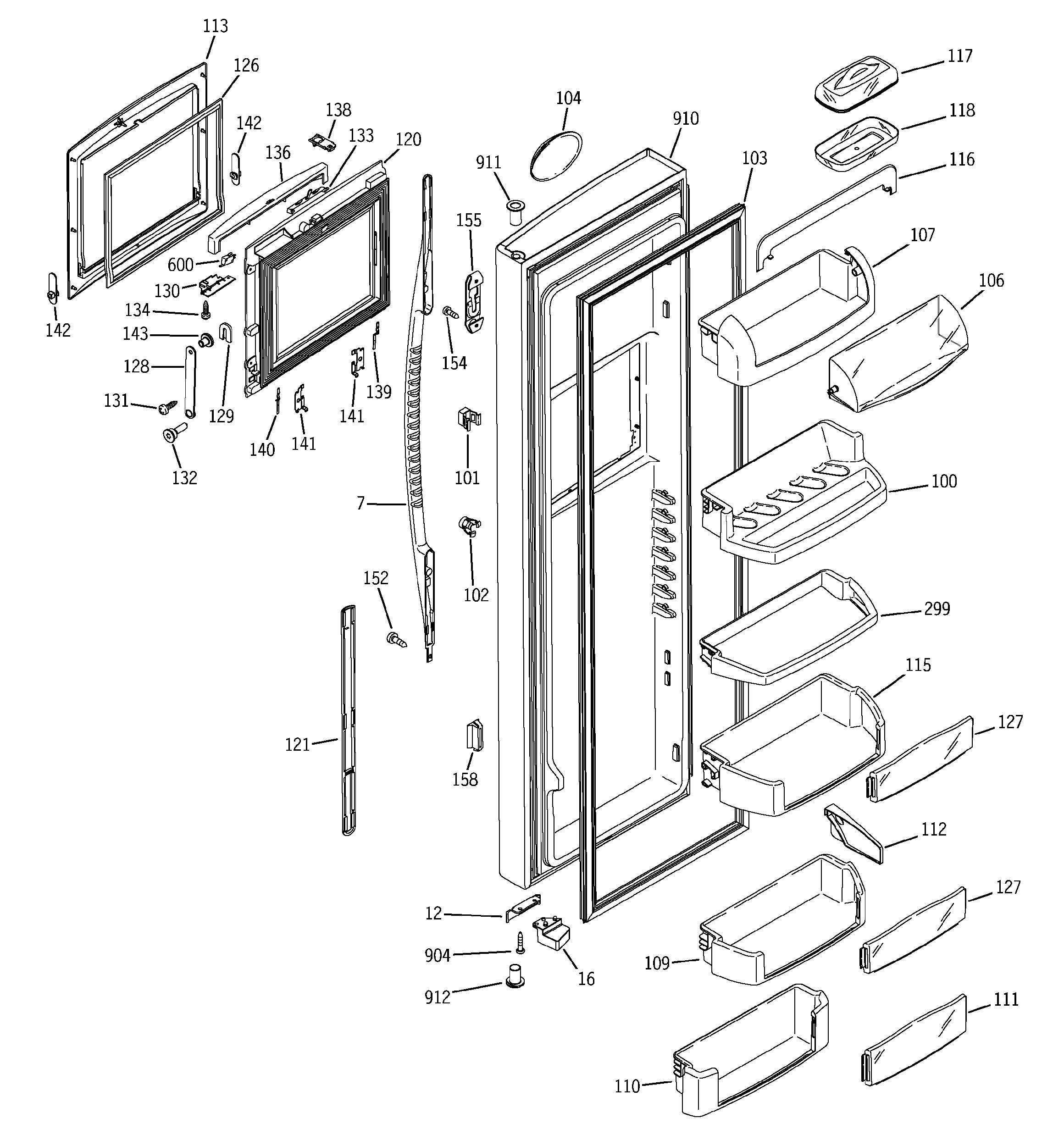

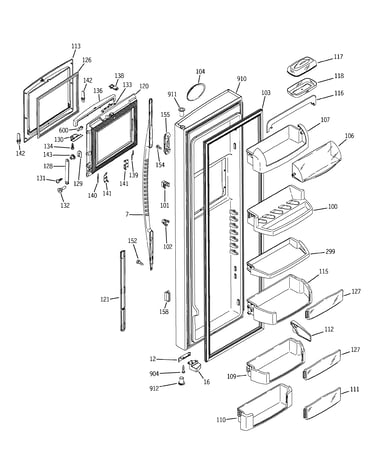

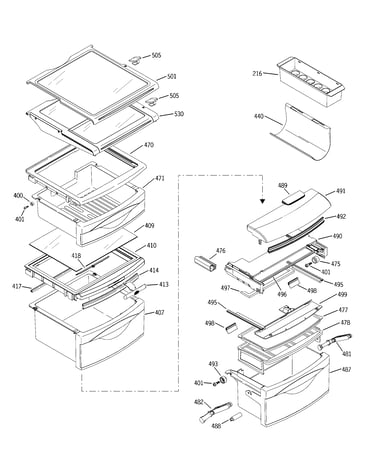

Fresh food section diagram
Refrigerator tubePart #WR17X10732
Replaced by #WR17X2891
?Manufacturer substitutionThis part replaces WR17X10732. Substitute parts can look different from the original.$27.91 |18% OFF Phone Price : $33.91In Stock - #650
Sealed system & mother board diagram
Motor dc conPart #WR60X10065
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10065. Substitute parts can look different from the original.$60.17 |9% OFF Phone Price : $66.17In Stock
