GE
Top-Mount Refrigerator

Model # GTH18GBDHRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE GTH18GBDHRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Refrigerator Capacitor WR55X20800
#729

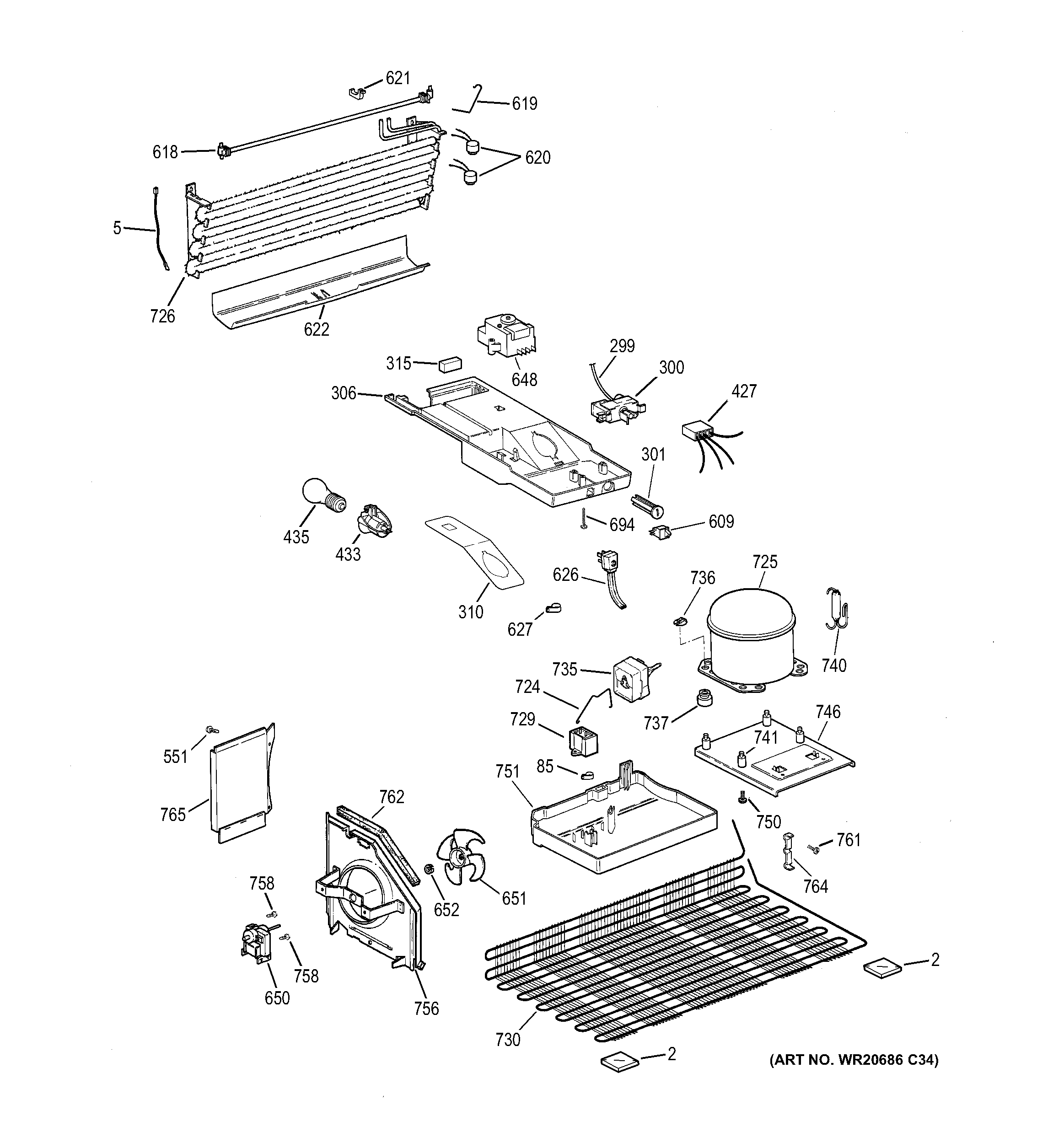

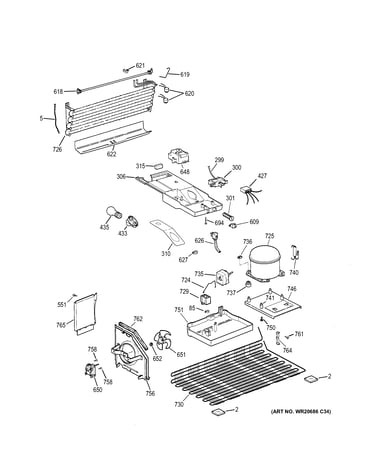

Machine compartment diagram

Refrigerator capacitor

Part #WR55X20800

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR55X20800. Substitute parts can look different from the original.
BEST SELLER
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Refrigerator Evaporator Fan WR60X10346
#610

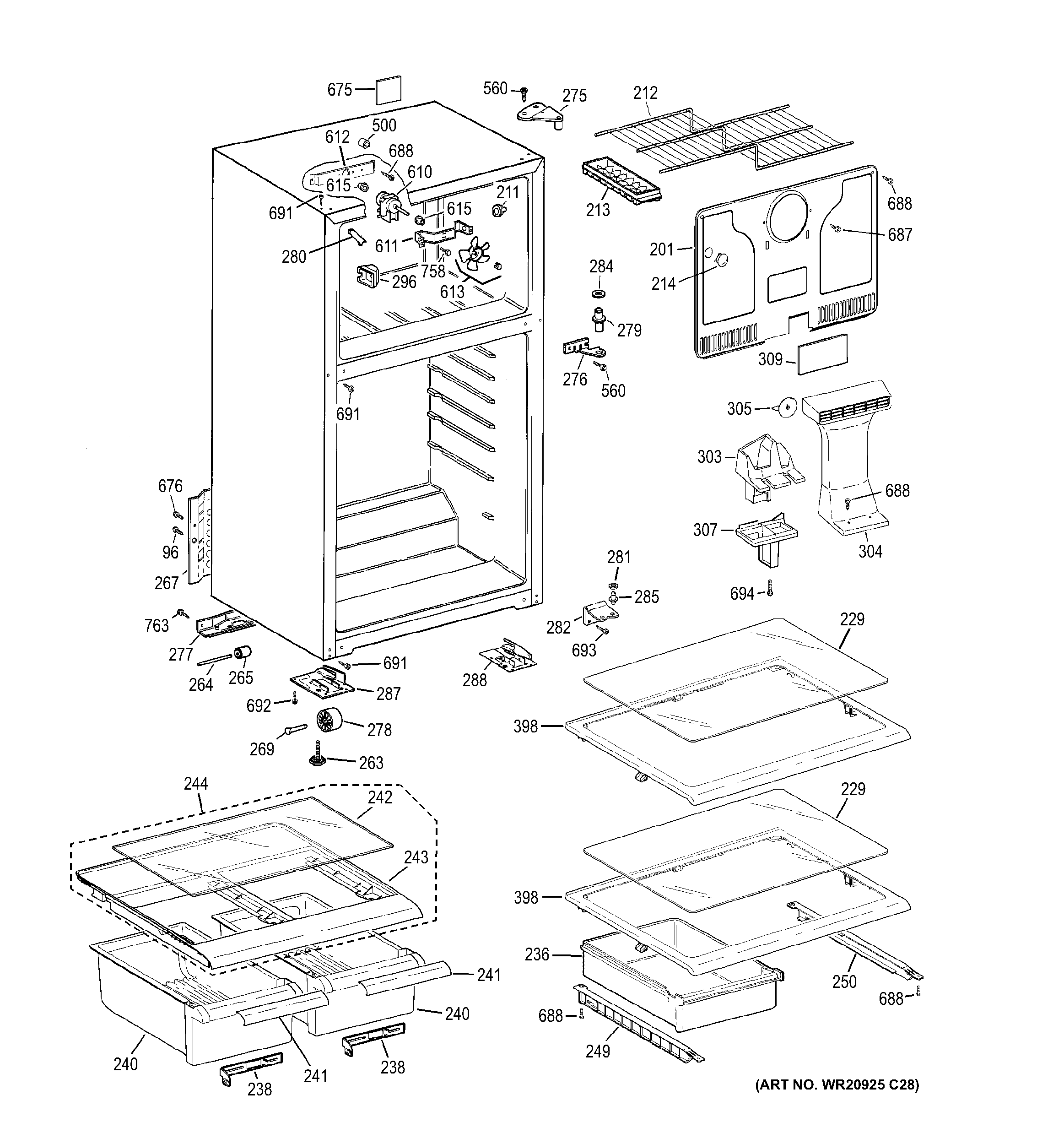

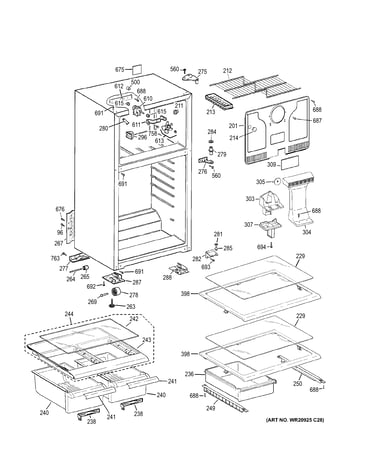

Cabinet diagram

Refrigerator evaporator fan

Part #WR60X10346

Replaced by #WR60X31522

?
Manufacturer substitution
This part replaces WR60X10346. Substitute parts can look different from the original.
BEST SELLER
$64.75 |
8% OFF Phone Price : $70.75
In Stock
Refrigerator Compressor Start Relay (replaces Wr08x10074, Wr08x10111) WR07X10131
#735

Machine compartment diagram

Refrigerator compressor start relay (replaces wr08x10074, wr08x10111)

Part #WR07X10131

BEST SELLER
$39.05 |
13% OFF Phone Price : $45.05
In Stock
Comp. Repl. WR87X10188
#725

Machine compartment diagram

Comp. repl.

Part #WR87X10188

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10188. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Evaporator Fan Motor Grommet WR02X12008
#615

Cabinet diagram

Refrigerator evaporator fan motor grommet

Part #WR02X12008

BEST SELLER
$19.32
In Stock
Refrigerator Condenser Fan Blade (replaces Wr60x10088) WR60X10207
#651

Machine compartment diagram

Refrigerator condenser fan blade (replaces wr60x10088)

Part #WR60X10207

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Door Hinge Nylon Washer WR01X10146
#281

Cabinet diagram

Refrigerator door hinge nylon washer

Part #WR01X10146

Replaced by #WR01X27364

?
Manufacturer substitution
This part replaces WR01X10146. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Refrigerator Defrost Timer WR09X10049
#648

Machine compartment diagram

Refrigerator defrost timer

Part #WR09X10049

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Freezer Door Shelf Rail WR17X11890
#108

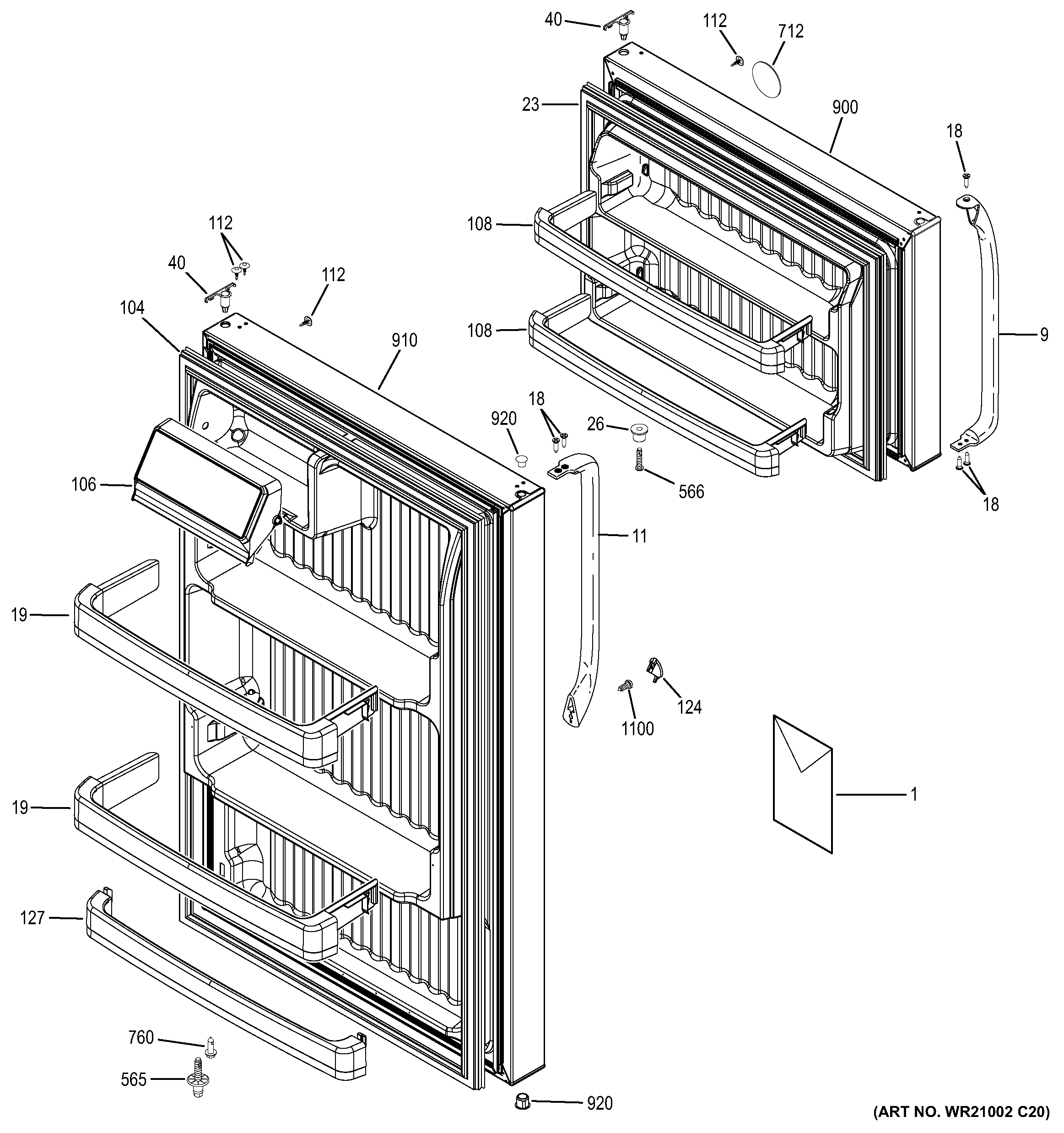

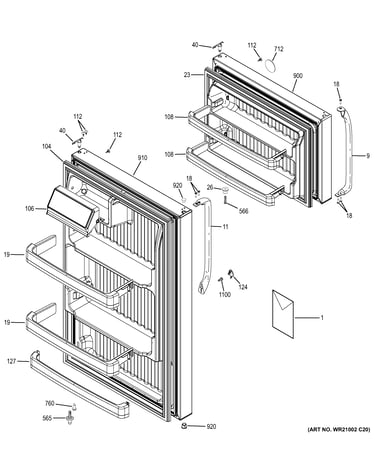

Doors diagram

Refrigerator freezer door shelf rail

Part #WR17X11890

This item is not returnable
$13.72 |
13% OFF Phone Price : $15.72
In Stock
Refrigerator Dairy Bin Cover (replaces Wr22x503) WR22X10068
#106

Doors diagram

Refrigerator dairy bin cover (replaces wr22x503)

Part #WR22X10068

This item is not returnable
$13.84 |
13% OFF Phone Price : $15.84
In Stock
