Model # 72180414500 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72180414500 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

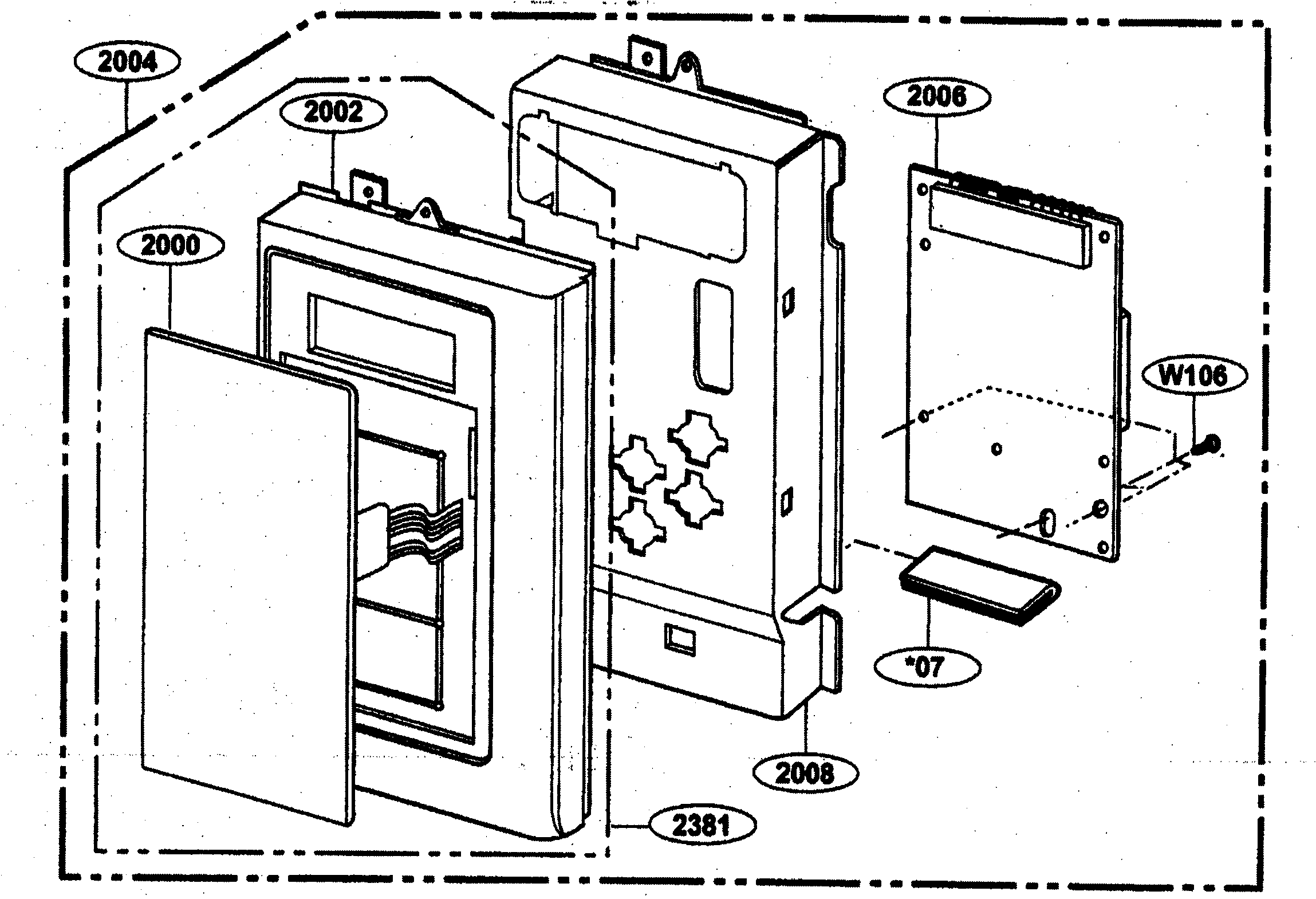

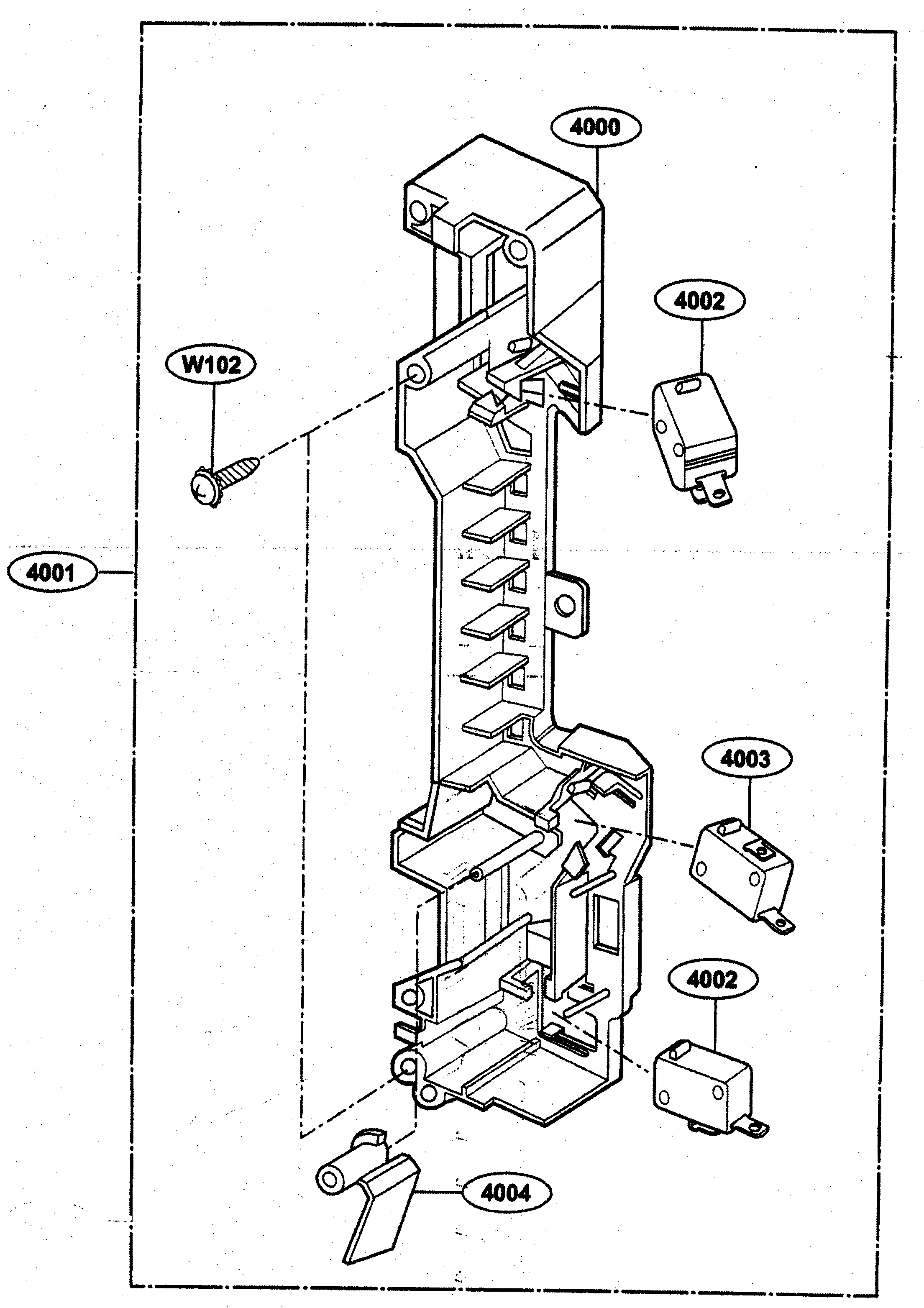

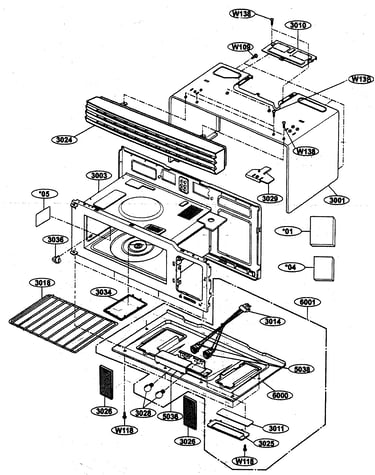

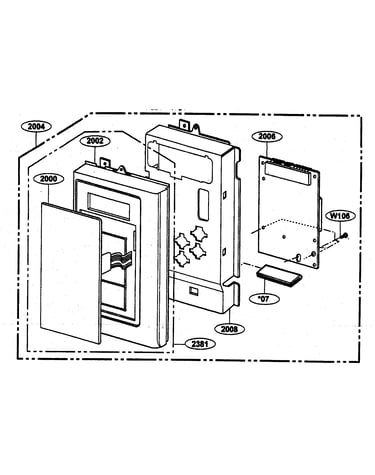

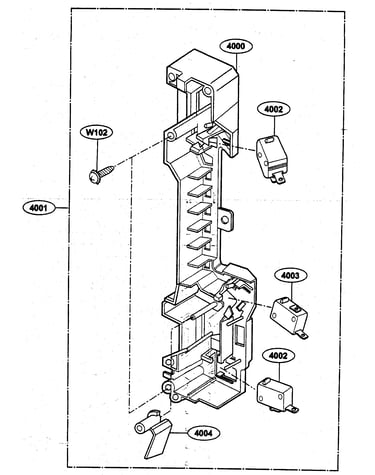

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Microwave Magnetron (replaces 2b71165l, 2b71165p) 2B71165R
#5009

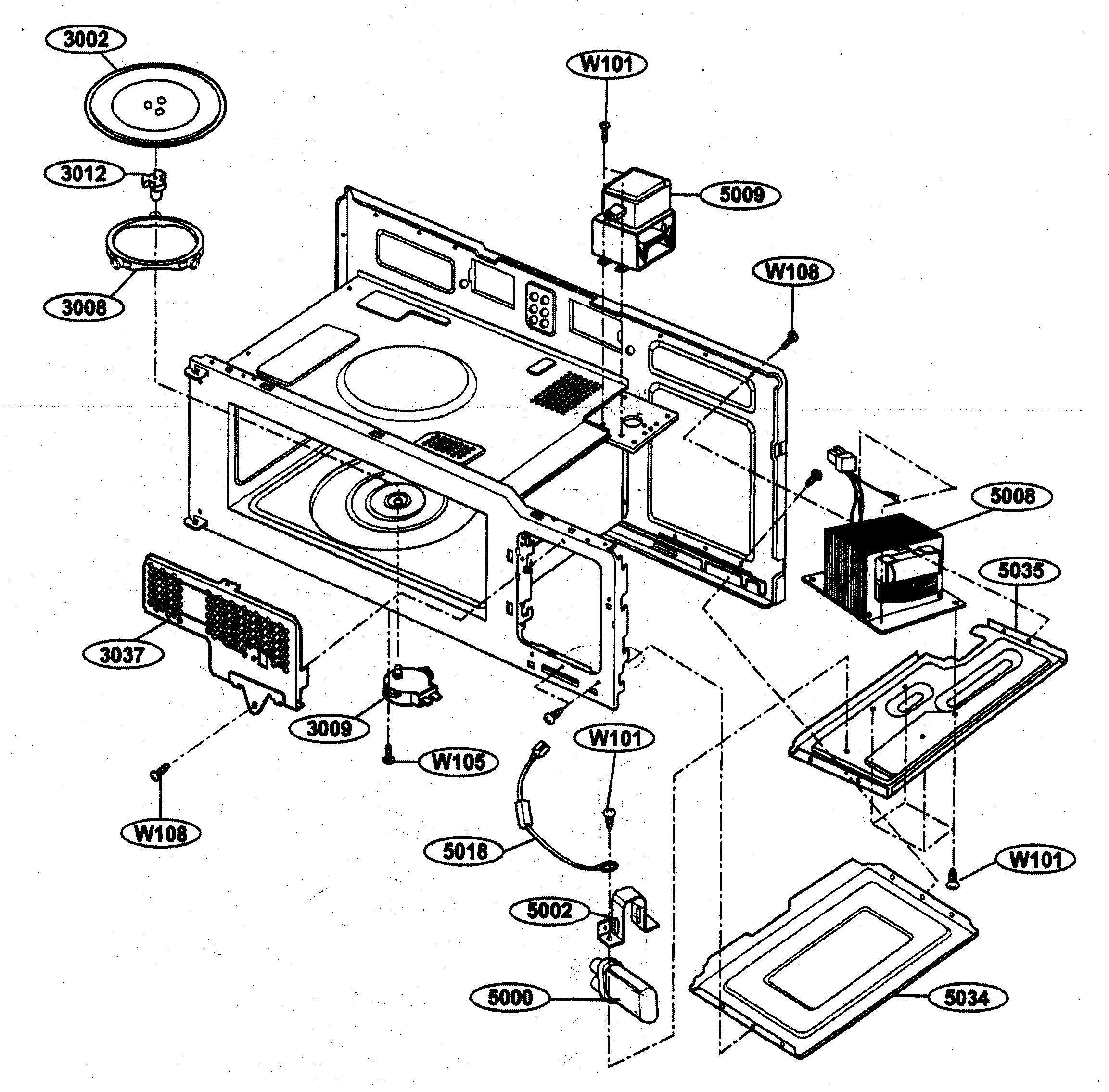

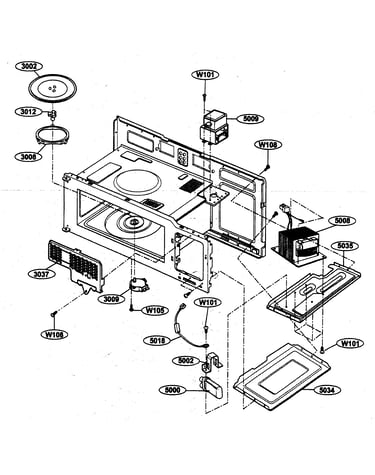

Interior 1 diagram

Microwave magnetron (replaces 2b71165l, 2b71165p)

Part #2B71165R

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave Fuse 3B74133Q
#5001

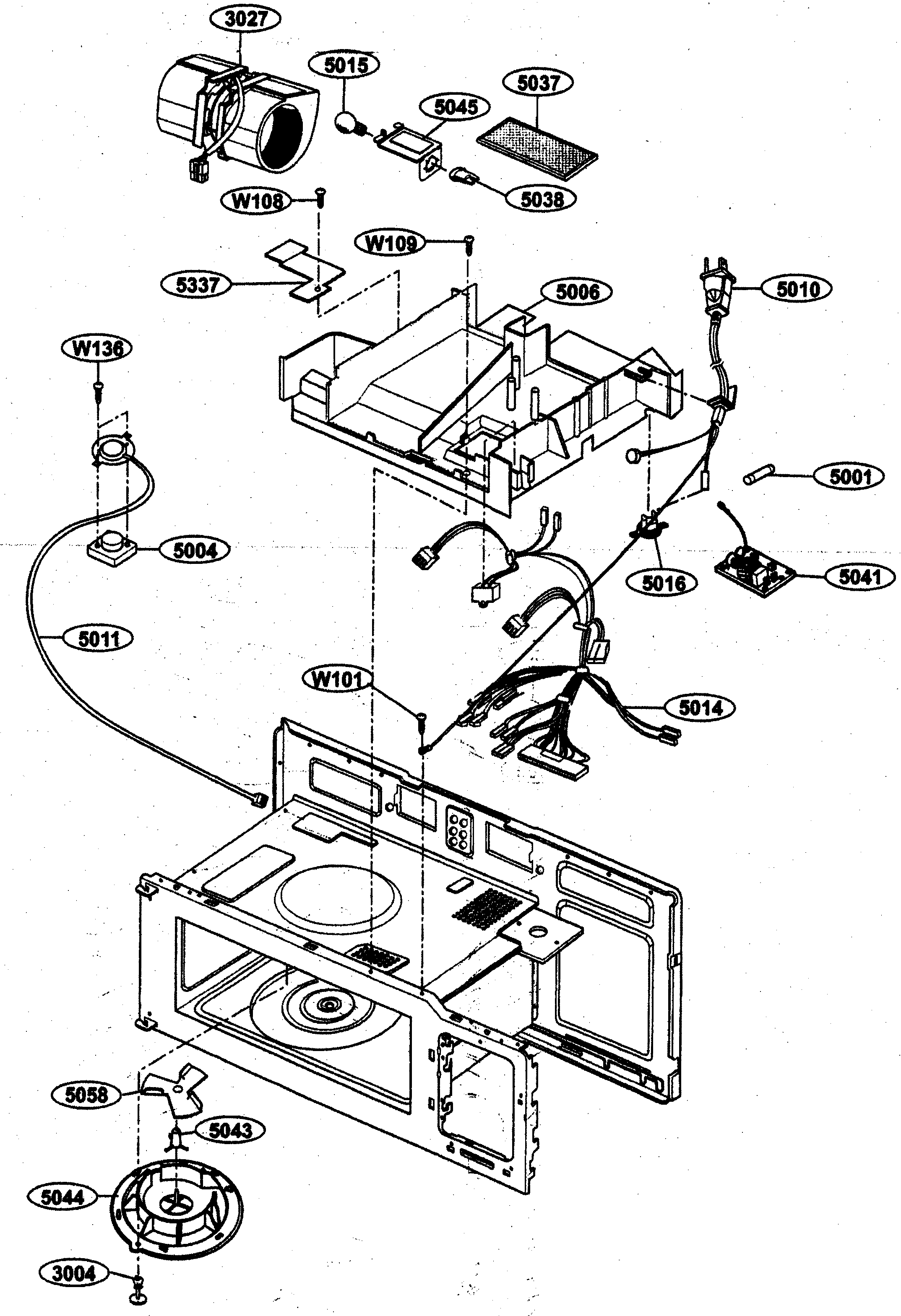

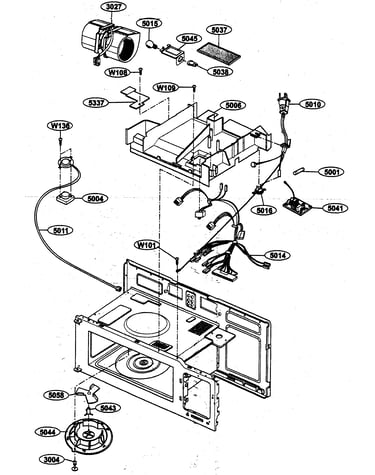

Interiot 2 diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Glass Turntable Tray (replaces 1b71961f) 1B71961H
#3002

Interior 1 diagram

Microwave glass turntable tray (replaces 1b71961f)

Part #1B71961H

BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Door Latch 4026W2A019A
#1006

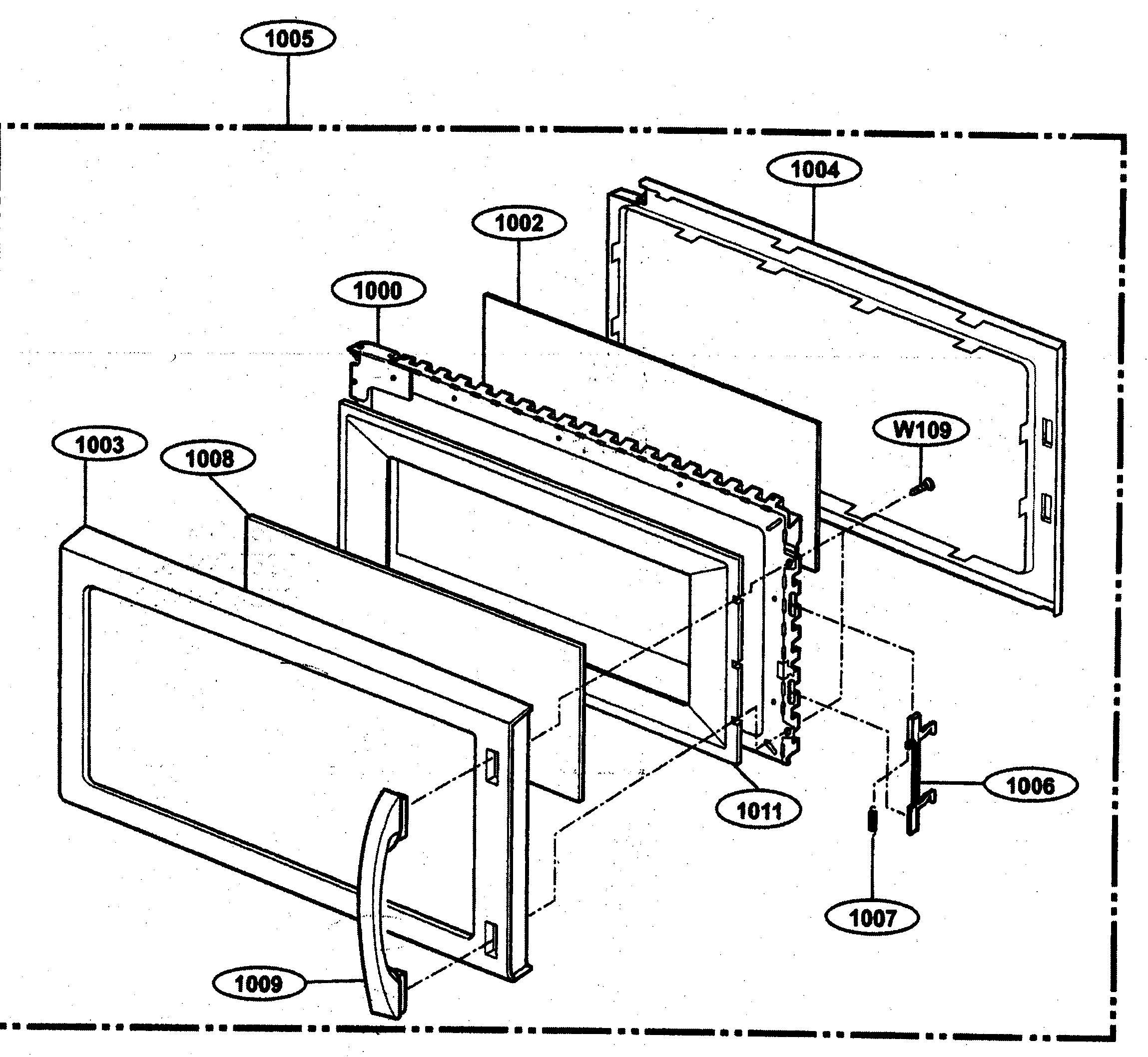

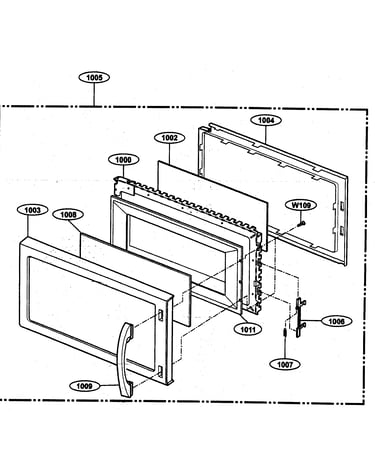

Door panel diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Filter 5230W1A011A
#5037

Interiot 2 diagram

Filter

Part #5230W1A011A

Replaced by #5230W1A011B

?
Manufacturer substitution
This part replaces 5230W1A011A. Substitute parts can look different from the original.
BEST SELLER
$13.07 |
13% OFF Phone Price : $15.07
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

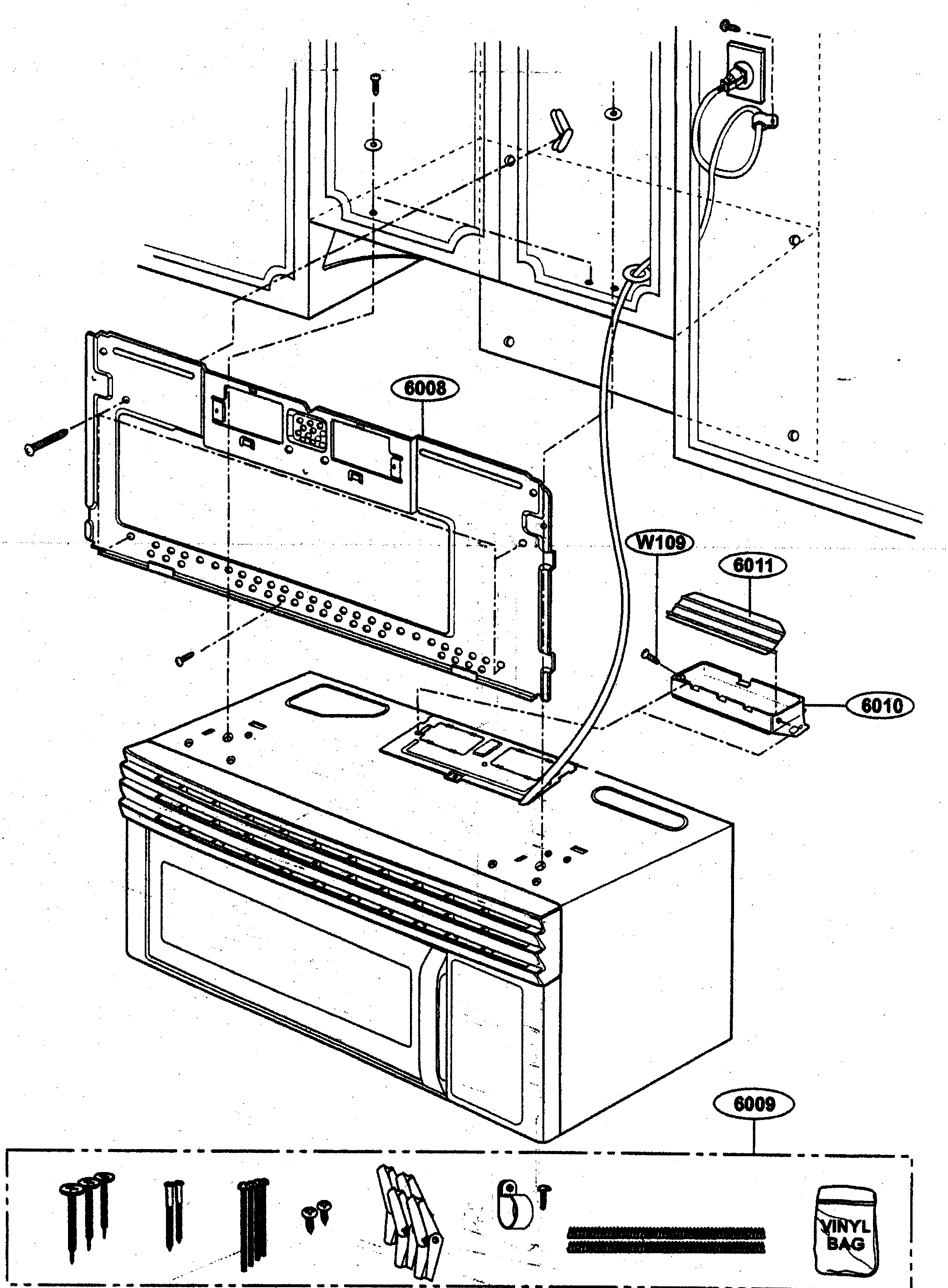

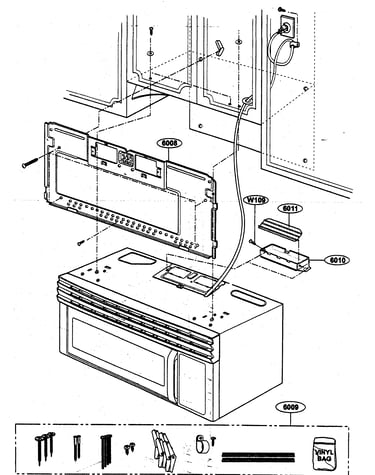

Installation diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Cover 3550W1A126B
#5044

Interiot 2 diagram

Cover

Part #3550W1A126B

Replaced by #3550W1A126D

?
Manufacturer substitution
This part replaces 3550W1A126B. Substitute parts can look different from the original.
BEST SELLER
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Door Latch Spring 4970WRA001G
#1007

Door panel diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Microwave Turntable Motor Coupler (replaces 3b72373a, 3b72373d) 4370W1A006B
#3012

Interior 1 diagram

Microwave turntable motor coupler (replaces 3b72373a, 3b72373d)

Part #4370W1A006B

BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

Interiot 2 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
