Crosley
Gas Range

Model # CRG3120LWC Official Crosley gas range

Here are the diagrams and repair parts for Official Crosley CRG3120LWC gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

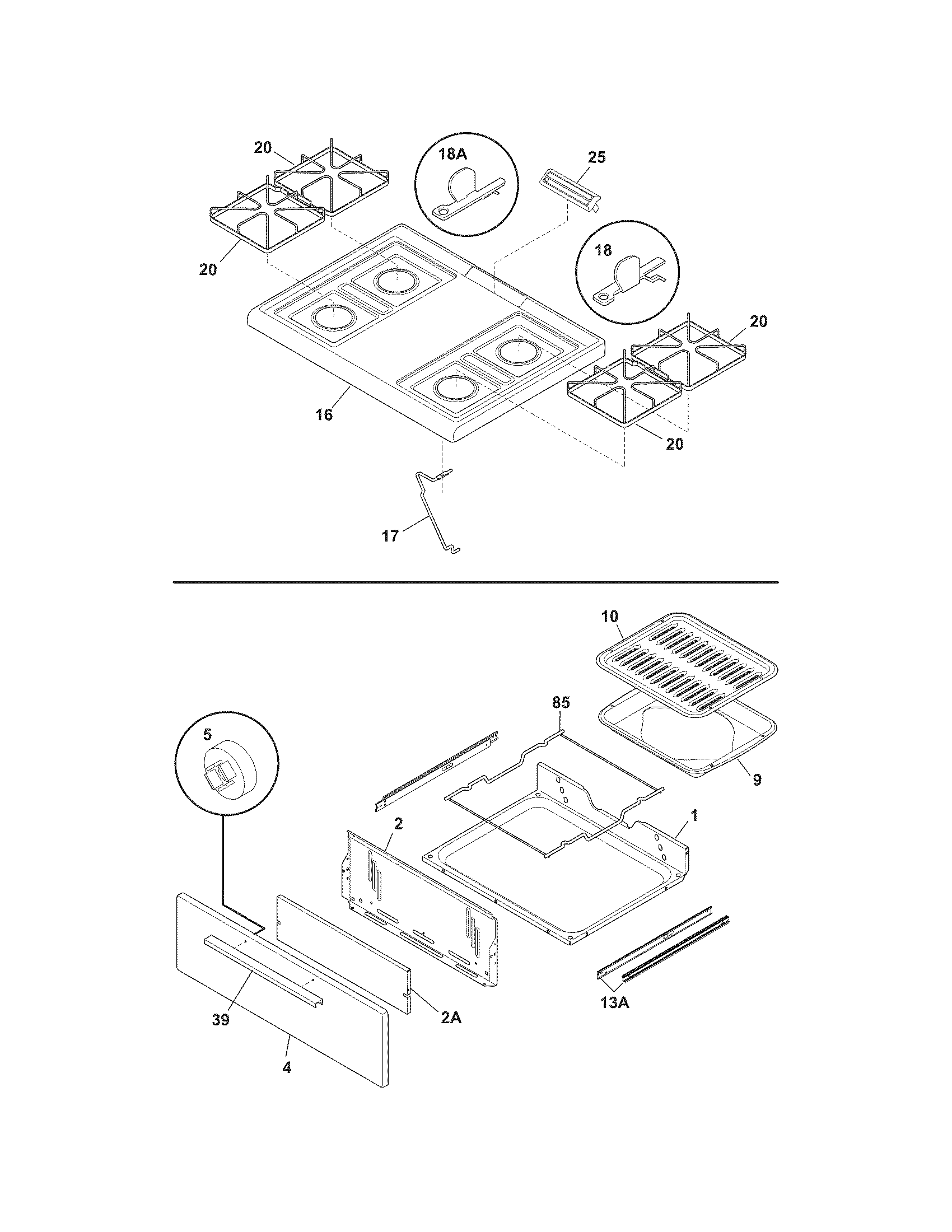

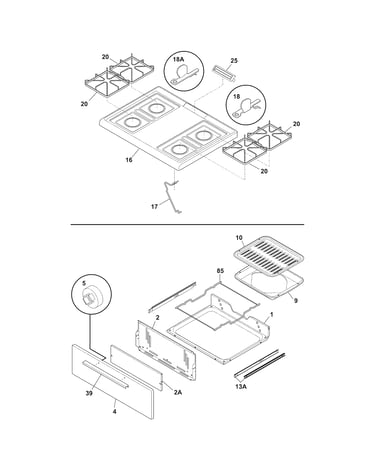

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Range Oven Burner Igniter 316489402
#19

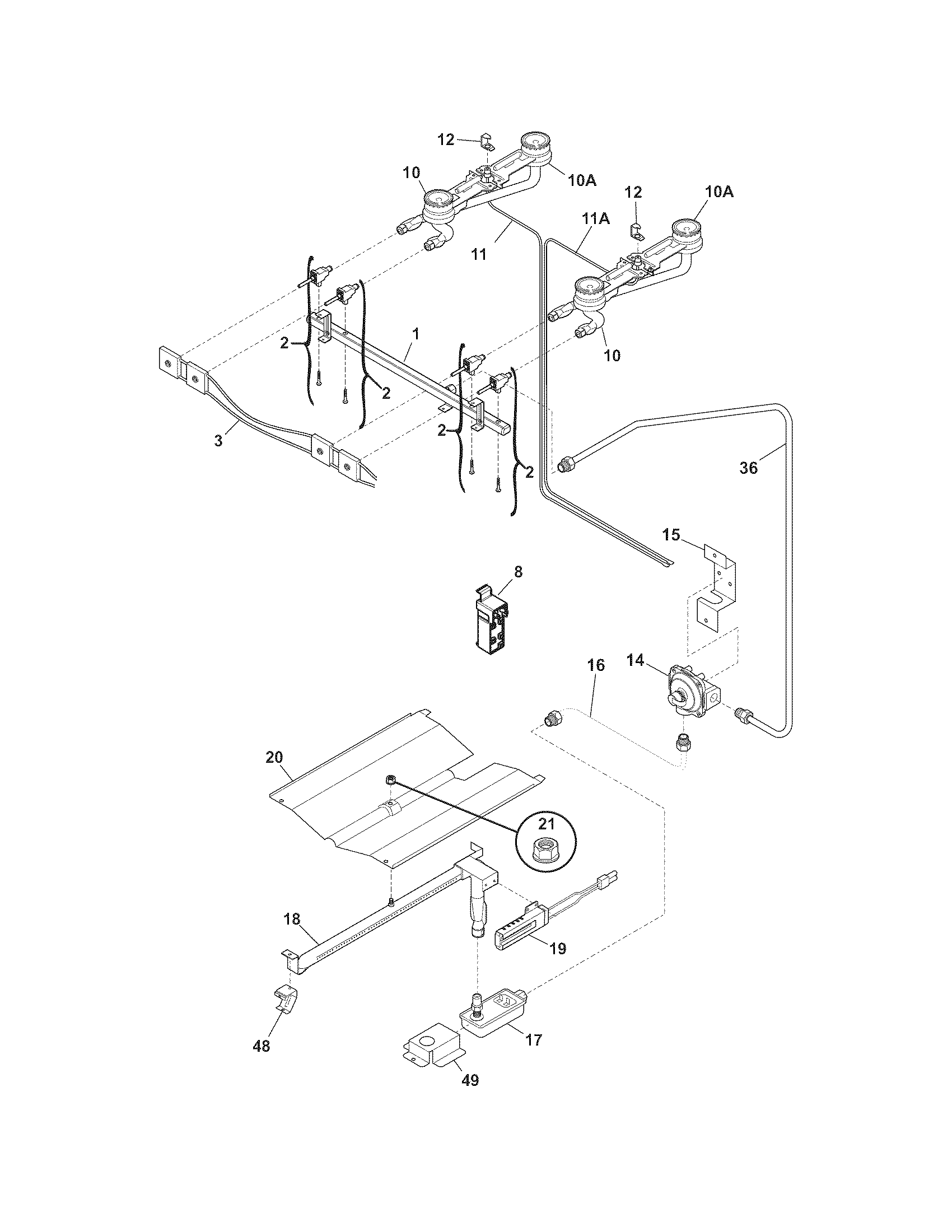

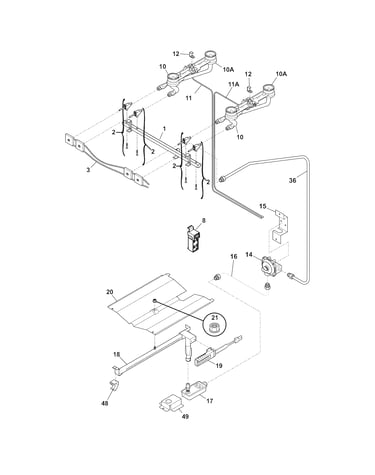

Burner diagram

Range oven burner igniter

Part #316489402

Replaced by #5304509706

?
Manufacturer substitution
This part replaces 316489402. Substitute parts can look different from the original.
BEST SELLER
$120.14 |
9% OFF Phone Price : $132.14
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$66.32 |
8% OFF Phone Price : $72.32
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

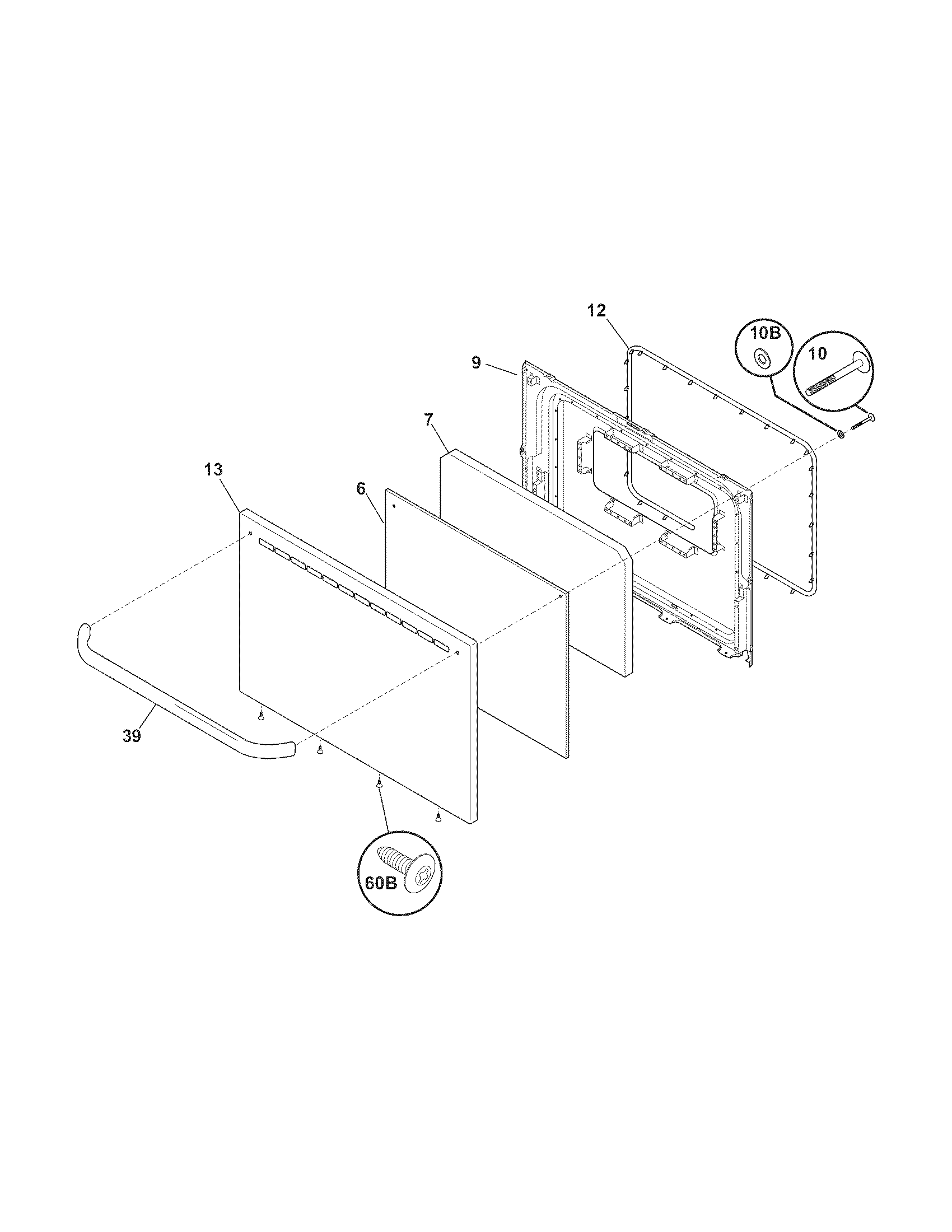

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Spark Module 316262402
#8

Burner diagram

Range spark module

Part #316262402

Replaced by #808608801

?
Manufacturer substitution
This part replaces 316262402. Substitute parts can look different from the original.
BEST SELLER
$66.49 |
8% OFF Phone Price : $72.49
In Stock
Range Leveling Leg 316498900
#5A

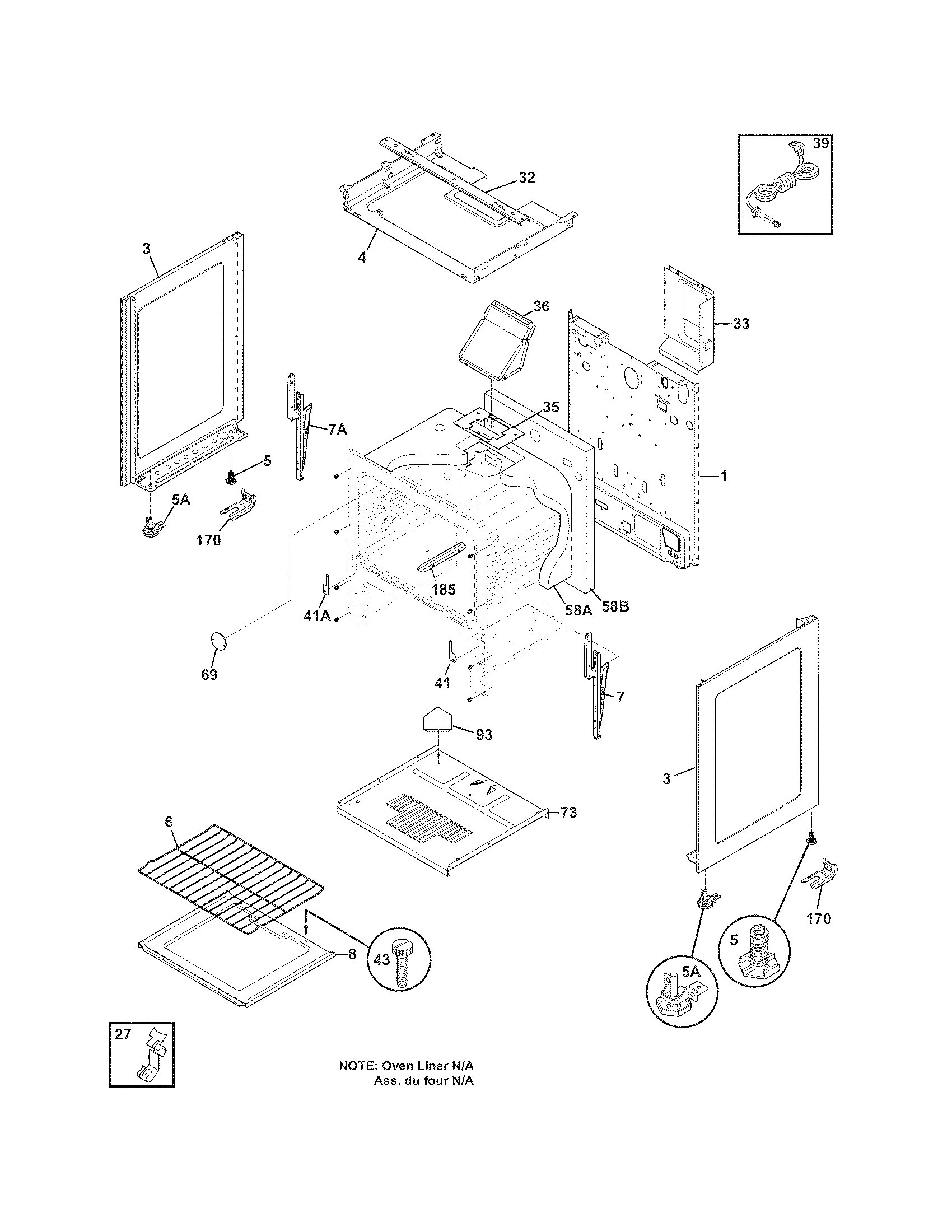

Body diagram

Range leveling leg

Part #316498900

Replaced by #5304509869

?
Manufacturer substitution
This part replaces 316498900. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.89 |
15% OFF Phone Price : $6.89
In Stock
Universal/multiflex (frigidaire) Range Oven Door Seal 316239700
#12

Door diagram

Universal/multiflex (frigidaire) range oven door seal

Part #316239700

$90.91 |
6% OFF Phone Price : $96.91
In Stock
Range Surface Burner 316103802
#10

Burner diagram

Range surface burner

Part #316103802

Replaced by #5304506427

?
Manufacturer substitution
This part replaces 316103802. Substitute parts can look different from the original.
$63.08 |
9% OFF Phone Price : $69.08
In Stock
Cord 3202006
#39

Body diagram

Cord

Part #3202006

Replaced by #5304515659

?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
$29.60 |
17% OFF Phone Price : $35.60
In Stock
Range Oven Burner 316114300
#18

Burner diagram

Range oven burner

Part #316114300

$101.60 |
11% OFF Phone Price : $113.60
In Stock
Range Screw, #8-32 X 3/16-in (replaces 5304497581, 73201-2580) 5303288565
#NI

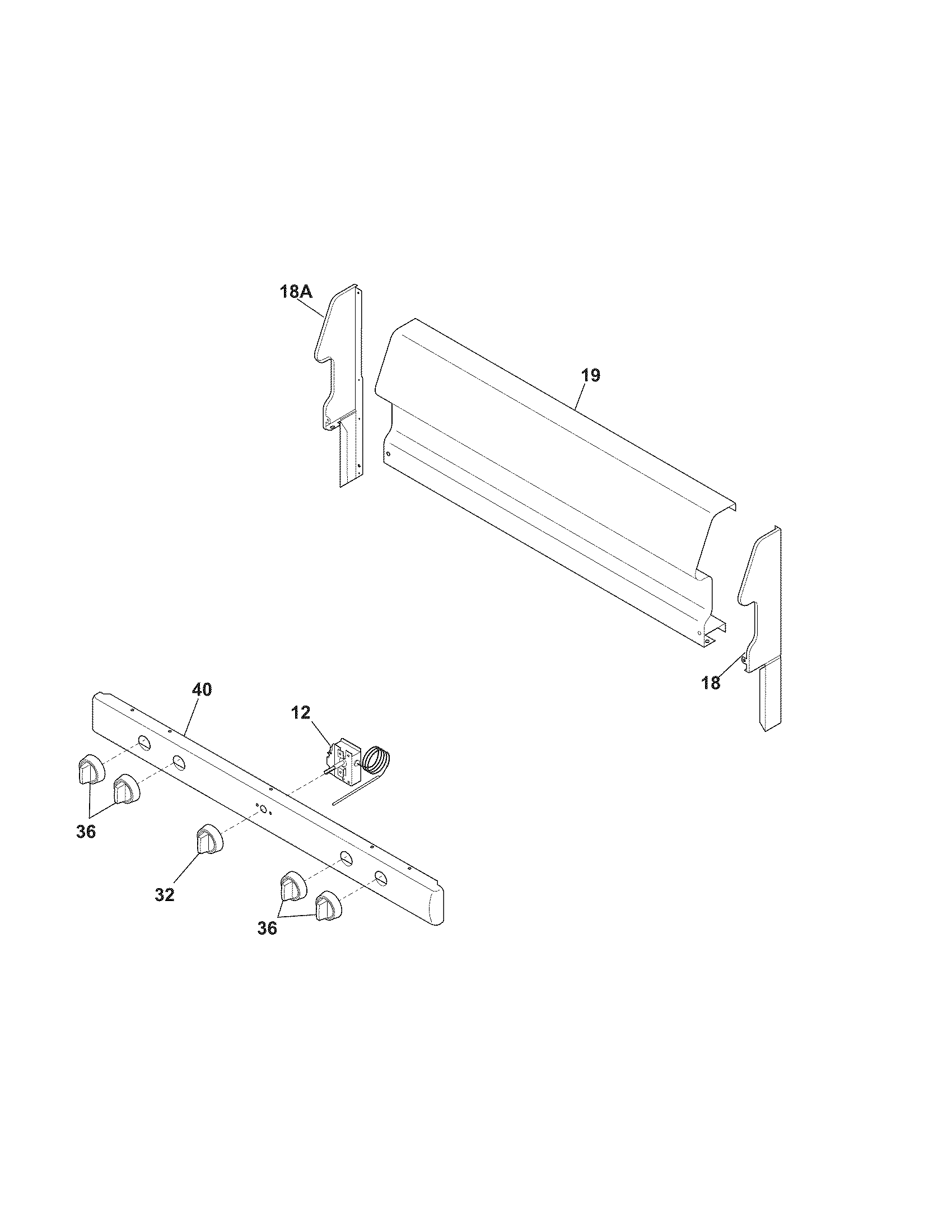

Backguard diagram

Range screw, #8-32 x 3/16-in (replaces 5304497581, 73201-2580)

Part #5303288565

This item is not returnable
$3.43
In Stock
