Model # LW8203W-P1163212WW Official Amana washer
Here are the diagrams and repair parts for Official Amana LW8203W-P1163212WW washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forLW8203W-P1163212WW Washer
- #6

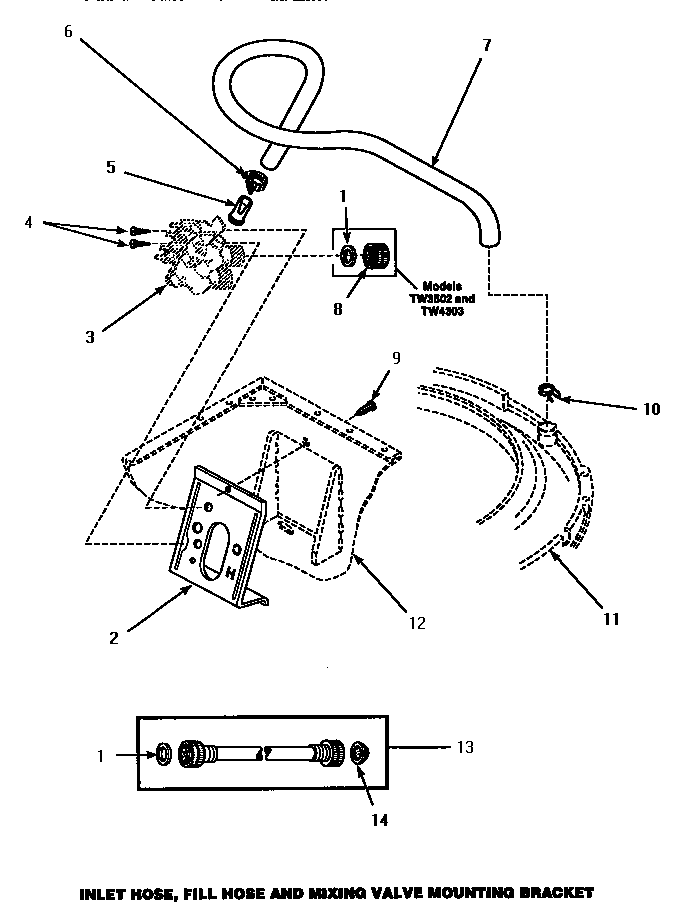

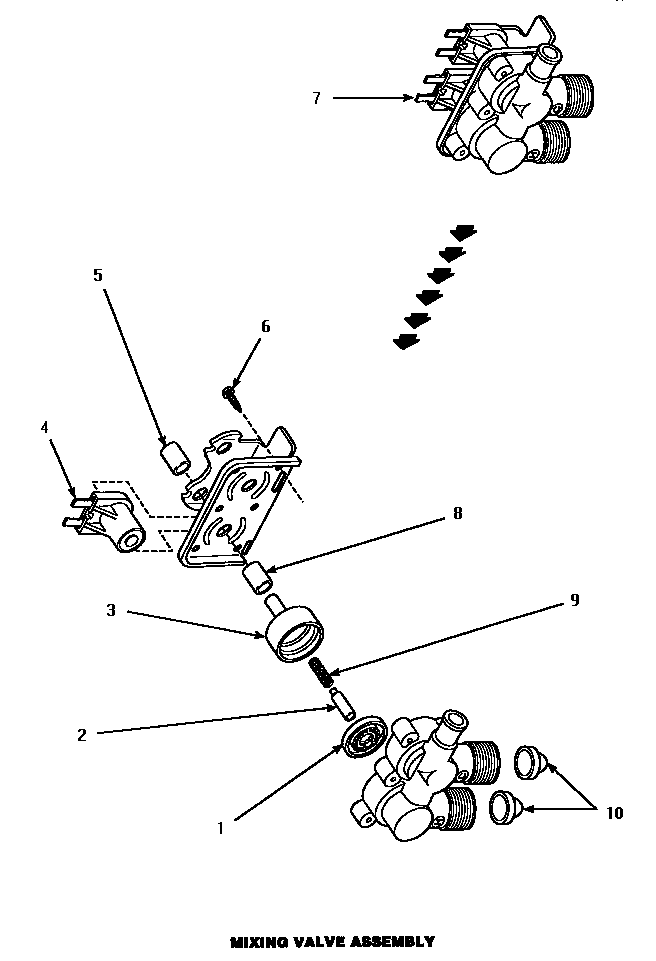

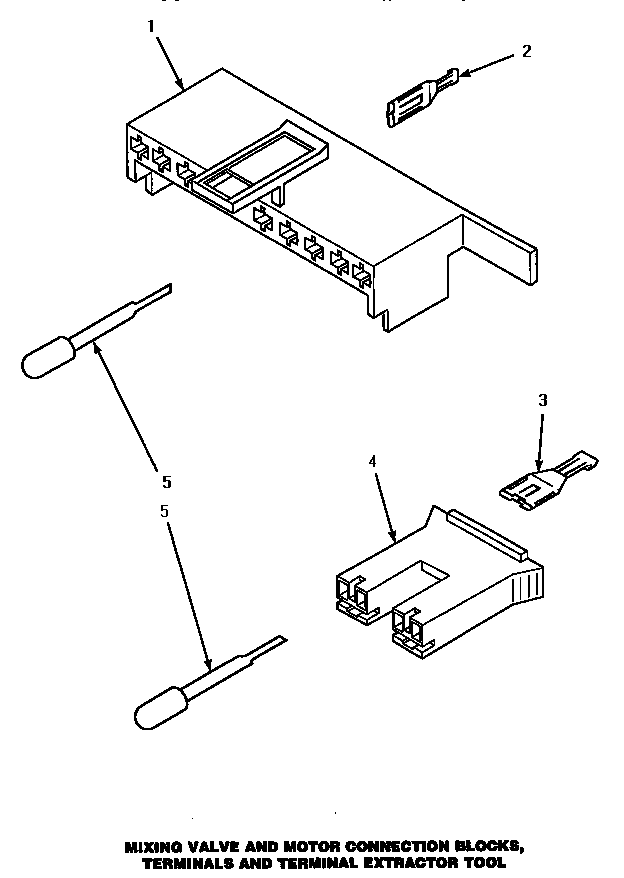

Inlet hose, fill hose & mixing valve mounting bracket (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
Hose clampPart #27643
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 27643. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #7

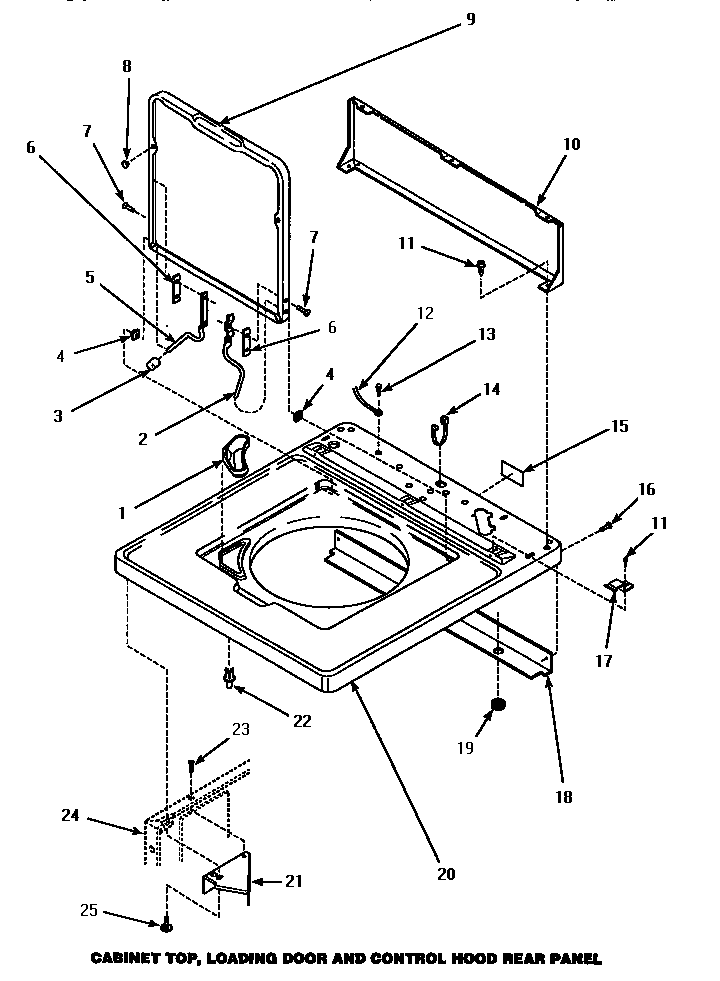

Cabinet top, loading door & control hood rear panel (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
ScrewPart #34337
Replaced by #WPW10119828
?Manufacturer substitutionThis part replaces 34337. Substitute parts can look different from the original.This item is not returnable$3.58 |22% OFF Phone Price : $4.58In Stock - Clamp
Part #35384
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 35384. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #10

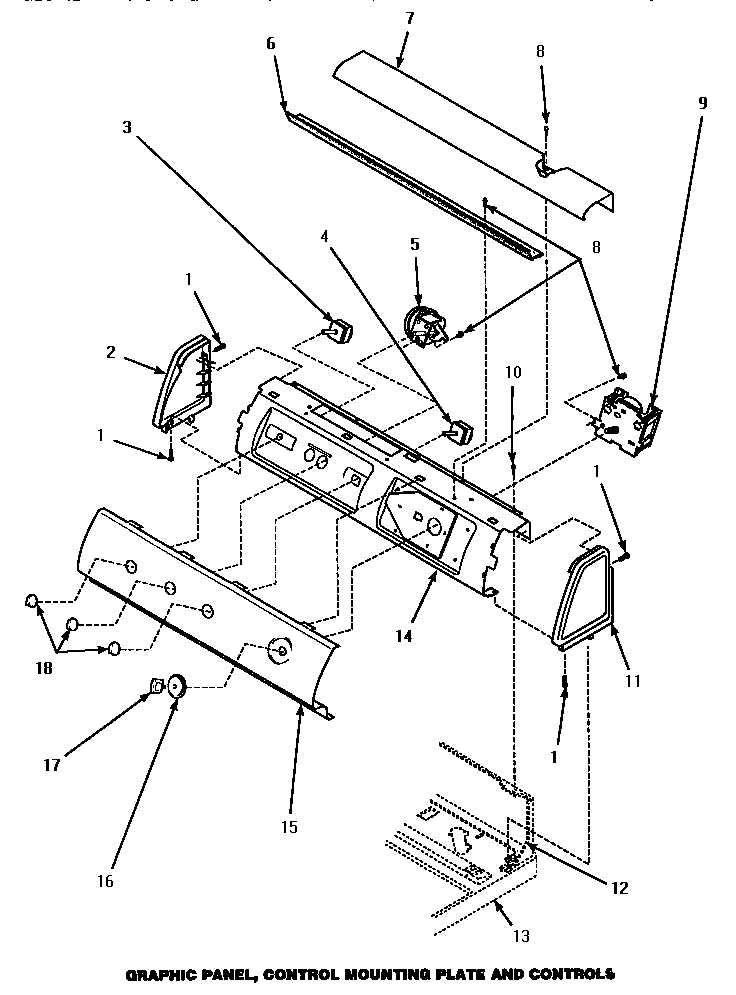

Graphic panel, control mounting plate & controls (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
ScrewPart #34904
Replaced by #W11233072
?Manufacturer substitutionThis part replaces 34904. Substitute parts can look different from the original.$16.43 |11% OFF Phone Price : $18.43In Stock - #6

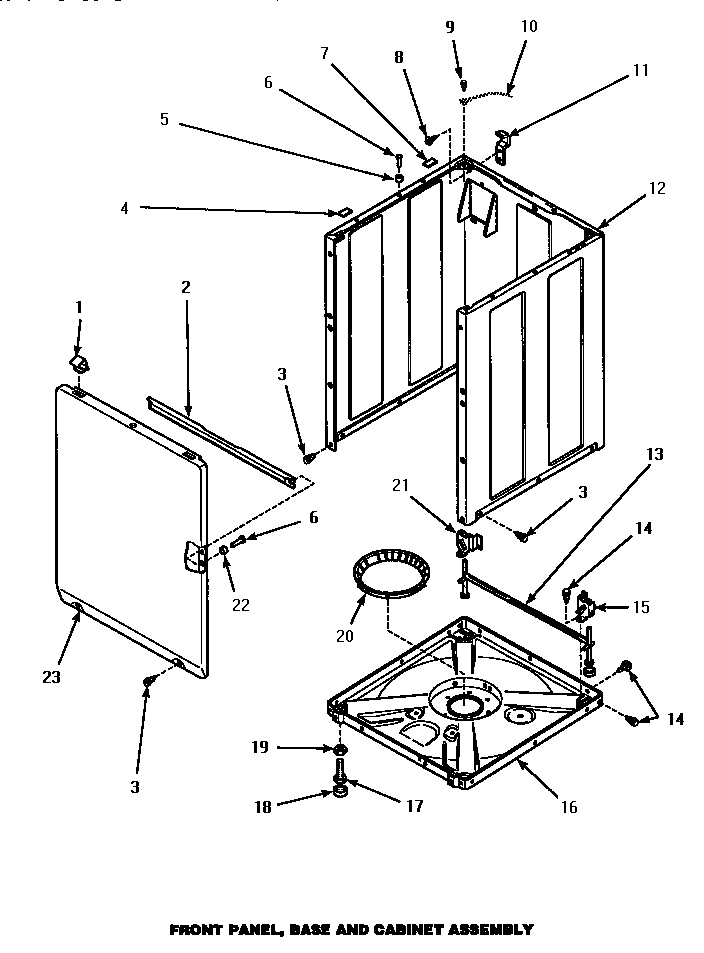

Front panel, base & cabinet assembly (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
ScrewPart #32671
Replaced by #WPY014874
?Manufacturer substitutionThis part replaces 32671. Substitute parts can look different from the original.This item is not returnable$4.33 |19% OFF Phone Price : $5.33In Stock - #9

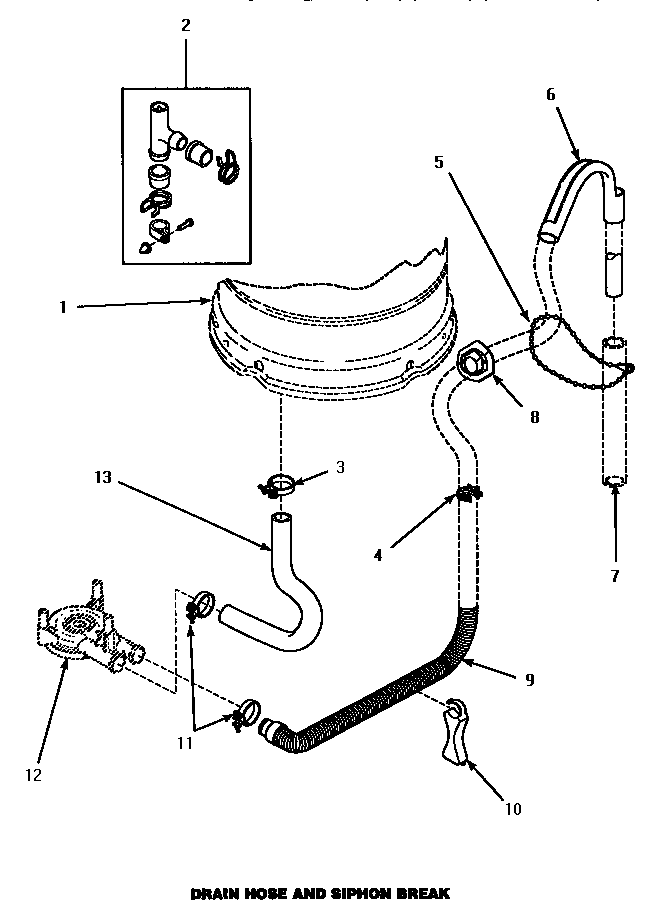

Drain hose & siphon break (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
Drain hosePart #34502
Replaced by #WP40053901
?Manufacturer substitutionThis part replaces 34502. Substitute parts can look different from the original.$41.61 |13% OFF Phone Price : $47.61In Stock - #9

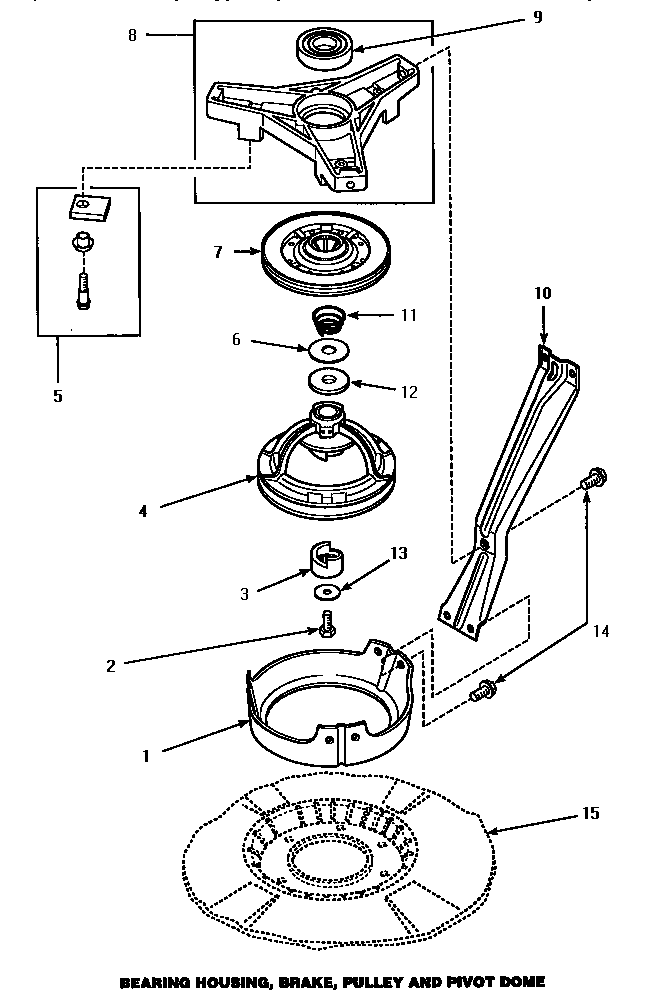

Bearing housing, brake, pulley & pivot dome (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
BearingPart #28944R
Replaced by #WP40004001
?Manufacturer substitutionThis part replaces 28944R. Substitute parts can look different from the original.$52.03 |10% OFF Phone Price : $58.03In Stock - #11

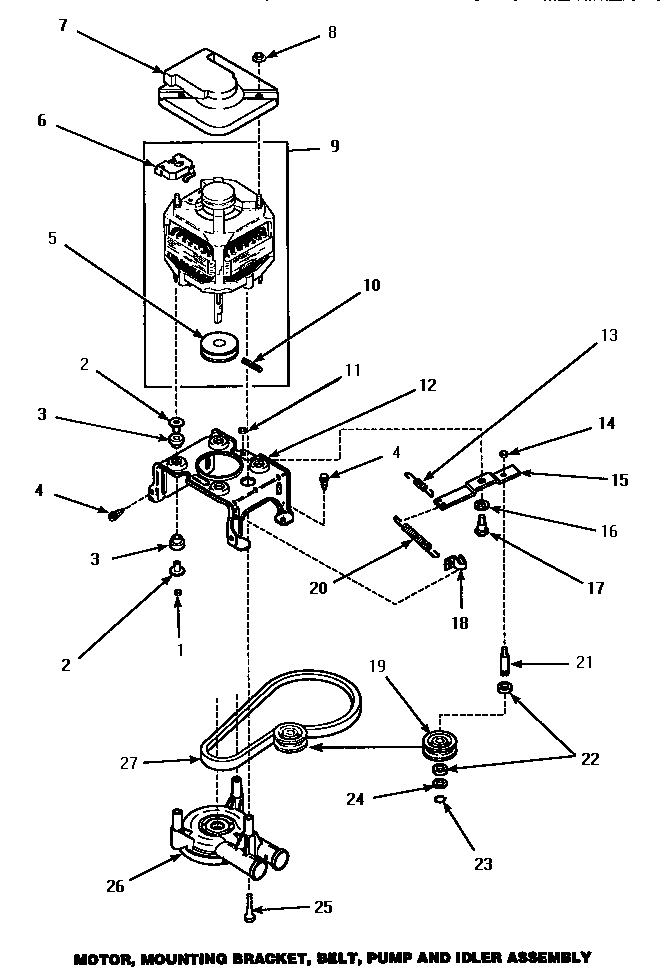

Motor, mounting bracket, belt, pump & idler assembly (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
Hex nutPart #52566
Replaced by #WPW10139757
?Manufacturer substitutionThis part replaces 52566. Substitute parts can look different from the original.$33.28In Stock - #14
Inlet hose, fill hose & mixing valve mounting bracket (cw8203w/pcw8203w) (cw8403w/p1163311ww) (lw8203w/p1163212ww) (lw8403w/p1163305ww) diagram
WasherPart #28605
Replaced by #WP22002960
?Manufacturer substitutionThis part replaces 28605. Substitute parts can look different from the original.$6.60 |13% OFF Phone Price : $7.60In Stock #NI

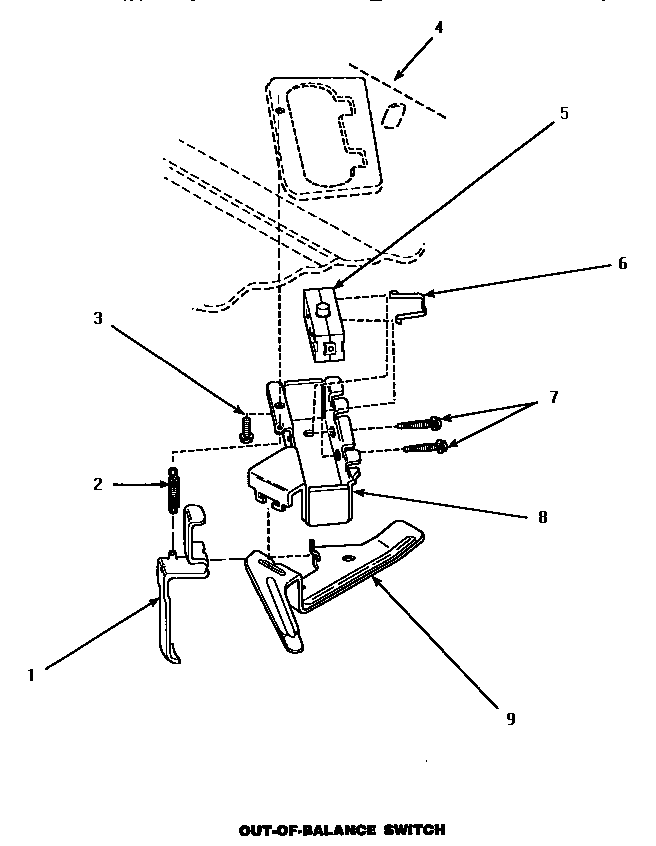

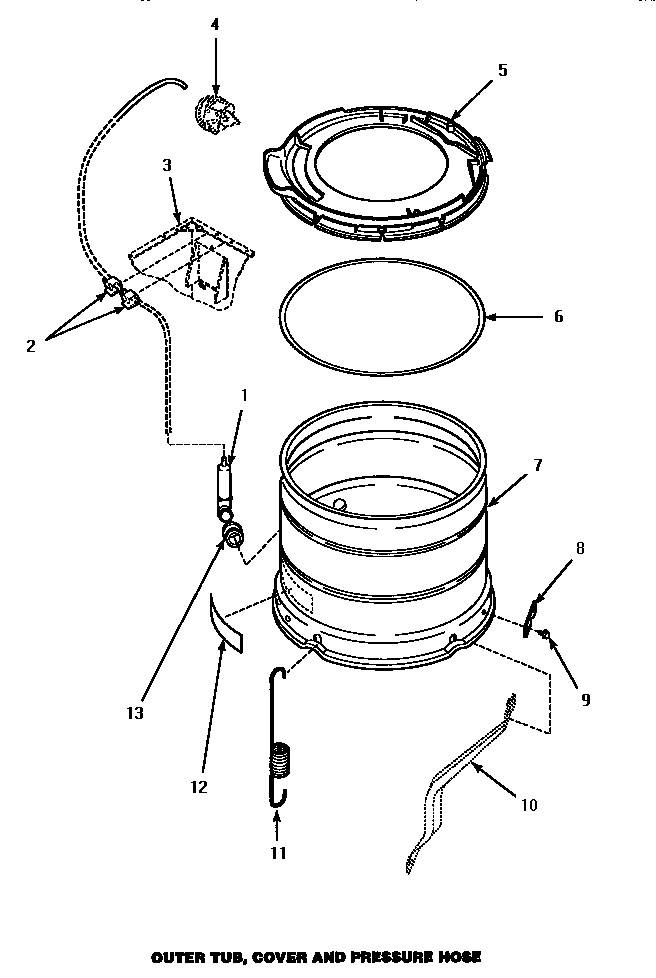

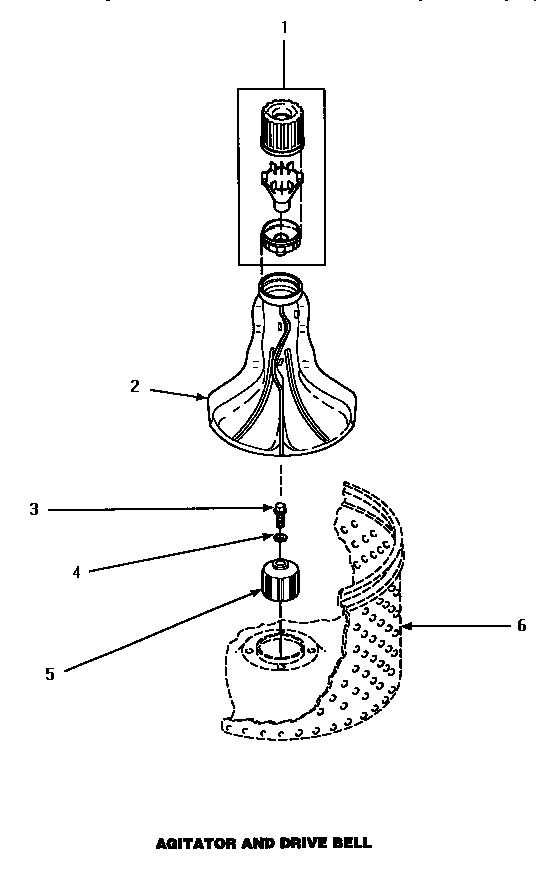

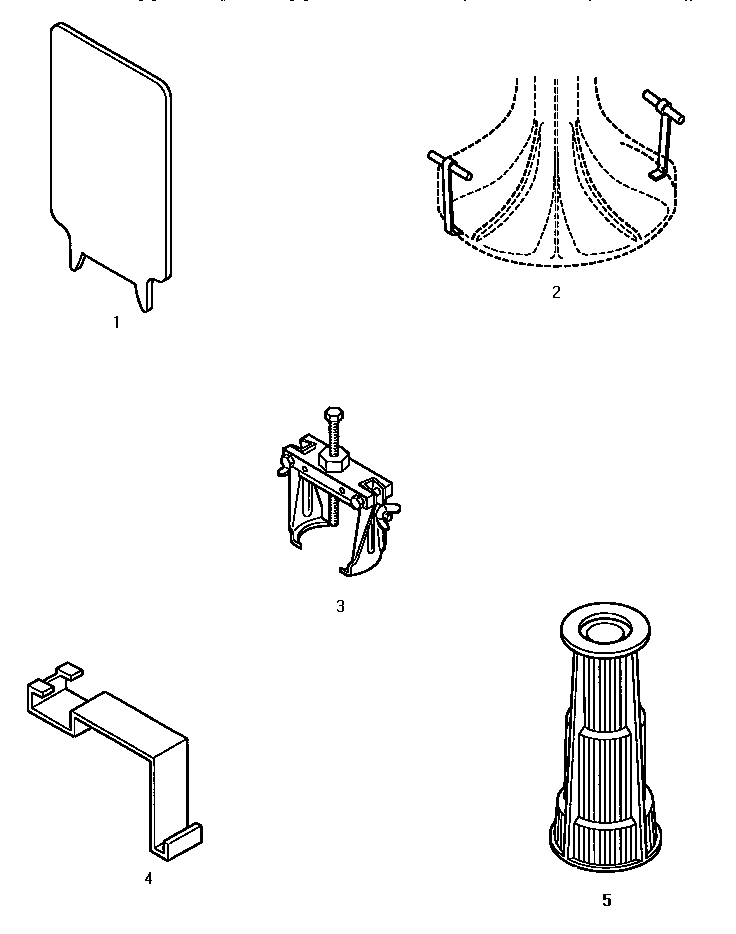

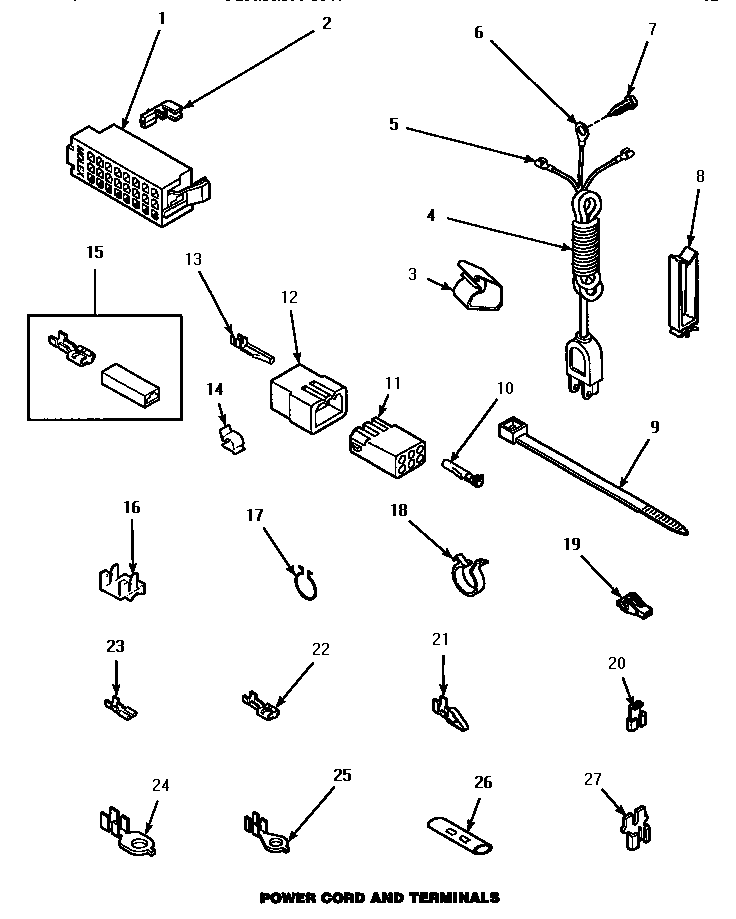

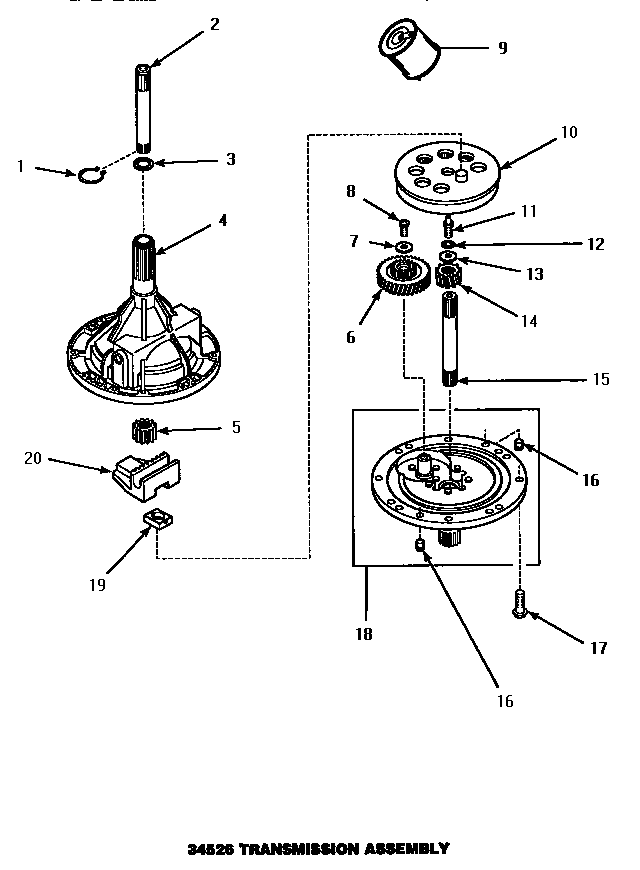

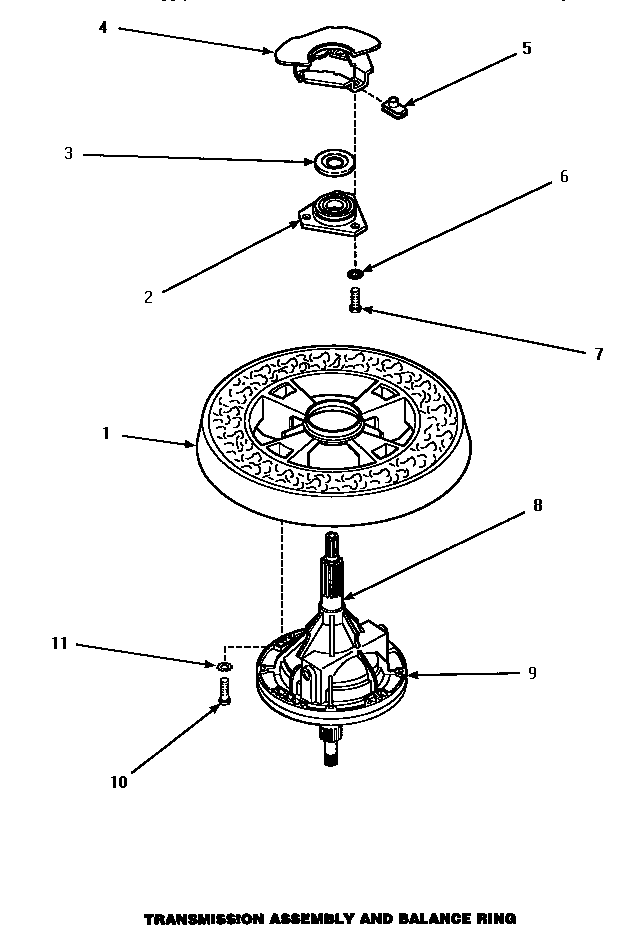

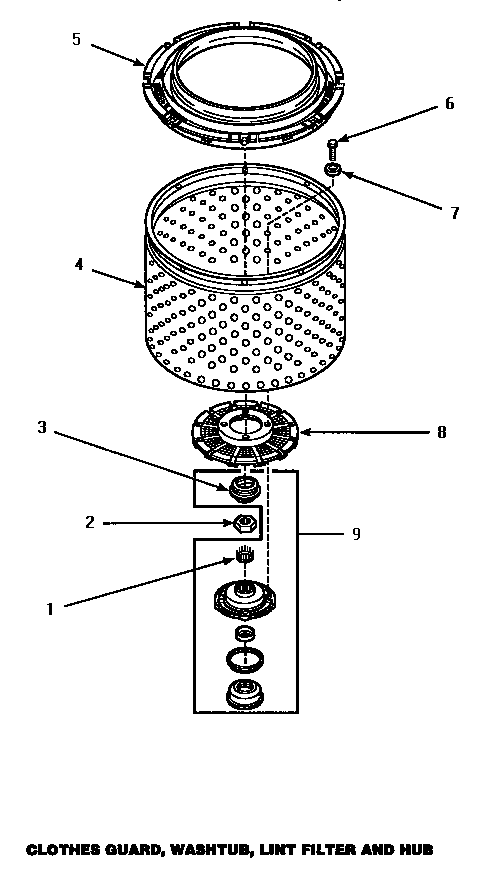

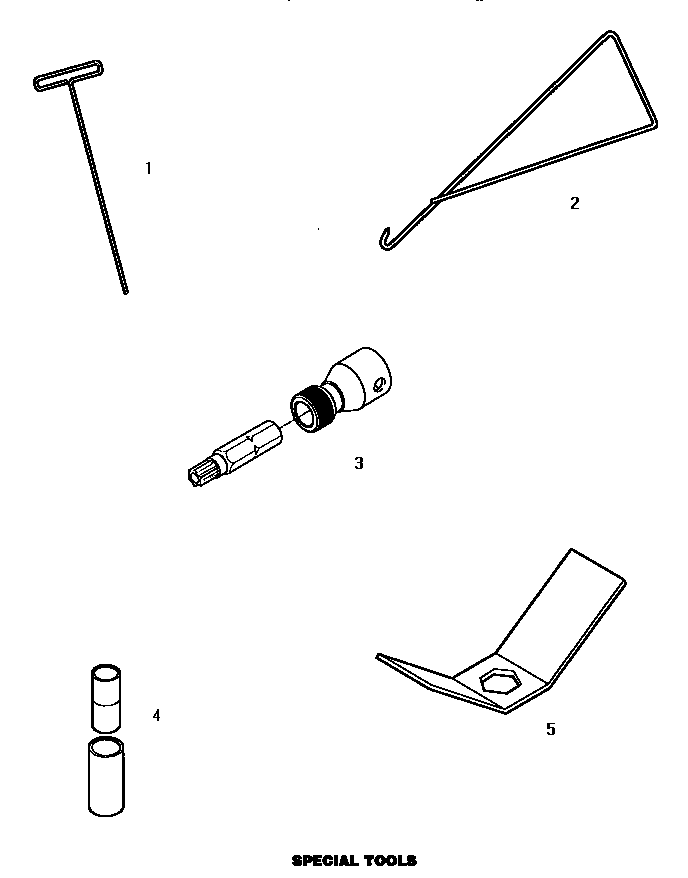

All parts diagram
GreasePart #26594P
Replaced by #WP26594P
?Manufacturer substitutionThis part replaces 26594P. Substitute parts can look different from the original.$73.01In Stock
