Model # 919177450 Official Craftsman 2-stage air compressor

Here are the diagrams and repair parts for Official Craftsman 919177450 2-stage air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 126 parts |

#29

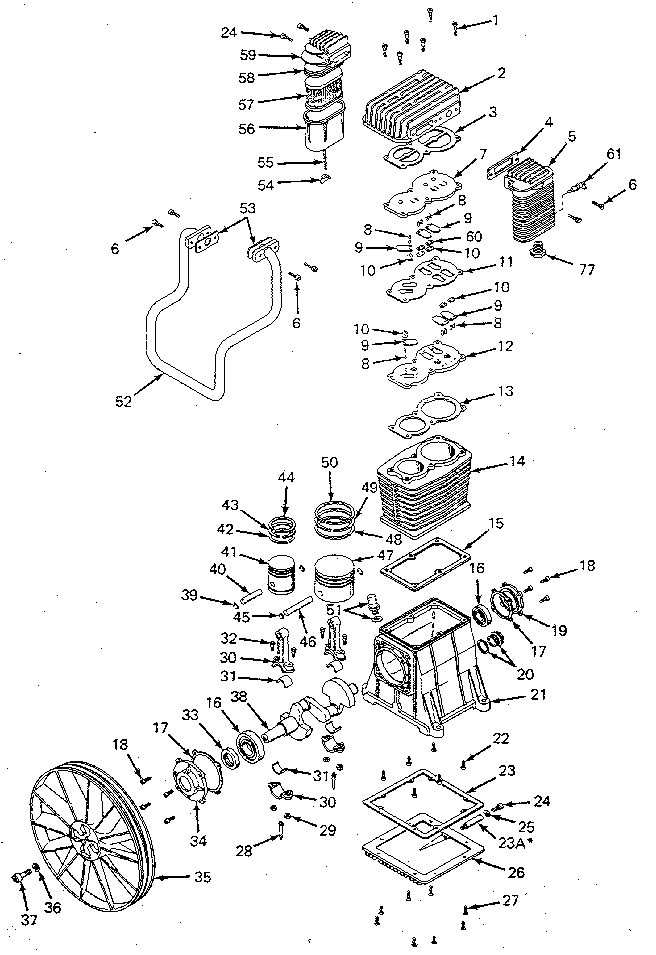

Air compressor pump diagram diagram

Nut

Part #ABP-9128234

The manufacturer no longer makes this part, and there's no substitute part

#87

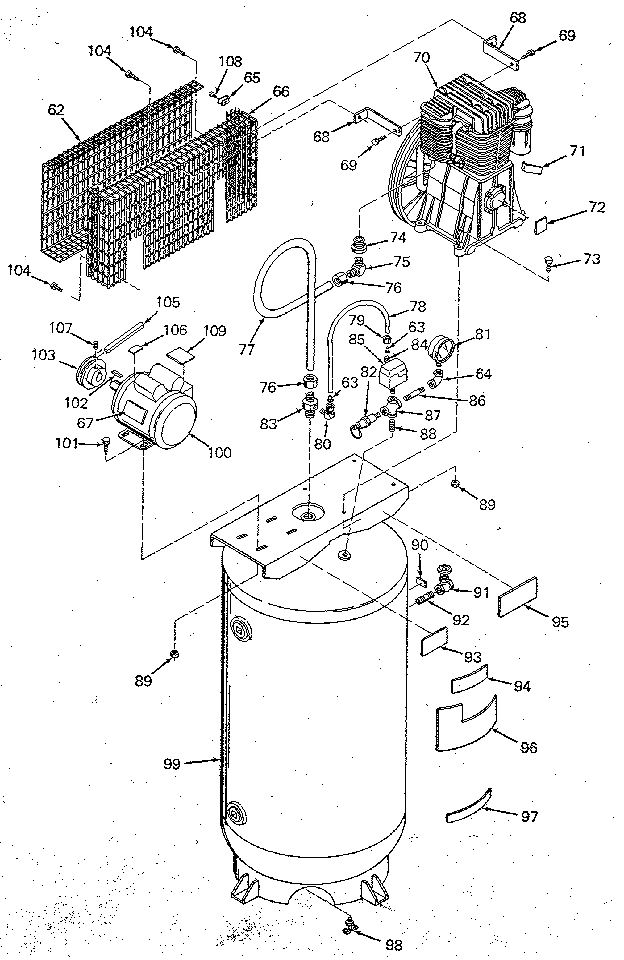

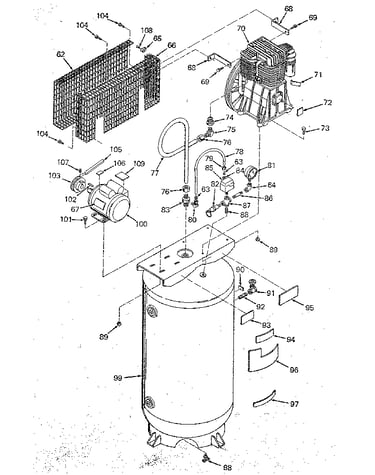

Air compressor diagram - vertical diagram

Cross

Part #SS-2788

The manufacturer no longer makes this part, and there's no substitute part

#57

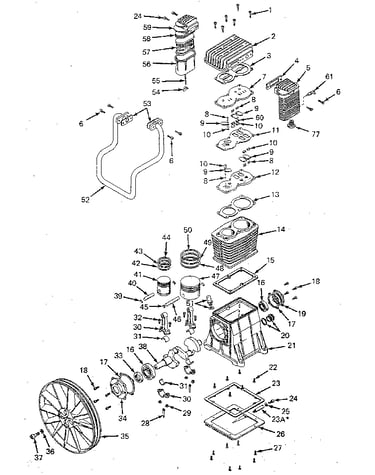

Air compressor pump diagram diagram

Air compressor air filter

Part #ABP-2081100

The manufacturer no longer makes this part, and there's no substitute part

Air compressor pressure relief valve

Part #KK-4315

The manufacturer no longer makes this part, and there's no substitute part

Air compressor pressure relief valve

Part #TIA-4200

The manufacturer no longer makes this part, and there's no substitute part

#108

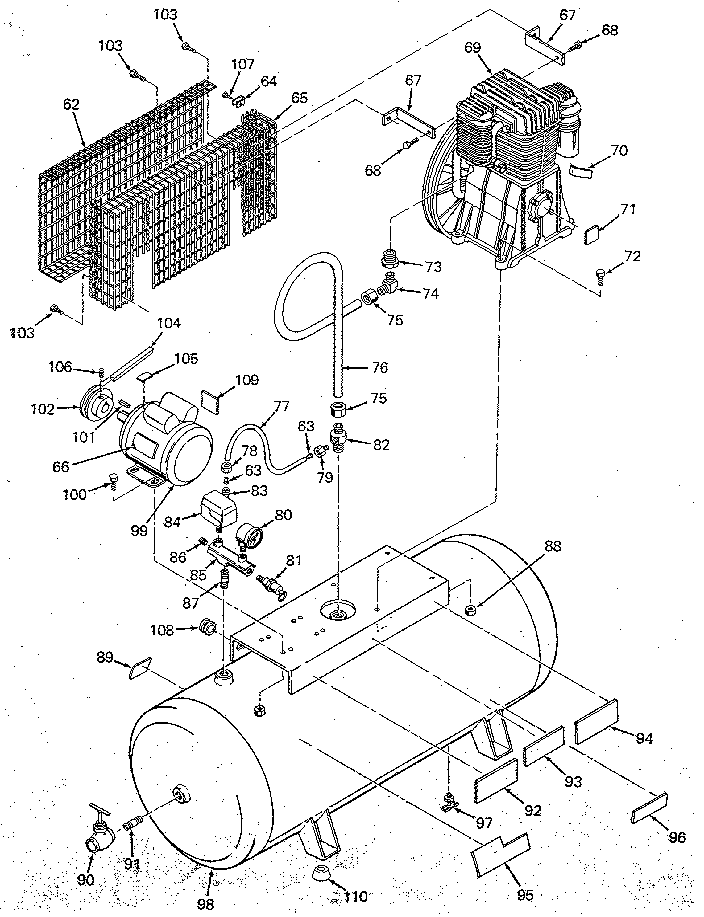

Air compressor diagram - horizontal diagram

Grommet

Part #SSW-7443

The manufacturer no longer makes this part, and there's no substitute part

#86

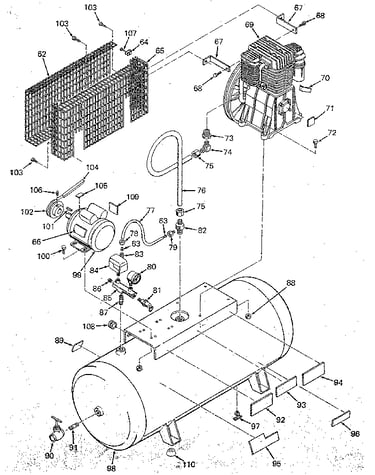

Air compressor diagram - horizontal diagram

Unknown brand name #696 pipe plug

Part #SS-3222-CD

The manufacturer no longer makes this part, and there's no substitute part

#85

Air compressor diagram - horizontal diagram

Unknown brand name #696 air compressor manifold assembly

Part #CAC-95

The manufacturer no longer makes this part, and there's no substitute part

#30

Air compressor pump diagram diagram

Cnnct rod

Part #ABP-4011100

The manufacturer no longer makes this part, and there's no substitute part

Air compressor nut and sleeve

Part #SSP-7811

The manufacturer no longer makes this part, and there's no substitute part
