Model # QDE30BL Official Broan range hood

Here are the diagrams and repair parts for Official Broan QDE30BL range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Pan Black, SV16117
#7A

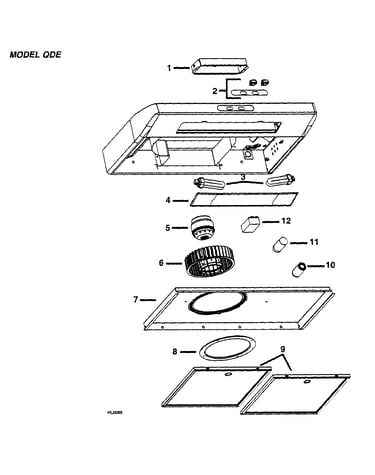

Range hood diagram

Pan black,

Part #SV16117

$192.83
In Stock
Motor SV01765
#5

Range hood diagram

Motor

Part #SV01765

$125.73
In Stock
Range Hood Vent Damper SV13296
#1

Range hood diagram

Range hood vent damper

Part #SV13296

$45.44 |
12% OFF Phone Price : $51.44
In Stock
Range Hood Blower Wheel SV01988
#6

Range hood diagram

Range hood blower wheel

Part #SV01988

$93.90
In Stock
Range Hood Fluorescent Light Bulb SV03623
#3

Range hood diagram

Range hood fluorescent light bulb

Part #SV03623

This item is not returnable
$10.98
In Stock
Switch Overlay SV15433
#2A

Range hood diagram

Switch overlay

Part #SV15433

$31.02
In Stock
Hrdw Bag SV04281
#NI

Range hood diagram

Hrdw bag

Part #SV04281

$27.45
In Stock
Ballast Assembly SV03649
#12

Range hood diagram

Ballast assembly

Part #SV03649

$188.83
In Stock
Pan White, SV16119
#7

Range hood diagram

Pan white,

Part #SV16119

$190.21
In Stock
Inlet Ring SV01757
#8

Range hood diagram

Inlet ring

Part #SV01757

$20.00
In Stock
