Gas Walk-Behind Mower

Model # 917388832 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388832 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

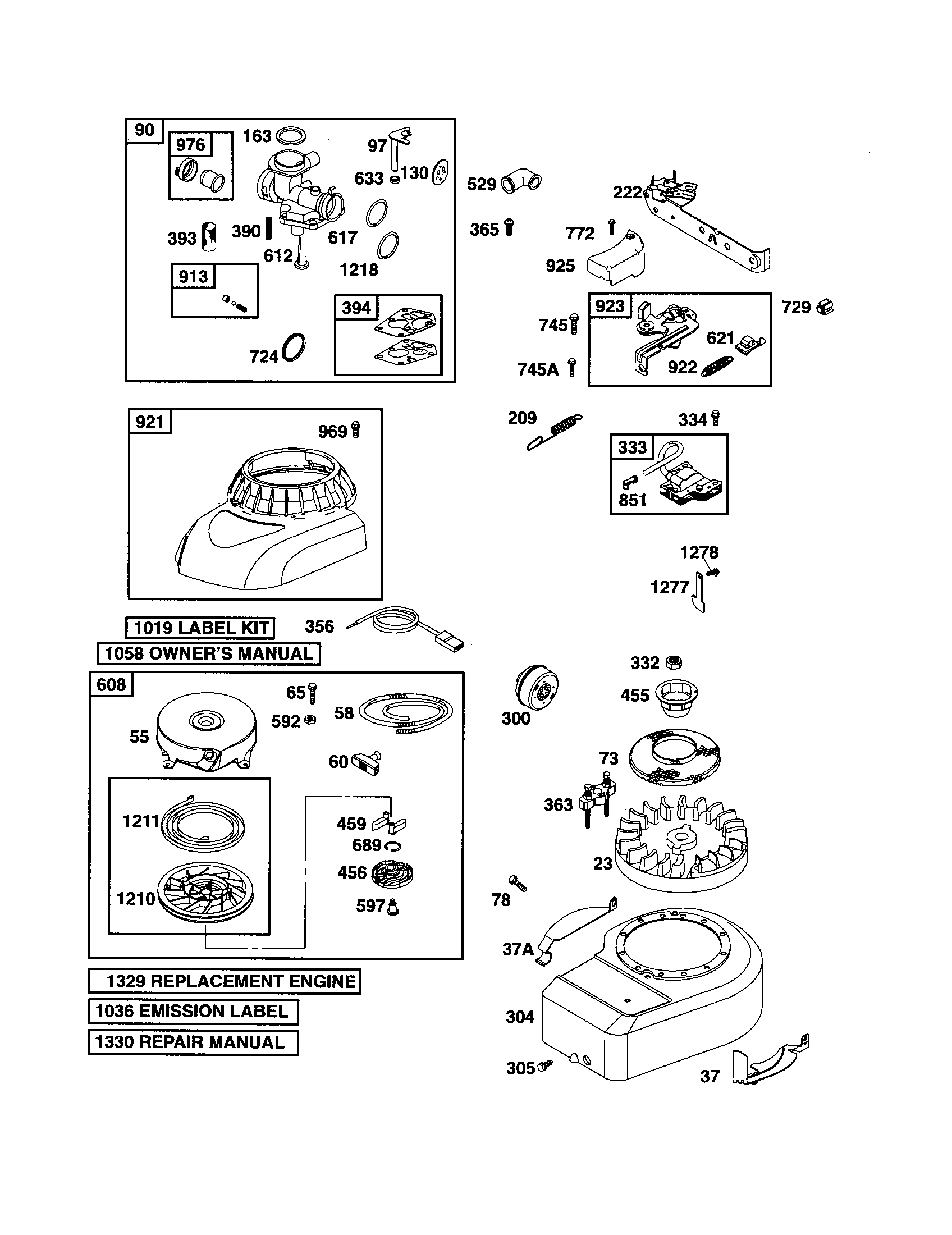

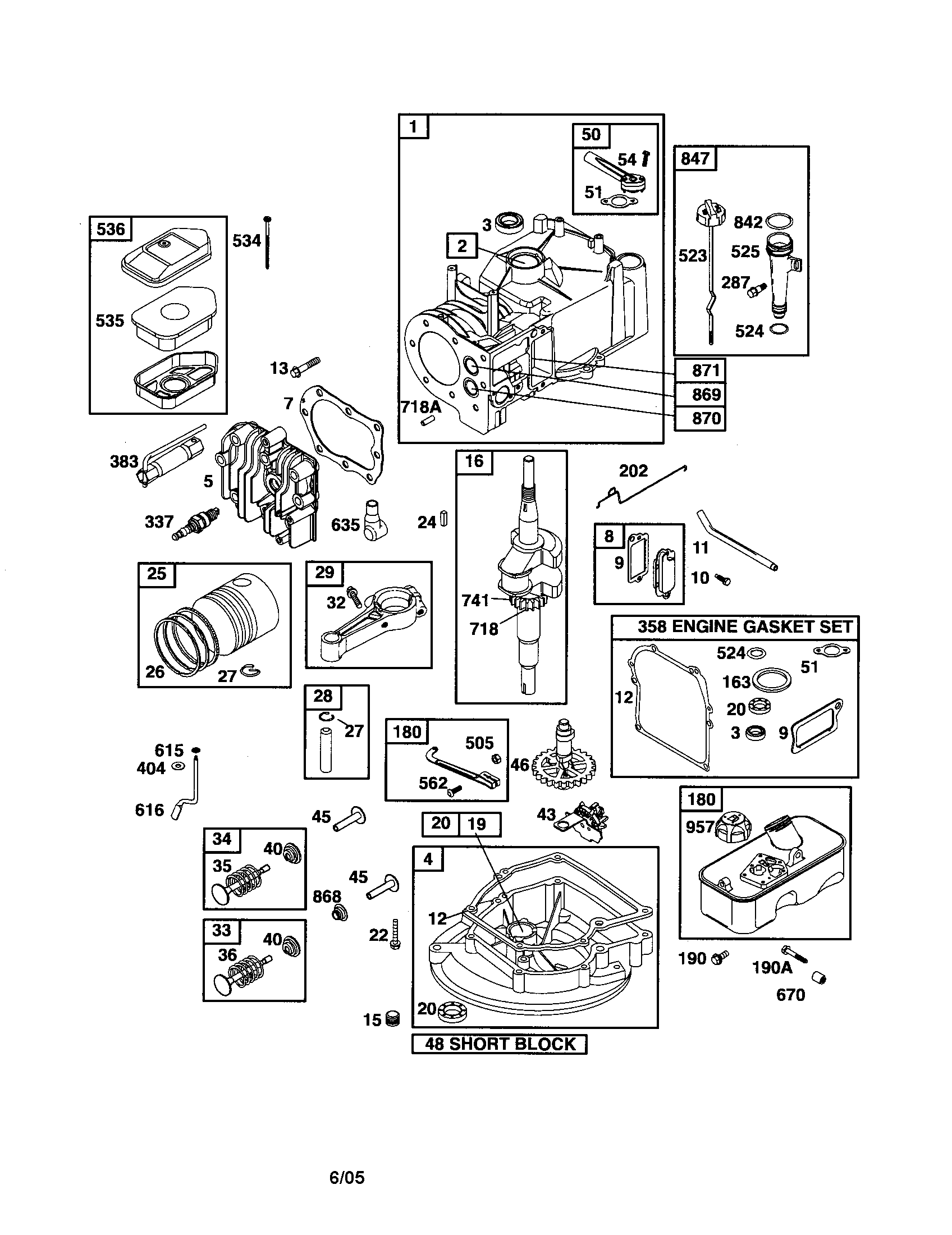

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Gbag.2251113 194349
#50

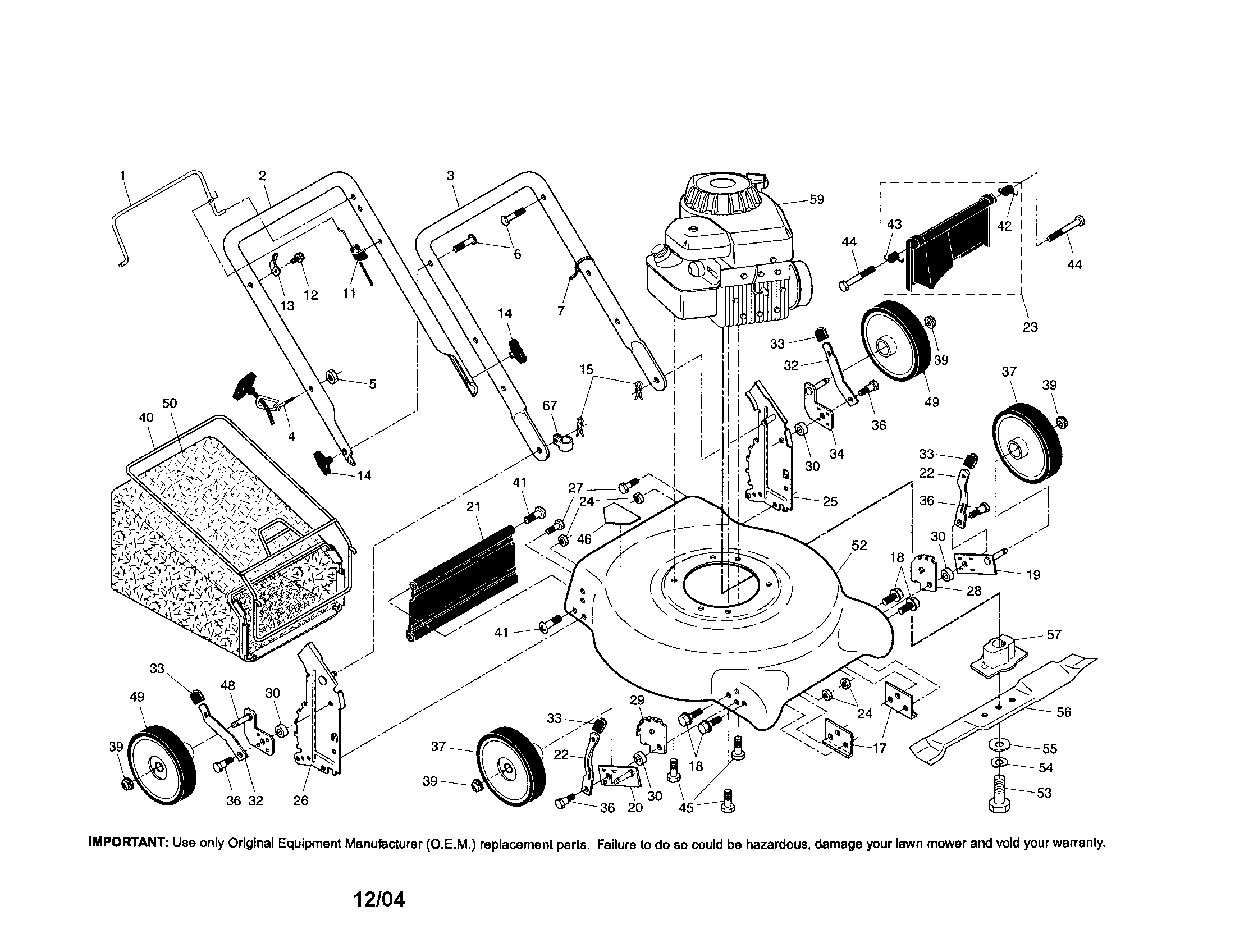

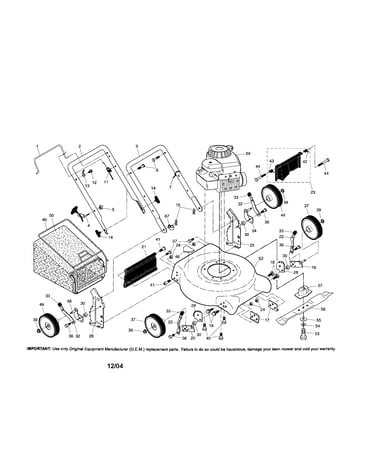

Engine/housing/bag/wheels diagram

Gbag.2251113

Part #194349

Replaced by #532410666

?
Manufacturer substitution
This part replaces 194349. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Lawn Mower Blade Adapter 851514
#57

Engine/housing/bag/wheels diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Nut 132004
#5

Engine/housing/bag/wheels diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/bag/wheels diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Rope Guide 179585
#4

Engine/housing/bag/wheels diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/bag/wheels diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Engine/housing/bag/wheels diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Husqvarna Lawn & Garden Equipment Lock Nut 73930500
#24

Engine/housing/bag/wheels diagram

Husqvarna lawn & garden equipment lock nut

Part #73930500

Replaced by #873930500

?
Manufacturer substitution
This part replaces 73930500. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Bracket 133757X007
#28

Engine/housing/bag/wheels diagram

Bracket

Part #133757X007

Replaced by #532407492

?
Manufacturer substitution
This part replaces 133757X007. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Handle Bolt 191574
#6

Engine/housing/bag/wheels diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
