Model # 2538192380 Official Kenmore chest freezer

Here are the diagrams and repair parts for Official Kenmore 2538192380 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Drier 152474
#1

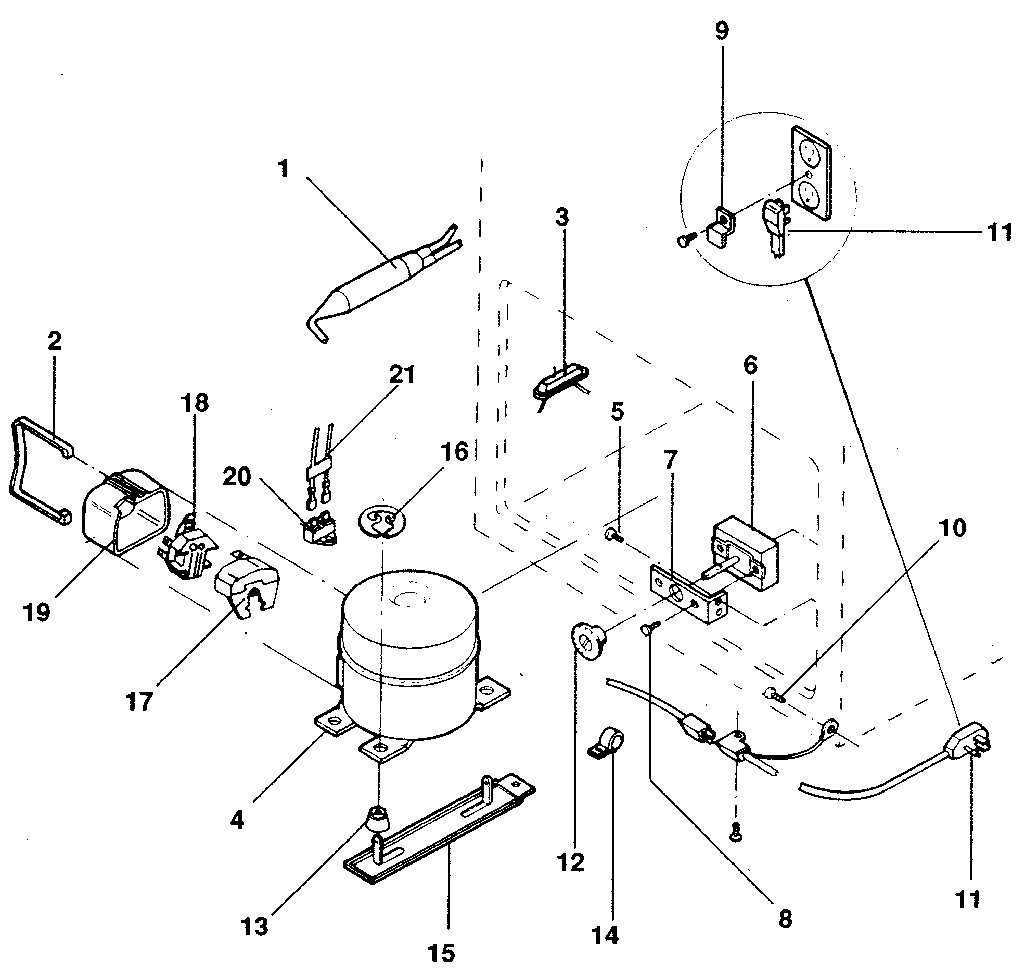

Unit diagram

Drier

Part #152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 8037402
#4

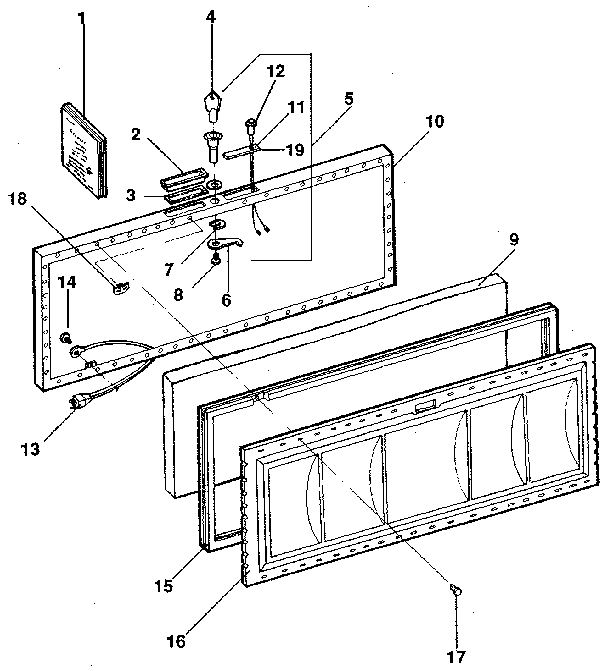

Lid diagram

Key

Part #8037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 8037402. Substitute parts can look different from the original.
BEST SELLER
$9.07 |
10% OFF Phone Price : $10.07
In Stock
Clip 300792
#17

Lid diagram

Clip

Part #300792

Replaced by #5304406520

?
Manufacturer substitution
This part replaces 300792. Substitute parts can look different from the original.
BEST SELLER
$34.42 |
15% OFF Phone Price : $40.42
In Stock
Capacitor 3091424
#20

Unit diagram

Capacitor

Part #3091424

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 3091424. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Touch Up 105638-836

#NI

All parts diagram

Touch up

Part #105638-836

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 105638-836. Substitute parts can look different from the original.
BEST SELLER
$15.00 |
12% OFF Phone Price : $17.00
In Stock
Al Enamel 94566-50

#NI

All parts diagram

Al enamel

Part #94566-50

Replaced by #350956

?
Manufacturer substitution
This part replaces 94566-50. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Hinge (white) 3925006
#9A

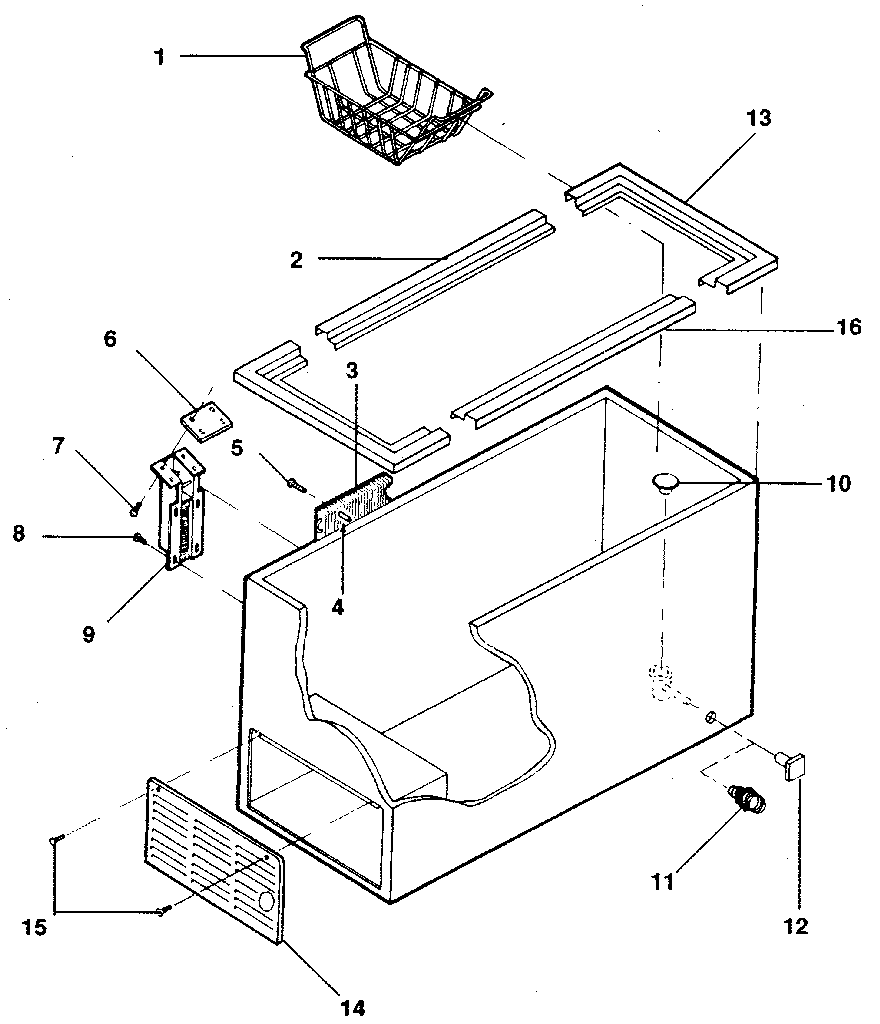

Cabinet diagram

Hinge (white)

Part #3925006

Replaced by #297321900

?
Manufacturer substitution
This part replaces 3925006. Substitute parts can look different from the original.
$68.89 |
8% OFF Phone Price : $74.89
In Stock
Grommet 8008778
#13

Unit diagram

Grommet

Part #8008778

Replaced by #218513300

?
Manufacturer substitution
This part replaces 8008778. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Hinge (almond) 3925007
#9

Cabinet diagram

Hinge (almond)

Part #3925007

Replaced by #297321900

?
Manufacturer substitution
This part replaces 3925007. Substitute parts can look different from the original.
$68.89 |
8% OFF Phone Price : $74.89
In Stock
Harness 3201260
#13

Lid diagram

Harness

Part #3201260

$20.49
In Stock
