Craftsman
Air Compressor

Model # 106170910 Official Craftsman twin-cylinder tank-type air compressor

Here are the diagrams and repair parts for Official Craftsman 106170910 twin-cylinder tank-type air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

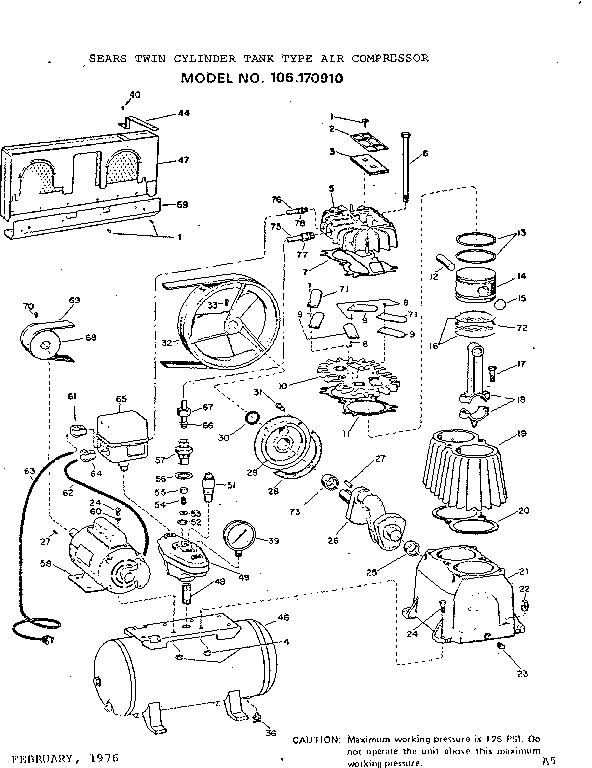

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Connecting Rod VT-0001
#18

Unit diagram

Connecting rod

Part #VT-0001

The manufacturer no longer makes this part, and there's no substitute part

Compression Connector ST-0183
#77

Unit diagram

Compression connector

Part #ST-0183

The manufacturer no longer makes this part, and there's no substitute part

Oil Ring PX-0019
#16

Unit diagram

Oil ring

Part #PX-0019

The manufacturer no longer makes this part, and there's no substitute part

Tubing VT-0105
#76

Unit diagram

Tubing

Part #VT-0105

The manufacturer no longer makes this part, and there's no substitute part

Screw ST-0203
#8

Unit diagram

Screw

Part #ST-0203

The manufacturer no longer makes this part, and there's no substitute part

Tubing VT-0019
#75

Unit diagram

Tubing

Part #VT-0019

The manufacturer no longer makes this part, and there's no substitute part

Motor MC-0068
#58

Unit diagram

Motor

Part #MC-0068

The manufacturer no longer makes this part, and there's no substitute part

V-belt BT-0032
#69

Unit diagram

V-belt

Part #BT-0032

The manufacturer no longer makes this part, and there's no substitute part

Expander PX-0020
#72

Unit diagram

Expander

Part #PX-0020

The manufacturer no longer makes this part, and there's no substitute part

Pressure Switch CW-2063
#65

Unit diagram

Pressure switch

Part #CW-2063

The manufacturer no longer makes this part, and there's no substitute part
