Craftsman
Air Compressor

Model # 283150610 Official Craftsman air compressor stapler

Here are the diagrams and repair parts for Official Craftsman 283150610 air compressor stapler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Housing 660813-112
#6

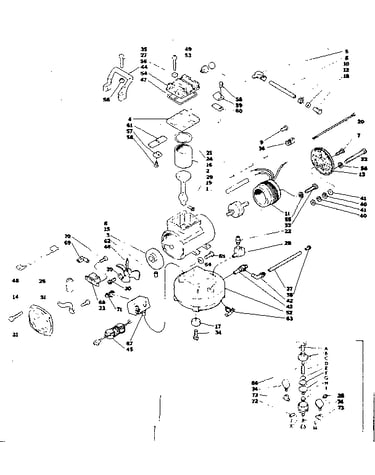

Replacement parts diagram

Housing

Part #660813-112

The manufacturer no longer makes this part, and there's no substitute part

End Cap 614515-112
#13

Replacement parts diagram

End cap

Part #614515-112

The manufacturer no longer makes this part, and there's no substitute part

Term. Washer 626329
#41

Replacement parts diagram

Term. washer

Part #626329

The manufacturer no longer makes this part, and there's no substitute part

Tubing 615600
#19

Replacement parts diagram

Tubing

Part #615600

The manufacturer no longer makes this part, and there's no substitute part

Body 610031
#66J

Replacement parts diagram

Body

Part #610031

The manufacturer no longer makes this part, and there's no substitute part

Connector 607028
#71

Replacement parts diagram

Connector

Part #607028

The manufacturer no longer makes this part, and there's no substitute part

Fan 633718
#46

Replacement parts diagram

Fan

Part #633718

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer STD551110
#55

Replacement parts diagram

Lock washer

Part #STD551110

The manufacturer no longer makes this part, and there's no substitute part

Check Valve 633588
#43

Replacement parts diagram

Check valve

Part #633588

The manufacturer no longer makes this part, and there's no substitute part

Flywheel 645582
#3

Replacement parts diagram

Flywheel

Part #645582

The manufacturer no longer makes this part, and there's no substitute part
