Craftsman
Garage Door Opener

Model # 139664320 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 139664320 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Screw 171A273
Screw

Part #171A273

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A183
#1

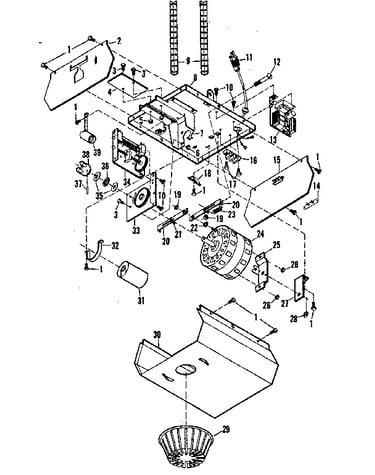

Chassis assembly diagram

Screw

Part #171A183

The manufacturer no longer makes this part, and there's no substitute part

Transmitter 6642
#10

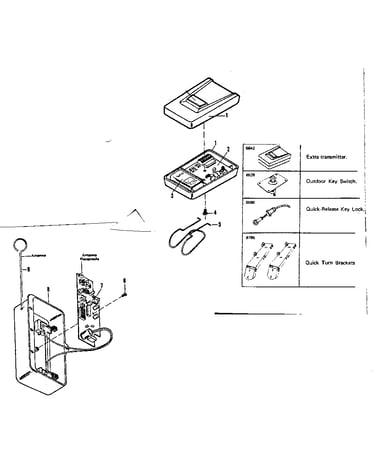

Receiver and transmitter diagram

Transmitter

Part #6642

The manufacturer no longer makes this part, and there's no substitute part

Coupling 25B8
#38

Chassis assembly diagram

Coupling

Part #25B8

The manufacturer no longer makes this part, and there's no substitute part

Light Socket 1A1911
#39

Chassis assembly diagram

Light socket

Part #1A1911

The manufacturer no longer makes this part, and there's no substitute part

Ckt Board T 4A1353
#2

Receiver and transmitter diagram

Ckt board t

Part #4A1353

The manufacturer no longer makes this part, and there's no substitute part

Bck Panl Asm 4A1246
#15

Chassis assembly diagram

Bck panl asm

Part #4A1246

The manufacturer no longer makes this part, and there's no substitute part

Clevis Pin 146A30
#22

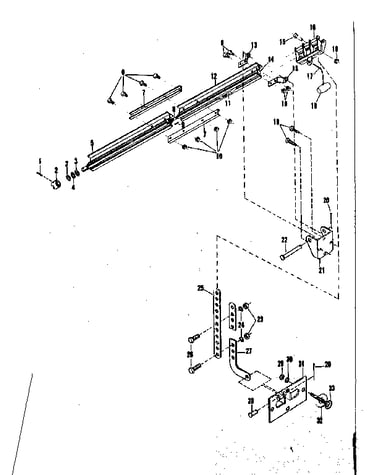

Rail assembly diagram

Clevis pin

Part #146A30

The manufacturer no longer makes this part, and there's no substitute part

Screw 171A24
#26

Rail assembly diagram

Screw

Part #171A24

The manufacturer no longer makes this part, and there's no substitute part

Limit Nut 133A136
#34C

Chassis assembly diagram

Limit nut

Part #133A136

The manufacturer no longer makes this part, and there's no substitute part
