Whirlpool
Gas Range

Model # SF5140EPW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF5140EPW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Light Bulb 878937
#20

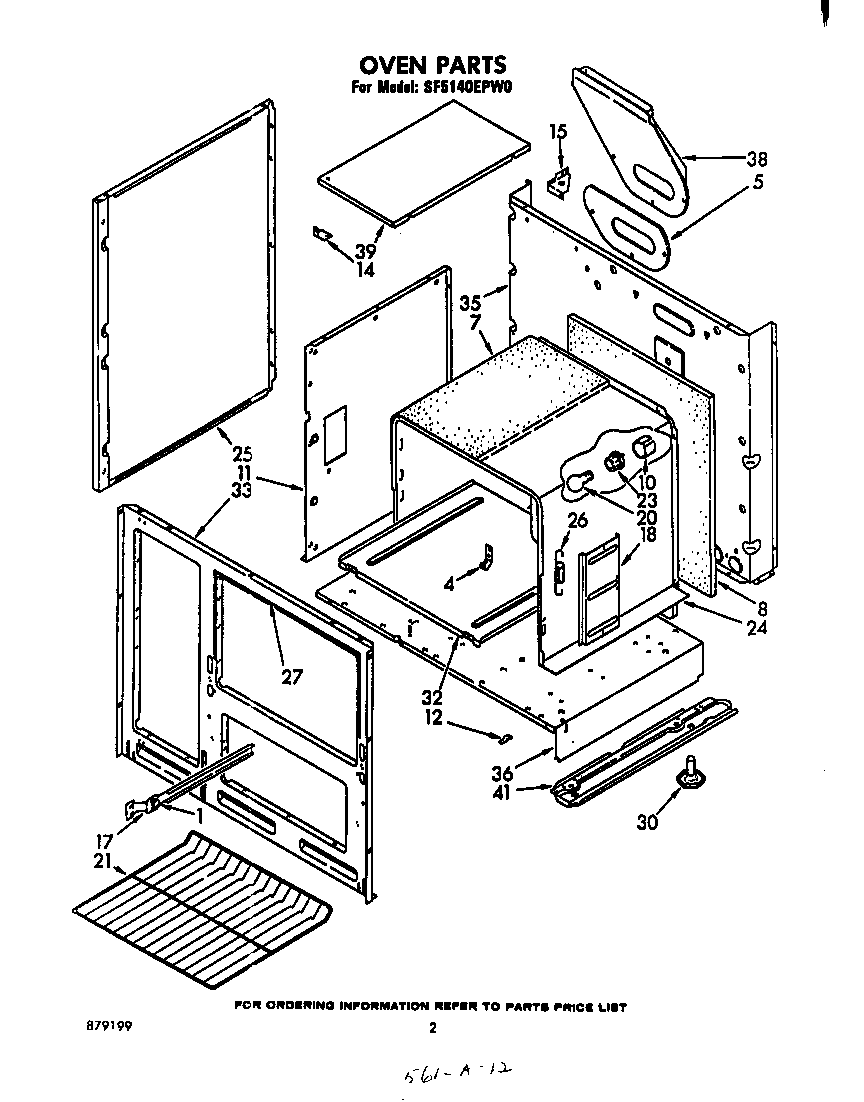

Oven diagram

Light bulb

Part #878937

Replaced by #40A15

?
Manufacturer substitution
This part replaces 878937. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Insulation 878534
#8

Oven diagram

Insulation

Part #878534

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878534. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878533
#7

Oven diagram

Insulation

Part #878533

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878533. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 878531
#4

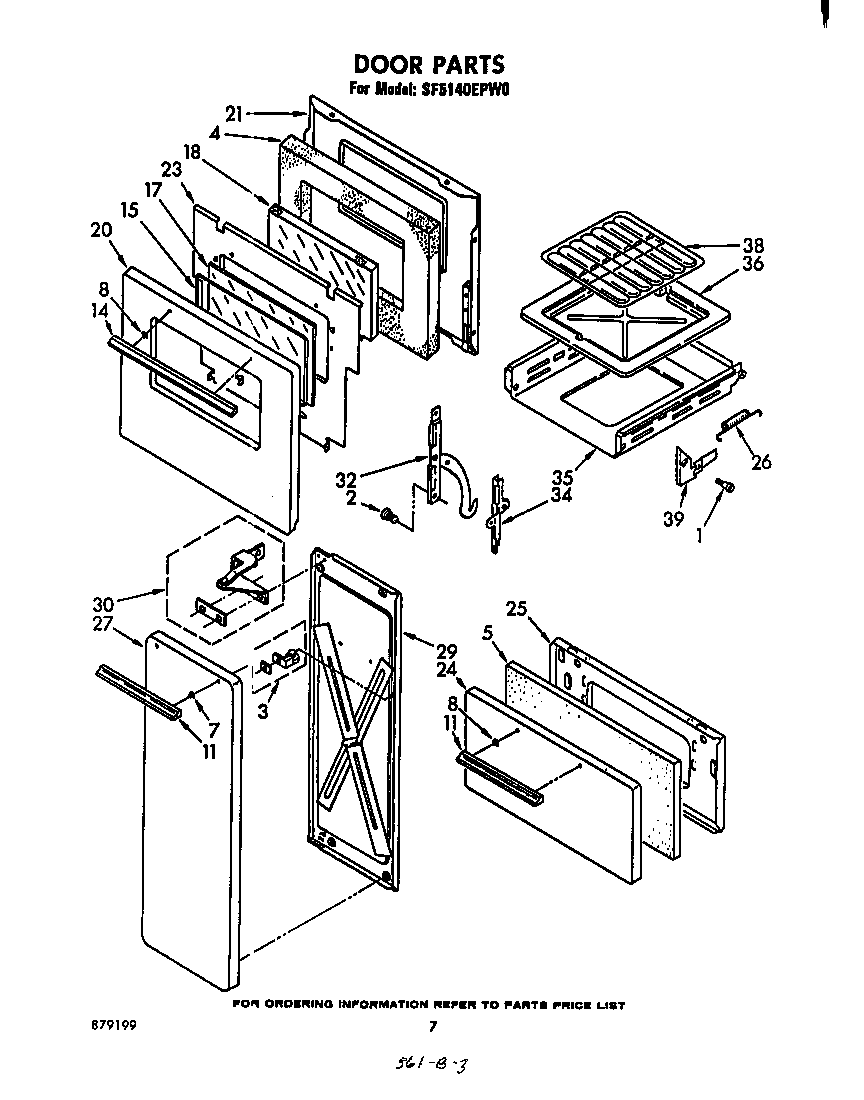

Door diagram

Insulation

Part #878531

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 878531. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Knob Timer (black) 330206
#17

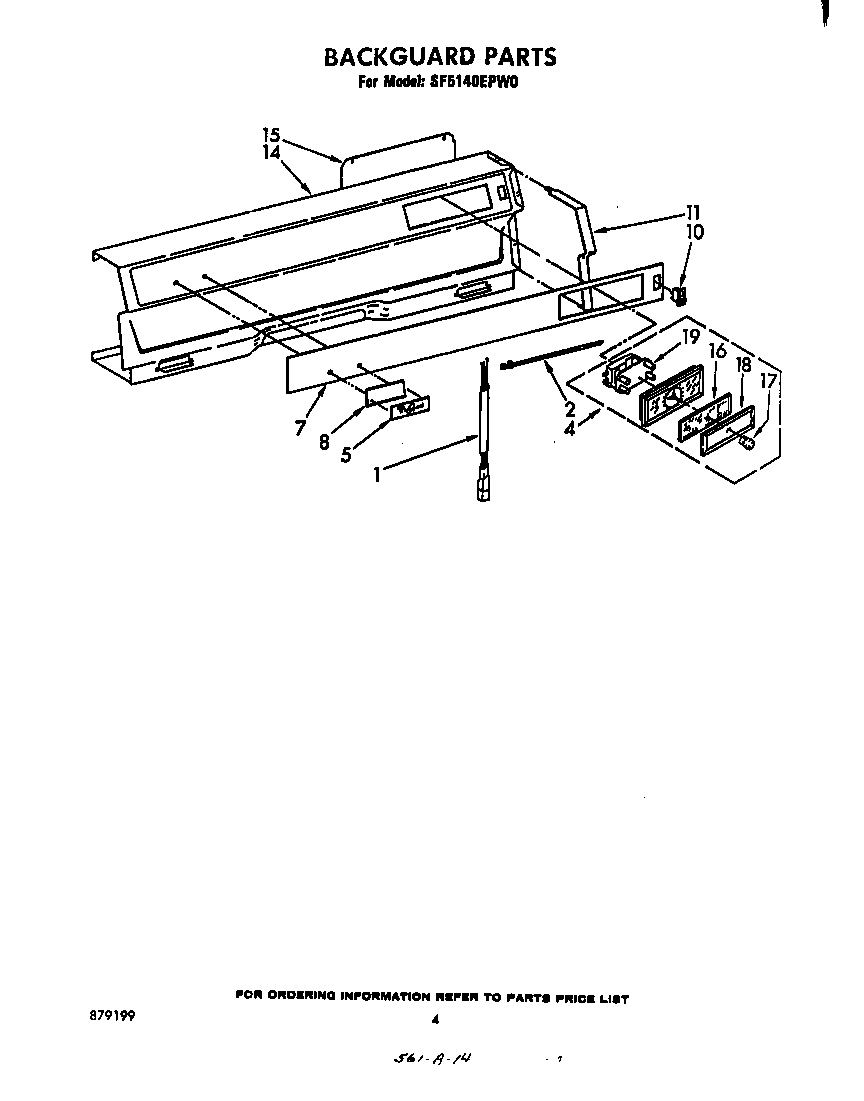

Backguard diagram

Knob timer (black)

Part #330206

Replaced by #WP3169181

?
Manufacturer substitution
This part replaces 330206. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Igniter Switch 878009
#38

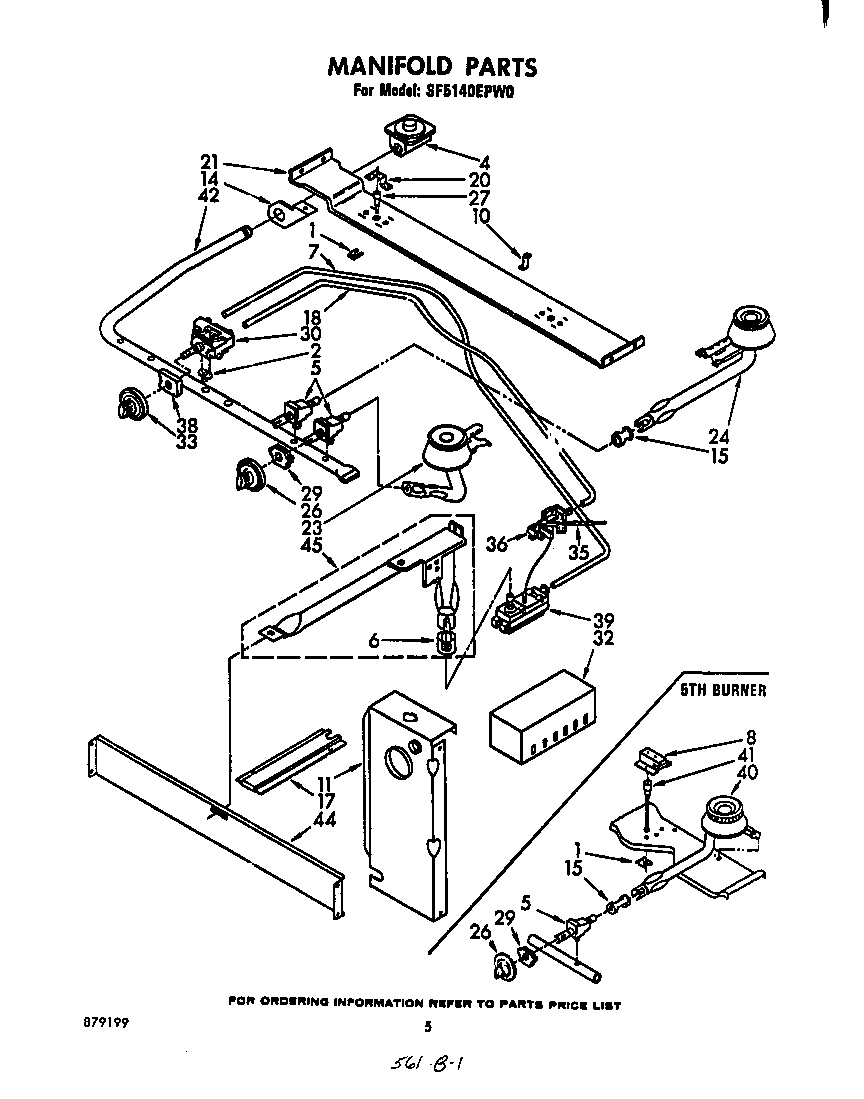

Manifold diagram

Igniter switch

Part #878009

Replaced by #WP878009

?
Manufacturer substitution
This part replaces 878009. Substitute parts can look different from the original.
$43.51
In Stock
Igniter Target 878121
#20

Manifold diagram

Igniter target

Part #878121

This item is not returnable
$5.51
In Stock
Top Pl P 879114
#7D

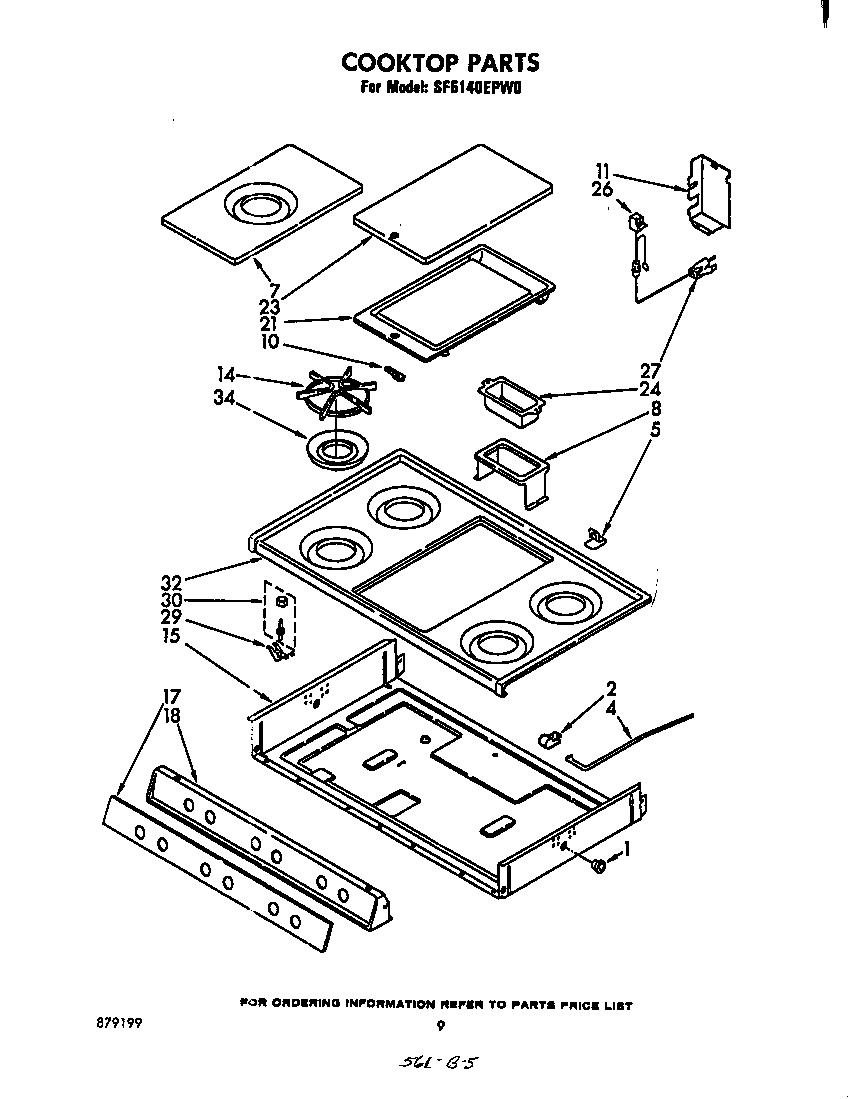

Cooktop diagram

Top pl p

Part #879114

The manufacturer no longer makes this part, and there's no substitute part

Shelf-cmpt 878595
#39

Oven diagram

Shelf-cmpt

Part #878595

The manufacturer no longer makes this part, and there's no substitute part

Top W P 878537
#7B

Cooktop diagram

Top w p

Part #878537

The manufacturer no longer makes this part, and there's no substitute part
