Washer

Model # WBB3300A0WW Official GE washer

Here are the diagrams and repair parts for Official GE WBB3300A0WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WBB3300A0WW Washer
Agitator Assembly WH43X0142
#300

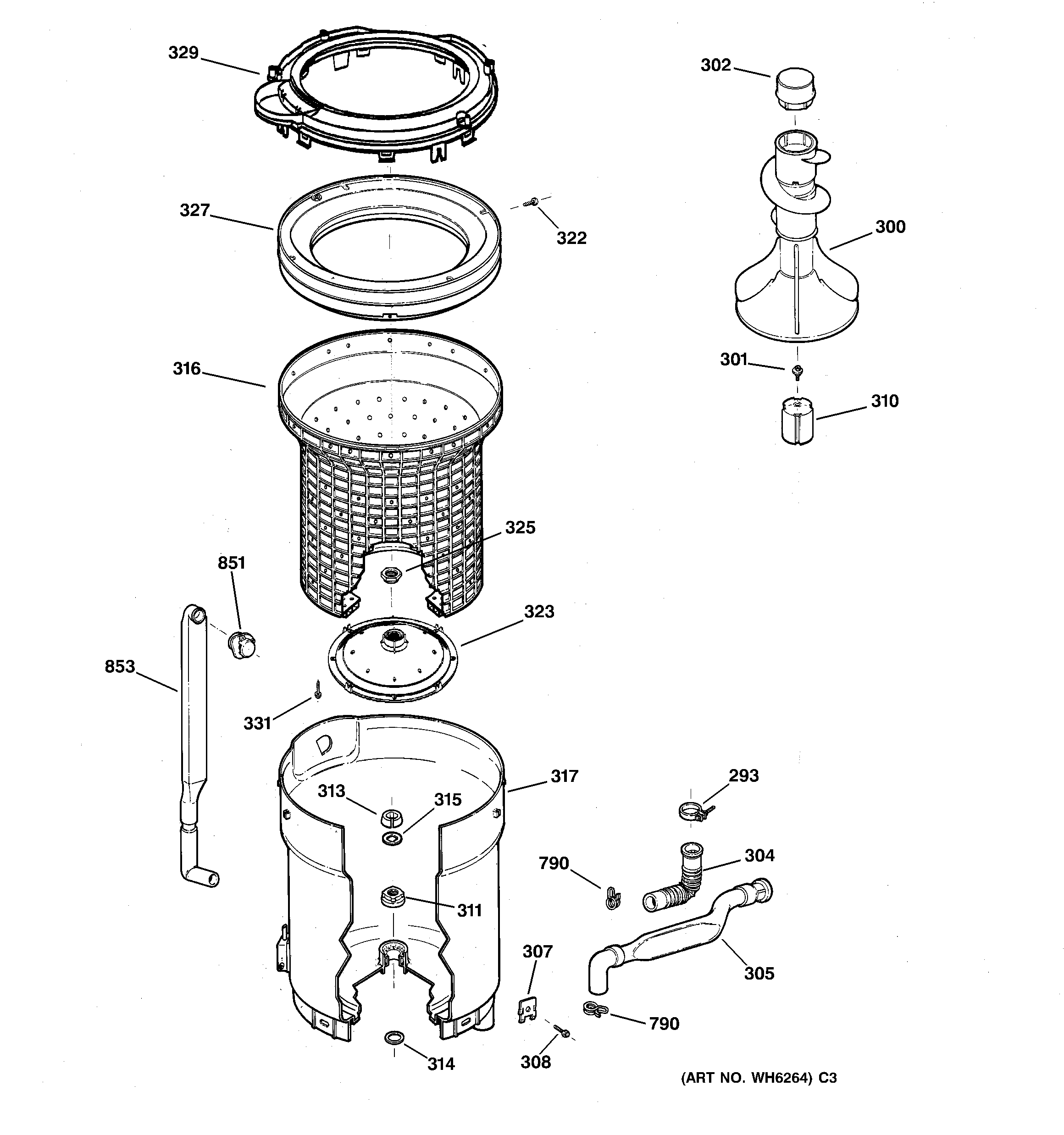

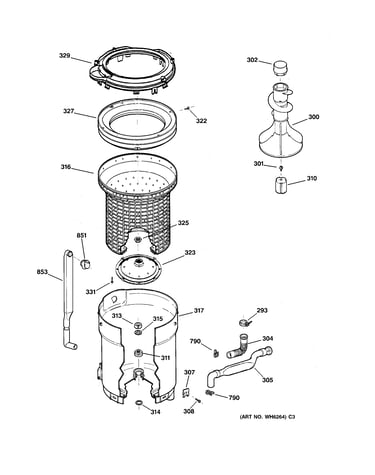

Tub, basket & agitator diagram

Agitator assembly

Part #WH43X0142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X0142. Substitute parts can look different from the original.
BEST SELLER
$57.86
9% OFF Phone Price : $63.86
In Stock
Strap Dampng WH01X10046
#370

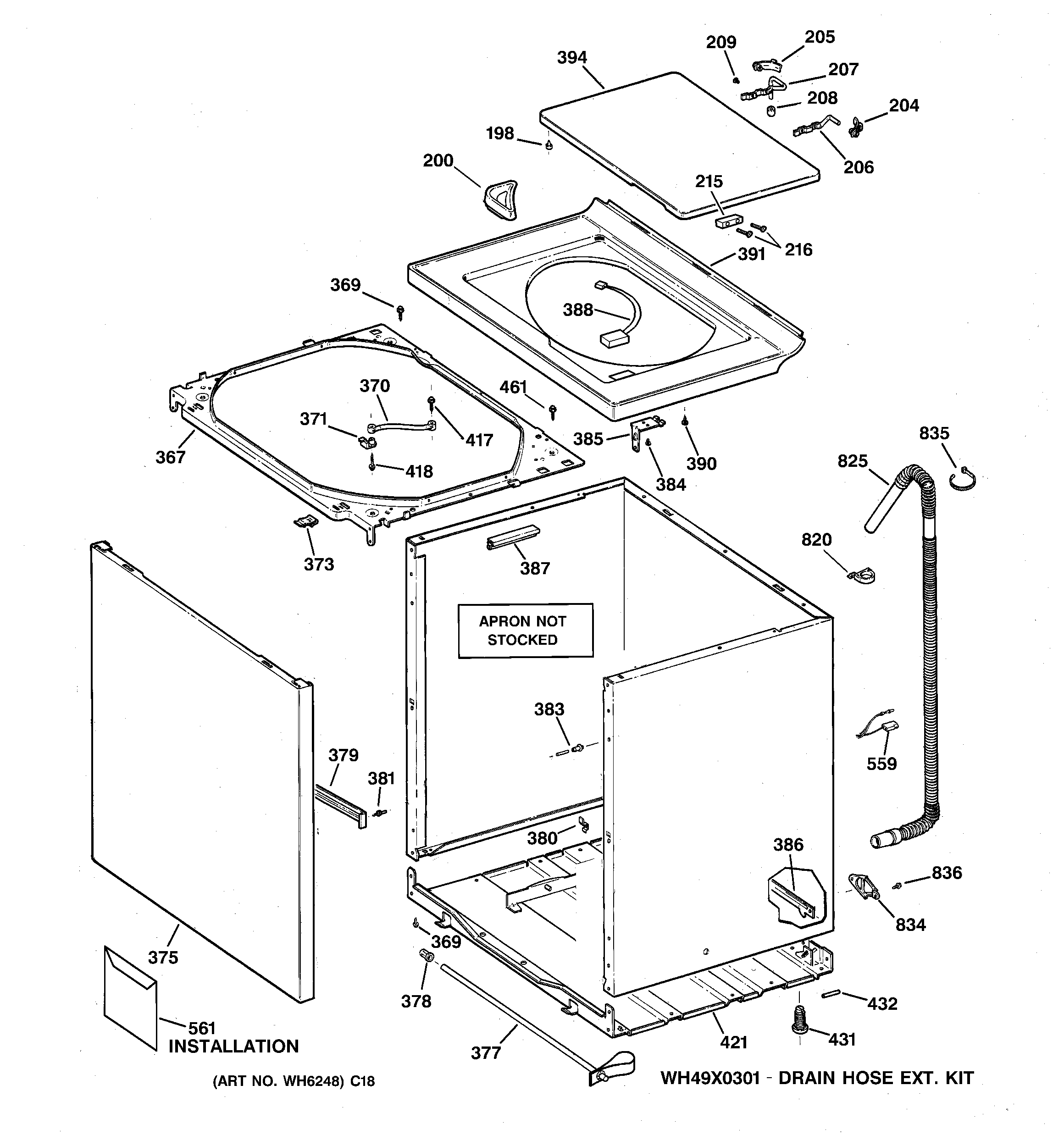

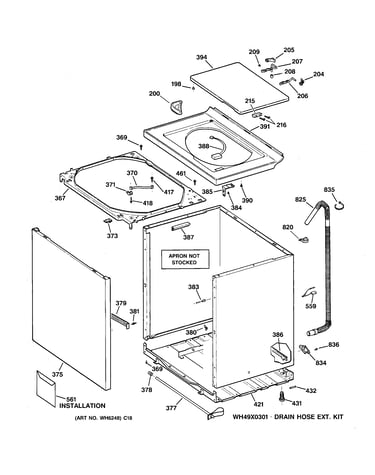

Cabinet, cover & front panel diagram

Strap dampng

Part #WH01X10046

Replaced by #WH1X2727

?
Manufacturer substitution
This part replaces WH01X10046. Substitute parts can look different from the original.
BEST SELLER
$30.67
16% OFF Phone Price : $36.67
In Stock
Rod/spr Yllw WH16X0543
#415

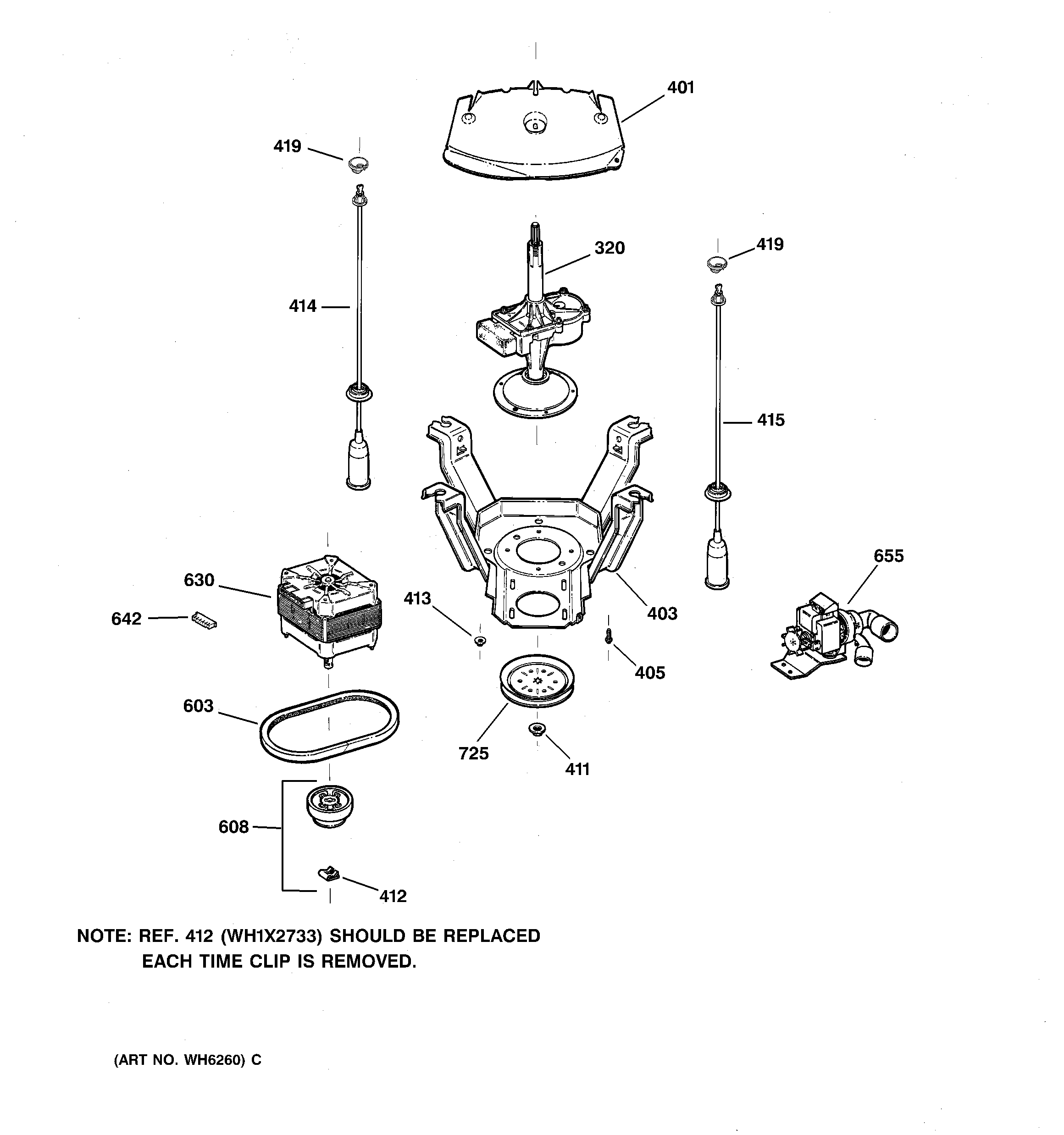

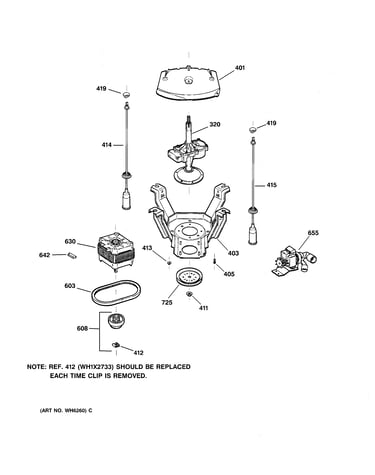

Suspension, pump & drive components diagram

Rod/spr yllw

Part #WH16X0543

Replaced by #WH16X543

?
Manufacturer substitution
This part replaces WH16X0543. Substitute parts can look different from the original.
BEST SELLER
$33.98
15% OFF Phone Price : $39.98
Back Order
Drain Hose WH41X0371
#304

Tub, basket & agitator diagram

Drain hose

Part #WH41X0371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X0371. Substitute parts can look different from the original.
This item is not returnable
$15.53
11% OFF Phone Price : $17.53
In Stock
Washer Suspension Rod Socket (replaces Wh01x10197) WH01X10001
#419

Suspension, pump & drive components diagram

Washer suspension rod socket (replaces wh01x10197)

Part #WH01X10001

This item is not returnable
$7.80
11% OFF Phone Price : $8.80
In Stock
Univ Clamp WH01X2036
Univ clamp

Part #WH01X2036

Replaced by #WH1X2036

?
Manufacturer substitution
This part replaces WH01X2036. Substitute parts can look different from the original.
$11.59
15% OFF Phone Price : $13.59
In Stock
Washer Lid Switch Magnet WH12X10092
#215

Cabinet, cover & front panel diagram

Washer lid switch magnet

Part #WH12X10092

Replaced by #WH12X10276

?
Manufacturer substitution
This part replaces WH12X10092. Substitute parts can look different from the original.
This item is not returnable
$9.67
9% OFF Phone Price : $10.67
In Stock
Lid Assembly WH44X10050
#394

Cabinet, cover & front panel diagram

Lid assembly

Part #WH44X10050

Replaced by #WH44X20021

?
Manufacturer substitution
This part replaces WH44X10050. Substitute parts can look different from the original.
$54.86
10% OFF Phone Price : $60.86
In Stock
Washer Agitator Cap WH43X10005
#302

Tub, basket & agitator diagram

Washer agitator cap

Part #WH43X10005

In Stock
Screw WH02X1217
#369

Cabinet, cover & front panel diagram

Screw

Part #WH02X1217

Replaced by #WH2X1217

?
Manufacturer substitution
This part replaces WH02X1217. Substitute parts can look different from the original.
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock

Most common symptoms to help you fix your washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…

Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…

Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…

Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…

Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…

Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…

Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…

Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…

Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
