Model # 2537044341D Official Kenmore bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore 2537044341D bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

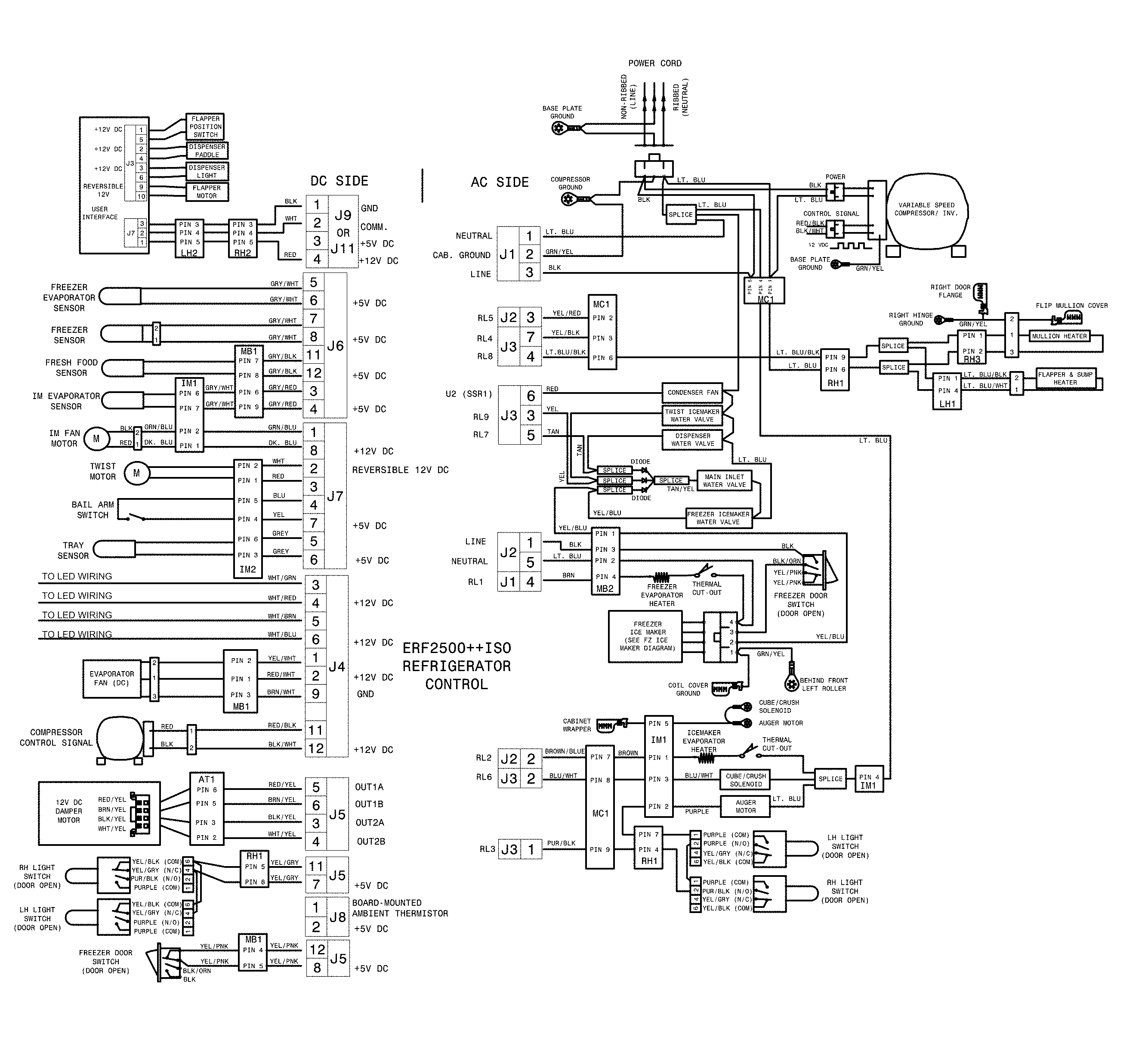

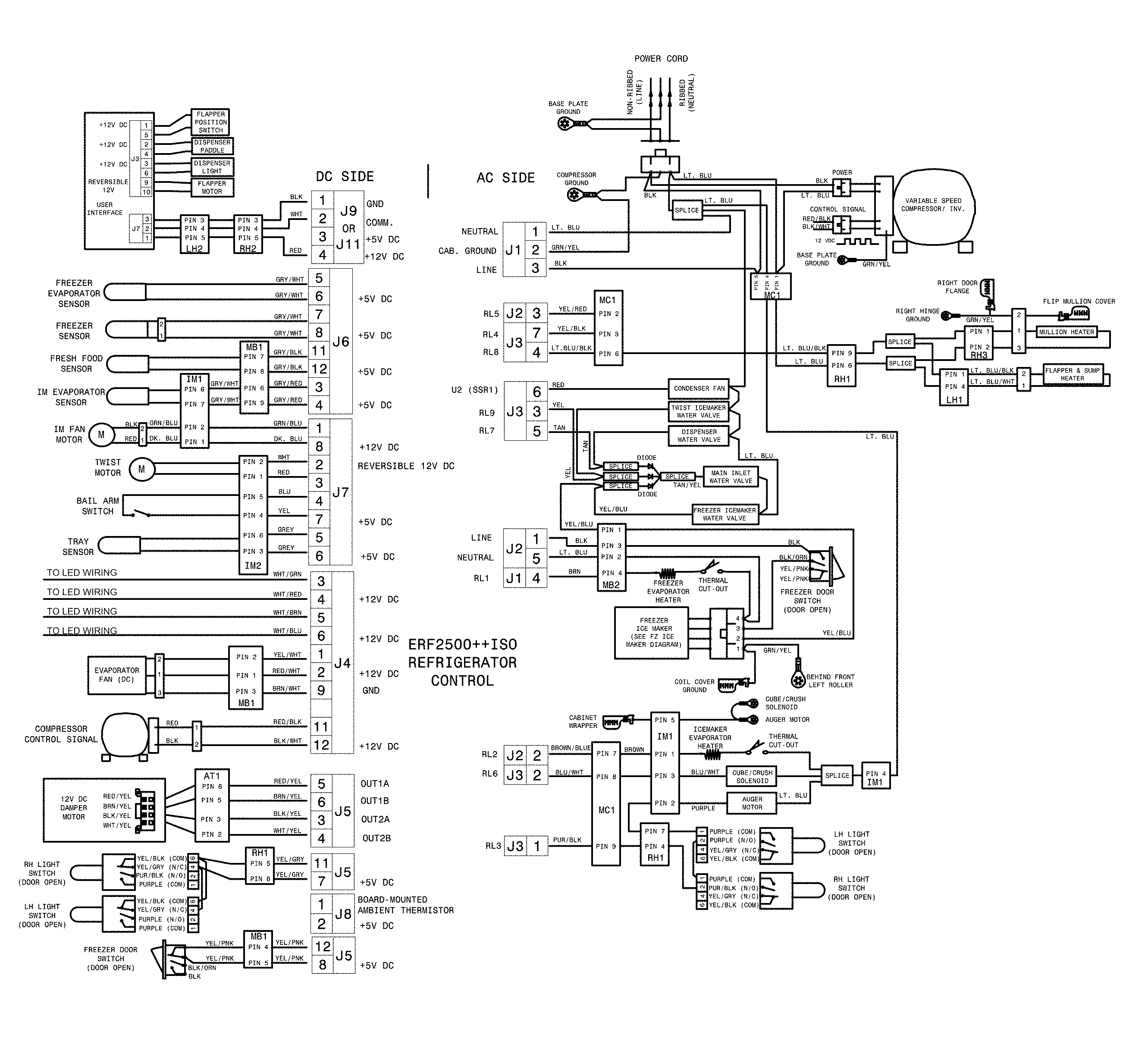

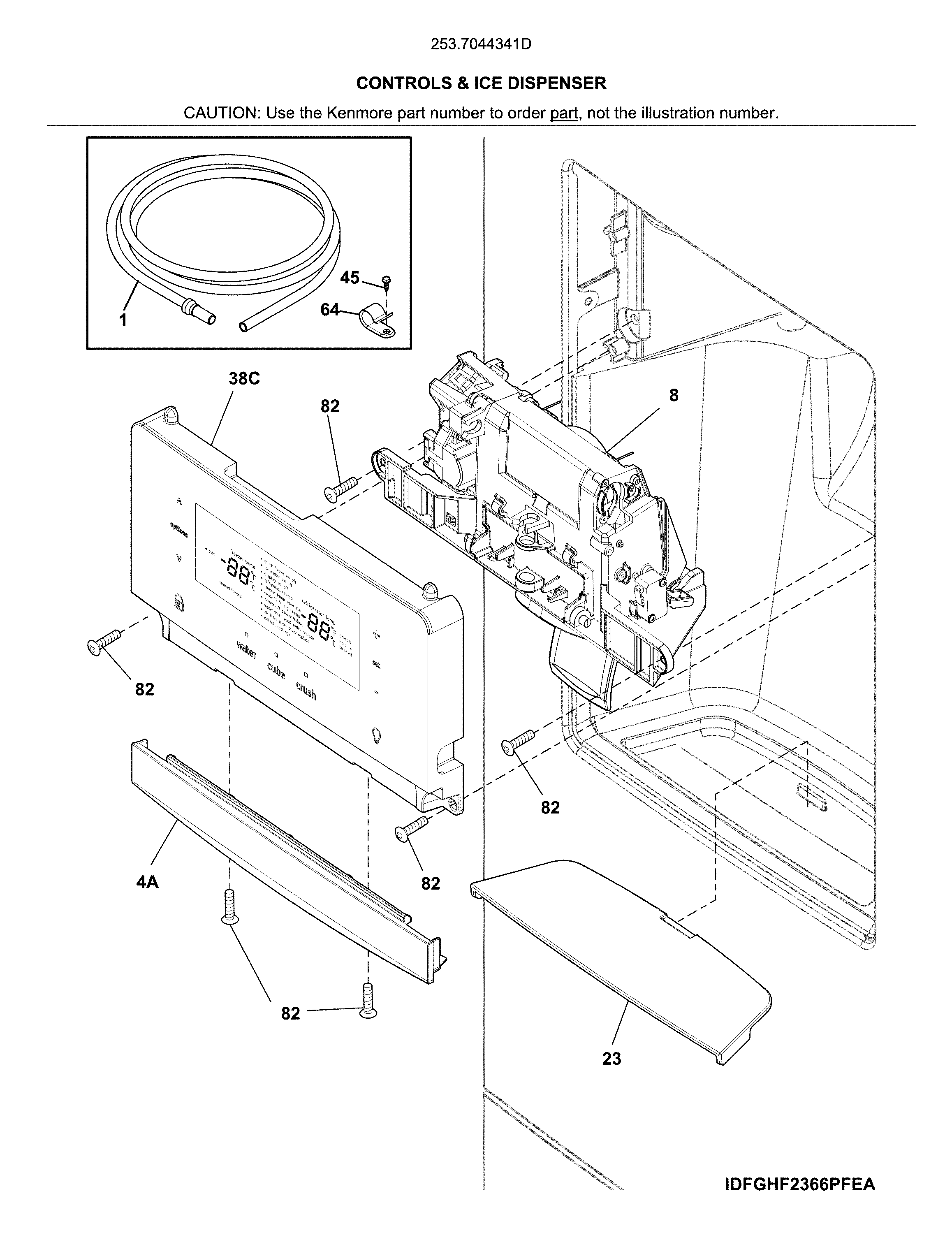

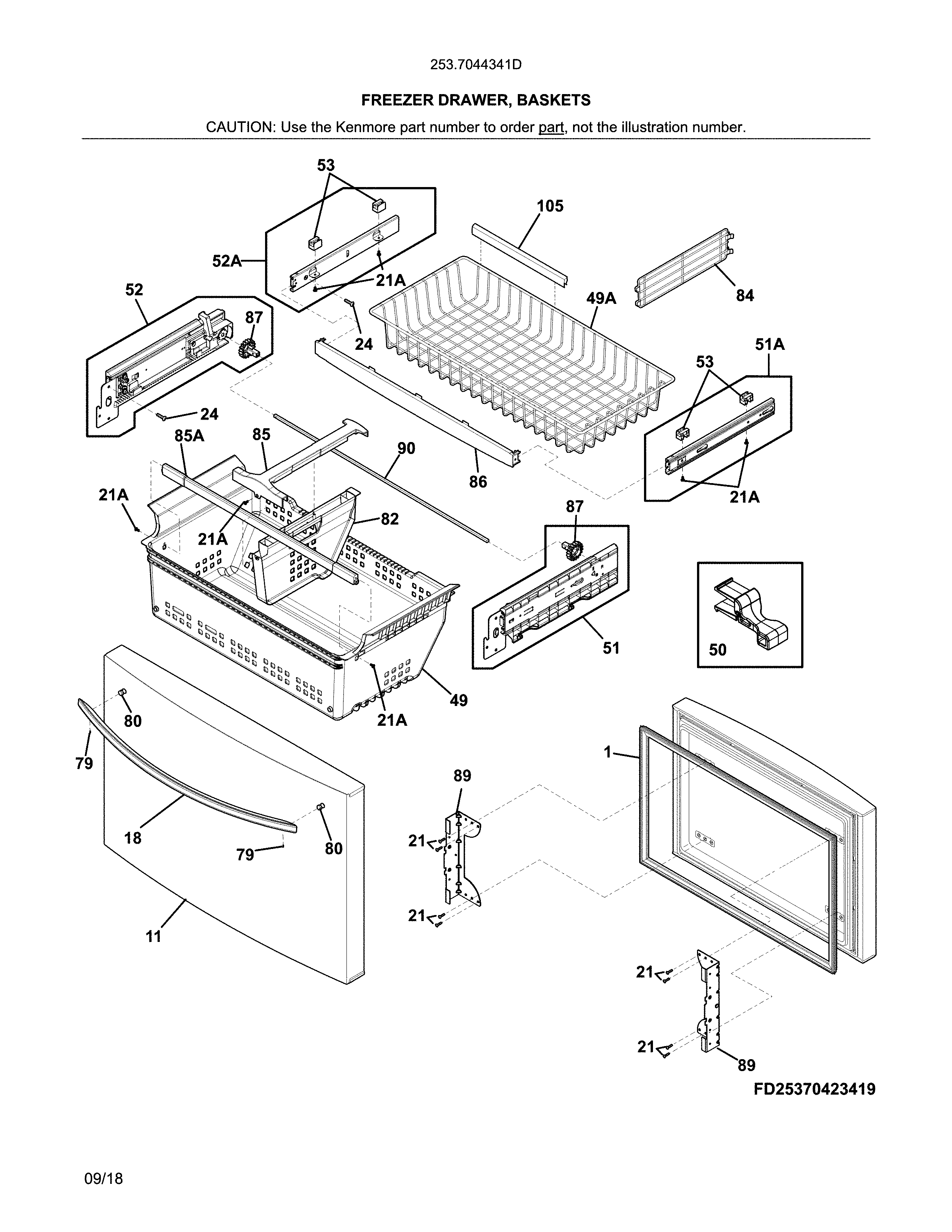

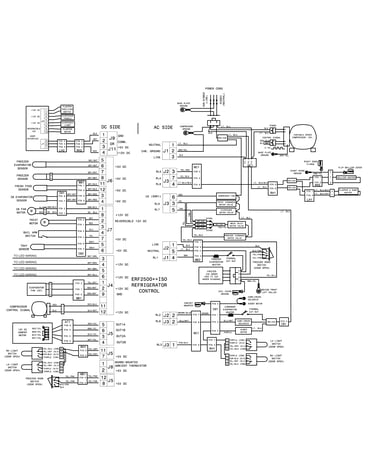

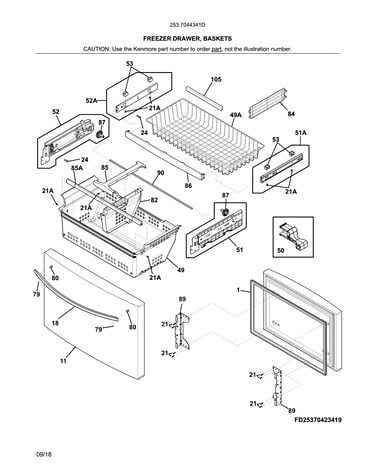

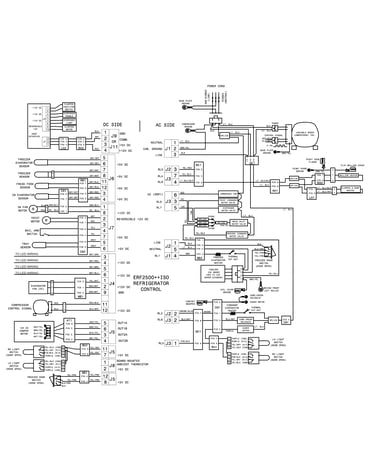

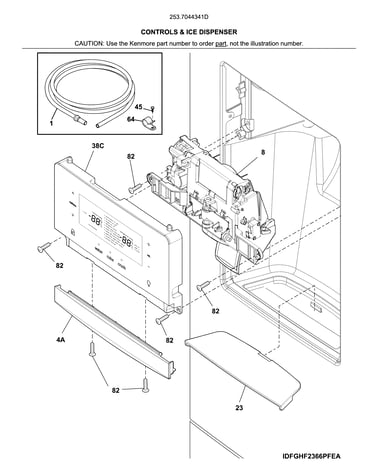

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
2537044341D Refrigerators
Refrigerator Water Filter 242294404
#137

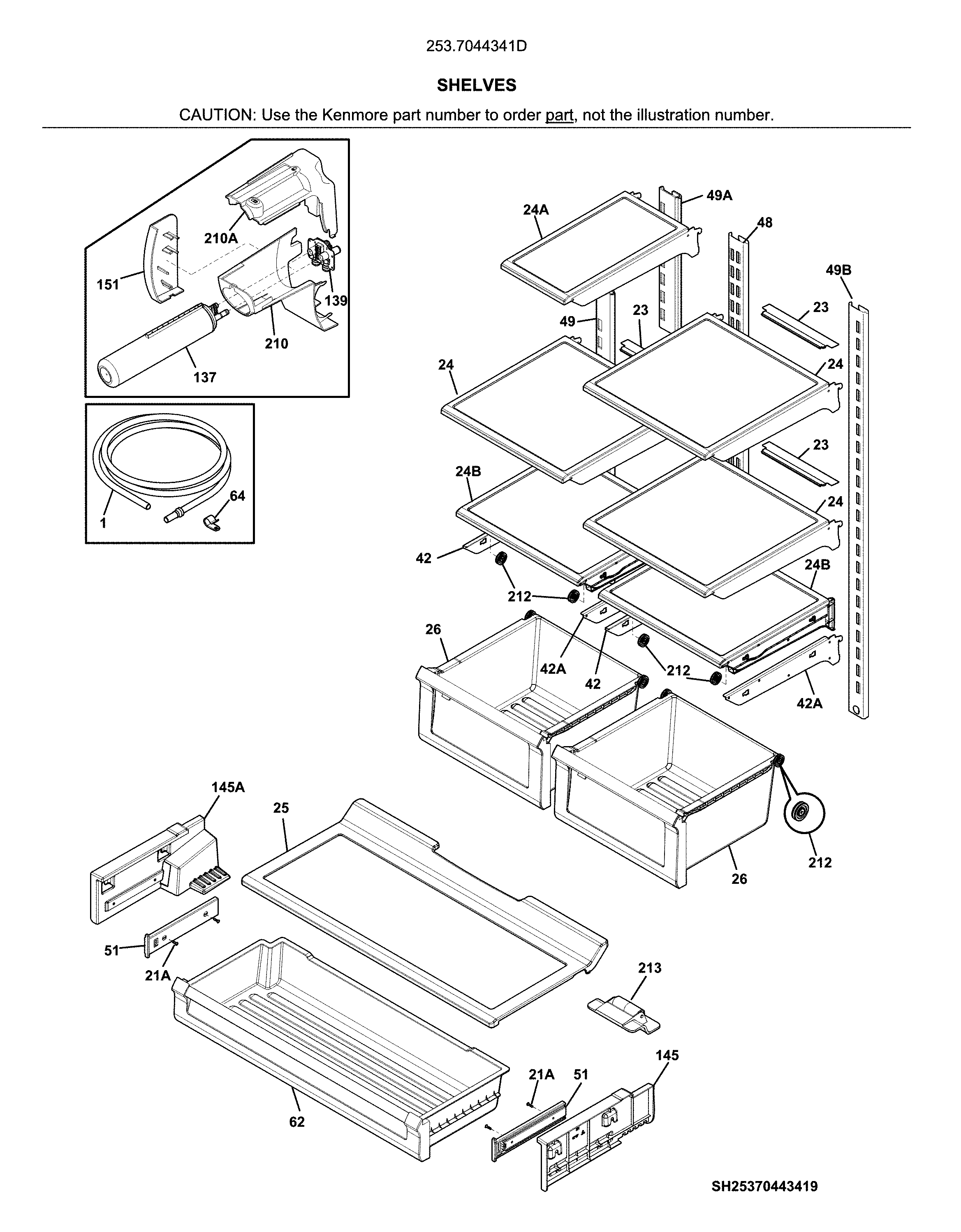

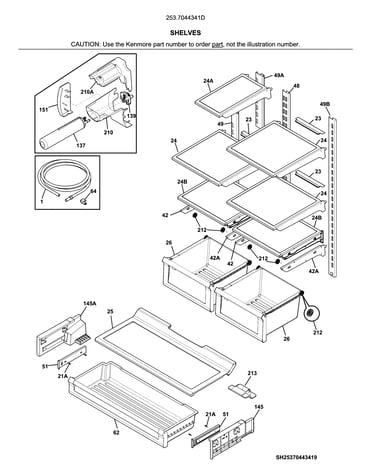

Shelves diagram

Refrigerator water filter

Part #242294404

Replaced by #9999

?
Manufacturer substitution
This part replaces 242294404. Substitute parts can look different from the original.
4.12 (410)
BEST SELLER

Get free shipping with Automatic Reorder

$88.52 |
6% OFF Phone Price : $94.52
Back Order
Refrigerator Air Filter 242047804
#95

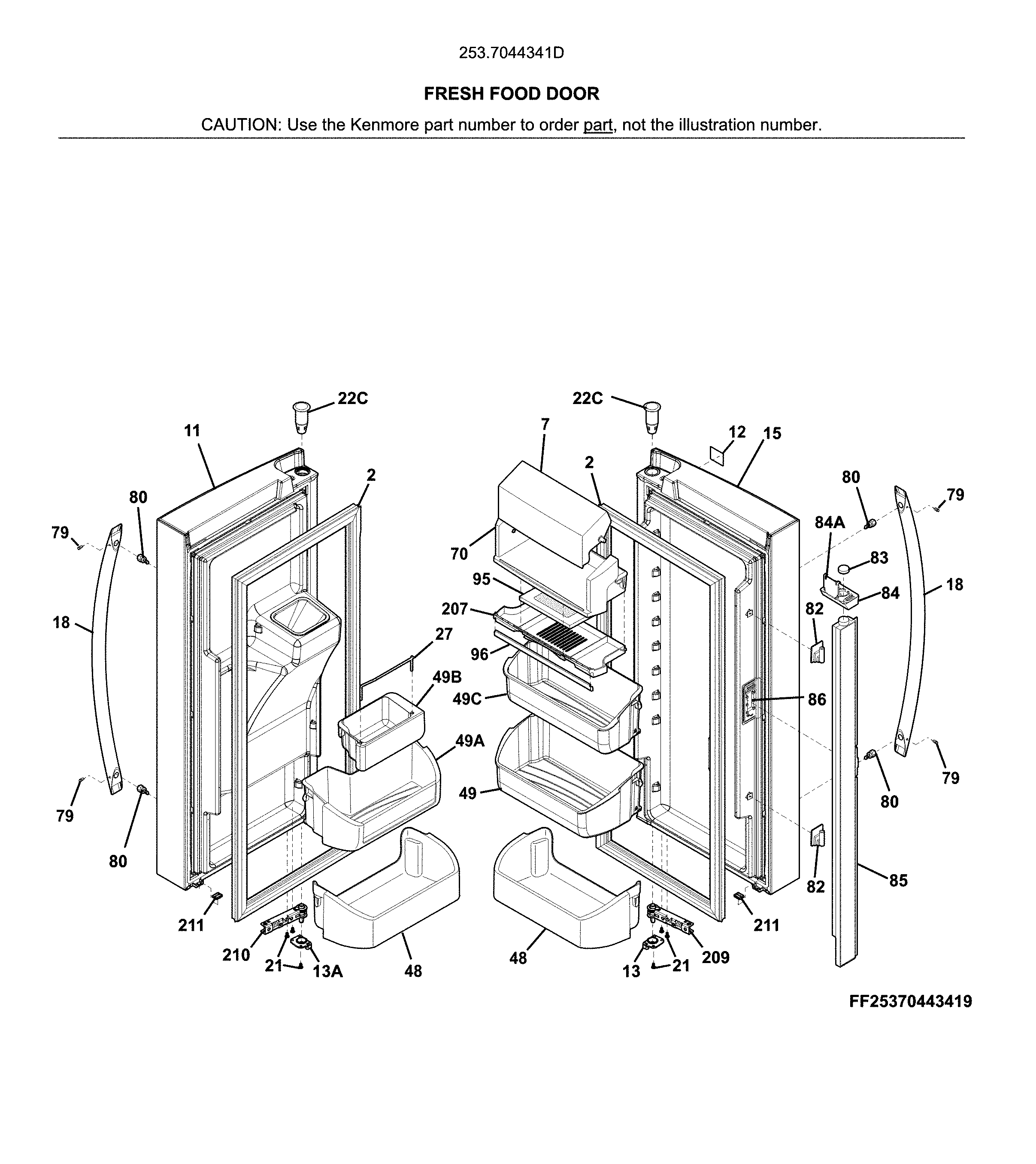

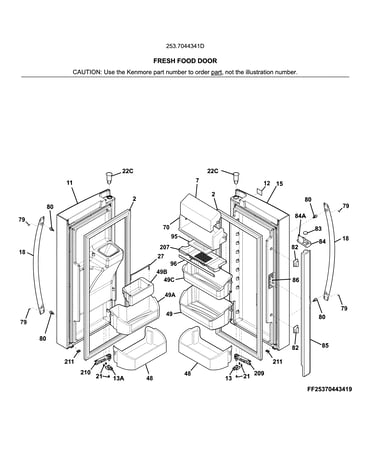

Fresh food doors diagram

Refrigerator air filter

Part #242047804

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047804. Substitute parts can look different from the original.
4.34 (61)
BEST SELLER

Get free shipping with Automatic Reorder

$27.46 |
18% OFF Phone Price : $33.46
In Stock
Refrigerator Filter Dryer 242047603
#4

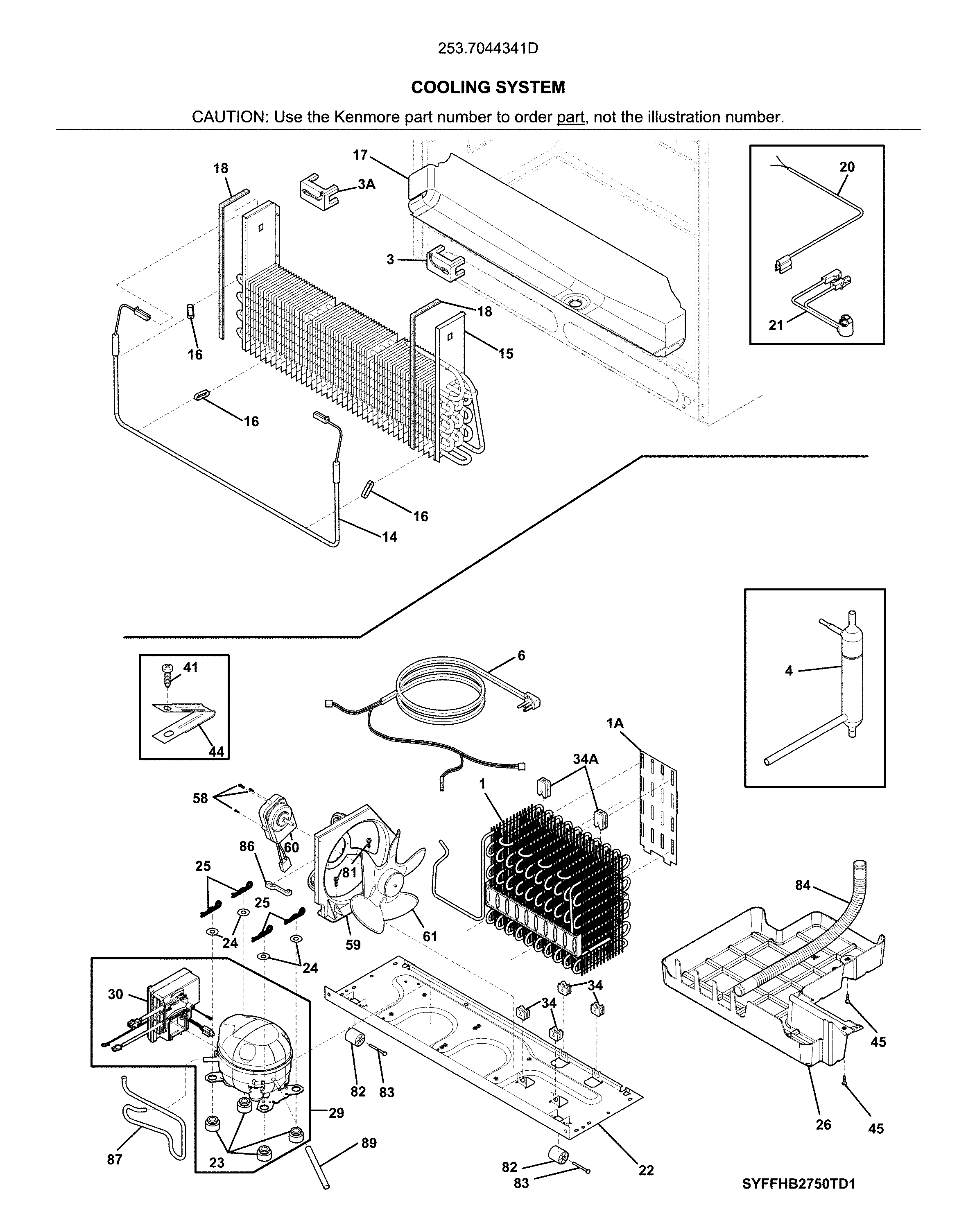

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.47 |
14% OFF Phone Price : $14.47
In Stock
Refrigerator Ice Maker 243297606
#2

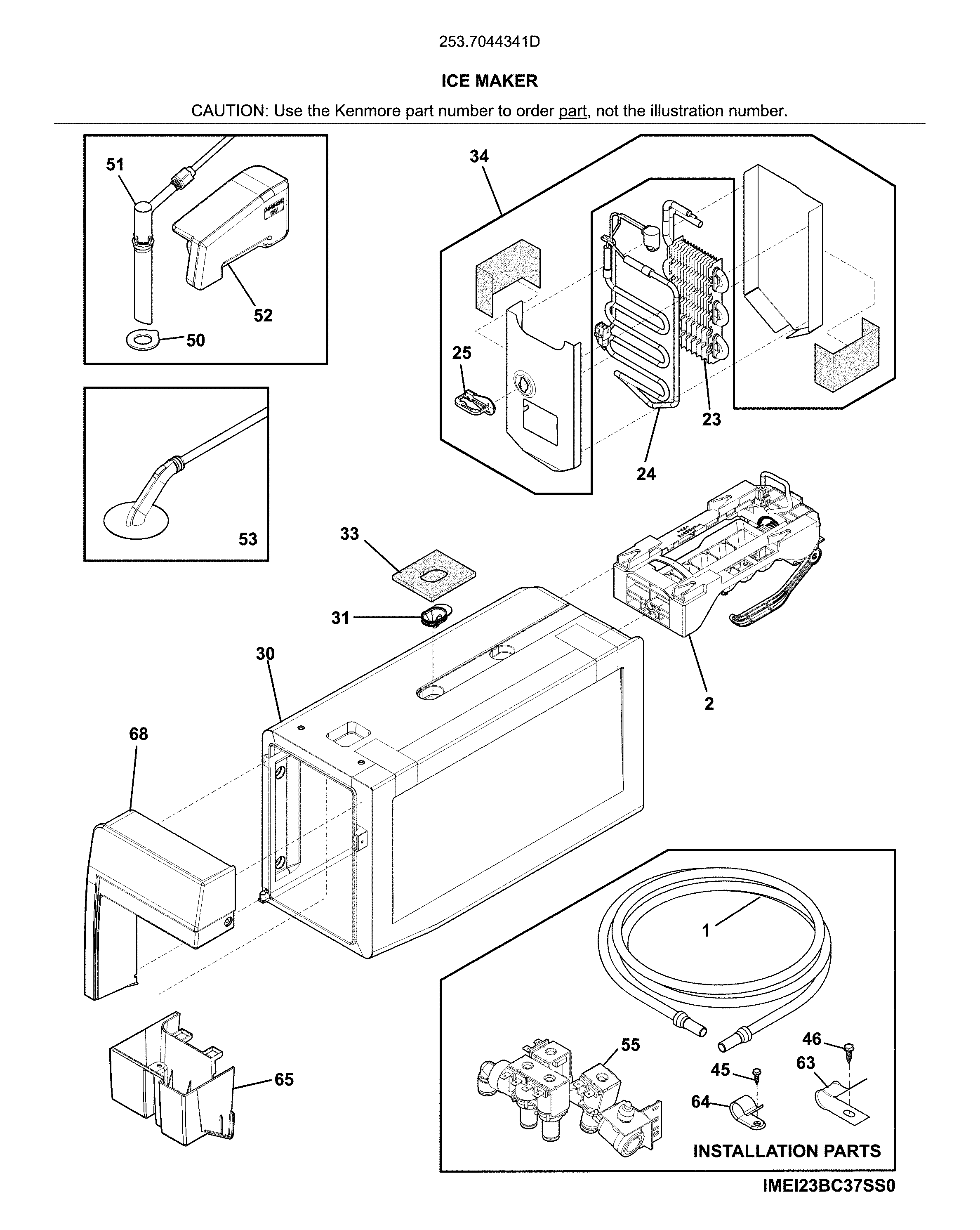

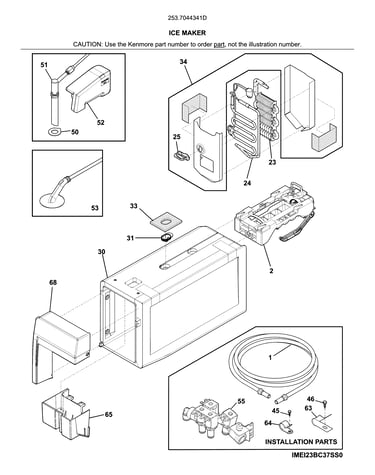

Ice maker diagram

Refrigerator ice maker

Part #243297606

Replaced by #243297613

?
Manufacturer substitution
This part replaces 243297606. Substitute parts can look different from the original.
4 (5)
BEST SELLER
$91.25 |
6% OFF Phone Price : $97.25
In Stock
Refrigerator Water Inlet Valve Assembly (replaces 242102201) 242253002
#55

Ice maker diagram

Refrigerator water inlet valve assembly (replaces 242102201)

Part #242253002

3.56 (9)
BEST SELLER
$131.82 |
8% OFF Phone Price : $143.82
In Stock
Refrigerator Gasket 242146001
#33

Ice maker diagram

Refrigerator gasket

Part #242146001

Replaced by #5303918784

?
Manufacturer substitution
This part replaces 242146001. Substitute parts can look different from the original.
2.33 (3)
BEST SELLER
$91.64 |
6% OFF Phone Price : $97.64
In Stock
Refrigerator Temperature Sensor 5303918775
#94

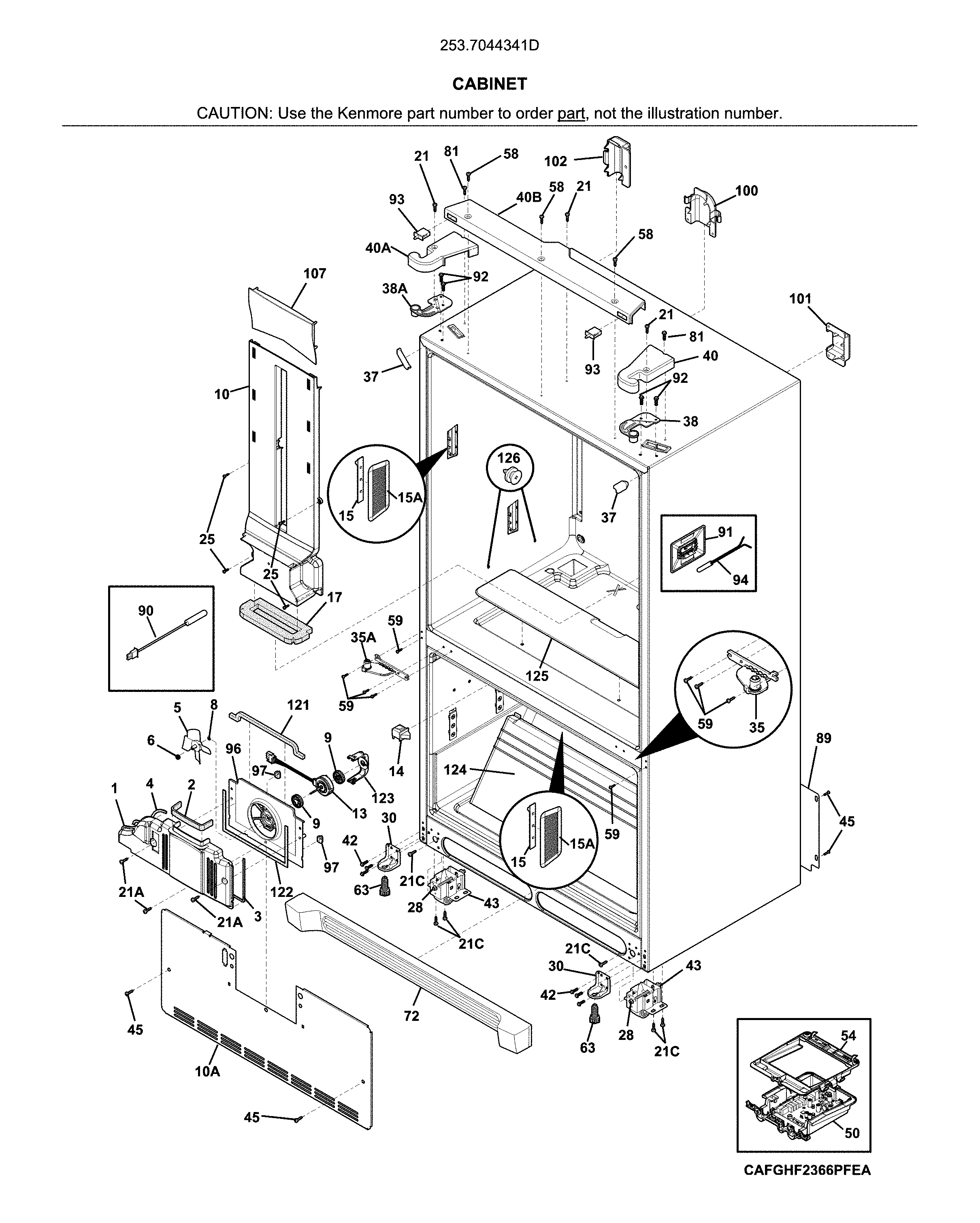

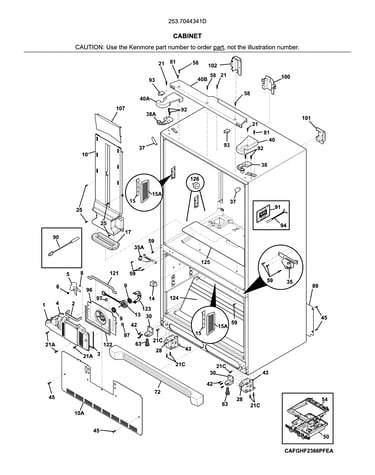

Cabinet diagram

Refrigerator temperature sensor

Part #5303918775

BEST SELLER
$19.30 |
9% OFF Phone Price : $21.30
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

4 (4)
BEST SELLER
$39.59 |
13% OFF Phone Price : $45.59
In Stock
Refrigerator Defrost Bi-metal Thermostat 808062701
#21

System diagram

Refrigerator defrost bi-metal thermostat

Part #808062701

Replaced by #5304521781

?
Manufacturer substitution
This part replaces 808062701. Substitute parts can look different from the original.
BEST SELLER
$30.55 |
16% OFF Phone Price : $36.55
In Stock
Refrigerator Fan 242119401
#147

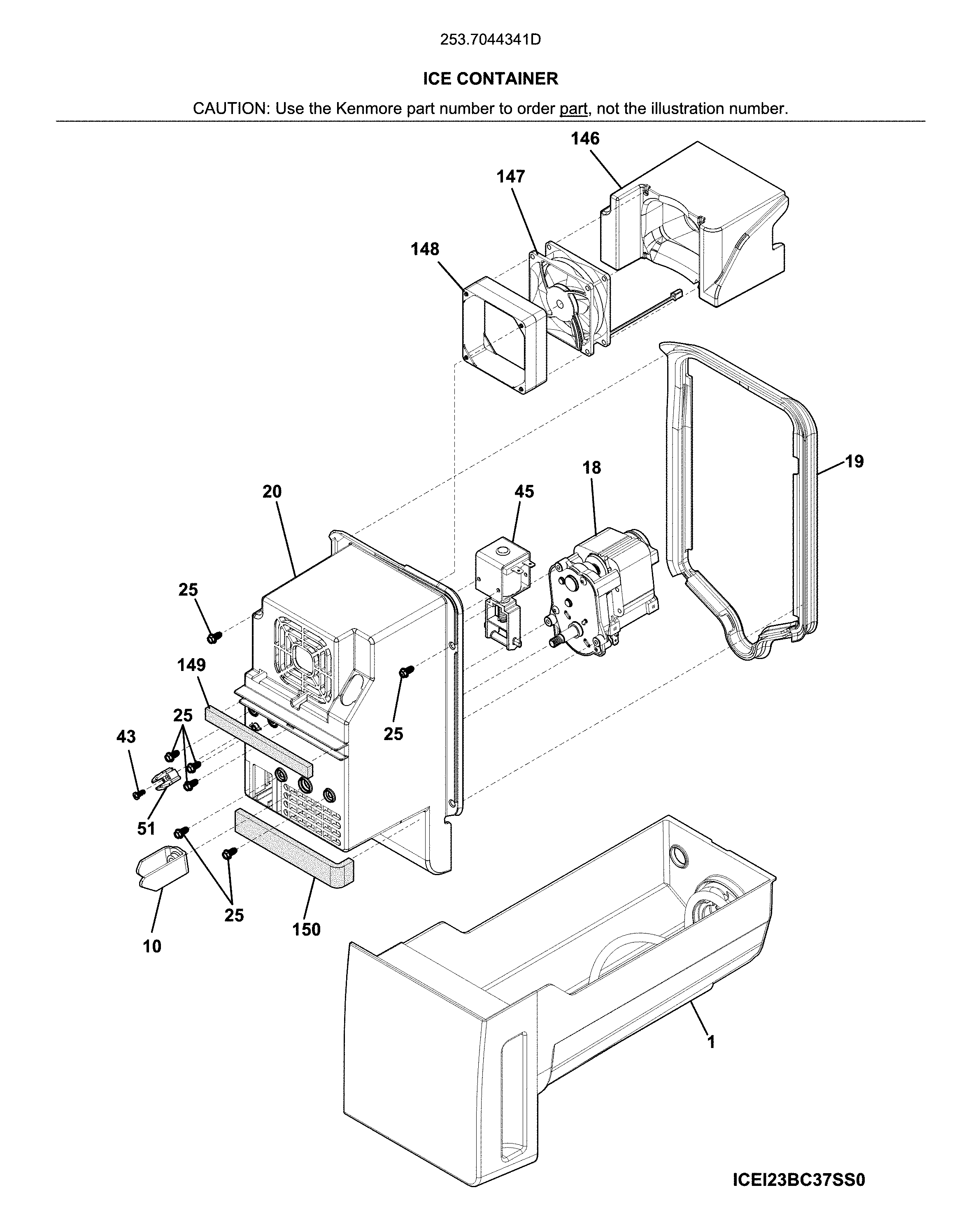

Container diagram

Refrigerator fan

Part #242119401

Replaced by #5304493604

?
Manufacturer substitution
This part replaces 242119401. Substitute parts can look different from the original.
4.33 (3)
BEST SELLER
$70.78 |
8% OFF Phone Price : $76.78
In Stock
