Tappan
Chest Freezer

Model # TFC05M0AW1 Official Tappan freezer - 5995263257

Here are the diagrams and repair parts for Official Tappan TFC05M0AW1 freezer - 5995263257, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

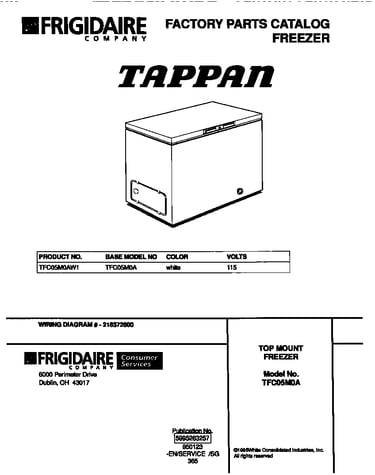

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Filter Drier 216099900
#4

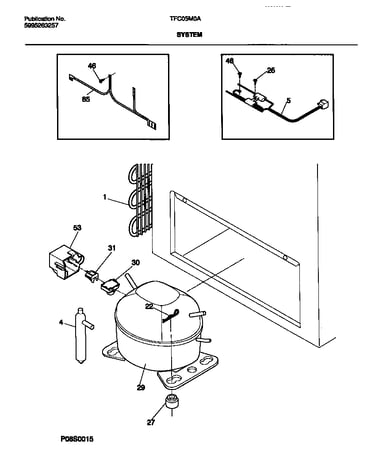

System diagram

Filter drier

Part #216099900

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216099900. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

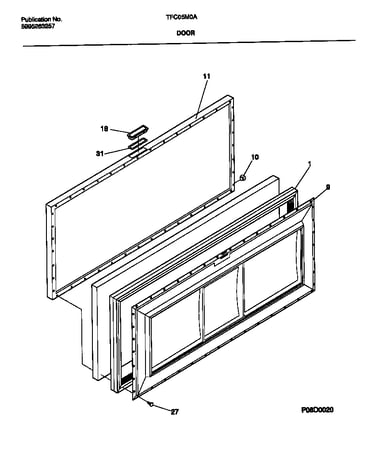

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Touch Paint 5303305324

#NI

All parts diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Gasket 216078400
#1

Door diagram

Gasket

Part #216078400

Replaced by #216480801

?
Manufacturer substitution
This part replaces 216078400. Substitute parts can look different from the original.
$126.30 |
9% OFF Phone Price : $138.30
In Stock
Refrigerator Evaporator Cover Screw 08037851
#46

System diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Screw 5303302714
#71

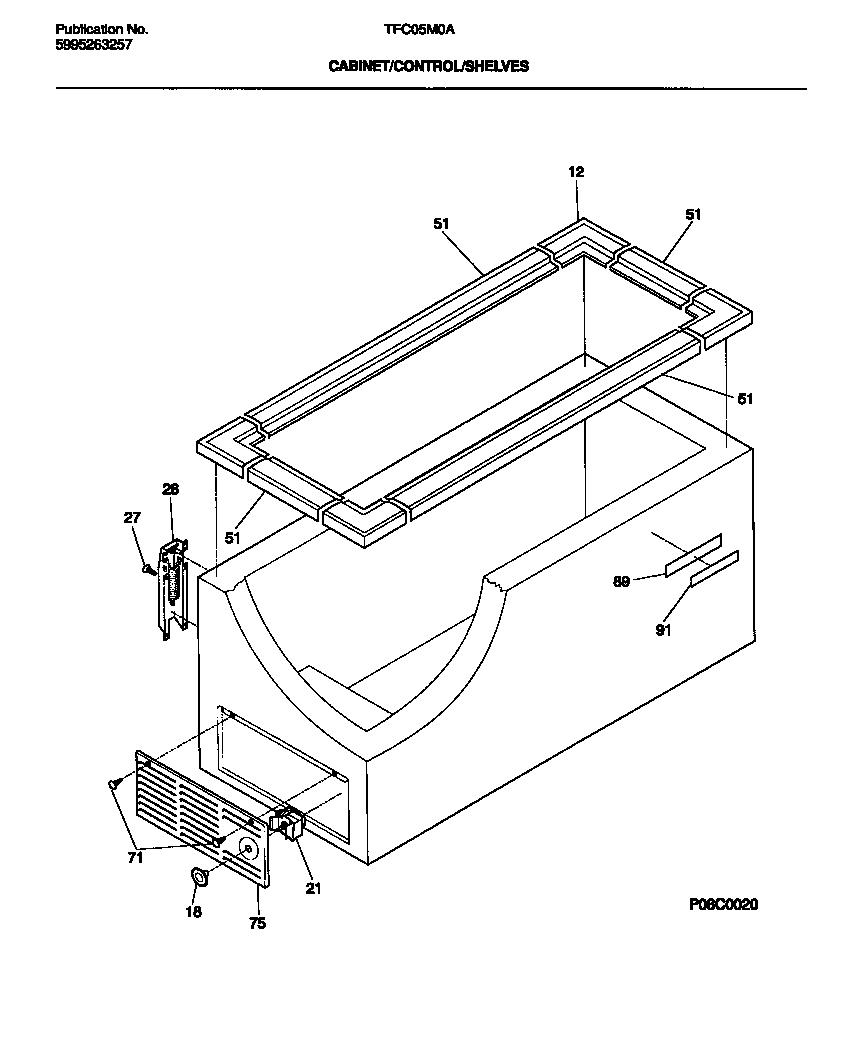

Cabinet, control, shelves diagram

Screw

Part #5303302714

Replaced by #131420300

?
Manufacturer substitution
This part replaces 5303302714. Substitute parts can look different from the original.
This item is not returnable
$15.80
In Stock
Compr R134a 216333500
#29

System diagram

Compr r134a

Part #216333500

Replaced by #5304443412

?
Manufacturer substitution
This part replaces 216333500. Substitute parts can look different from the original.
$620.55
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
Tappan Freezer Panel 5303925164
#11

Door diagram

Tappan freezer panel

Part #5303925164

$141.12
In Stock
Condenser R1 5303925315
#1

System diagram

Condenser r1

Part #5303925315

Replaced by #5300120779

?
Manufacturer substitution
This part replaces 5303925315. Substitute parts can look different from the original.
$296.67
In Stock
