Maytag
Electric Range

Model # MER5752BAB Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER5752BAB electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

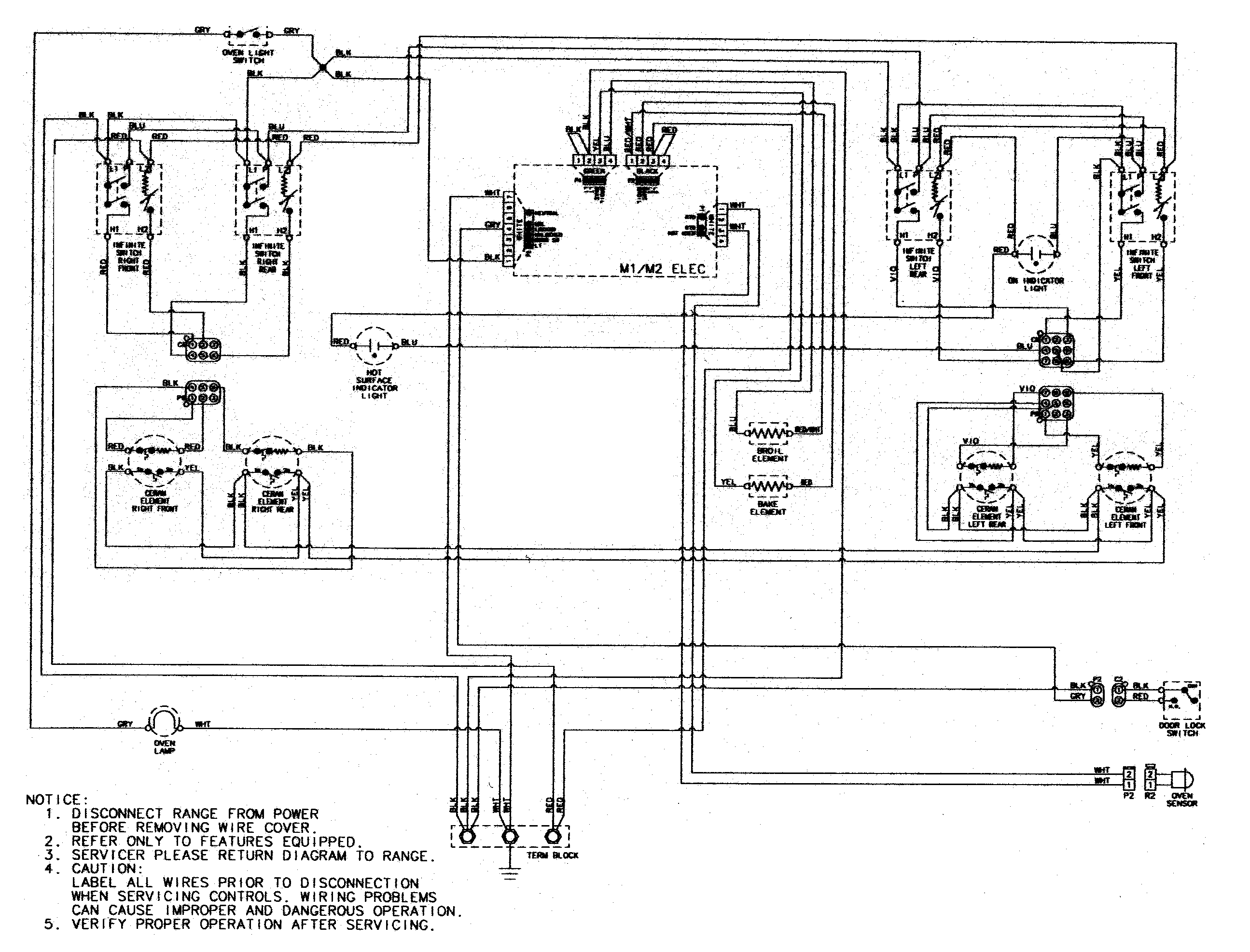

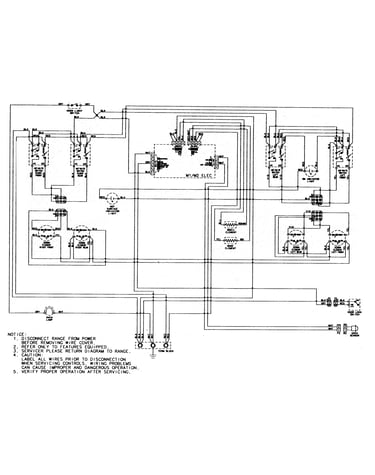

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Oven Bulb 7407P103-60
#16

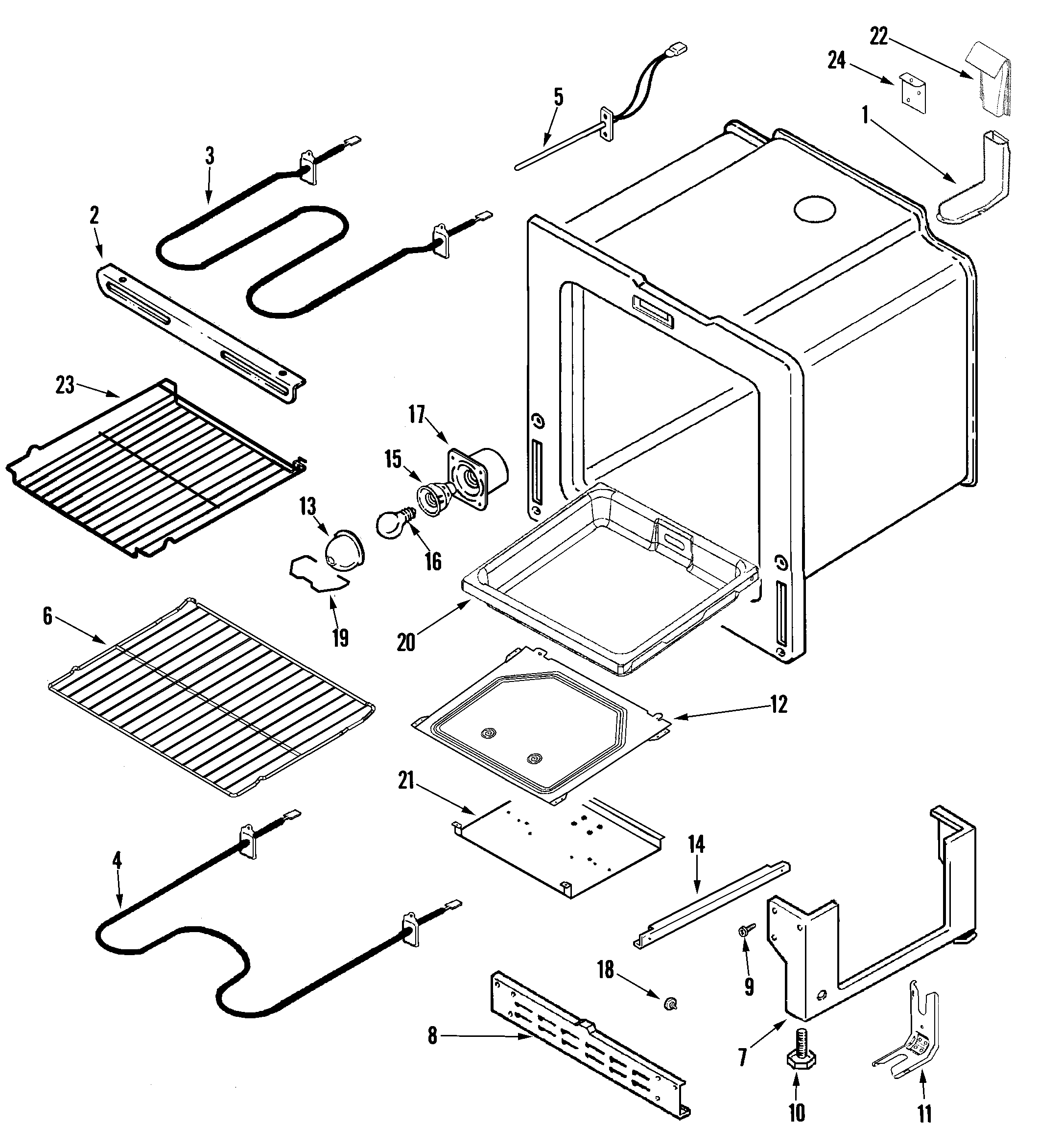

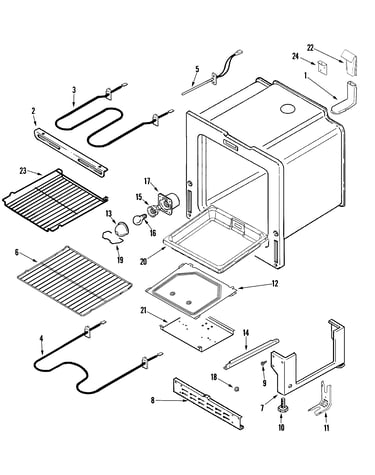

Oven/base diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Terminal Block 7401P039-60
#16

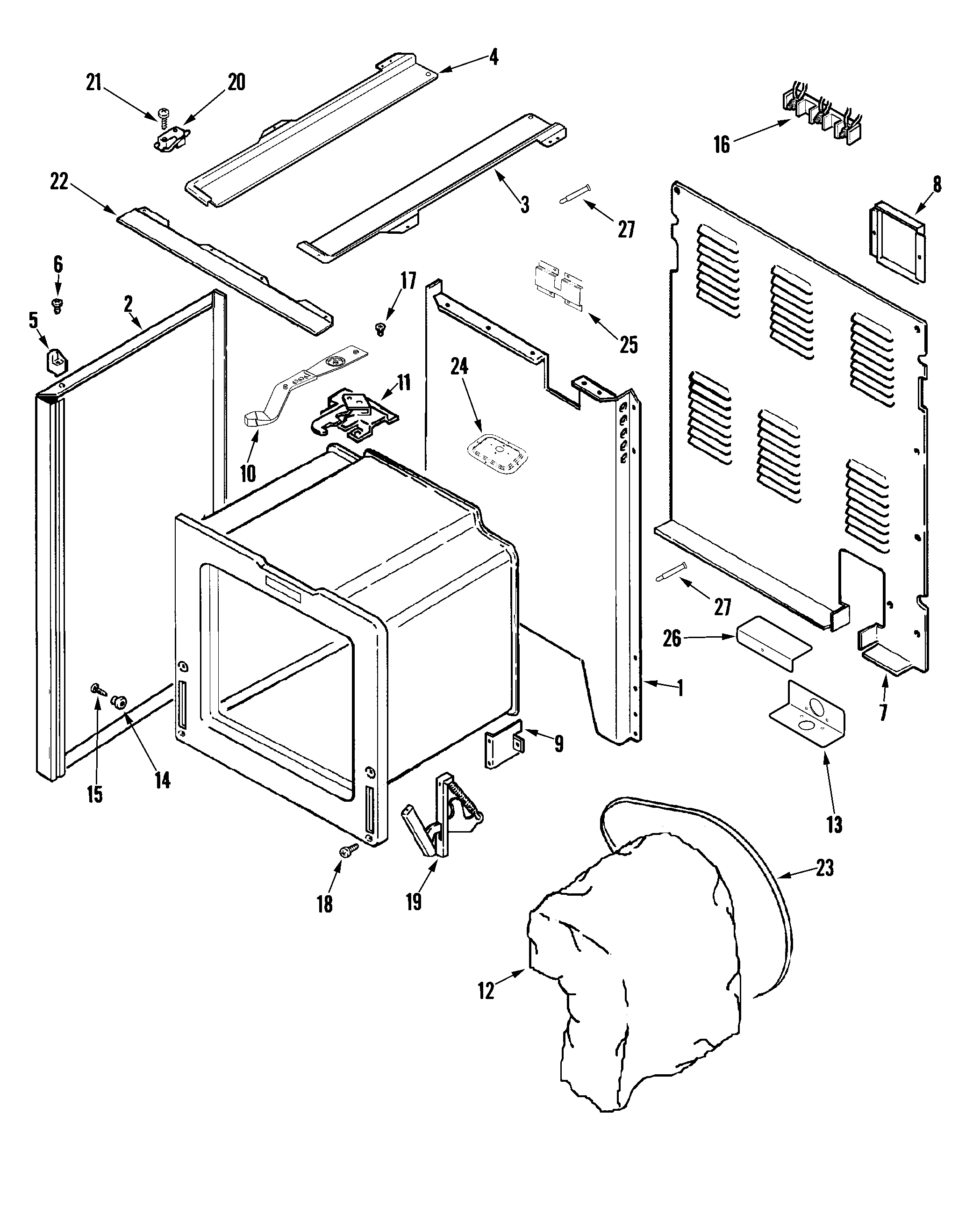

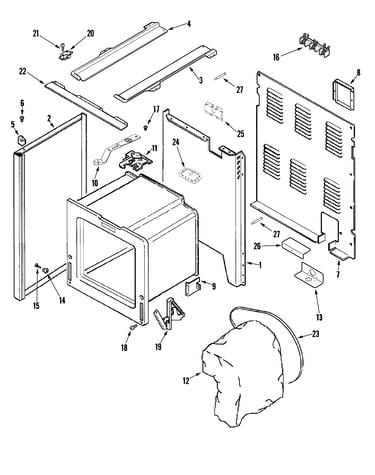

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#5

Oven/base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Range Surface Element Control Switch 7403P238-60
#6B

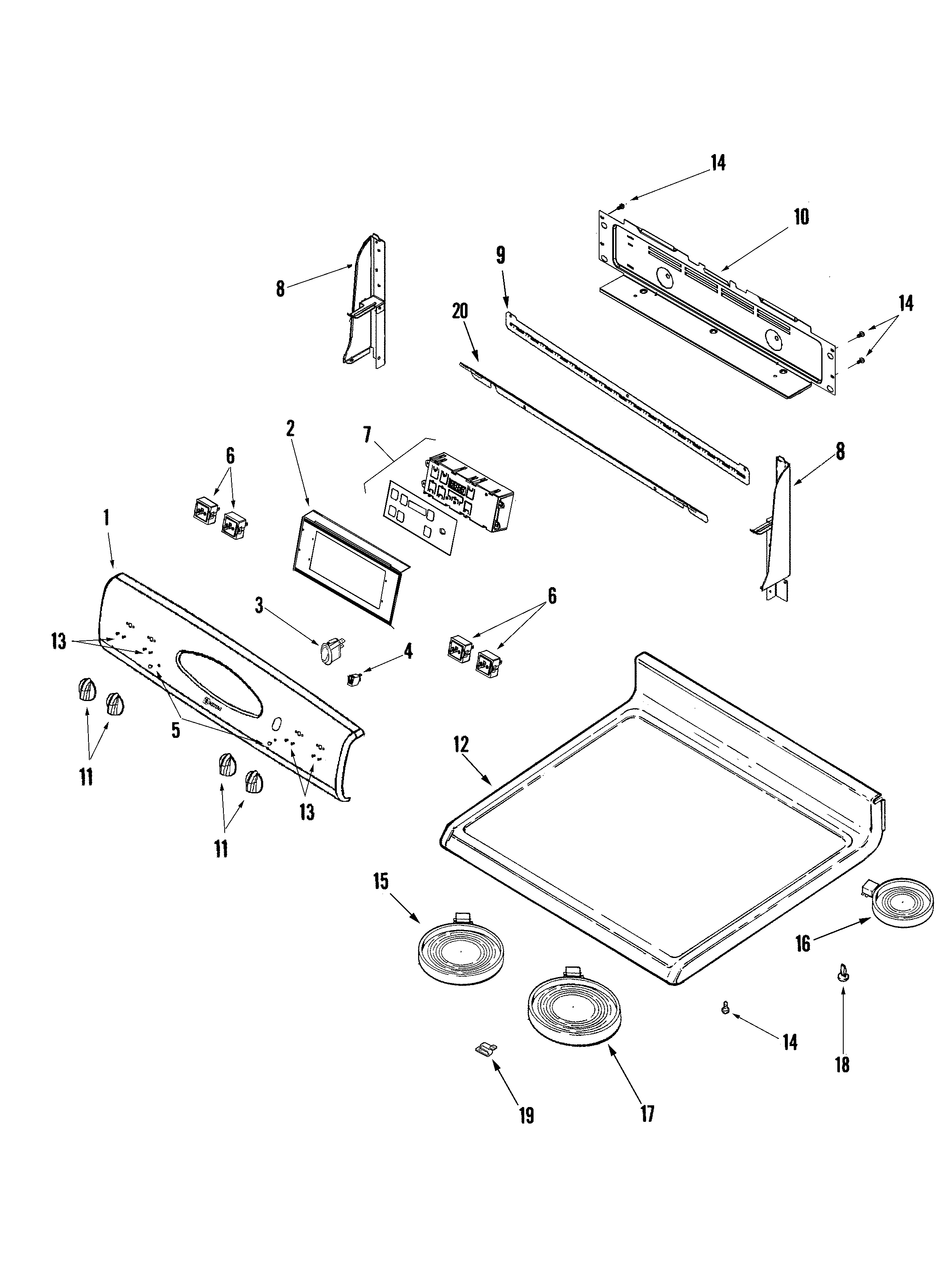

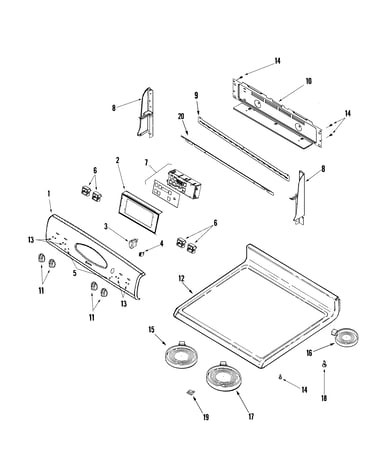

Control panel/top assembly diagram

Range surface element control switch

Part #7403P238-60

Replaced by #WP7403P238-60

?
Manufacturer substitution
This part replaces 7403P238-60. Substitute parts can look different from the original.
BEST SELLER
$50.39 |
11% OFF Phone Price : $56.39
In Stock
Element (120 74008568
#16

Control panel/top assembly diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
BEST SELLER
$153.09 |
7% OFF Phone Price : $165.09
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#8

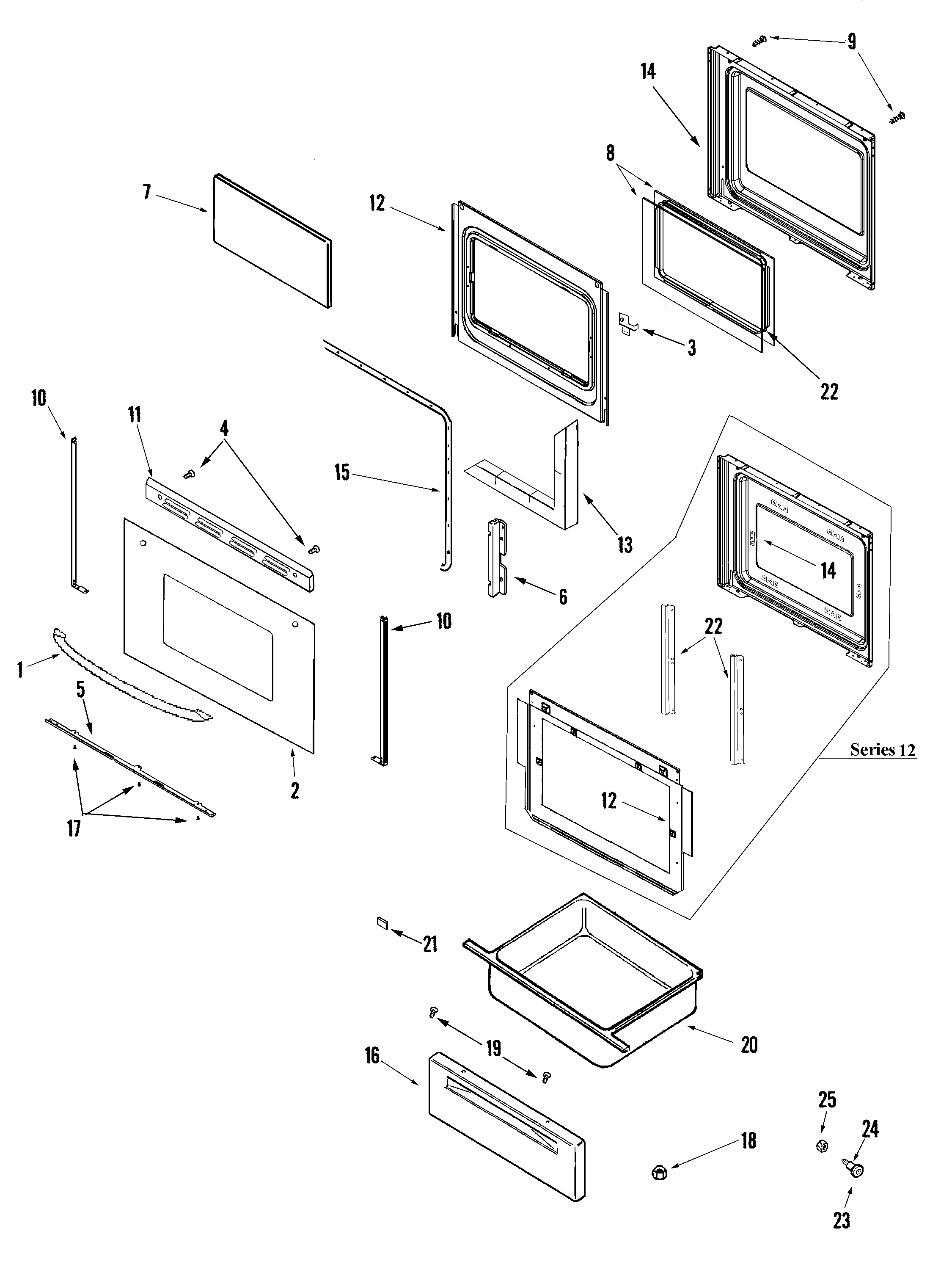

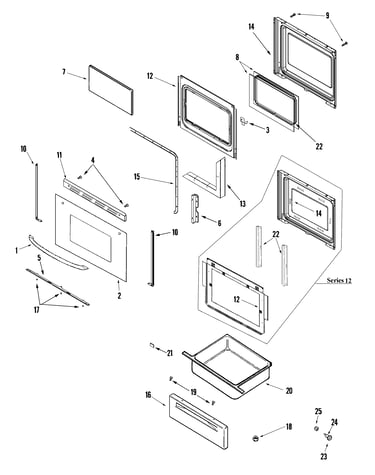

Door/drawer diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Oven Broiler Element 74003041
#3

Oven/base diagram

Oven broiler element

Part #74003041

Replaced by #WPW10310249

?
Manufacturer substitution
This part replaces 74003041. Substitute parts can look different from the original.
$74.22 |
7% OFF Phone Price : $80.22
In Stock
Range Radiant Surface Element 74009743
#15

Control panel/top assembly diagram

Range radiant surface element

Part #74009743

Replaced by #W10823715

?
Manufacturer substitution
This part replaces 74009743. Substitute parts can look different from the original.
$129.91 |
8% OFF Phone Price : $141.91
In Stock
Screw Element 74002979
#22B

Door/drawer diagram

Screw element

Part #74002979

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74002979. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
