Model # 59669319010 Official Kenmore refrigerator
Here are the diagrams and repair parts for Official Kenmore 59669319010 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

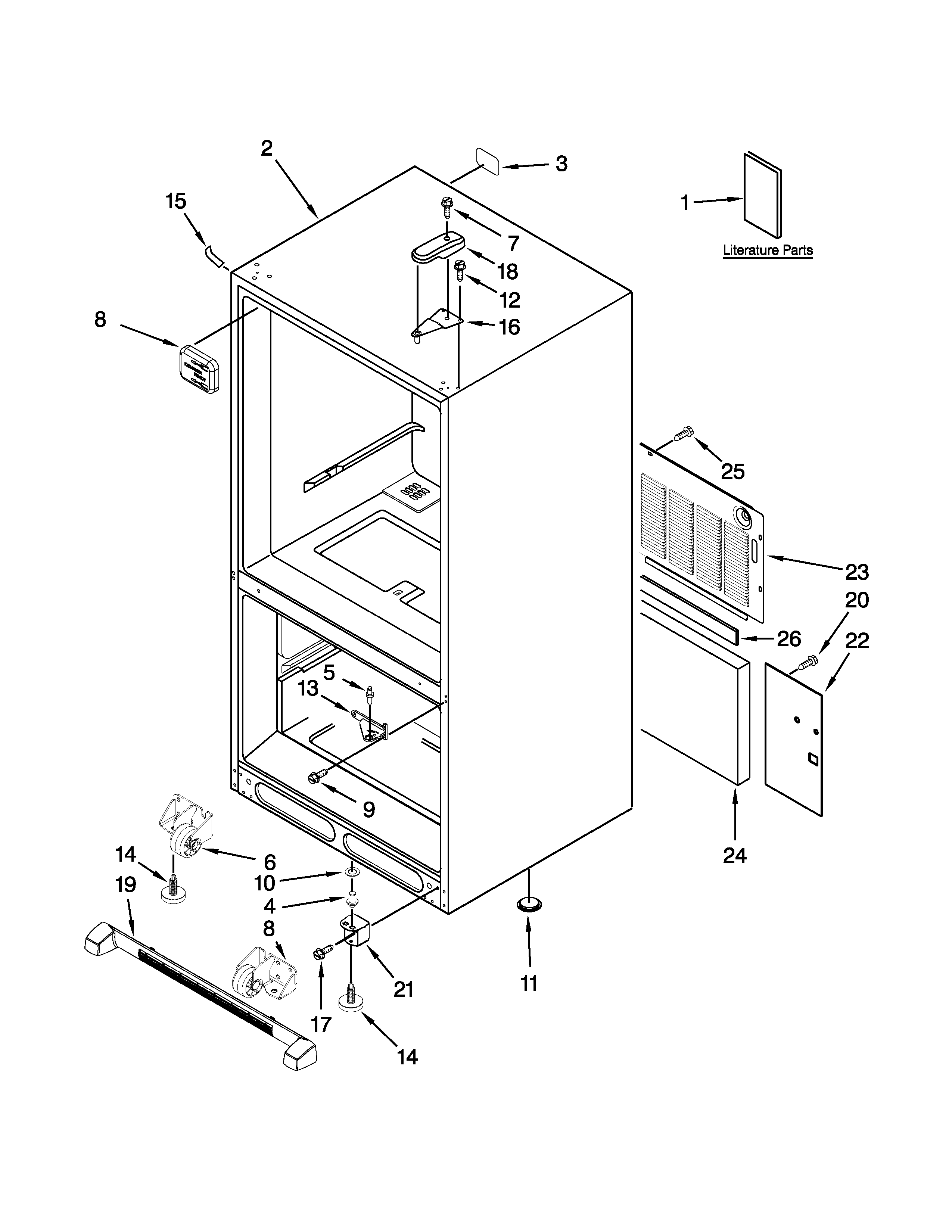

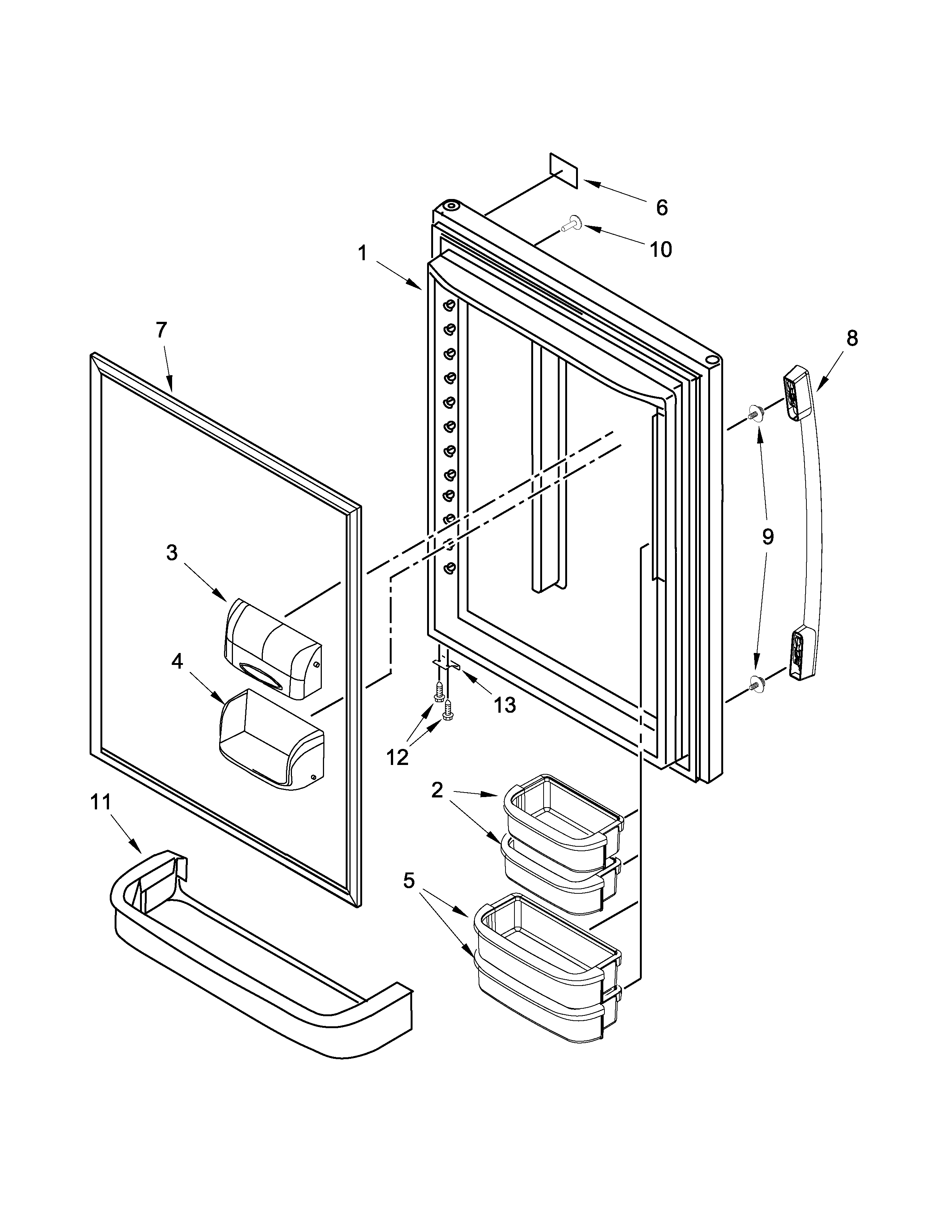

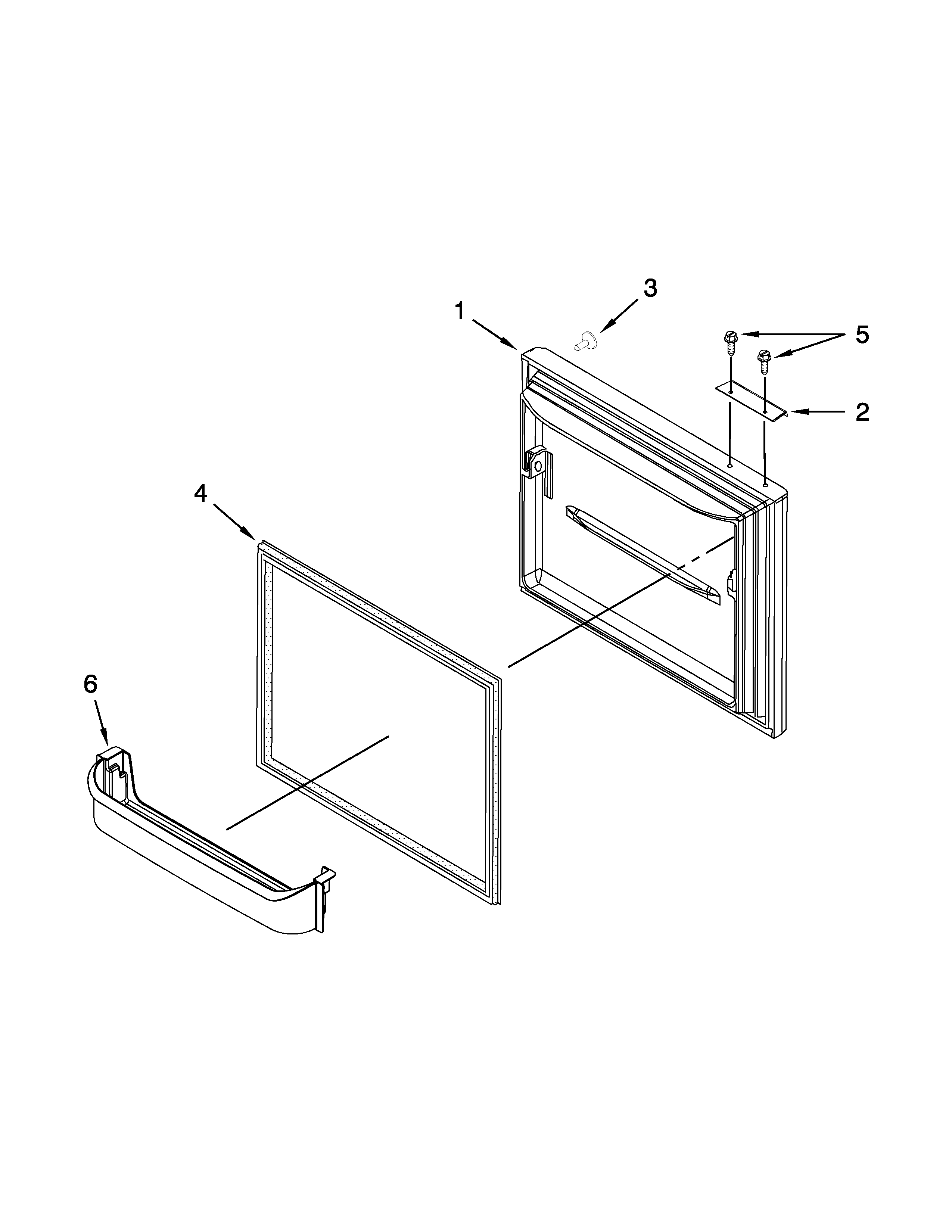

SELECT DIAGRAM
Browse Parts for59669319010 Refrigerators
- #22

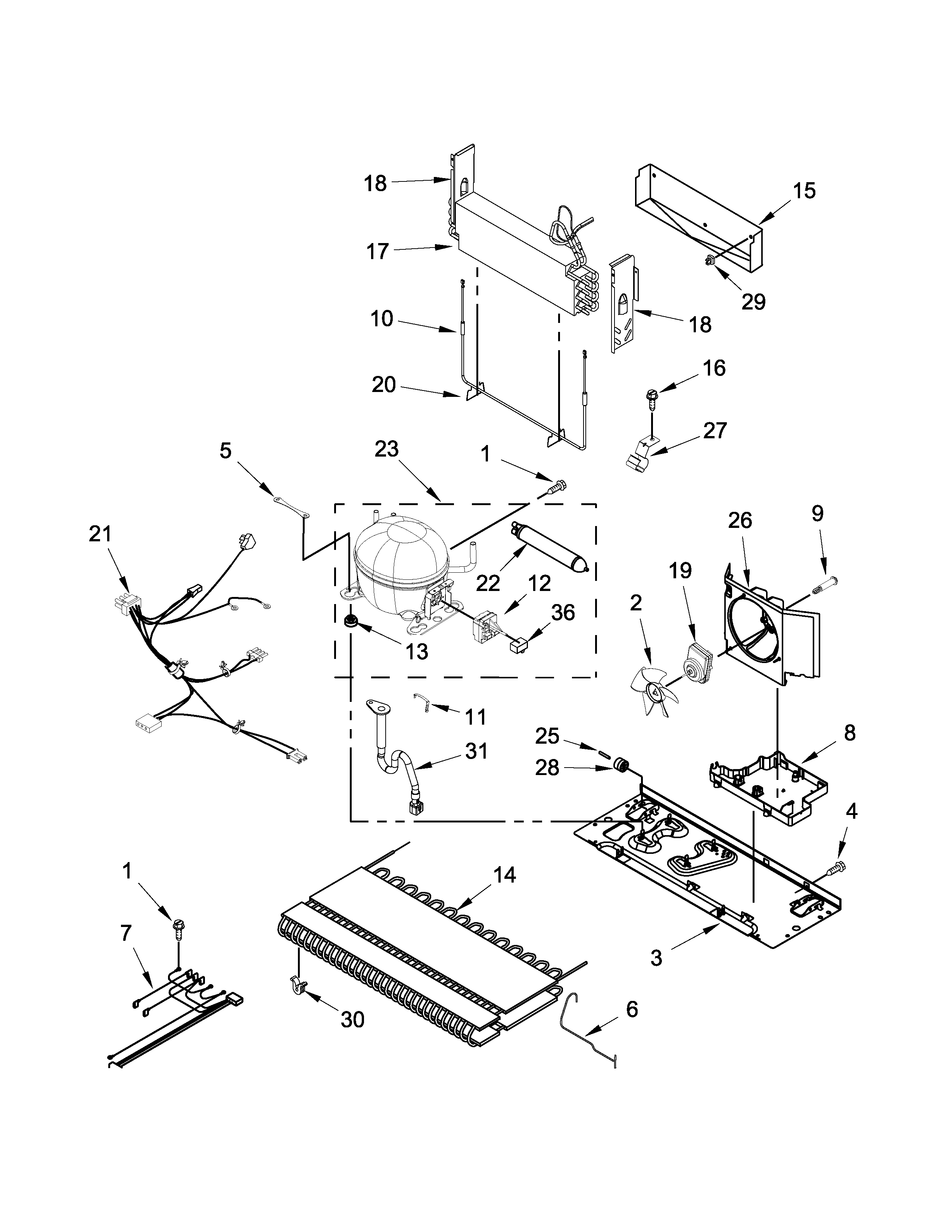

Unit parts diagram
Drier tubePart #W10177049
Replaced by #WPW10143759
?Manufacturer substitutionThis part replaces W10177049. Substitute parts can look different from the original.$20.04 |23% OFF Phone Price : $26.04In Stock - #5

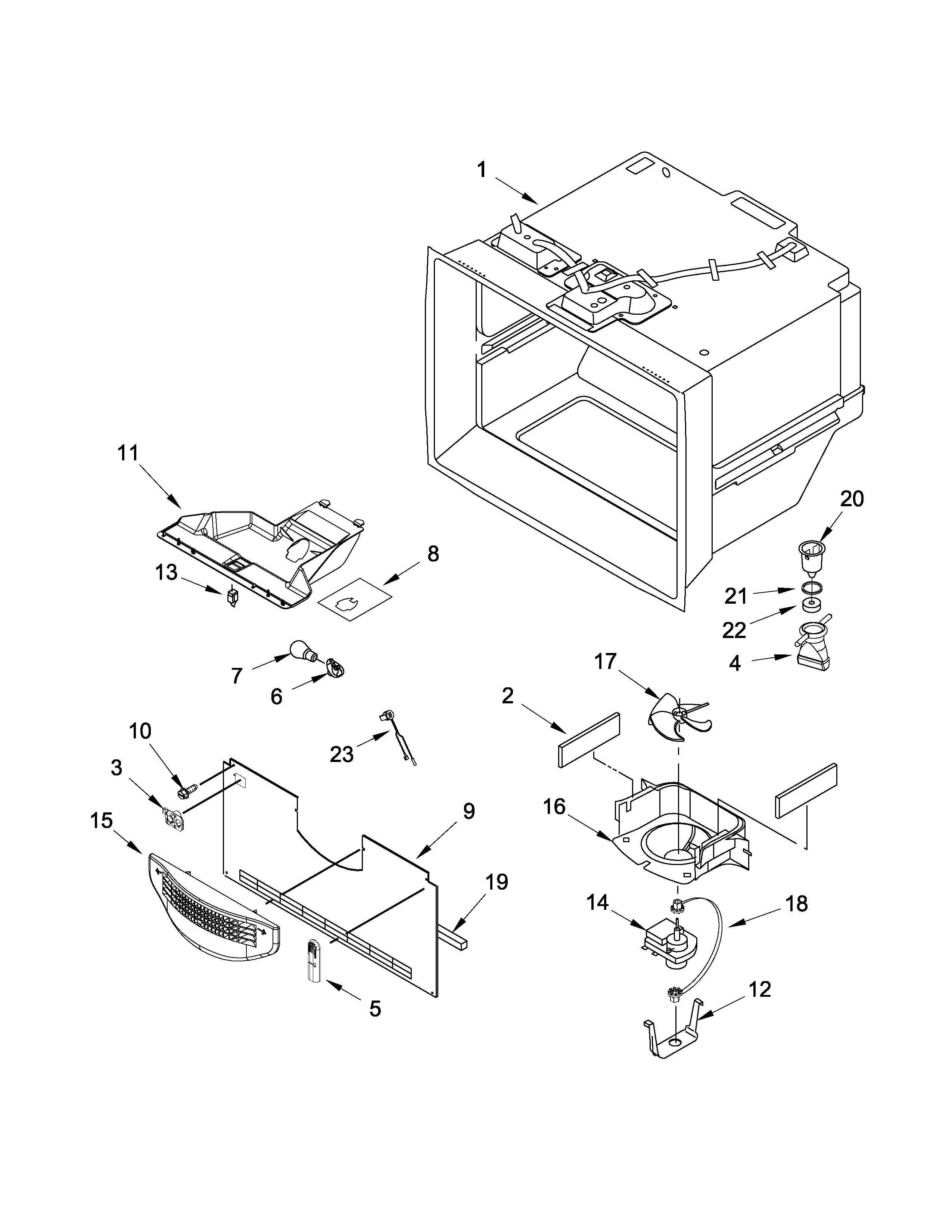

Refrigerator liner parts diagram
Refrigerator electronic control boardPart #W10503278
Replaced by #WPW10503278
?Manufacturer substitutionThis part replaces W10503278. Substitute parts can look different from the original.$139.15 |8% OFF Phone Price : $151.15In Stock - #6

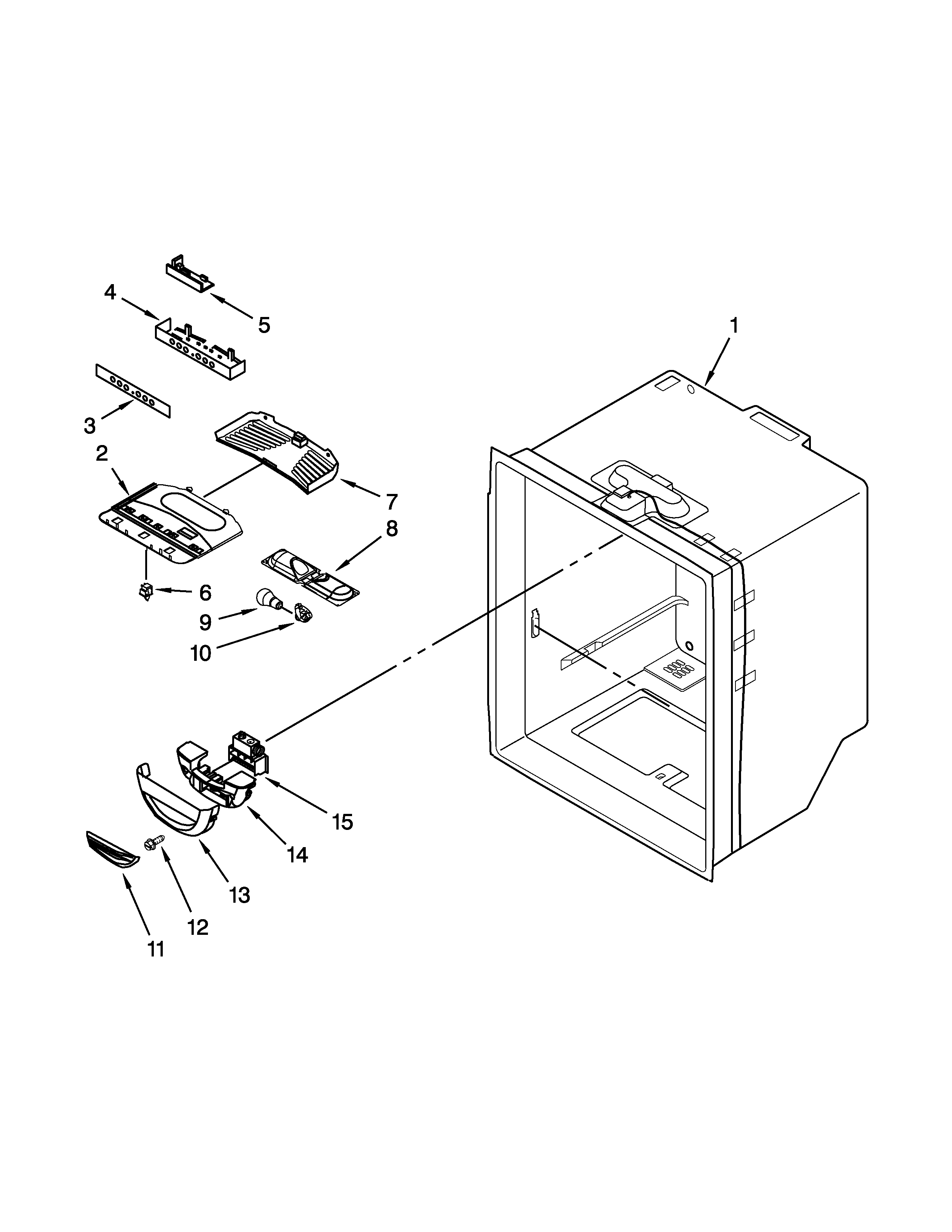

Refrigerator liner parts diagram
Refrigerator switchPart #C3680310V
Replaced by #W11384469
?Manufacturer substitutionThis part replaces C3680310V. Substitute parts can look different from the original.$20.16 |23% OFF Phone Price : $26.16In Stock - #17
Freezer liner parts diagram
Refrigerator evaporator fan bladePart #2169142
Replaced by #WP2169142
?Manufacturer substitutionThis part replaces 2169142. Substitute parts can look different from the original.$24.98 |19% OFF Phone Price : $30.98In Stock - #10

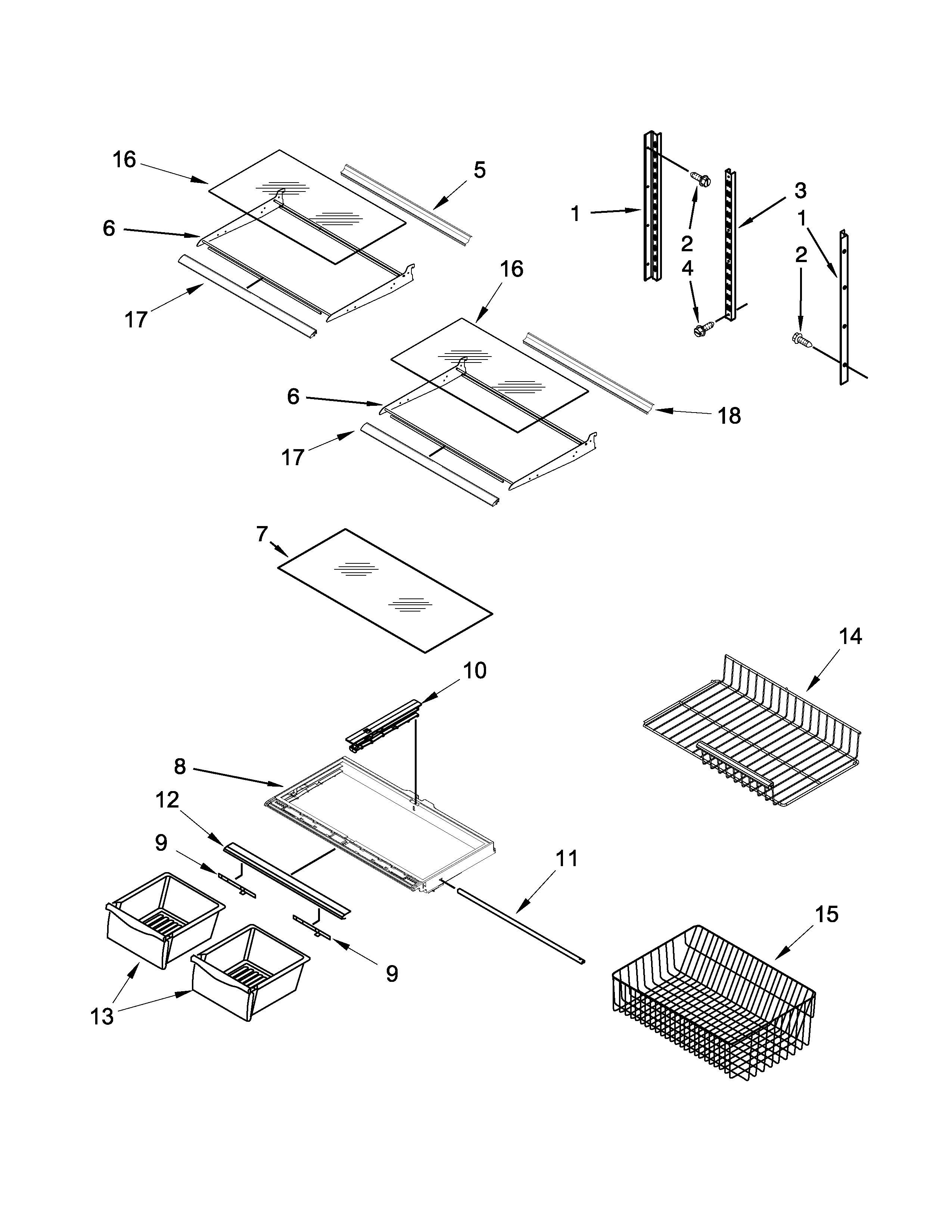

Shelf parts diagram
Refrigerator central railPart #12530701N
Replaced by #WPW10671238
?Manufacturer substitutionThis part replaces 12530701N. Substitute parts can look different from the original.$44.62 |12% OFF Phone Price : $50.62In Stock - #24
Unit parts diagram
Refrigerator run capacitorPart #W10350564
Replaced by #WPW10350564
?Manufacturer substitutionThis part replaces W10350564. Substitute parts can look different from the original.$52.06 |10% OFF Phone Price : $58.06In Stock - #23
Unit parts diagram
Refrigerator compressorPart #W10445422
Replaced by #W10233960
?Manufacturer substitutionThis part replaces W10445422. Substitute parts can look different from the original.$324.63 |$12.00 OFF Phone Price : $336.63In Stock - #19
Freezer liner parts diagram
Refrigerator evaporator fan motorPart #W10128551
Replaced by #WPW10128551
?Manufacturer substitutionThis part replaces W10128551. Substitute parts can look different from the original.$53.07 |10% OFF Phone Price : $59.07In Stock - #15
Refrigerator liner parts diagram
Refrigerator electronic damperPart #W10594330
Replaced by #WPW10594330
?Manufacturer substitutionThis part replaces W10594330. Substitute parts can look different from the original.$93.13 |6% OFF Phone Price : $99.13In Stock - #7
Unit parts diagram
Refrigerator wire harnessPart #W10292244
Replaced by #W11260592
?Manufacturer substitutionThis part replaces W10292244. Substitute parts can look different from the original.$51.78 |10% OFF Phone Price : $57.78In Stock
