York
Heating & Cooling Combined Unit

Model # D3CG090N13025MF Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D3CG090N13025MF heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 188 parts  |
Igniter 025-29010-000

#51A

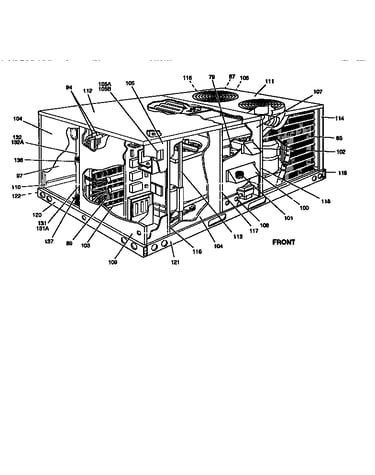

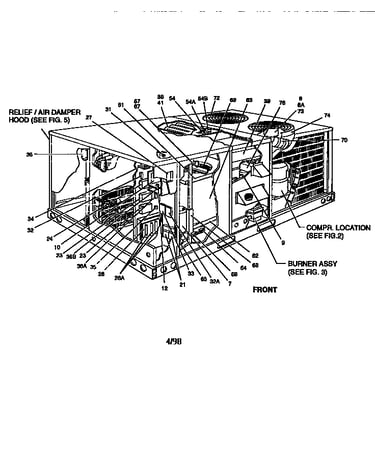

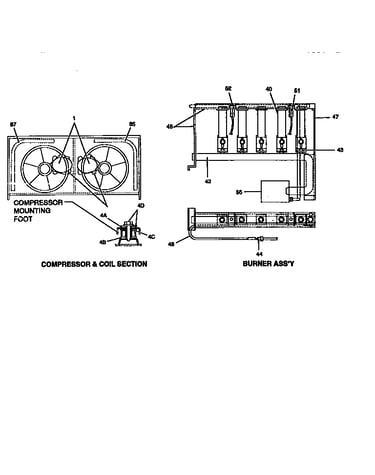

All parts diagram

Igniter

Part #025-29010-000

The manufacturer no longer makes this part, and there's no substitute part

Elec Cntrllr 025-20963-000

#17

All parts diagram

Elec cntrllr

Part #025-20963-000

$19.63
In Stock
Capacitor 024-20045-700

#21

All parts diagram

Capacitor

Part #024-20045-700

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-700. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Panel, Shelf (assembly) 373-16497-001
#5

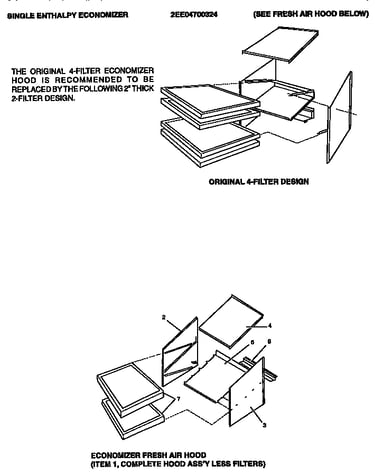

Fresh air hood assembly diagram

Panel, shelf (assembly)

Part #373-16497-001

The manufacturer no longer makes this part, and there's no substitute part

Bracket Limit Switch (unit Style C,d) 073-18432-000

#54BA

All parts diagram

Bracket limit switch (unit style c,d)

Part #073-18432-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket Limit 063-89979-000

#54B

All parts diagram

Bracket limit

Part #063-89979-000

The manufacturer no longer makes this part, and there's no substitute part

Connector, Plug (3 Circuit) 025-19671-000

#19

All parts diagram

Connector, plug (3 circuit)

Part #025-19671-000

The manufacturer no longer makes this part, and there's no substitute part

Plate 063-89996-000

#61

All parts diagram

Plate

Part #063-89996-000

The manufacturer no longer makes this part, and there's no substitute part

Relay, Cnt'l (blower Timer) 024-26090-000

#32A

All parts diagram

Relay, cnt'l (blower timer)

Part #024-26090-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Top (assembly) 373-16499-001
#4

Fresh air hood assembly diagram

Panel, top (assembly)

Part #373-16499-001

The manufacturer no longer makes this part, and there's no substitute part
