Model # KDL-55HX751 Official Sony lcd television

Here are the diagrams and repair parts for Official Sony KDL-55HX751 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

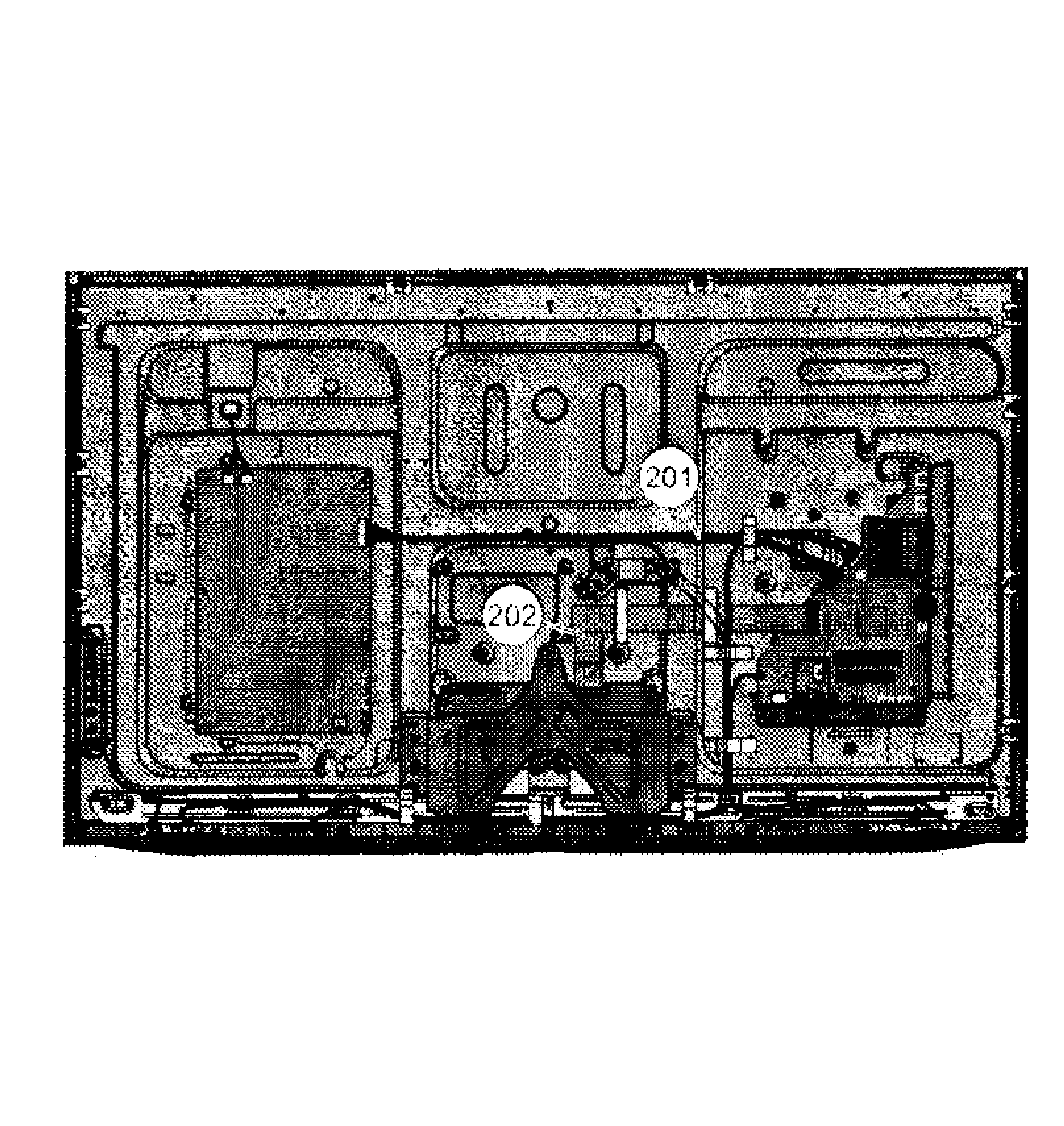

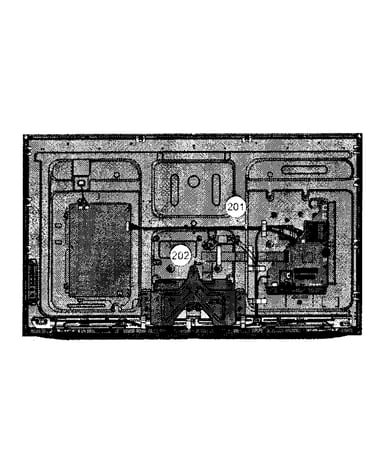

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Pcb Hem3 A1865308A
#109

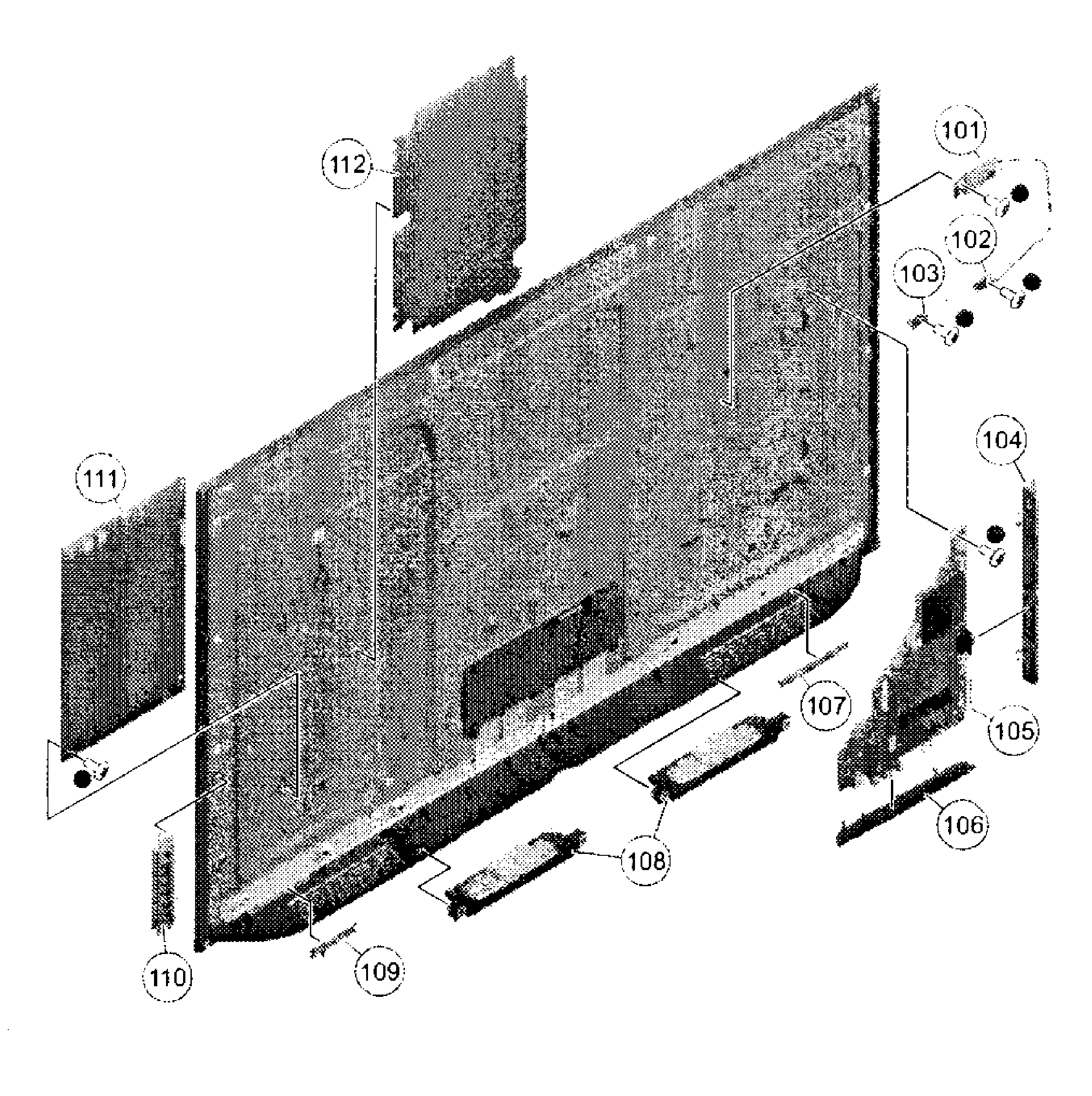

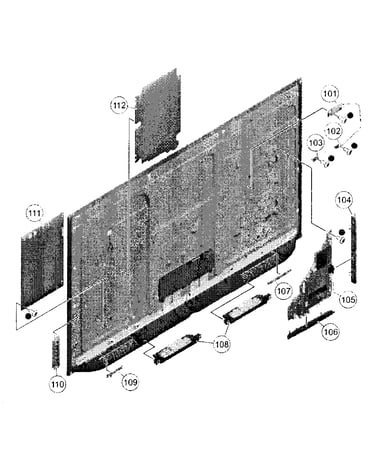

Pcb's assy diagram

Pcb hem3

Part #A1865308A

The manufacturer no longer makes this part, and there's no substitute part

Belt Kit,s 441969001
#NI

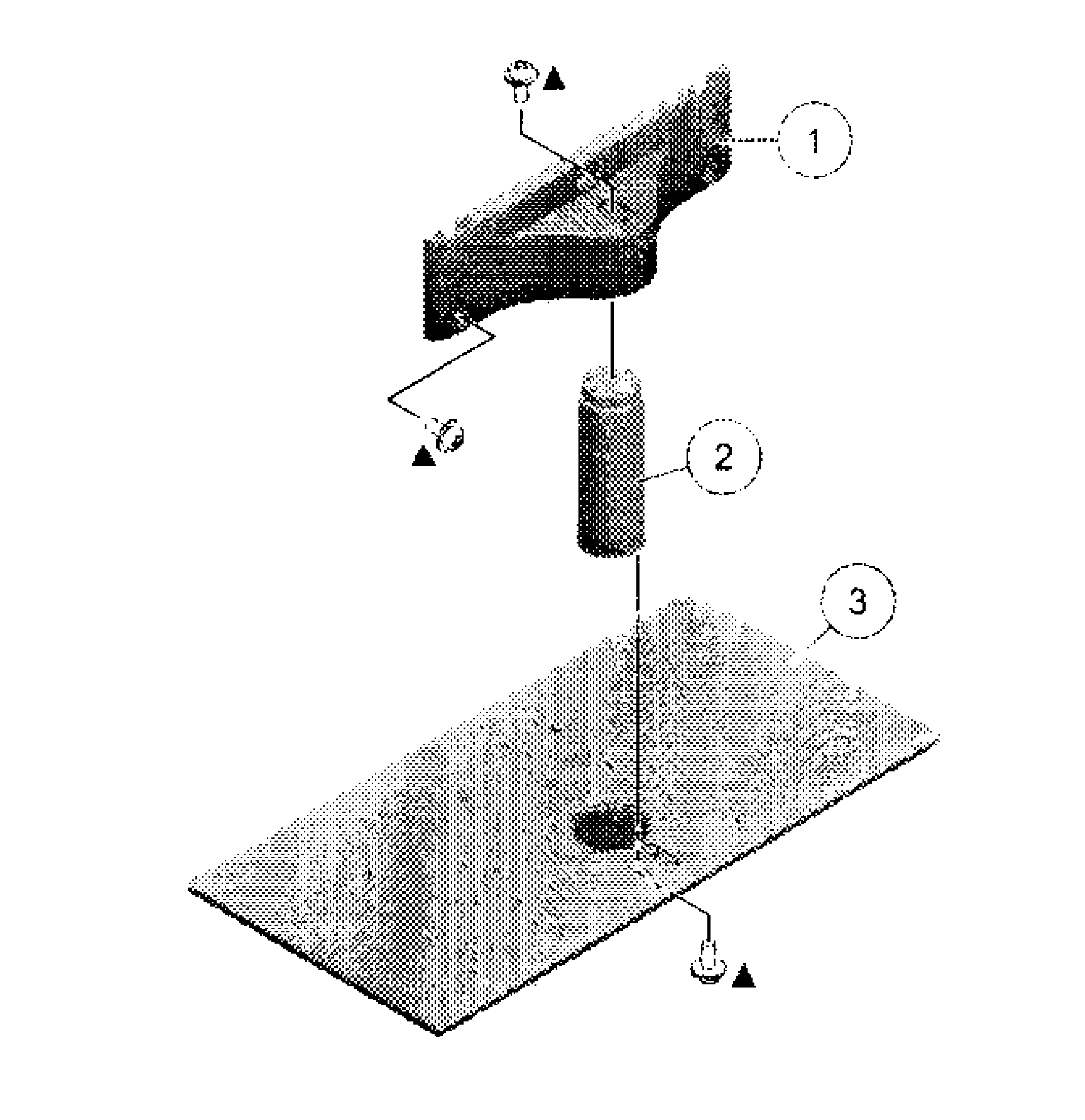

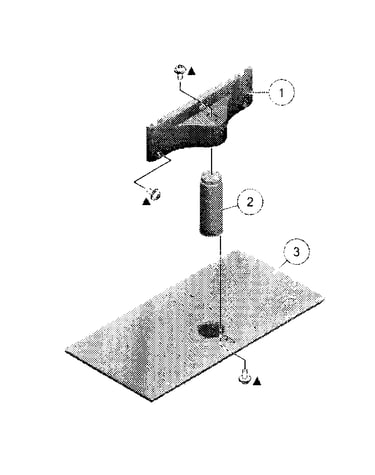

Base assy diagram

Belt kit,s

Part #441969001

The manufacturer no longer makes this part, and there's no substitute part

Sheet,ther 430081001
#156

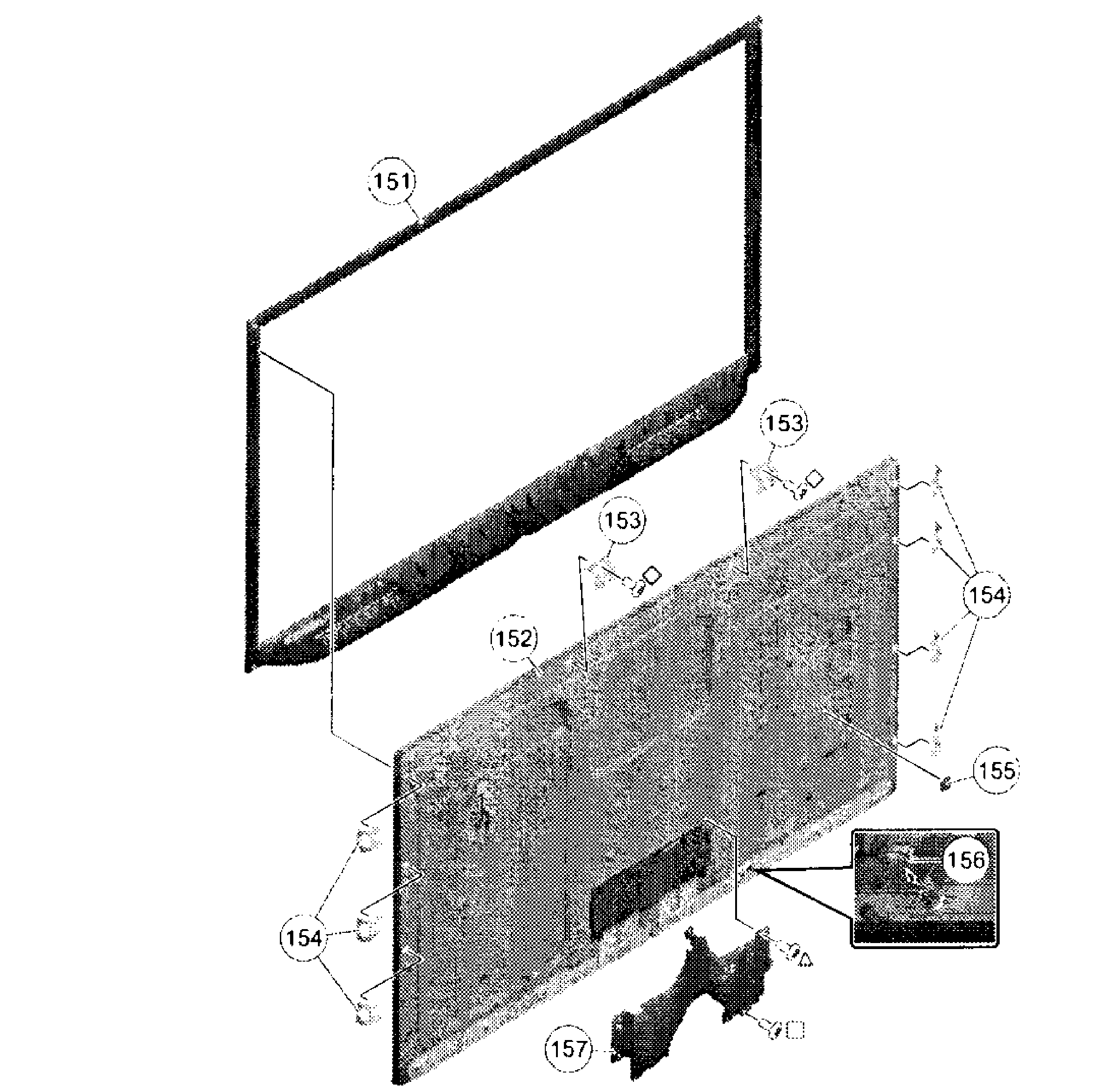

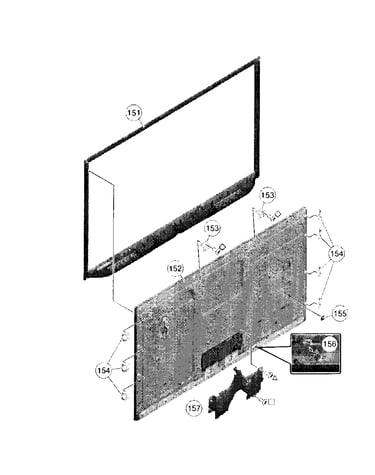

Lcd assy diagram

Sheet,ther

Part #430081001

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 183969611
#56

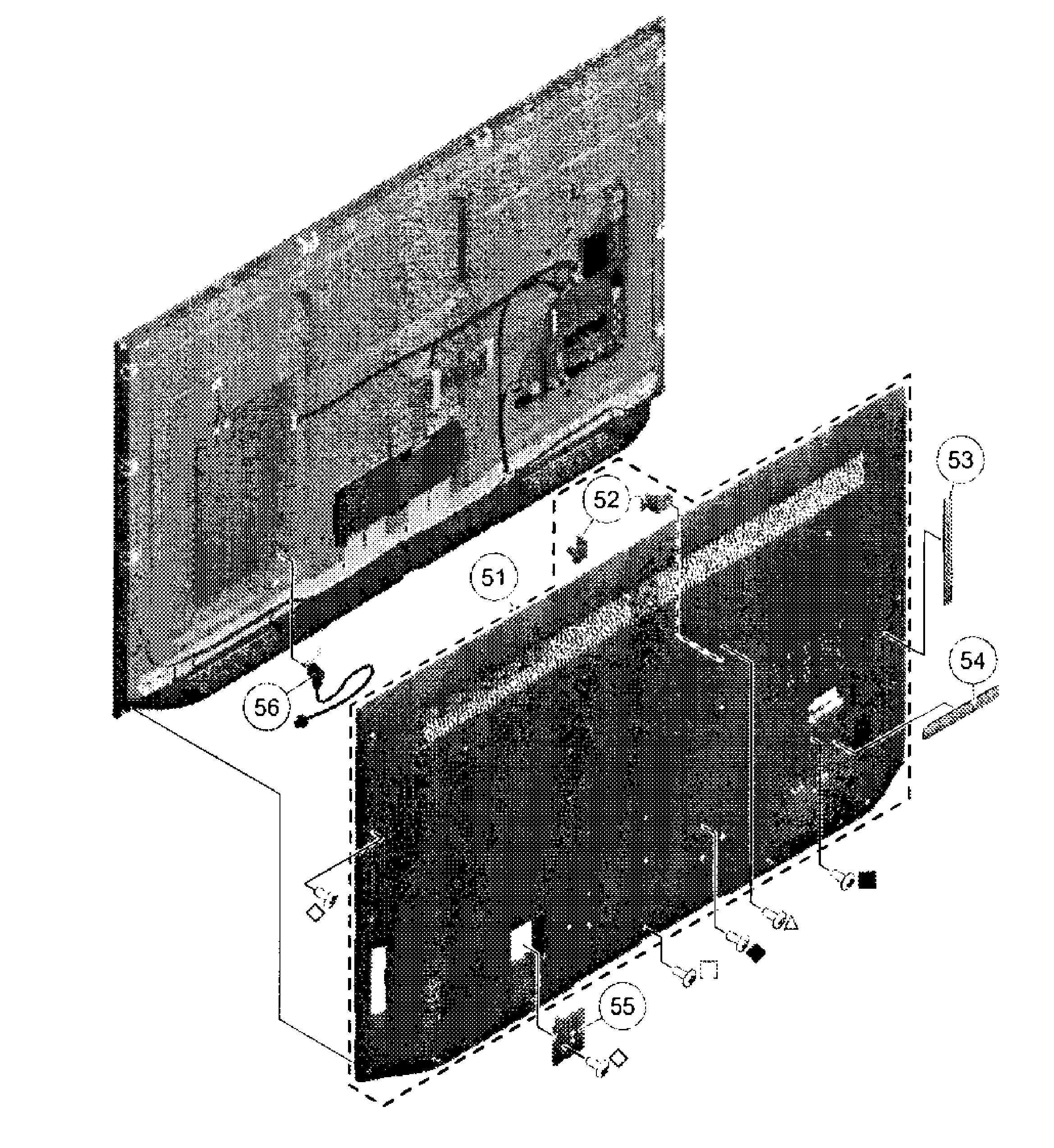

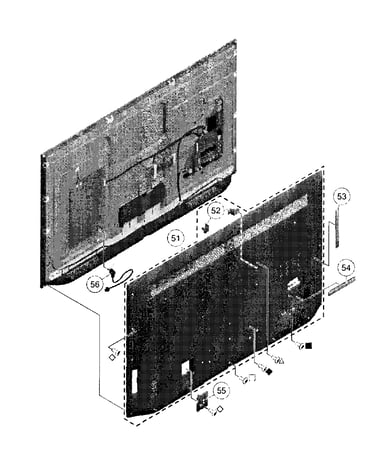

Rear cabinet diagram

Power cord

Part #183969611

The manufacturer no longer makes this part, and there's no substitute part

Antenna 175482011
#103

Pcb's assy diagram

Antenna

Part #175482011

The manufacturer no longer makes this part, and there's no substitute part

Antenna 175475111
#102

Pcb's assy diagram

Antenna

Part #175475111

The manufacturer no longer makes this part, and there's no substitute part

Bracket,v 429950901
#154

Lcd assy diagram

Bracket,v

Part #429950901

The manufacturer no longer makes this part, and there's no substitute part

Bezel 441478211
#151

Lcd assy diagram

Bezel

Part #441478211

The manufacturer no longer makes this part, and there's no substitute part

Switch 148998311
#110

Pcb's assy diagram

Switch

Part #148998311

The manufacturer no longer makes this part, and there's no substitute part

Bracket Side 429949501
#104

Pcb's assy diagram

Bracket side

Part #429949501

The manufacturer no longer makes this part, and there's no substitute part
