Model # JGBS23SET2SS Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS23SET2SS gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

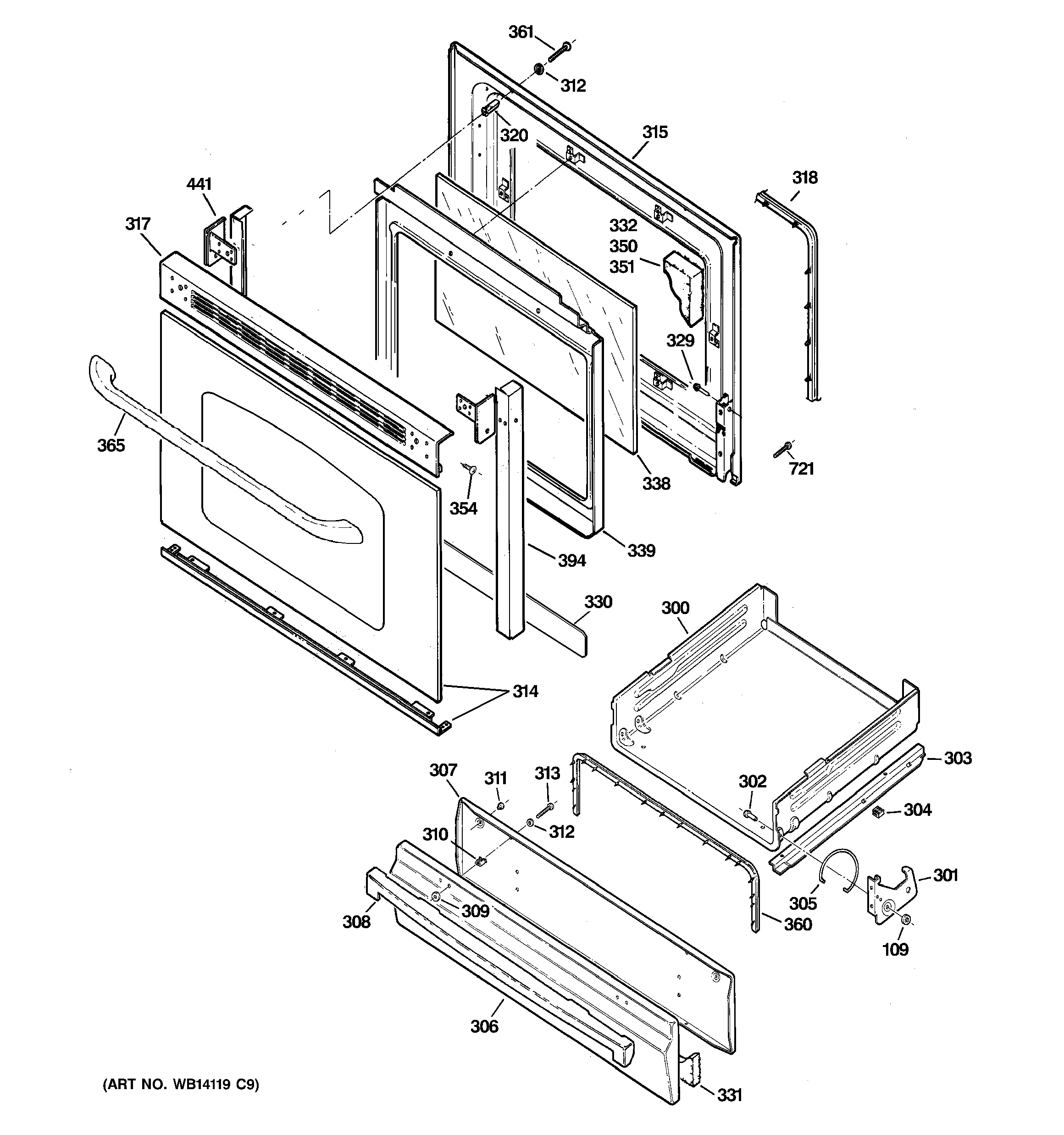

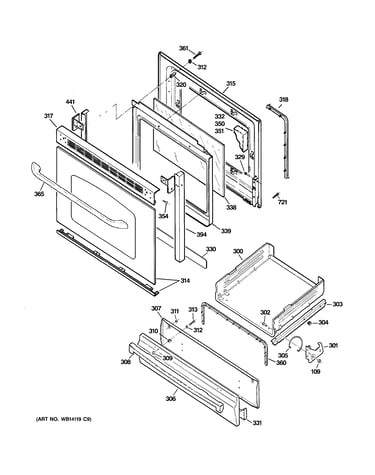

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 175 parts  |
Bake Burner Ignition WB13K0021
#218

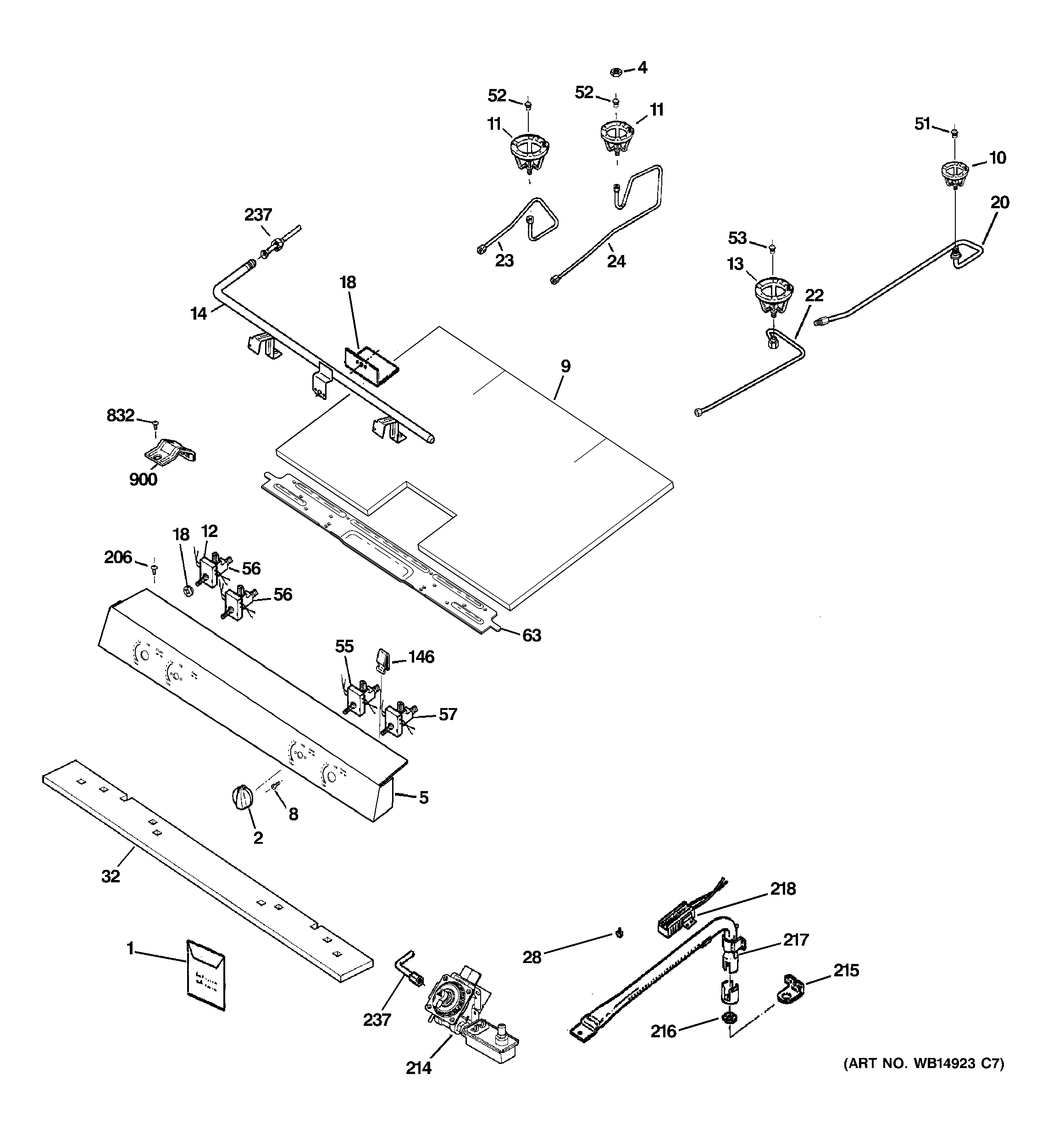

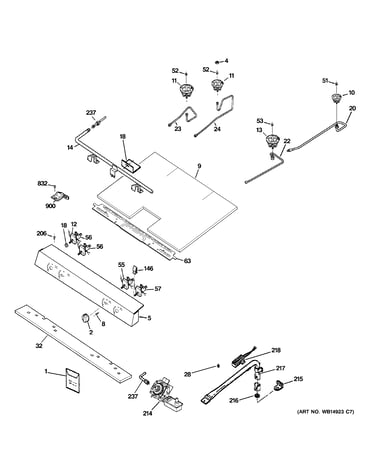

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

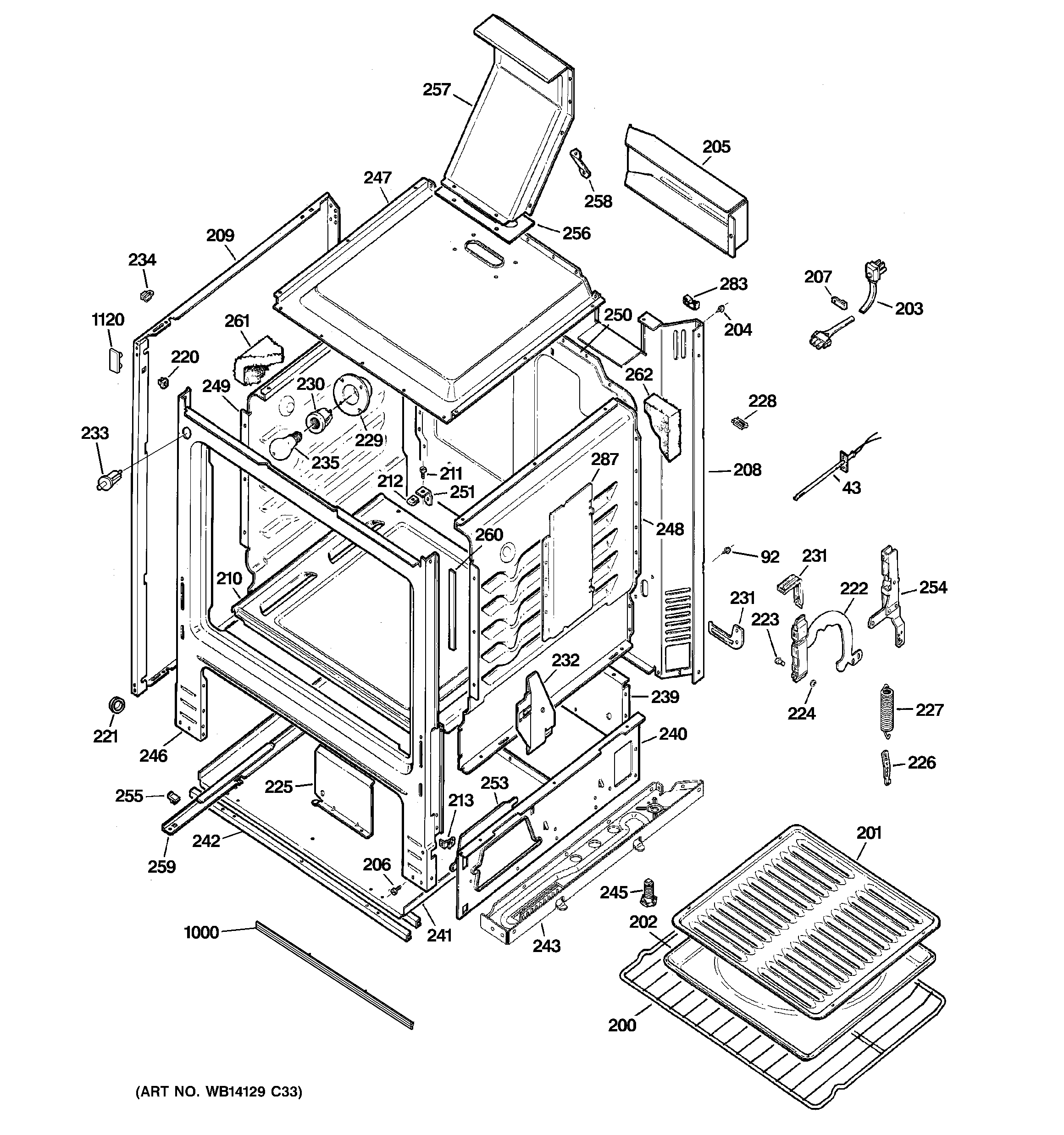

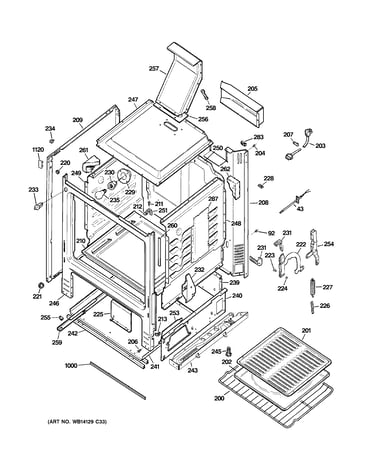

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Head, Medium (replaces Wb16k10023, Wb16k10030) WB16K10055
#156

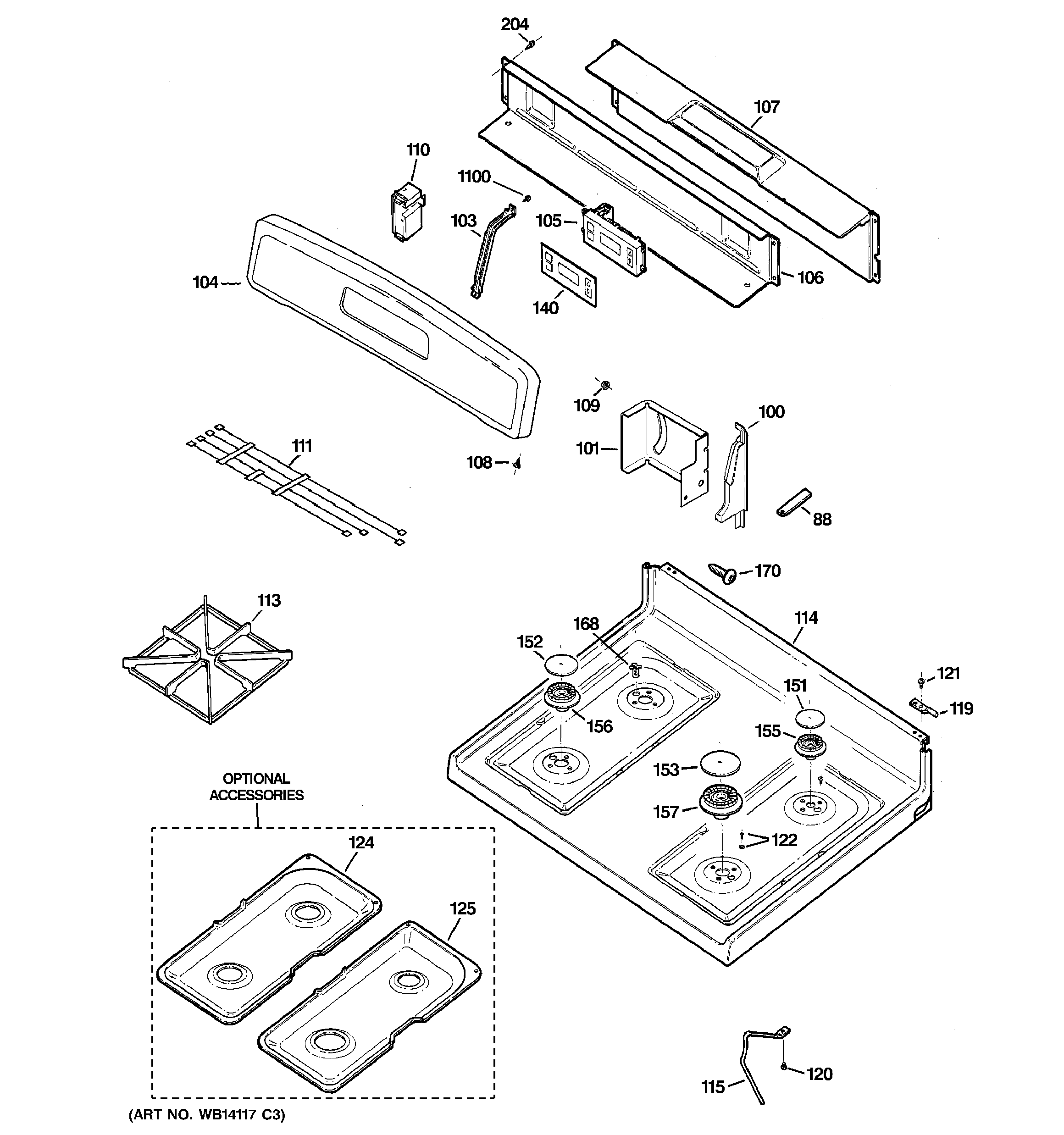

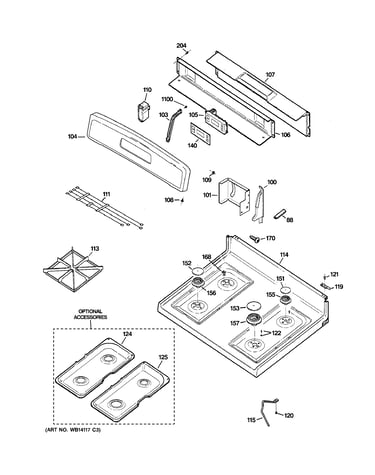

Control panel & cooktop diagram

Range surface burner head, medium (replaces wb16k10023, wb16k10030)

Part #WB16K10055

BEST SELLER
$26.57 |
18% OFF Phone Price : $32.57
In Stock
Range Surface Burner Head (replaces Wb16k10024) WB16K10070
#155

Control panel & cooktop diagram

Range surface burner head (replaces wb16k10024)

Part #WB16K10070

BEST SELLER
$29.47 |
17% OFF Phone Price : $35.47
In Stock
Range Drip Pan, Left (black) WB34K10010
#124

Control panel & cooktop diagram

Range drip pan, left (black)

Part #WB34K10010

This item is not returnable
$25.27 |
19% OFF Phone Price : $31.27
In Stock
Range Gas Control Valve (replaces Wb19k10009) WB19K10044
#214

Gas & burner parts diagram

Range gas control valve (replaces wb19k10009)

Part #WB19K10044

$87.13 |
6% OFF Phone Price : $93.13
In Stock
Cooktop Burner Bracket WB02K10361
#11

Gas & burner parts diagram

Cooktop burner bracket

Part #WB02K10361

This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Range Leveling Leg (replaces Wb02k10379) WB02K10182
#245

Body parts diagram

Range leveling leg (replaces wb02k10379)

Part #WB02K10182

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Surface Burner Tube And Orifice WB28K10190
#23

Gas & burner parts diagram

Range surface burner tube and orifice

Part #WB28K10190

This item is not returnable
$21.41 |
22% OFF Phone Price : $27.41
In Stock
Range Surface Burner Cap WB29K10006
#153

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10006

$67.64 |
8% OFF Phone Price : $73.64
In Stock
