Model # 91141389893 Official Kenmore electric range
Here are the diagrams and repair parts for Official Kenmore 91141389893 electric range, as well as links to manuals and error code tables, if available.
By Schematic
By Part

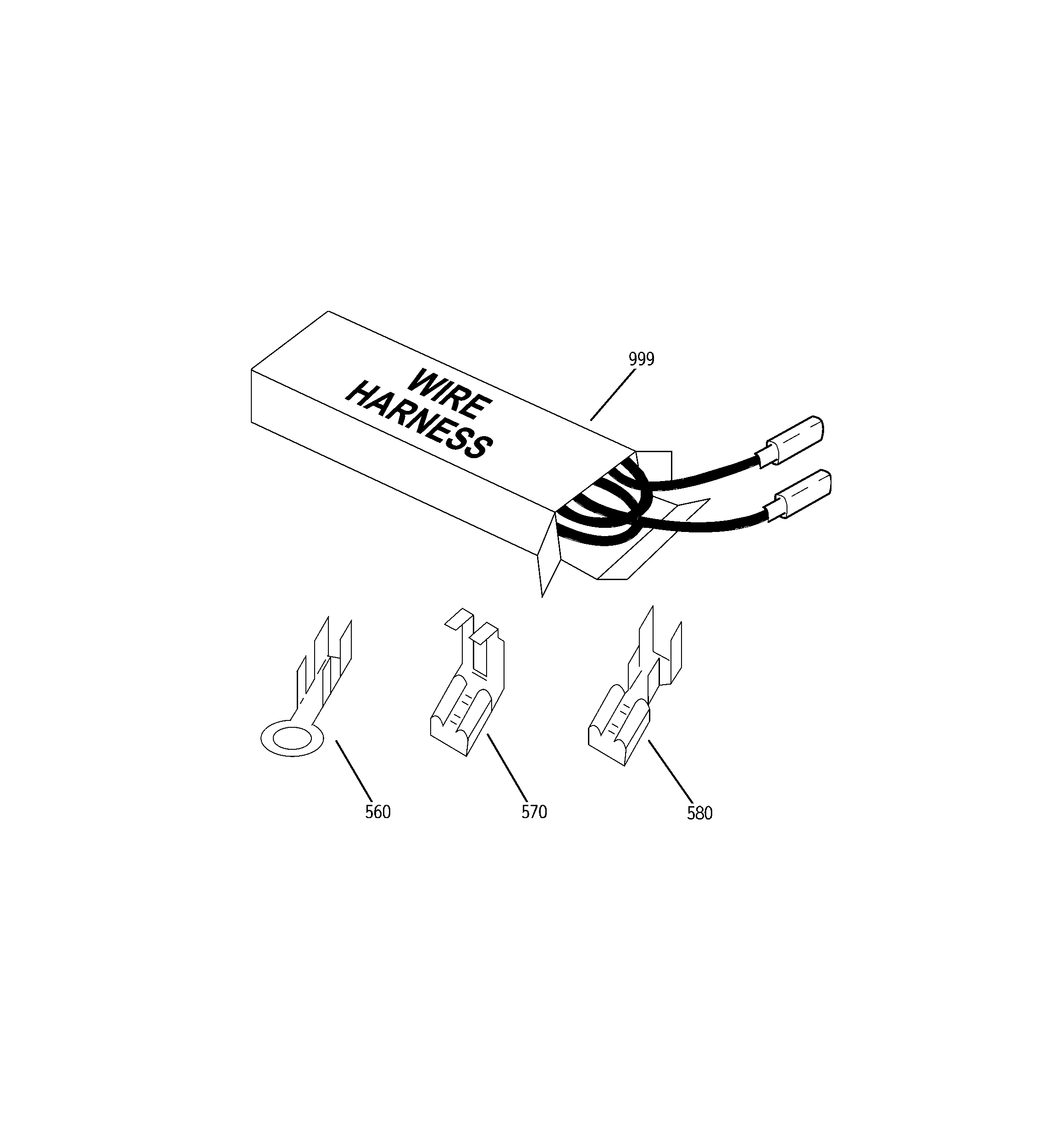

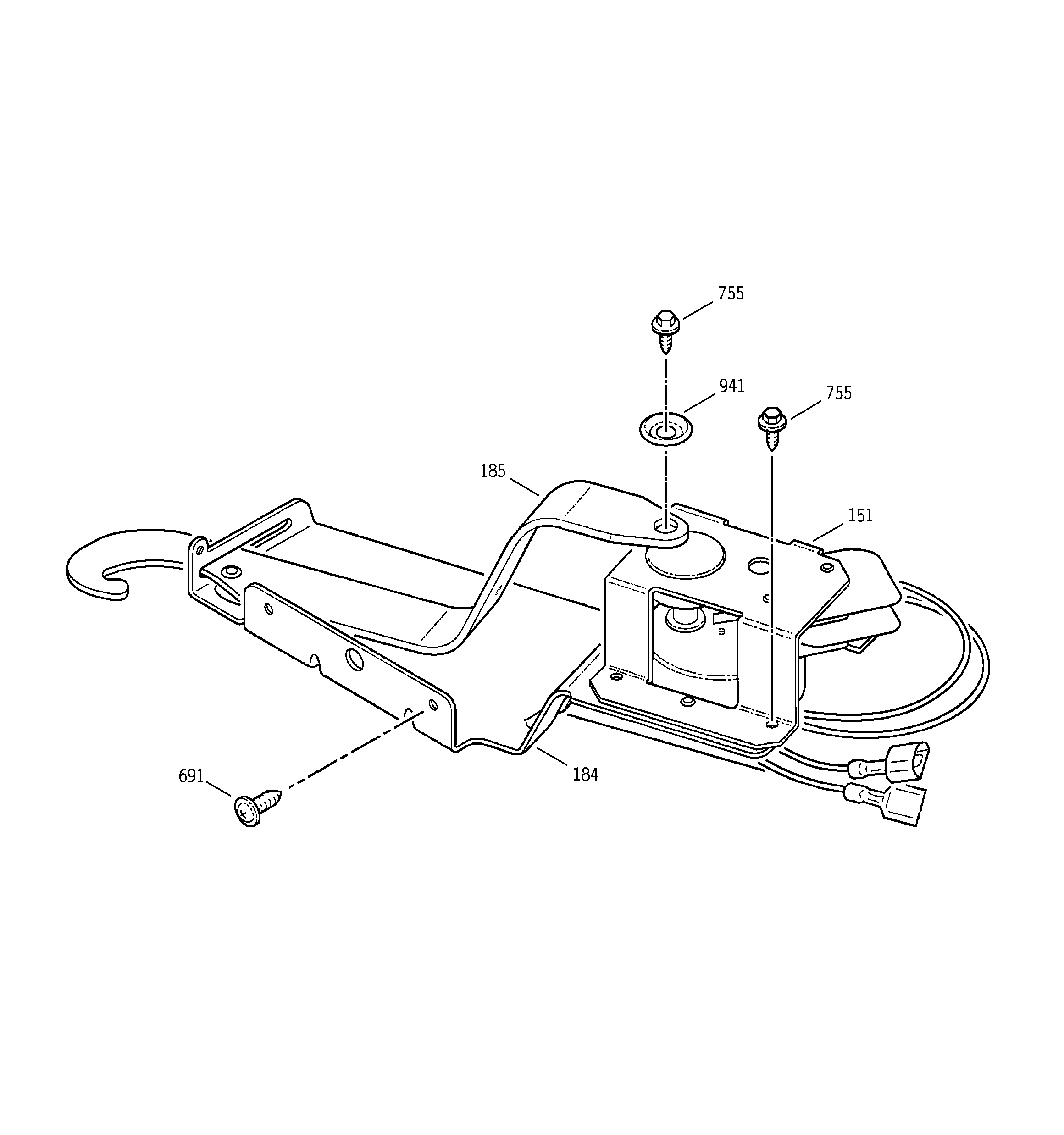

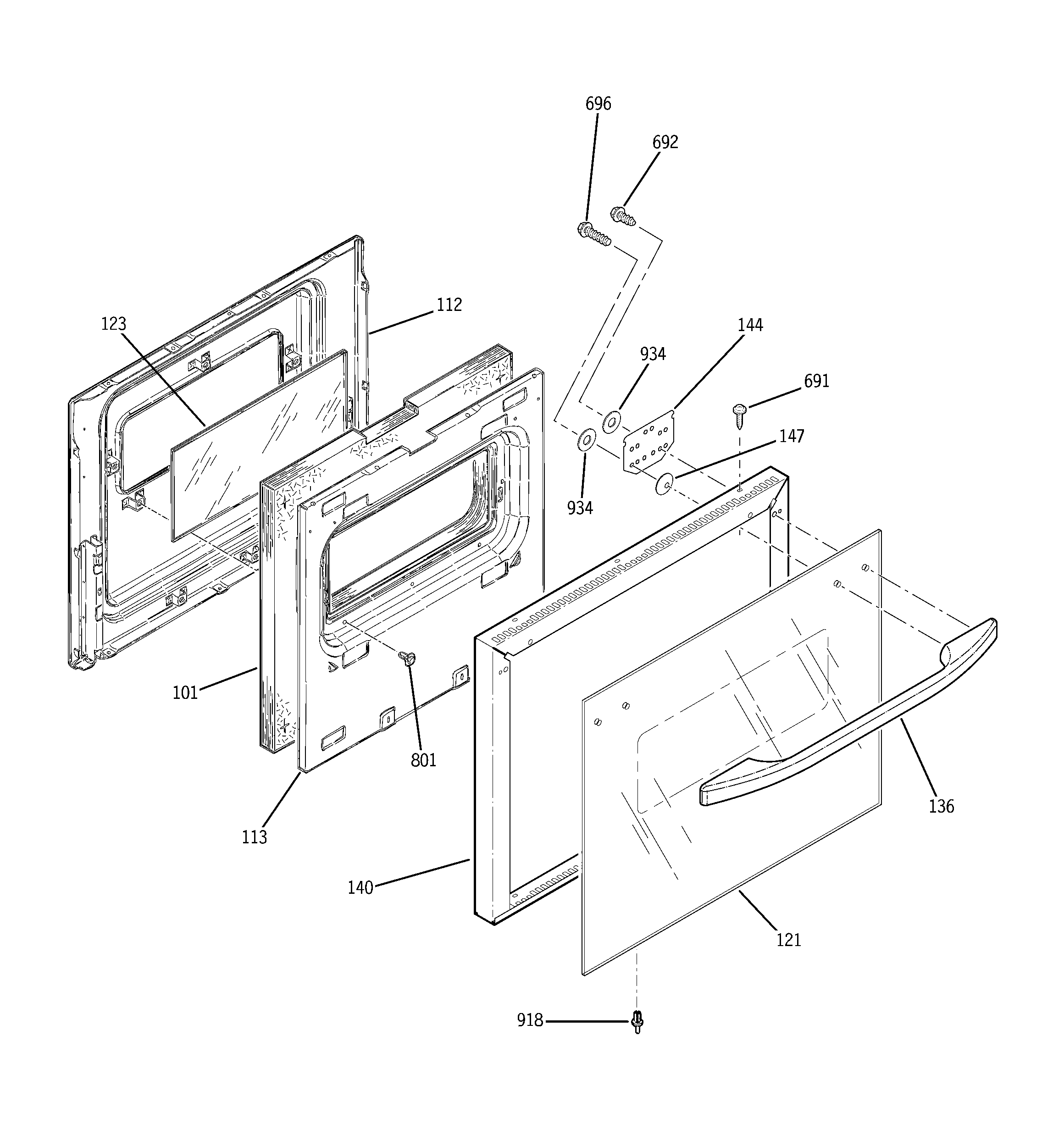

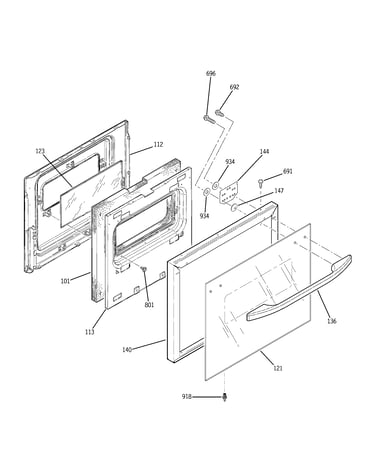

SELECT DIAGRAM
Browse Parts for
91141389893 Wall Ovens

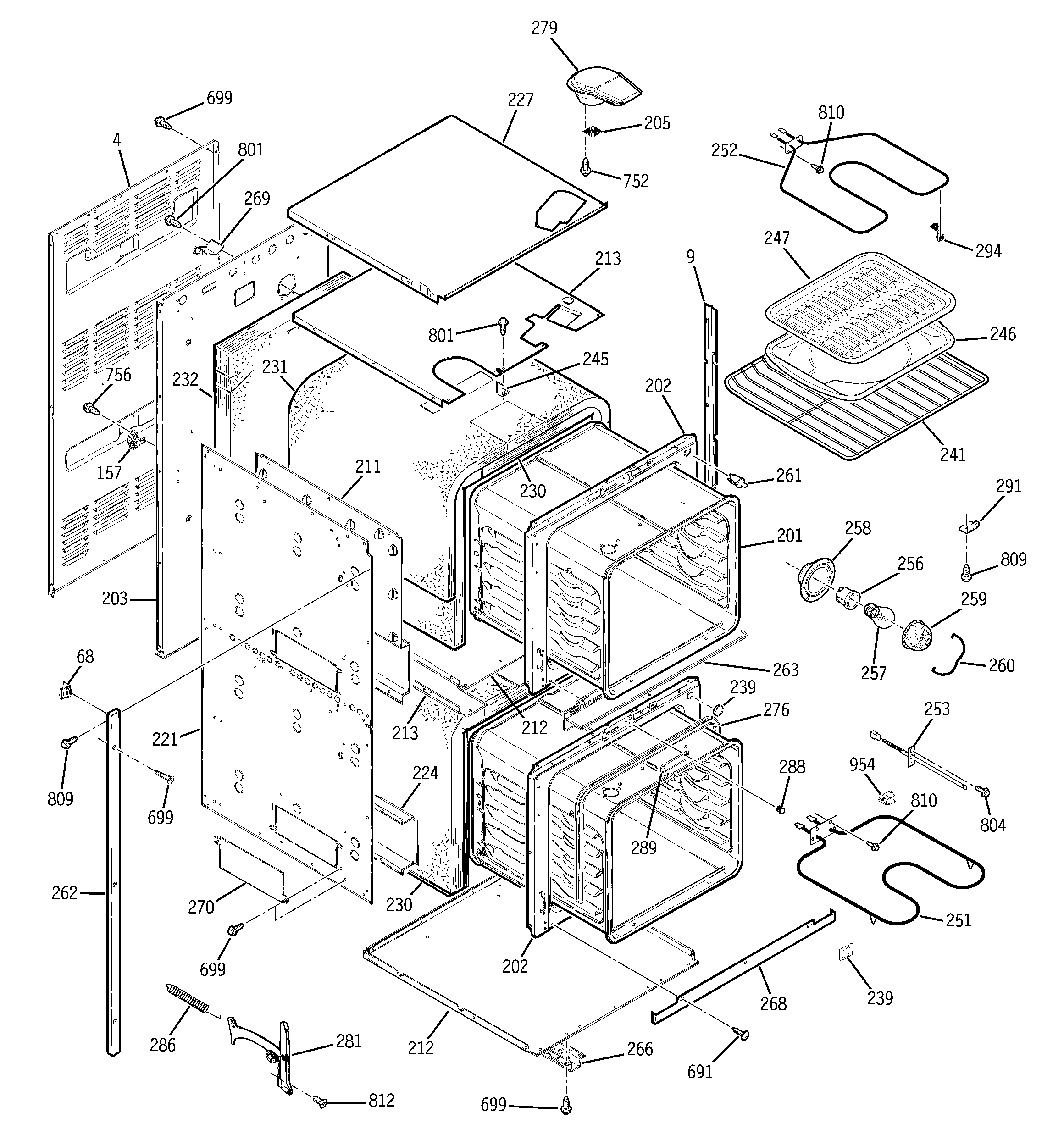

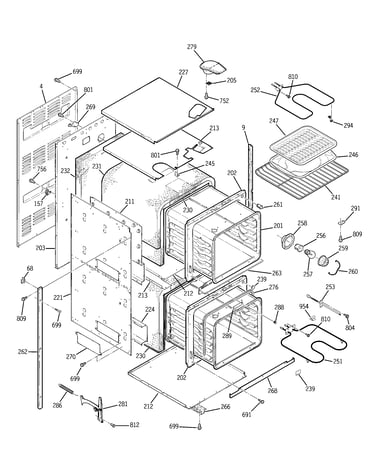

#253
Body parts diagram
Sensor
Part #WB21X5347
Replaced by #WB21X5301
?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
$176.02 |
6% OFF Phone Price : $188.02
In Stock
#252
Body parts diagram
G.e. range broil element
Part #WB44K5009
$73.97 |
8% OFF Phone Price : $79.97
In Stock
#251
Body parts diagram
G.e. range bake element (replaces 347753, wb44k5008)
Part #WB44K5013
$76.05 |
7% OFF Phone Price : $82.05
In Stock

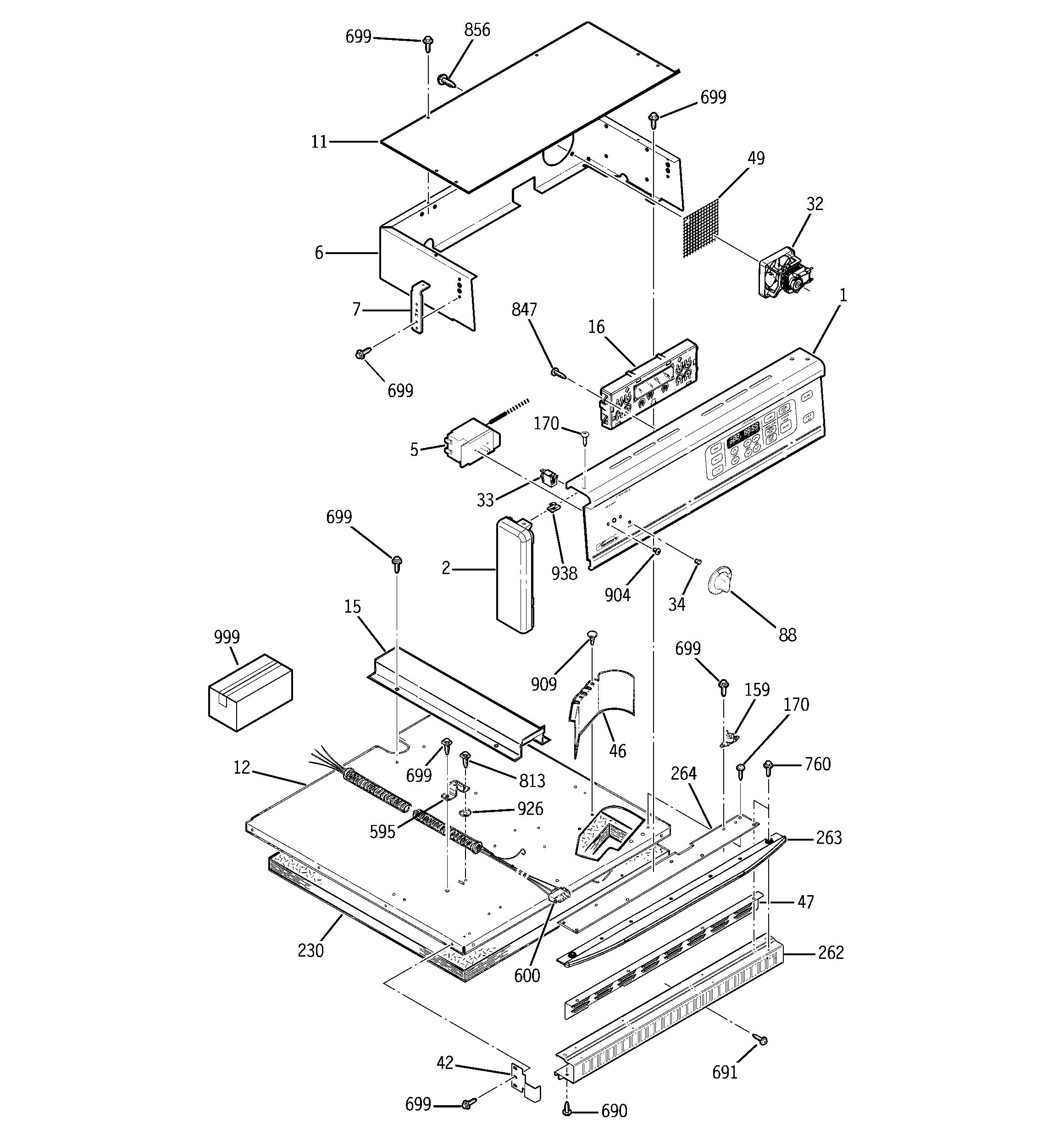

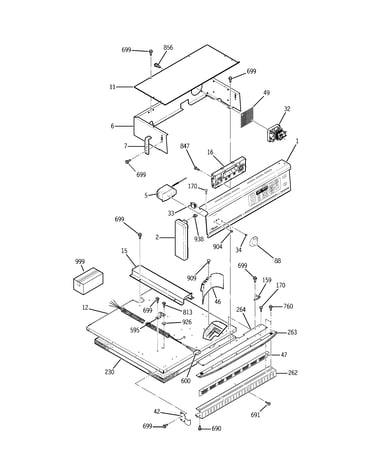

#856
Control panel diagram
Screw
Part #WB01X1293
Replaced by #WB1X1293
?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$9.16 |
10% OFF Phone Price : $10.16
In Stock
#259
Body parts diagram
Wall oven light lens
Part #WB36X0389
Replaced by #WB36X192
?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$13.58 |
13% OFF Phone Price : $15.58
In Stock
Screw
Part #WB01M0001
Replaced by #WB1M1
?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$7.17 |
12% OFF Phone Price : $8.17
In Stock
Screw
Part #WB01K5150
Replaced by #WB1M1
?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$7.17 |
12% OFF Phone Price : $8.17
In Stock
#810
Body parts diagram
Screw, #10-32 x 17/32-in
Part #WB01X1253
Replaced by #WB1X1130
?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$9.16 |
10% OFF Phone Price : $10.16
In Stock
#251
Body parts diagram
Wall oven bake element
Part #WB44T10007
$87.99 |
6% OFF Phone Price : $93.99
In Stock

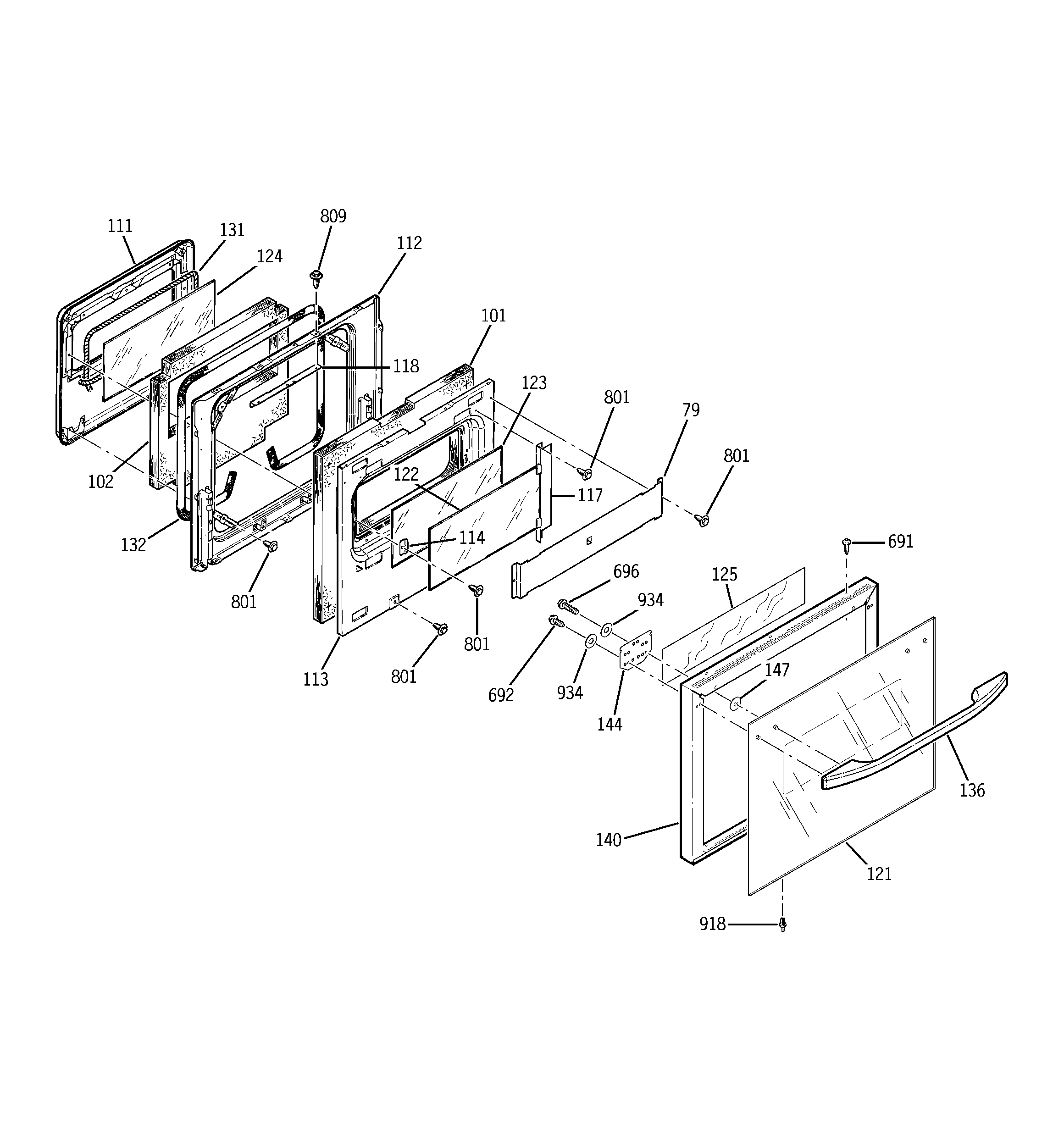

#131

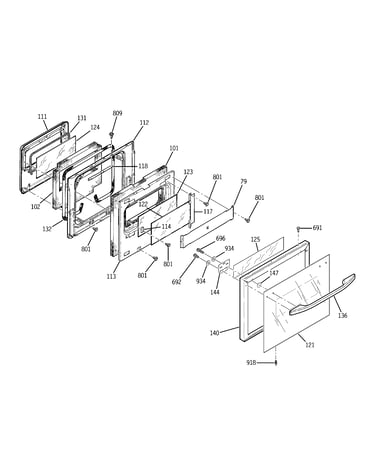

Upper door diagram
Seal
Part #WB02X9168
Replaced by #WB2X9168
?
Manufacturer substitution
This part replaces WB02X9168. Substitute parts can look different from the original.
This item is not returnable
$14.24 |
12% OFF Phone Price : $16.24
In Stock
