Samsung
Countertop Microwave

Model # MT1088SB/XAA Official Samsung microwave

Here are the diagrams and repair parts for Official Samsung MT1088SB-XAA microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

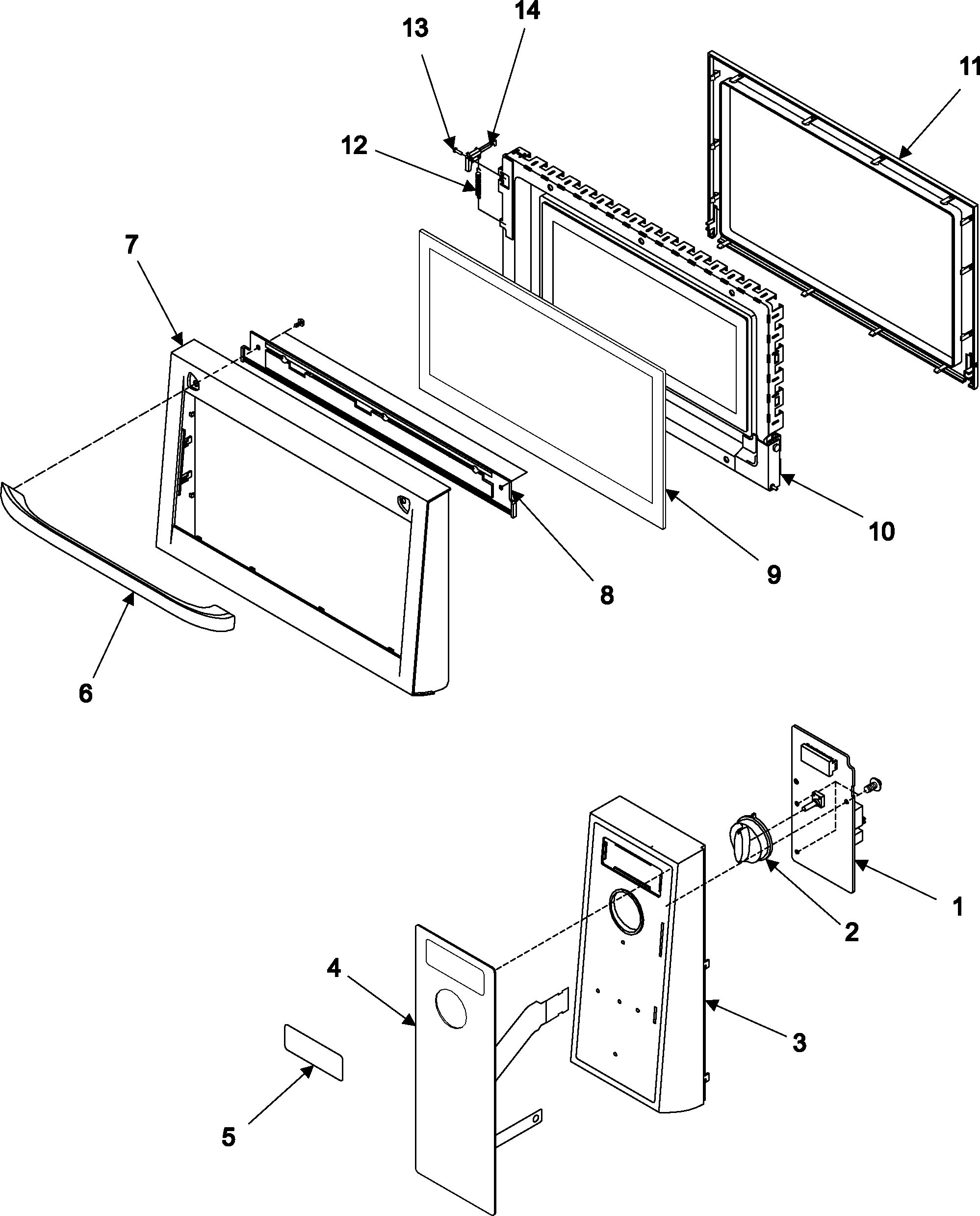

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Microwave Diode DE91-70063A
#23

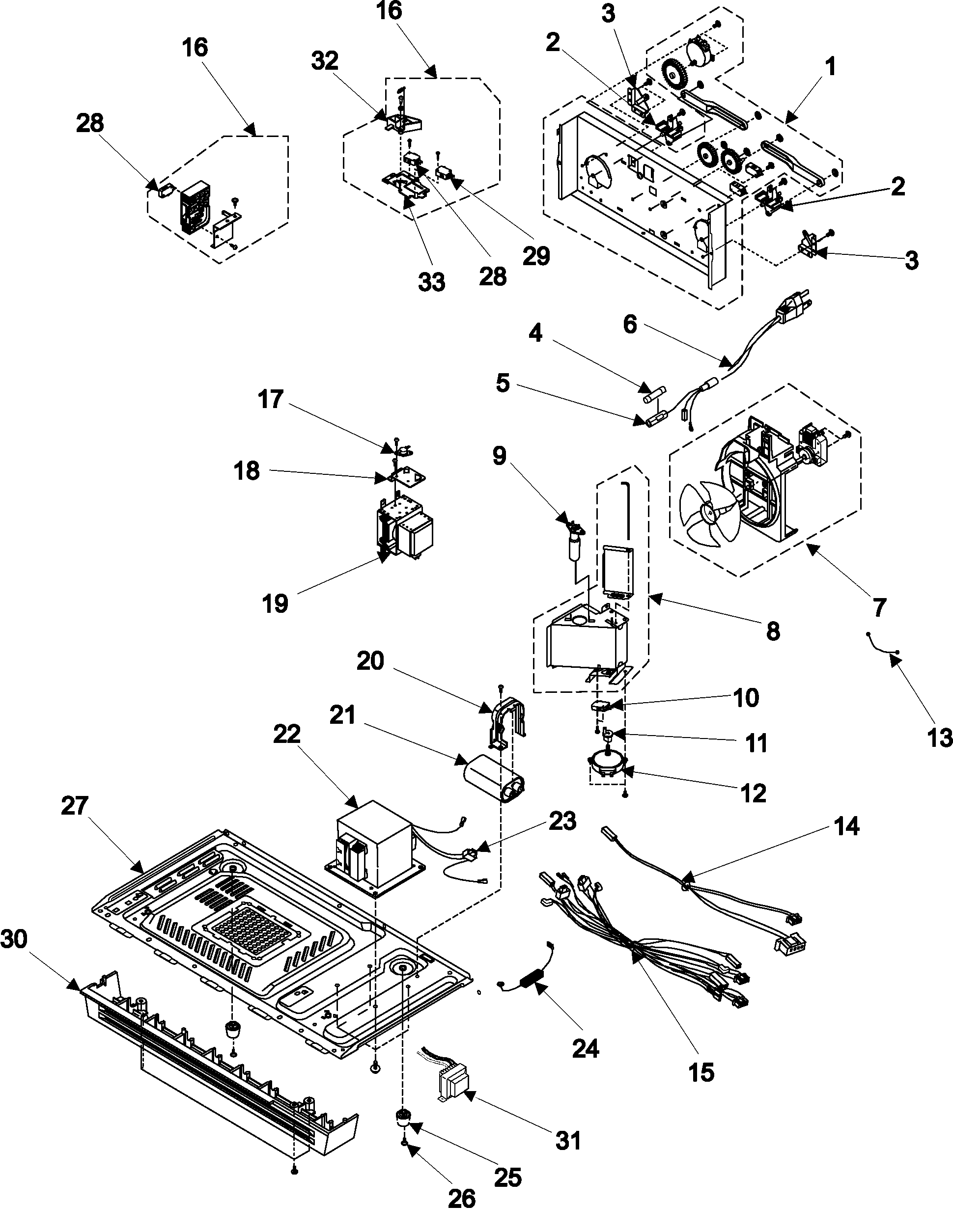

Internal controls/latch asy/base diagram

Microwave diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$17.74 |
10% OFF Phone Price : $19.74
Back Order
Microwave High-voltage Diode DE59-00002A
#24

Internal controls/latch asy/base diagram

Microwave high-voltage diode

Part #DE59-00002A

BEST SELLER
This item is not returnable
$17.89 |
10% OFF Phone Price : $19.89
In Stock
Microwave Door Micro-switch 3405-001033
#28

Internal controls/latch asy/base diagram

Microwave door micro-switch

Part #3405-001033

BEST SELLER
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Microwave High-voltage Capacitor 2501-001016
#21A

Internal controls/latch asy/base diagram

Microwave high-voltage capacitor

Part #2501-001016

$57.07 |
10% OFF Phone Price : $63.07
In Stock
Microwave Glass Turntable Tray DE74-20015G
#16

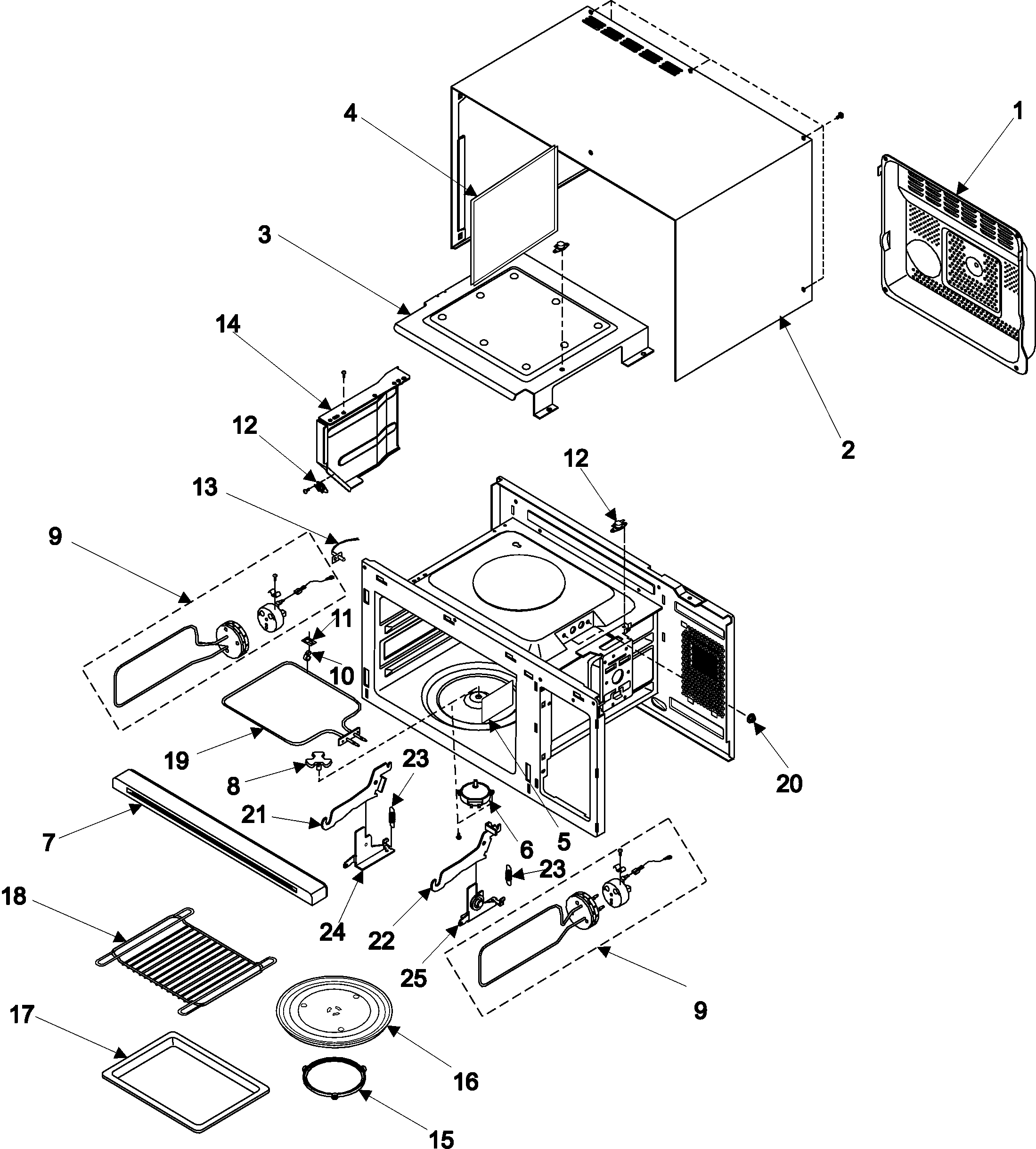

Body/cavity/elements diagram

Microwave glass turntable tray

Part #DE74-20015G

$45.98 |
12% OFF Phone Price : $51.98
In Stock
Cooking Appliance Flange Nut DE60-30016A
#20

Body/cavity/elements diagram

Cooking appliance flange nut

Part #DE60-30016A

This item is not returnable
$5.79
In Stock
Cushion DE63-90064B
#4

Body/cavity/elements diagram

Cushion

Part #DE63-90064B

This item is not returnable
$2.16
In Stock
Microwave Fuse, 20-amp (replaces 3601-001142) 3601-001198
#4

Internal controls/latch asy/base diagram

Microwave fuse, 20-amp (replaces 3601-001142)

Part #3601-001198

This item is not returnable
$16.00 |
11% OFF Phone Price : $18.00
In Stock
Spring DE61-70060A
#10

Body/cavity/elements diagram

Spring

Part #DE61-70060A

This item is not returnable
$2.43
In Stock
