Model # RH2324XJQ1 Official Whirlpool range hood

Here are the diagrams and repair parts for Official Whirlpool RH2324XJQ1 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

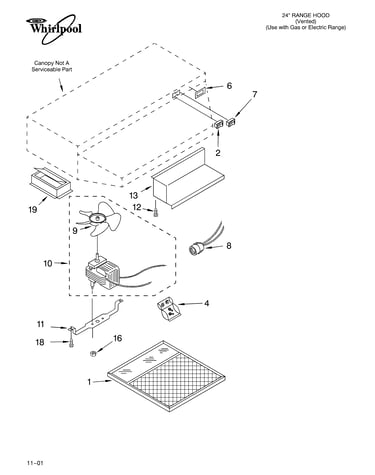

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 17 parts |

#12

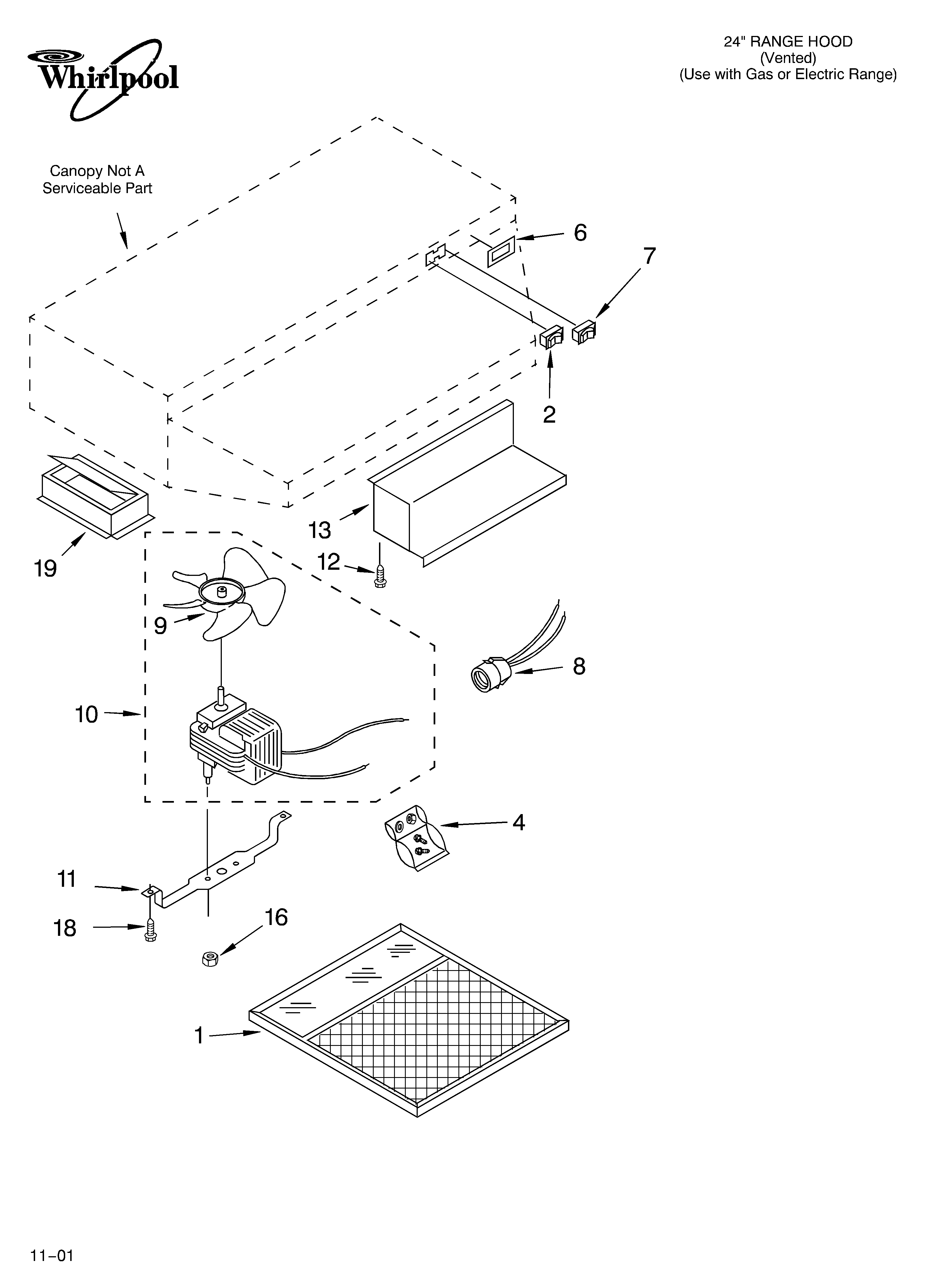

Range hood diagram

Screw

Part #830465

Replaced by #WP489069

This item is not returnable

$4.39 |

19% OFF Phone Price : $5.39

In Stock

Qty

Range hood diagram

Grease filter

Part #883103

Replaced by #WP8190232

$74.61 |

7% OFF Phone Price : $80.61

In Stock

Qty

#18

Range hood diagram

Screw

Part #883354

Replaced by #489422

This item is not returnable

$4.22

In Stock

Qty

Range hood diagram

Rocker switch

Part #8189843

The manufacturer no longer makes this part, and there's no substitute part

#16

Range hood diagram

Nut

Part #883353

The manufacturer no longer makes this part, and there's no substitute part

#13

Range hood diagram

Wire cover (white)

Part #883095

The manufacturer no longer makes this part, and there's no substitute part

Range hood diagram

Range hood nameplate

Part #8189511

The manufacturer no longer makes this part, and there's no substitute part

#11

Range hood diagram

Motor bracket

Part #883397

The manufacturer no longer makes this part, and there's no substitute part

#10

Range hood diagram

Range hood fan motor assembly

Part #883378

The manufacturer no longer makes this part, and there's no substitute part

Range hood diagram

Rocker switch

Part #8189847

The manufacturer no longer makes this part, and there's no substitute part
