Amana
Top-Mount Refrigerator

Model # 5VA1RXGFYW00 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana 5VA1RXGFYW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Drier Tube W10177049
#29

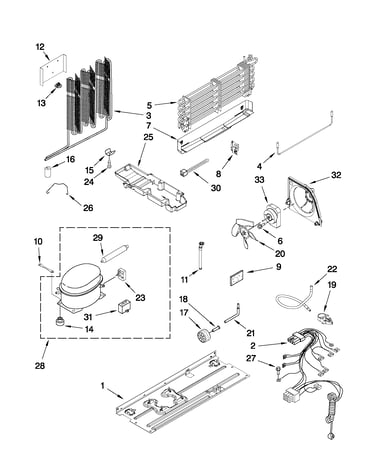

Unit parts diagram

Drier tube

Part #W10177049

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Light Switch 1118894
#19

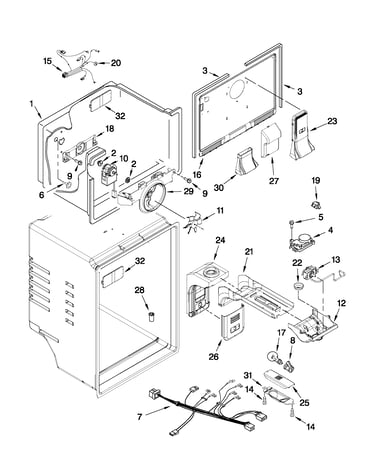

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Fan Blade 2200509
#11

Liner parts diagram

Fan blade

Part #2200509

Replaced by #WP2163777

?
Manufacturer substitution
This part replaces 2200509. Substitute parts can look different from the original.
BEST SELLER
$35.42 |
14% OFF Phone Price : $41.42
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

Optional parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764
#NI

Unit parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Refrigerator Screw 2262176
#10

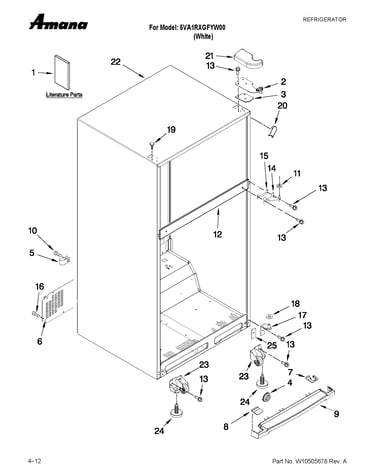

Cabinet parts diagram

Refrigerator screw

Part #2262176

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 2262176. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Bi-metal Thermostat W10392132
#20

Liner parts diagram

Refrigerator bi-metal thermostat

Part #W10392132

Replaced by #WPW10392132

?
Manufacturer substitution
This part replaces W10392132. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.39 |
14% OFF Phone Price : $7.39
In Stock
Gasket Panel 2214967
#6

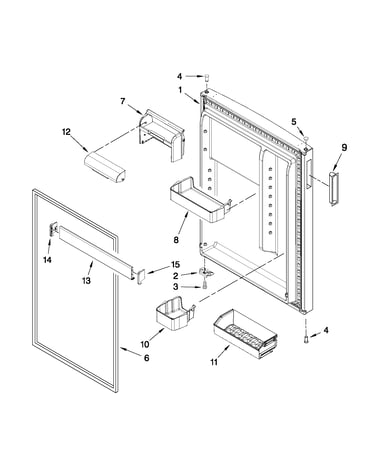

Freezer door parts diagram

Gasket panel

Part #2214967

Replaced by #2159060

?
Manufacturer substitution
This part replaces 2214967. Substitute parts can look different from the original.
BEST SELLER
$142.64 |
8% OFF Was : $155.04
In Stock
Refrigerator Light Socket W10134764
#8

Liner parts diagram

Refrigerator light socket

Part #W10134764

Replaced by #W11447232

?
Manufacturer substitution
This part replaces W10134764. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
