Craftsman
Gas Leaf Blower

Model # 315742260 Official Craftsman brush cutter

Here are the diagrams and repair parts for Official Craftsman 315742260 brush cutter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

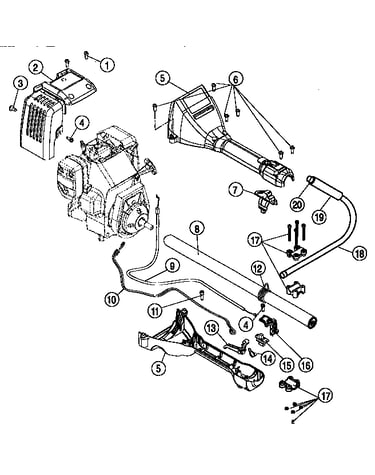

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Line W/filtr 181085
#22

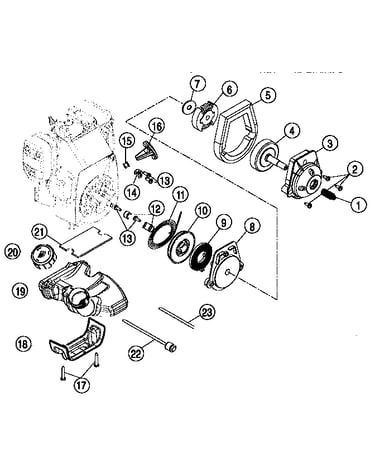

Clutch, starter module and fuel tank assemblies diagram

Line w/filtr

Part #181085

The manufacturer no longer makes this part, and there's no substitute part

Stud 181010
#11

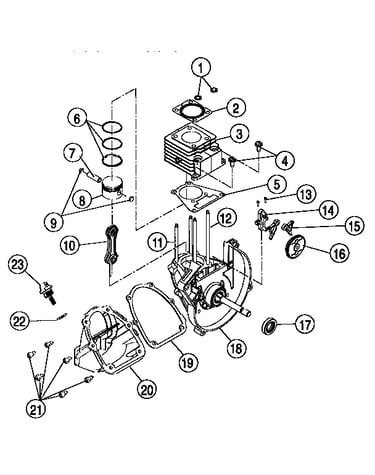

Cylinder and crankcase assembly diagram

Stud

Part #181010

The manufacturer no longer makes this part, and there's no substitute part

Piston 181007
#8

Cylinder and crankcase assembly diagram

Piston

Part #181007

The manufacturer no longer makes this part, and there's no substitute part

Insulator 181060
#20

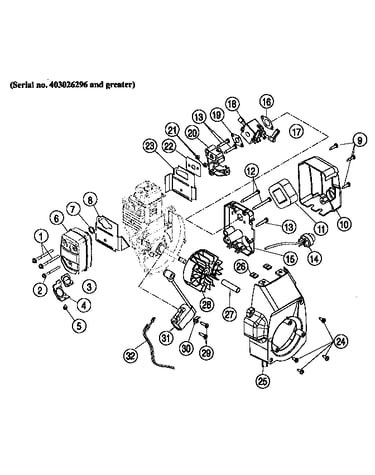

Carburetor and muffler assemblies diagram

Insulator

Part #181060

The manufacturer no longer makes this part, and there's no substitute part

Pivot 181031
#7

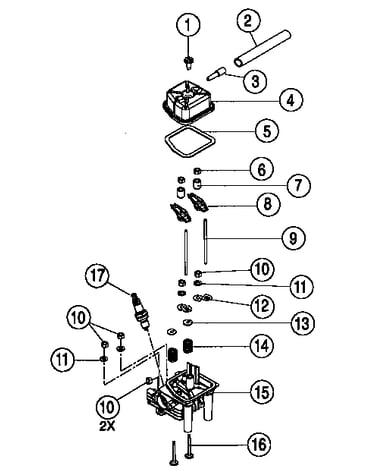

Cylinder head assembly diagram

Pivot

Part #181031

The manufacturer no longer makes this part, and there's no substitute part

Wrist Pin 181006
#7

Cylinder and crankcase assembly diagram

Wrist pin

Part #181006

The manufacturer no longer makes this part, and there's no substitute part

Inner Reel 153600
#17

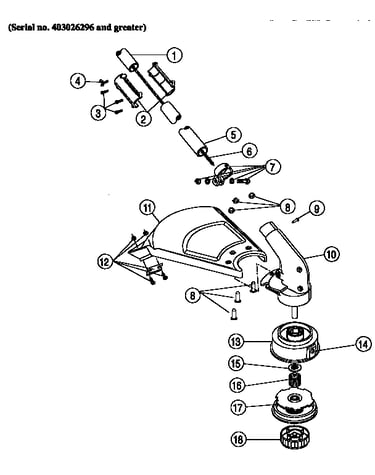

Lower boom and cutting head assembly diagram

Inner reel

Part #153600

The manufacturer no longer makes this part, and there's no substitute part

Piston Rod 181023

#NI

All parts diagram

Piston rod

Part #181023

The manufacturer no longer makes this part, and there's no substitute part

Guide 181036
#12

Cylinder head assembly diagram

Guide

Part #181036

The manufacturer no longer makes this part, and there's no substitute part

Baffle 181049
#8

Carburetor and muffler assemblies diagram

Baffle

Part #181049

The manufacturer no longer makes this part, and there's no substitute part
