Frigidaire
Electric Range

Model # FFED3026TWA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FFED3026TWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

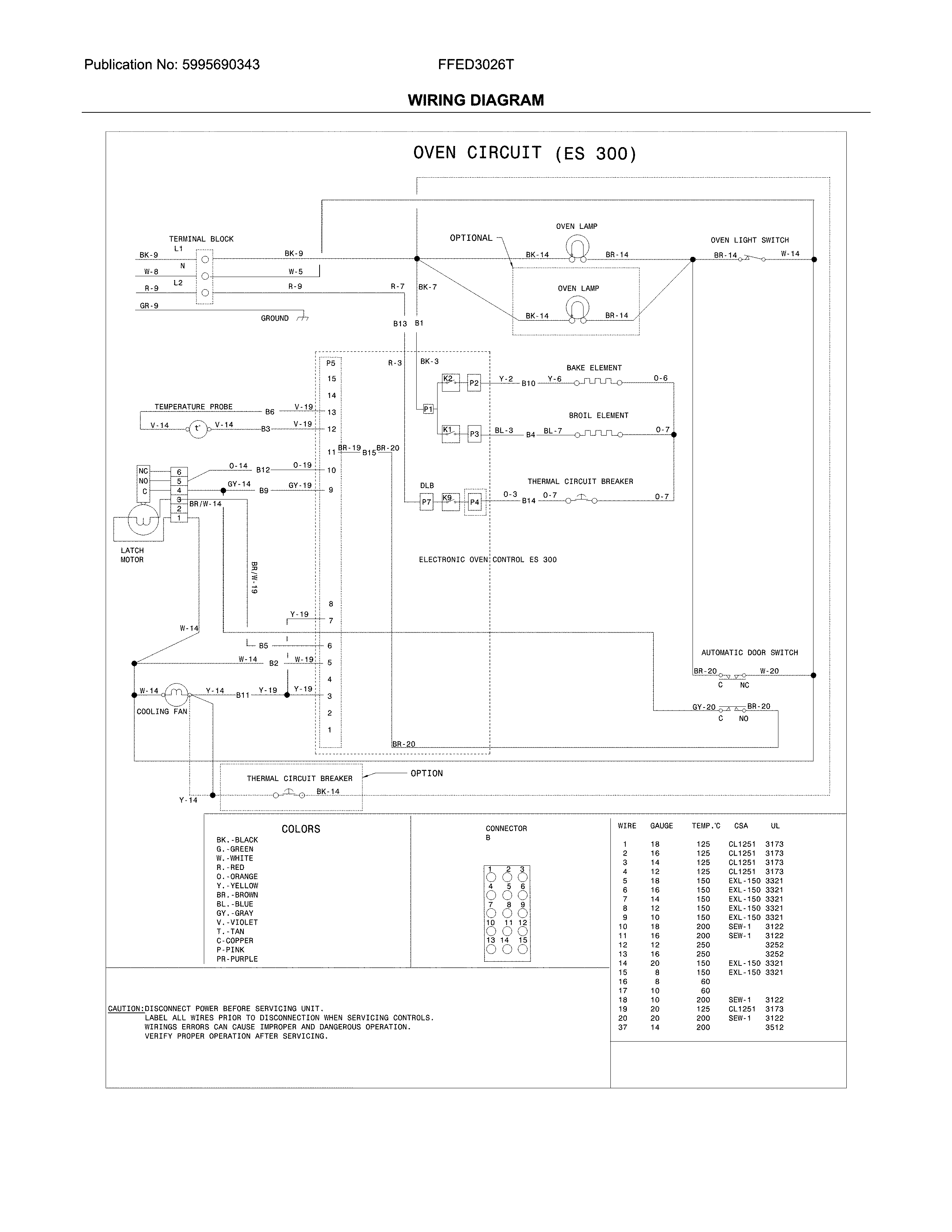

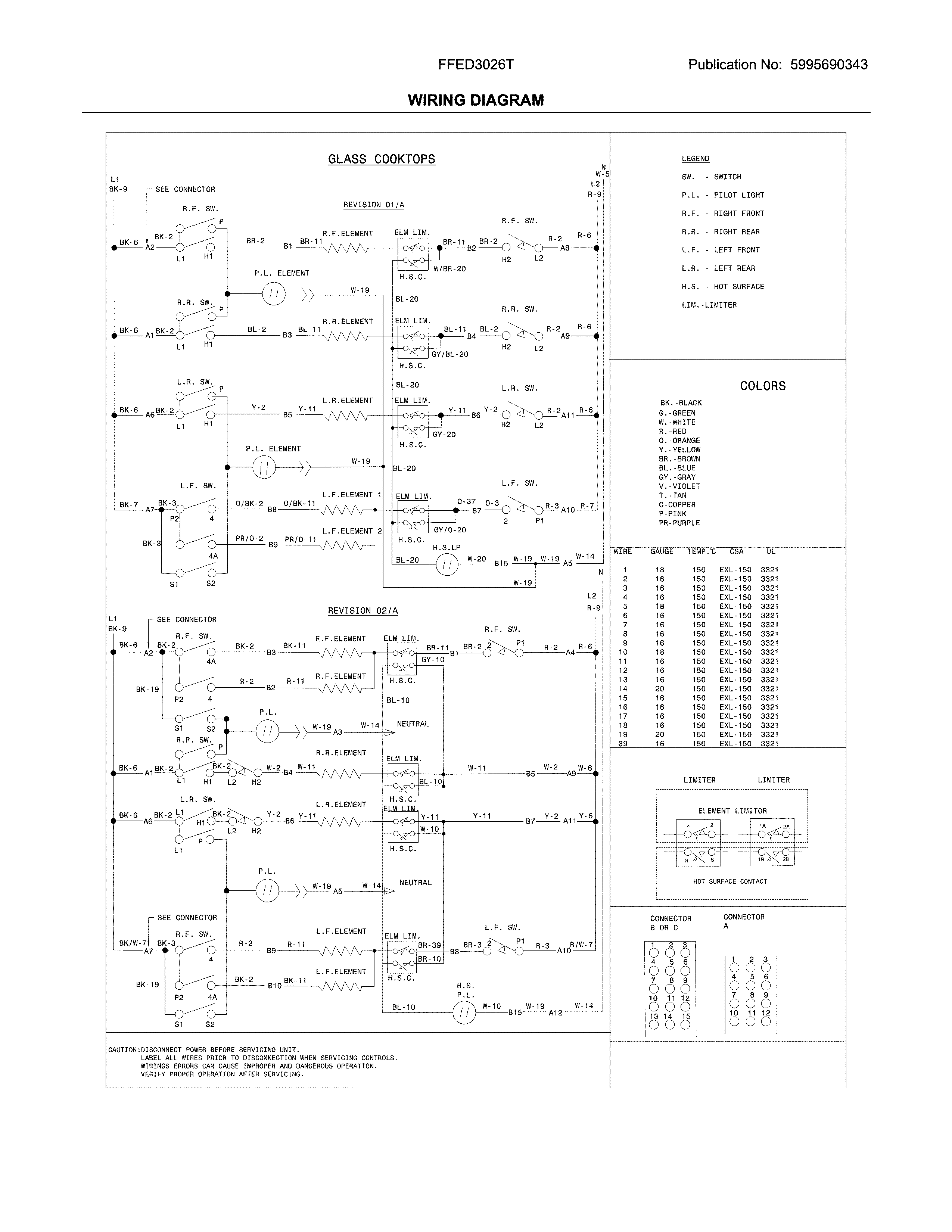

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Range Oven Door Inner Glass 316117503
#8

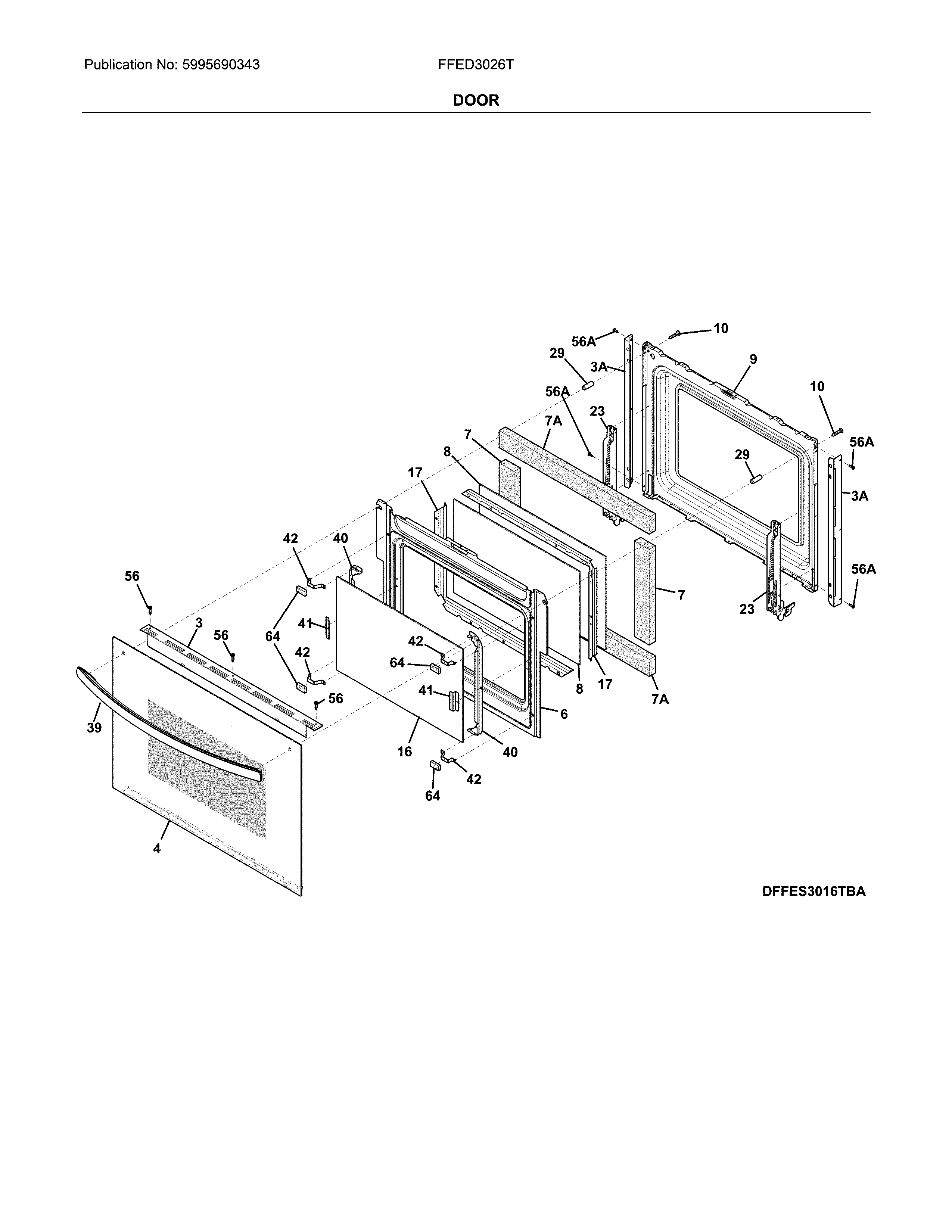

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Terminal Block 5303935061
#62

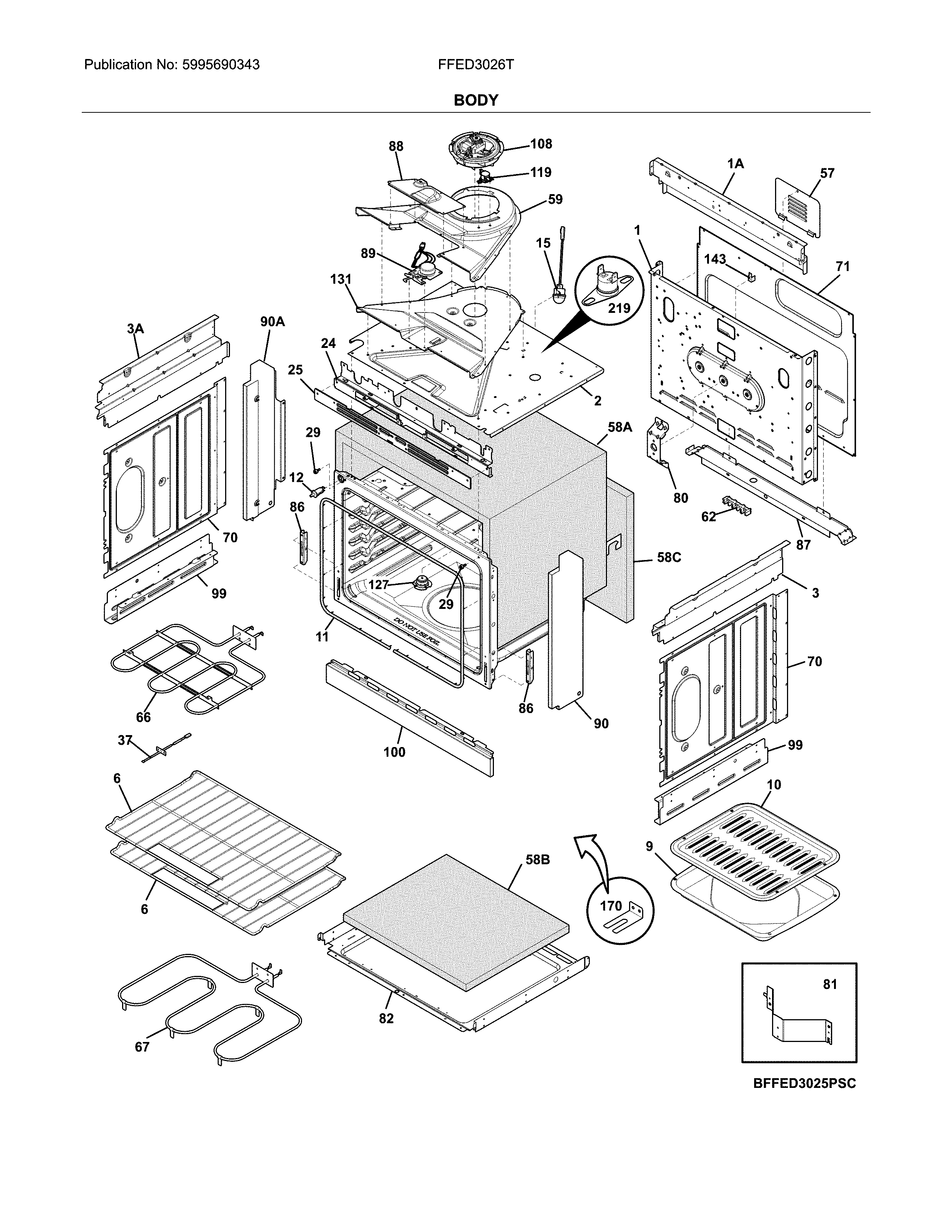

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Range Surface Element Infinite Switch (replaces 318191027, 903097-9010) 318191023
#54B

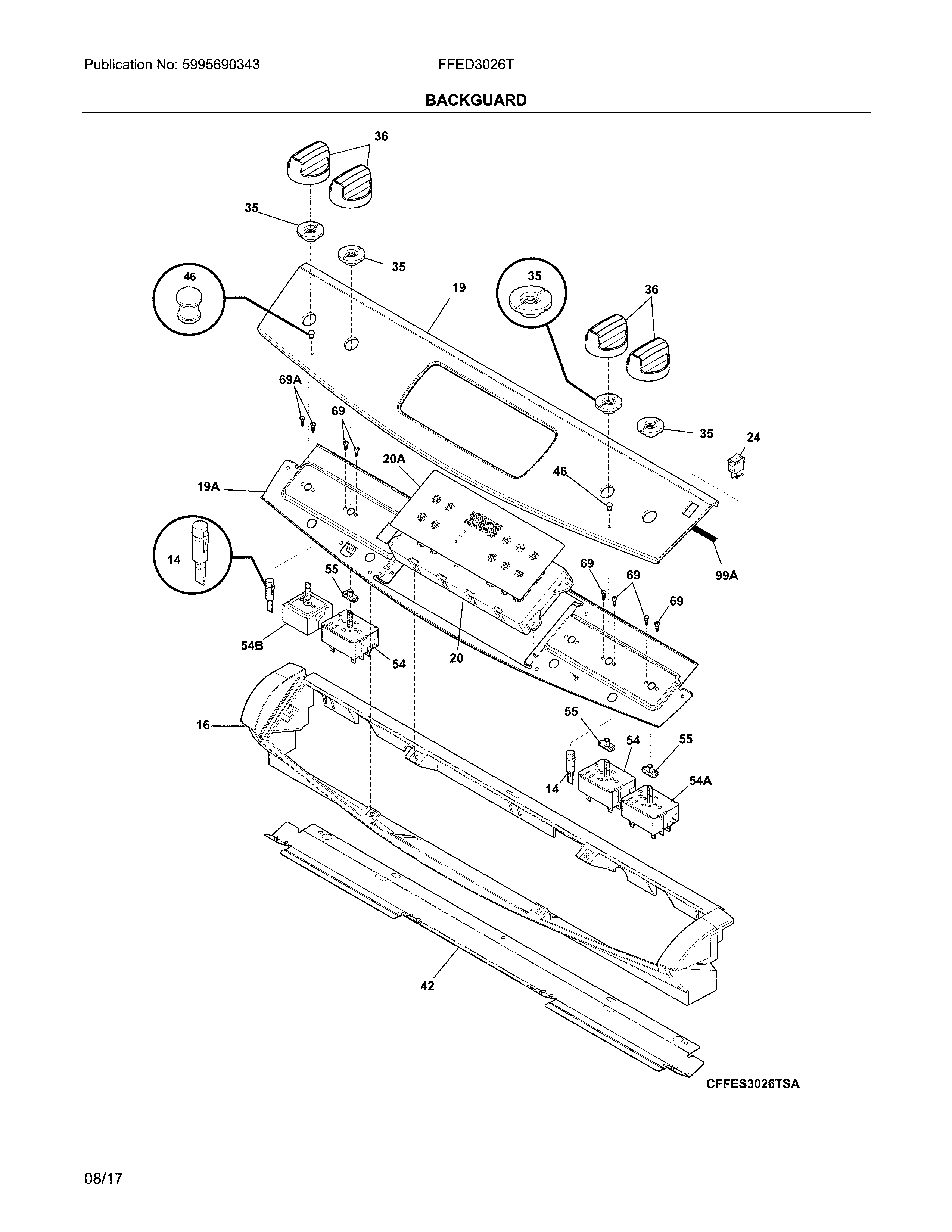

Backguard diagram

Range surface element infinite switch (replaces 318191027, 903097-9010)

Part #318191023

BEST SELLER
$62.73 |
9% OFF Phone Price : $68.73
In Stock
Range Radiant Surface Element, 12-in (replaces 5304510566) 316291200
#15B

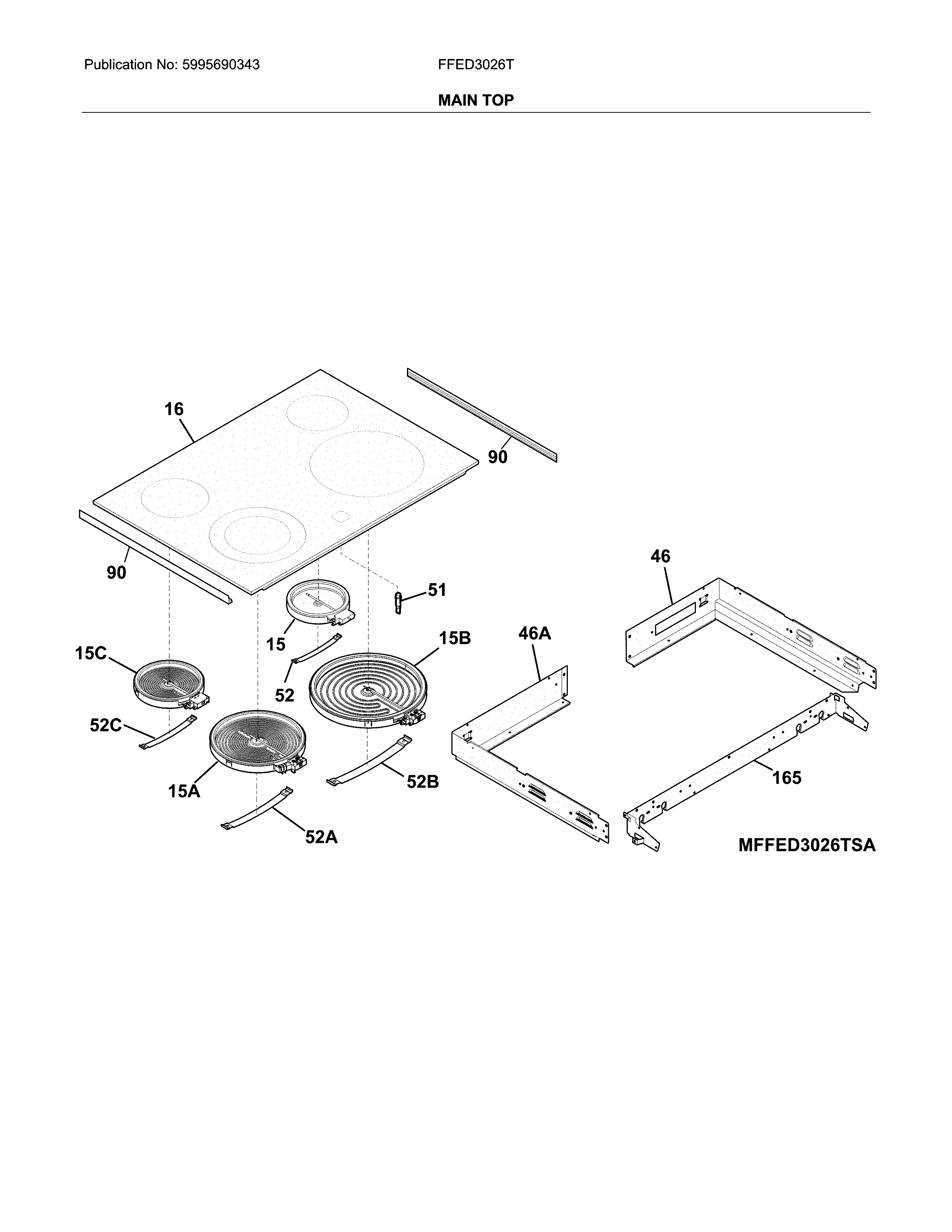

Main top diagram

Range radiant surface element, 12-in (replaces 5304510566)

Part #316291200

BEST SELLER
$145.18 |
8% OFF Phone Price : $157.18
In Stock
Range Oven Control Overlay (black) 316419145
#20A

Backguard diagram

Range oven control overlay (black)

Part #316419145

BEST SELLER
$32.05 |
16% OFF Phone Price : $38.05
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$53.57 |
10% OFF Phone Price : $59.57
In Stock
Range Broil Element 139008900
#66

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$57.76 |
9% OFF Phone Price : $63.76
In Stock
Range Surface Element Control Switch 318293831
#54A

Backguard diagram

Range surface element control switch

Part #318293831

BEST SELLER
$67.71 |
8% OFF Phone Price : $73.71
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

Body diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
