Frigidaire
Electric Range

Model # FES367BCC Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FES367BCC electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

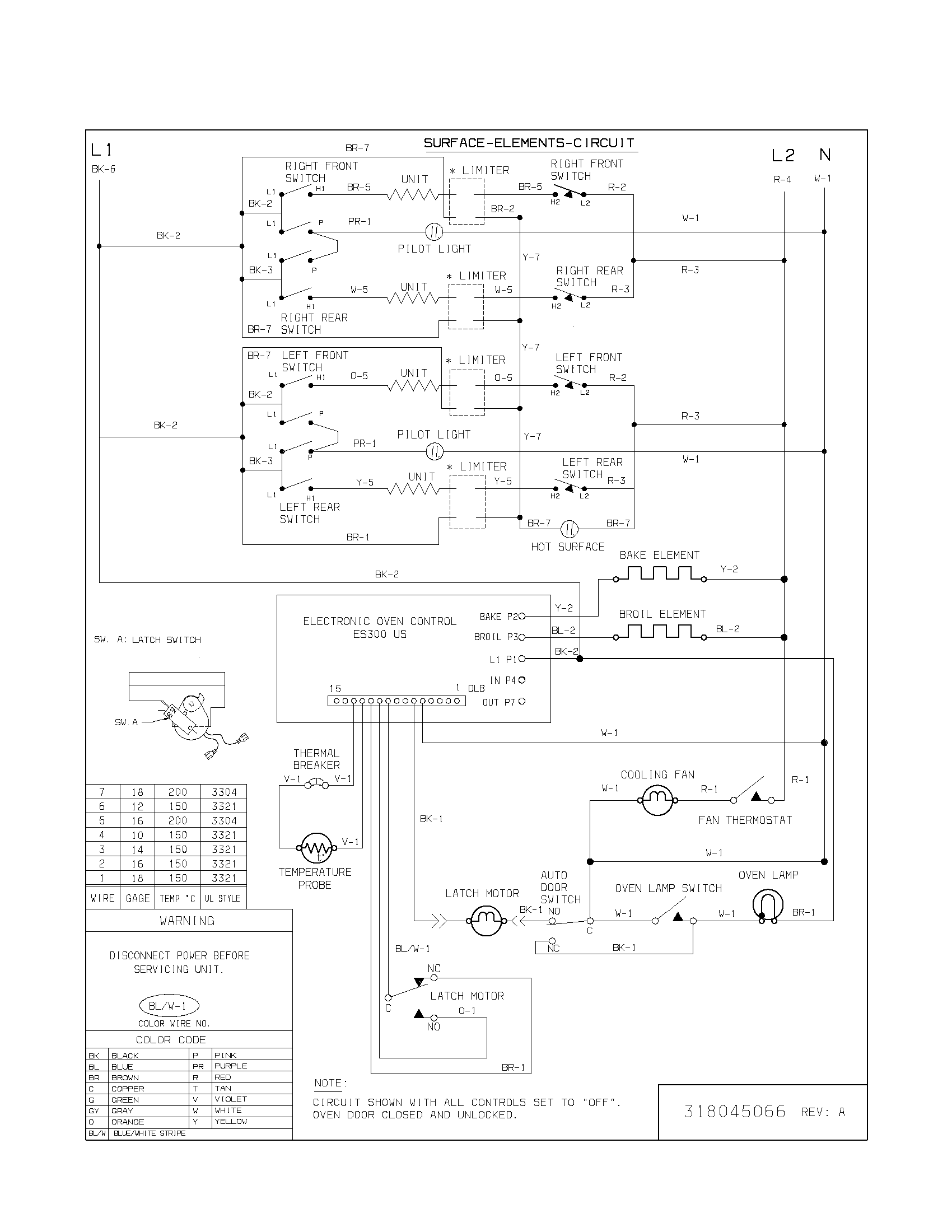

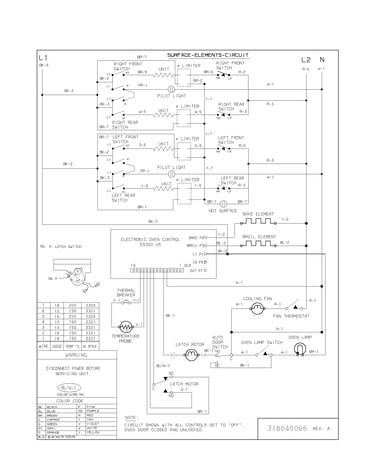

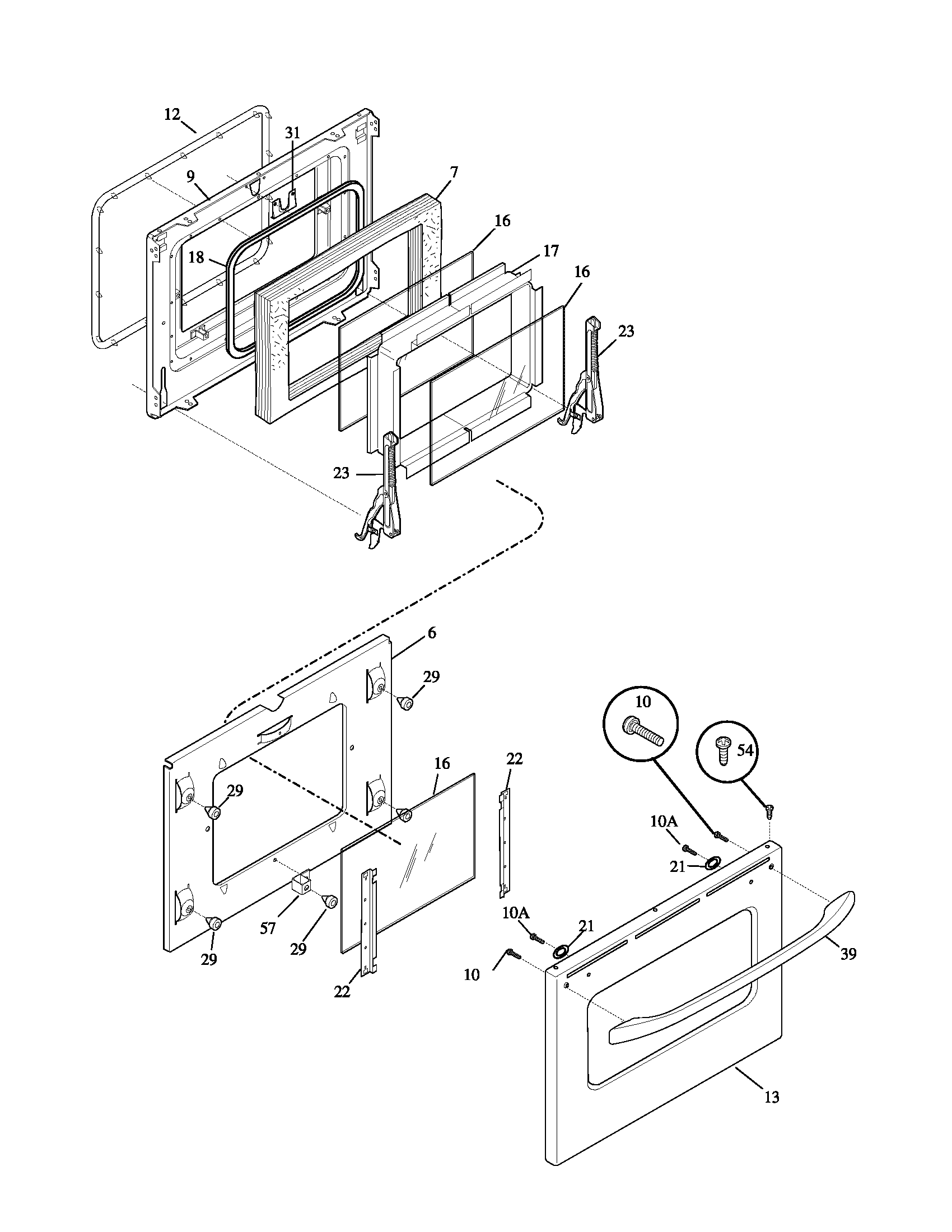

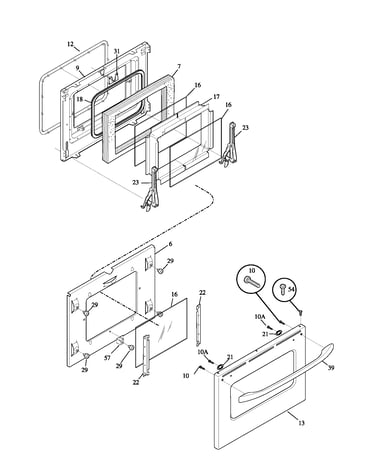

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |
Range Oven Light Bulb 5303013071
#15

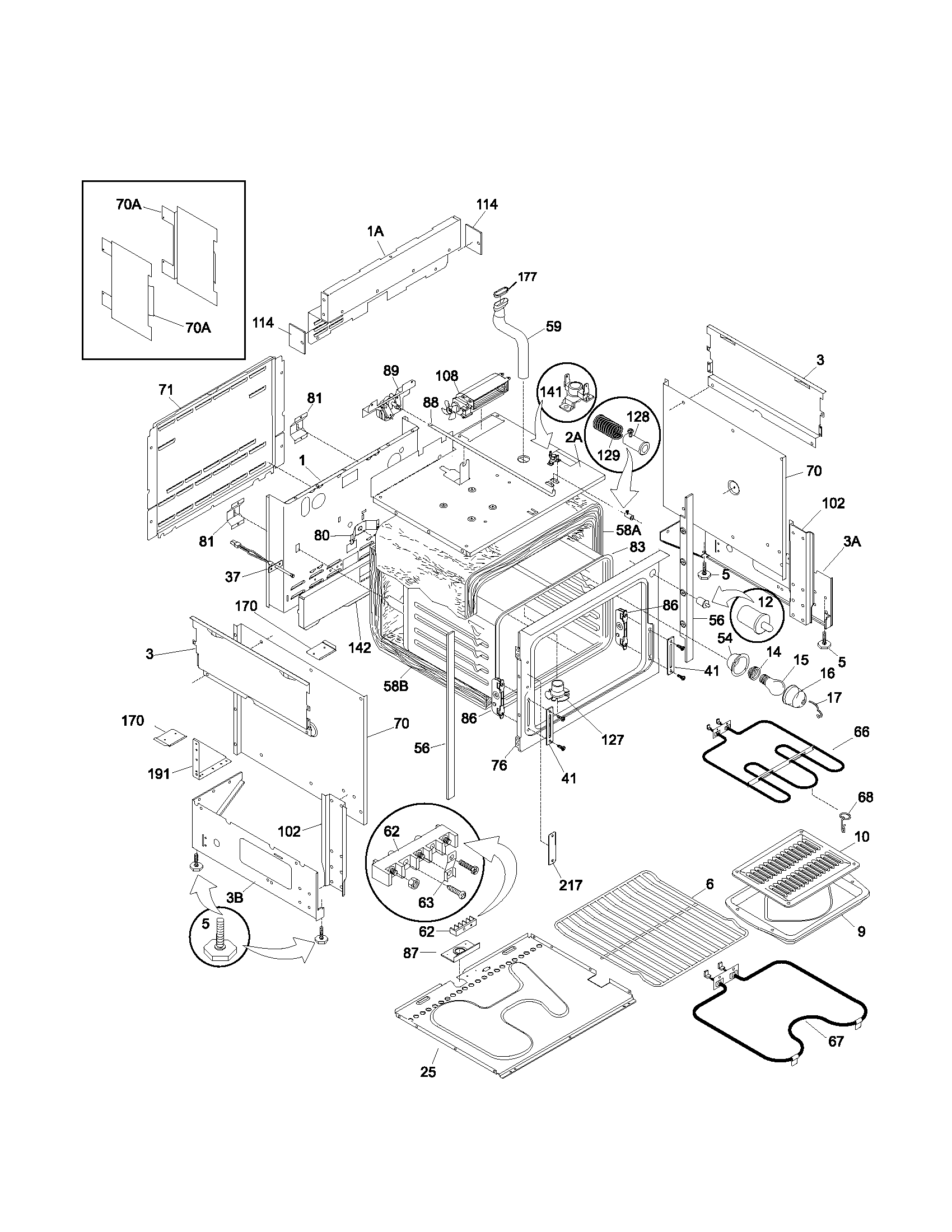

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Probe 318198510
#37

Body diagram

Probe

Part #318198510

Replaced by #316217002

?
Manufacturer substitution
This part replaces 318198510. Substitute parts can look different from the original.
BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Oven Bake Element 5303310512
#67

Body diagram

Oven bake element

Part #5303310512

Replaced by #318255006

?
Manufacturer substitution
This part replaces 5303310512. Substitute parts can look different from the original.
BEST SELLER
$145.64 |
8% OFF Phone Price : $157.64
In Stock
Range Radiant Surface Element, 9-in 316224200
#15

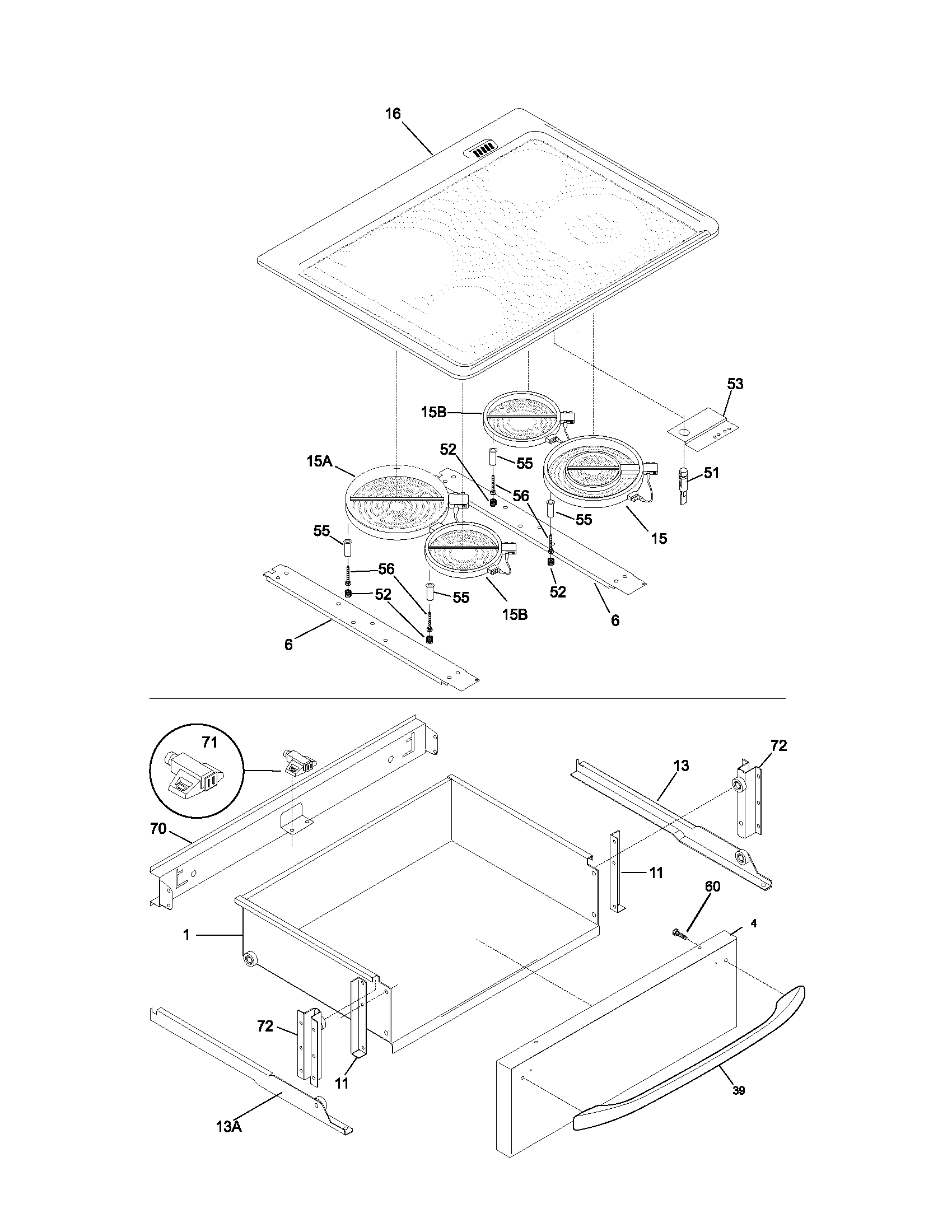

Top/drawer diagram

Range radiant surface element, 9-in

Part #316224200

Replaced by #316135401

?
Manufacturer substitution
This part replaces 316224200. Substitute parts can look different from the original.
BEST SELLER
$161.94 |
7% OFF Phone Price : $173.94
In Stock
Range Oven Control Overlay (replaces 316220818, 316220841, 318214502) 316220805
#NI

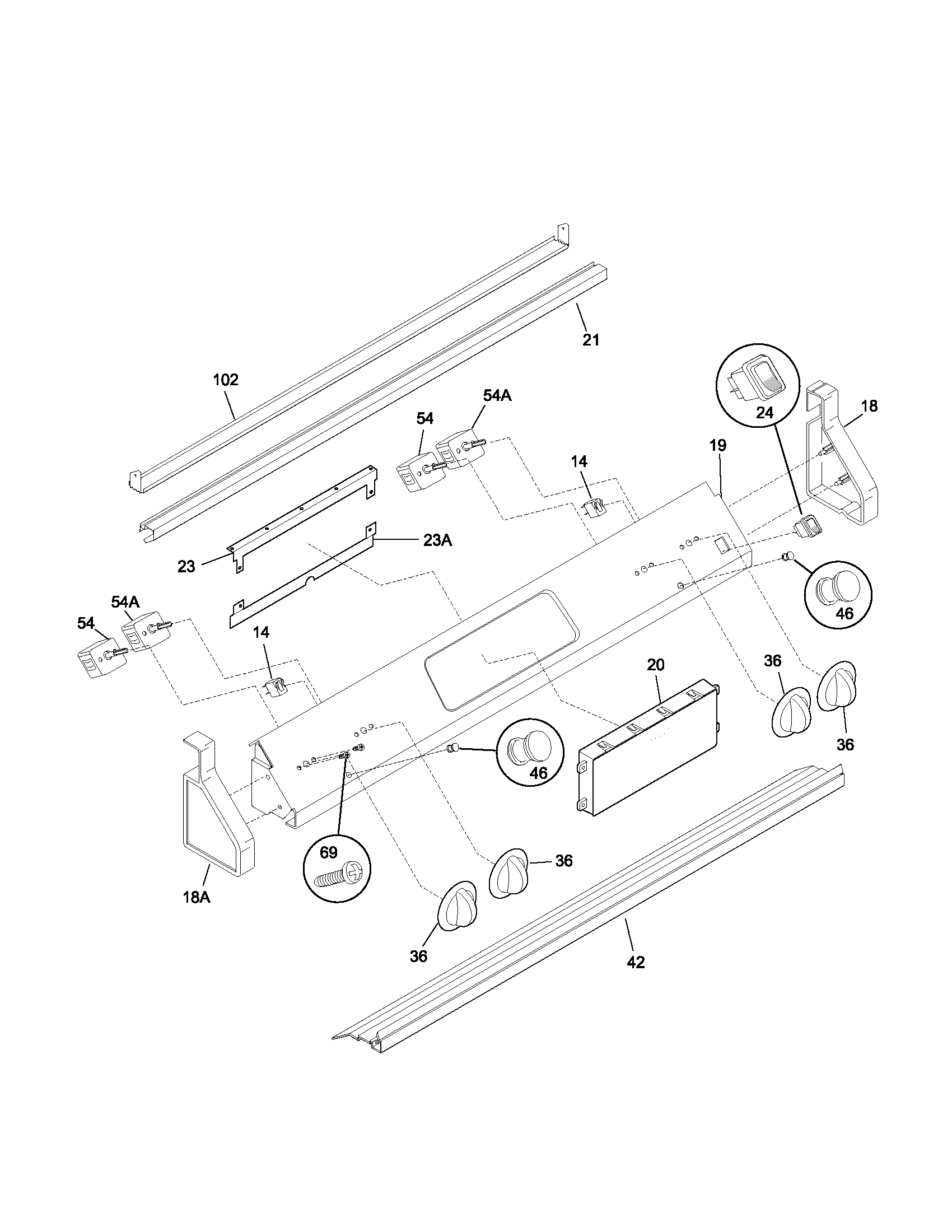

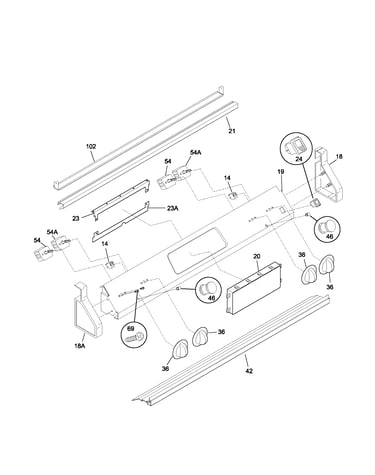

Backguard diagram

Range oven control overlay (replaces 316220818, 316220841, 318214502)

Part #316220805

BEST SELLER
$58.21 |
9% OFF Phone Price : $64.21
In Stock
Receptacle 5308011085
#14

Body diagram

Receptacle

Part #5308011085

Replaced by #316116400

?
Manufacturer substitution
This part replaces 5308011085. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Blk Dr Handl 318231200
Blk dr handl

Part #318231200

Replaced by #316270200

?
Manufacturer substitution
This part replaces 318231200. Substitute parts can look different from the original.
BEST SELLER
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Oven Switch 318089913
#12

Body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Light Switch 316005602
#24

Backguard diagram

Light switch

Part #316005602

Replaced by #5304527841

?
Manufacturer substitution
This part replaces 316005602. Substitute parts can look different from the original.
This item is not returnable
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Element 318198810
#15B

Top/drawer diagram

Element

Part #318198810

Replaced by #318198817

?
Manufacturer substitution
This part replaces 318198810. Substitute parts can look different from the original.
$149.91 |
7% OFF Phone Price : $161.91
In Stock
