Electric Range

Model # RF364PXPQ1 Official Whirlpool electric freestanding range

Here are the diagrams and repair parts for Official Whirlpool RF364PXPQ1 electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
RF364PXPQ1 Ranges
Oven Sensor 8273902
#23

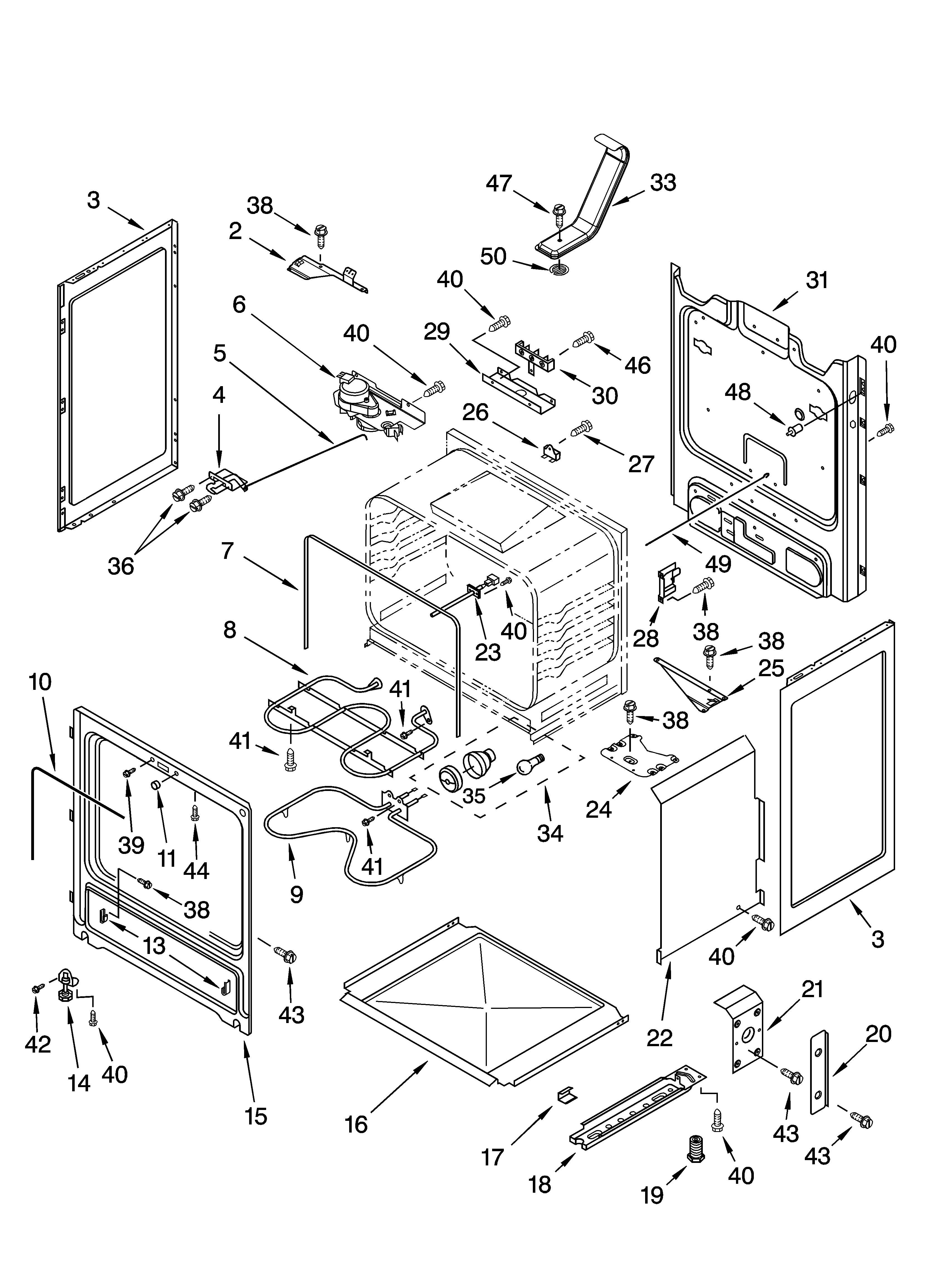

Chassis parts diagram

Oven sensor

Part #8273902

Replaced by #WPW10181986

?
Manufacturer substitution
This part replaces 8273902. Substitute parts can look different from the original.
BEST SELLER
$57.00 |
10% OFF Phone Price : $63.00
In Stock
Oven Bake Element 9758541
#9

Chassis parts diagram

Oven bake element

Part #9758541

Replaced by #WPW10308477

?
Manufacturer substitution
This part replaces 9758541. Substitute parts can look different from the original.
BEST SELLER
$45.50 |
12% OFF Phone Price : $51.50
In Stock

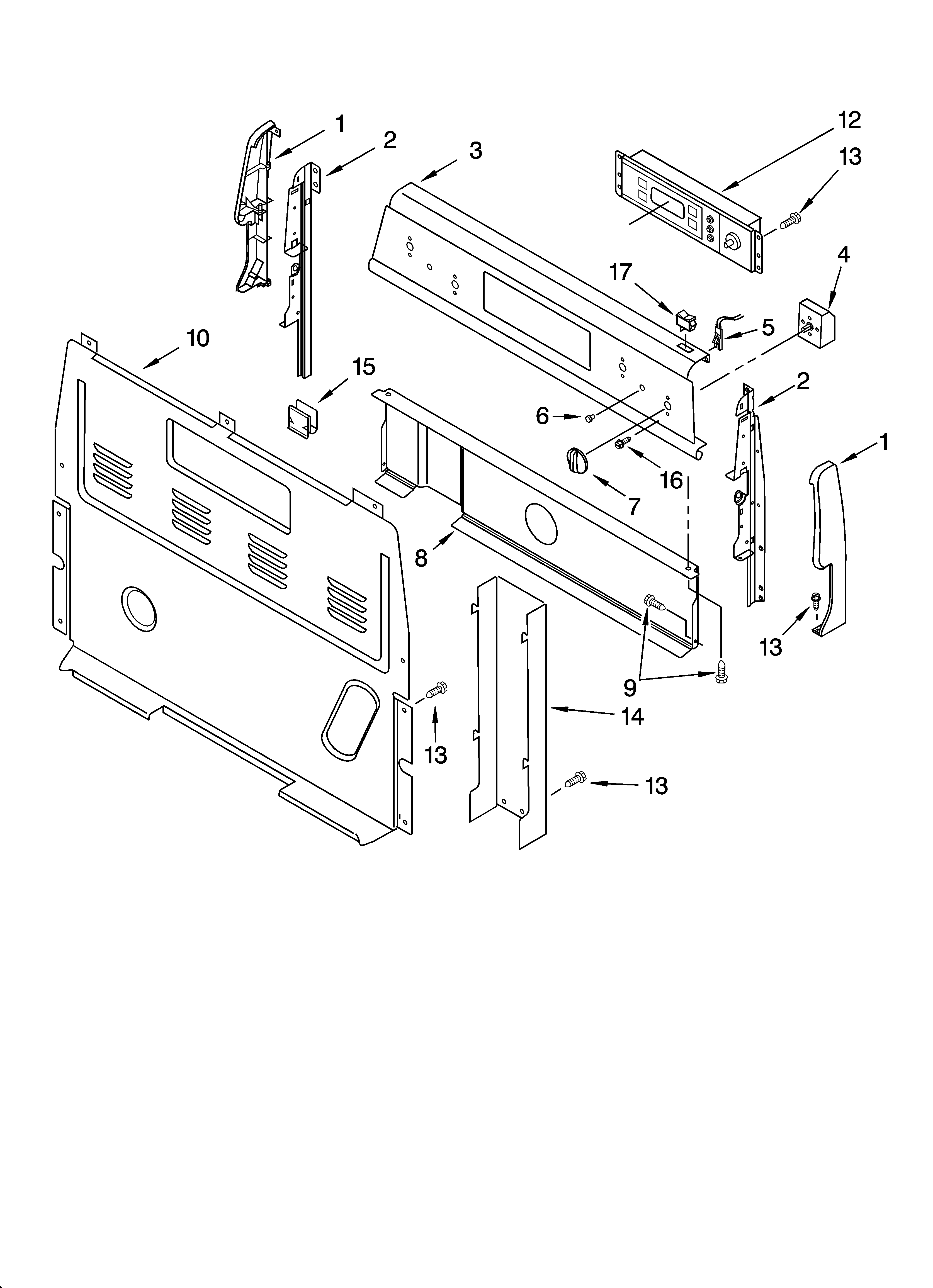

Range Surface Element Control Switch 3148952
Range surface element control switch

Part #3148952

Replaced by #WP3148952

?
Manufacturer substitution
This part replaces 3148952. Substitute parts can look different from the original.
BEST SELLER
$67.16 |
8% OFF Phone Price : $73.16
In Stock
Range Safety Thermostat 3196548
#26

Chassis parts diagram

Range safety thermostat

Part #3196548

Replaced by #WP3196548

?
Manufacturer substitution
This part replaces 3196548. Substitute parts can look different from the original.
BEST SELLER
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Spray W 350930
#NI

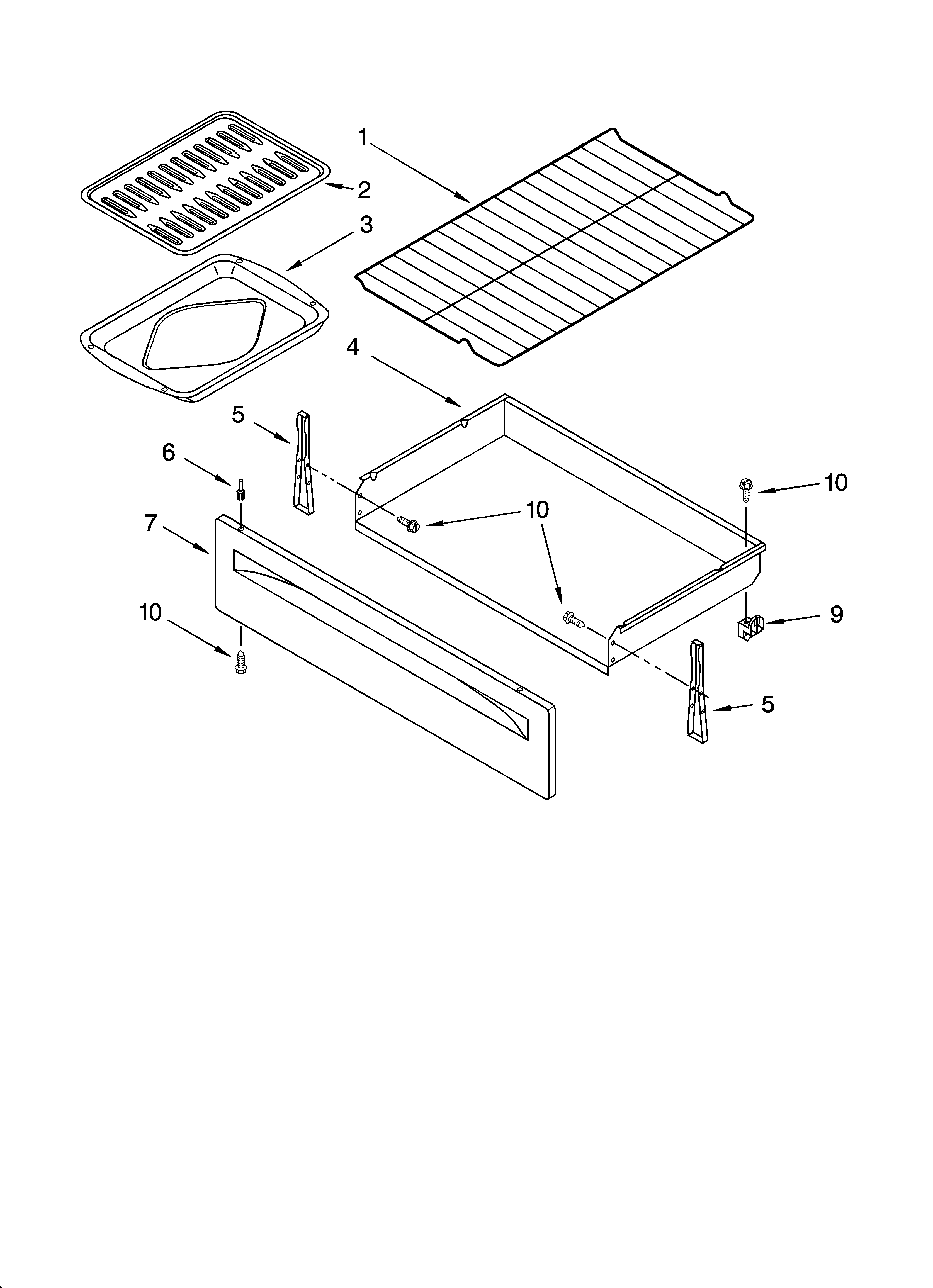

Drawer & broiler parts, optional parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Door Trim 8523165
#12D

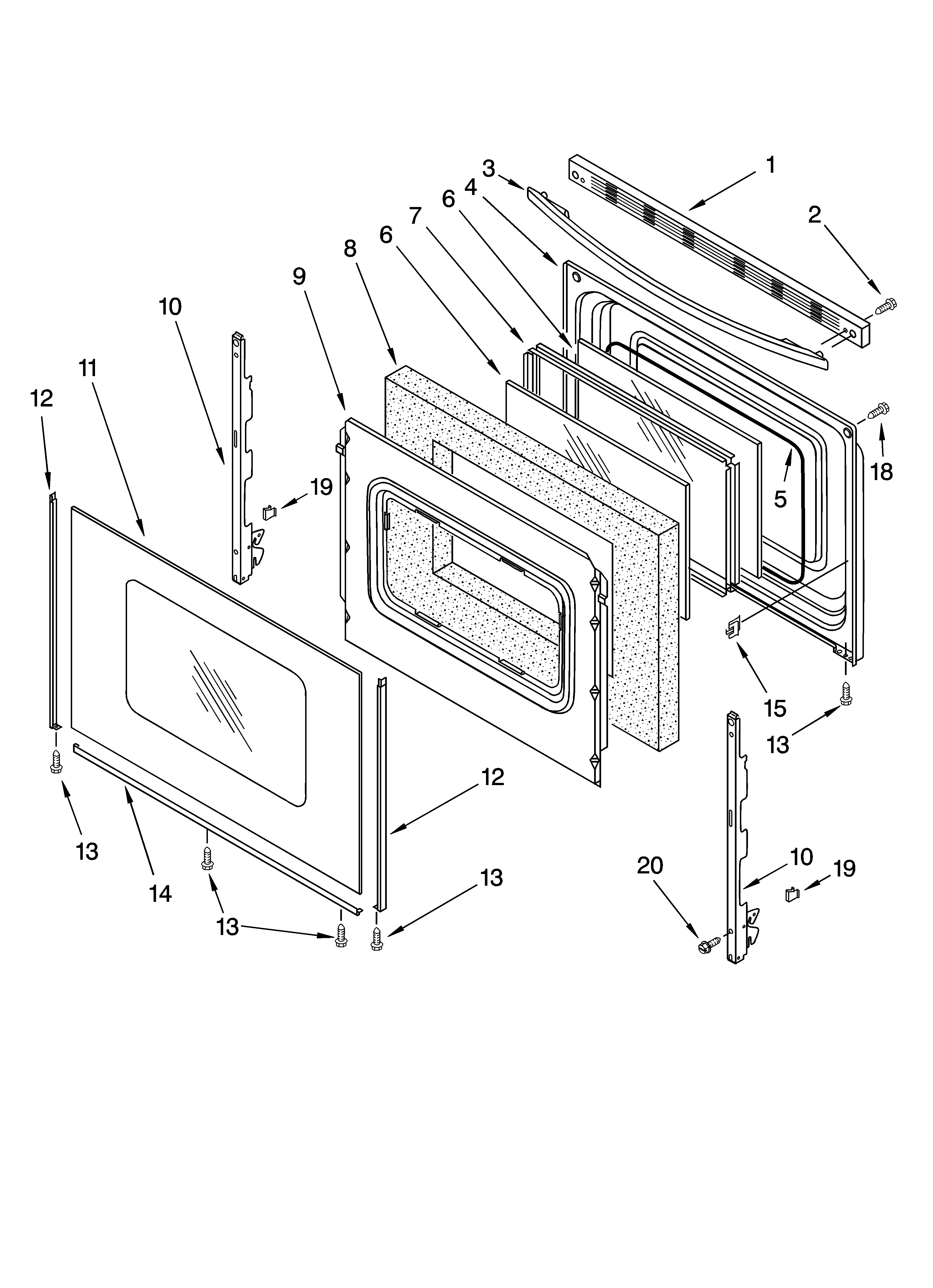

Door parts diagram

Door trim

Part #8523165

Replaced by #W10761014

?
Manufacturer substitution
This part replaces 8523165. Substitute parts can look different from the original.
BEST SELLER
$37.12 |
14% OFF Phone Price : $43.12
In Stock
Range Surface Element Control Switch 3148953
Range surface element control switch

Part #3148953

Replaced by #WP3148953

?
Manufacturer substitution
This part replaces 3148953. Substitute parts can look different from the original.
BEST SELLER
$51.99 |
10% OFF Phone Price : $57.99
In Stock
Appliance Touch-up Paint 72017
#NI

Drawer & broiler parts, optional parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Range Door Trim, Left (black) 8523171
#12A

Door parts diagram

Range door trim, left (black)

Part #8523171

Replaced by #W10761018

?
Manufacturer substitution
This part replaces 8523171. Substitute parts can look different from the original.
BEST SELLER
$35.48 |
14% OFF Phone Price : $41.48
In Stock
Range Radiant Surface Element, 7-in 8523697
#7A

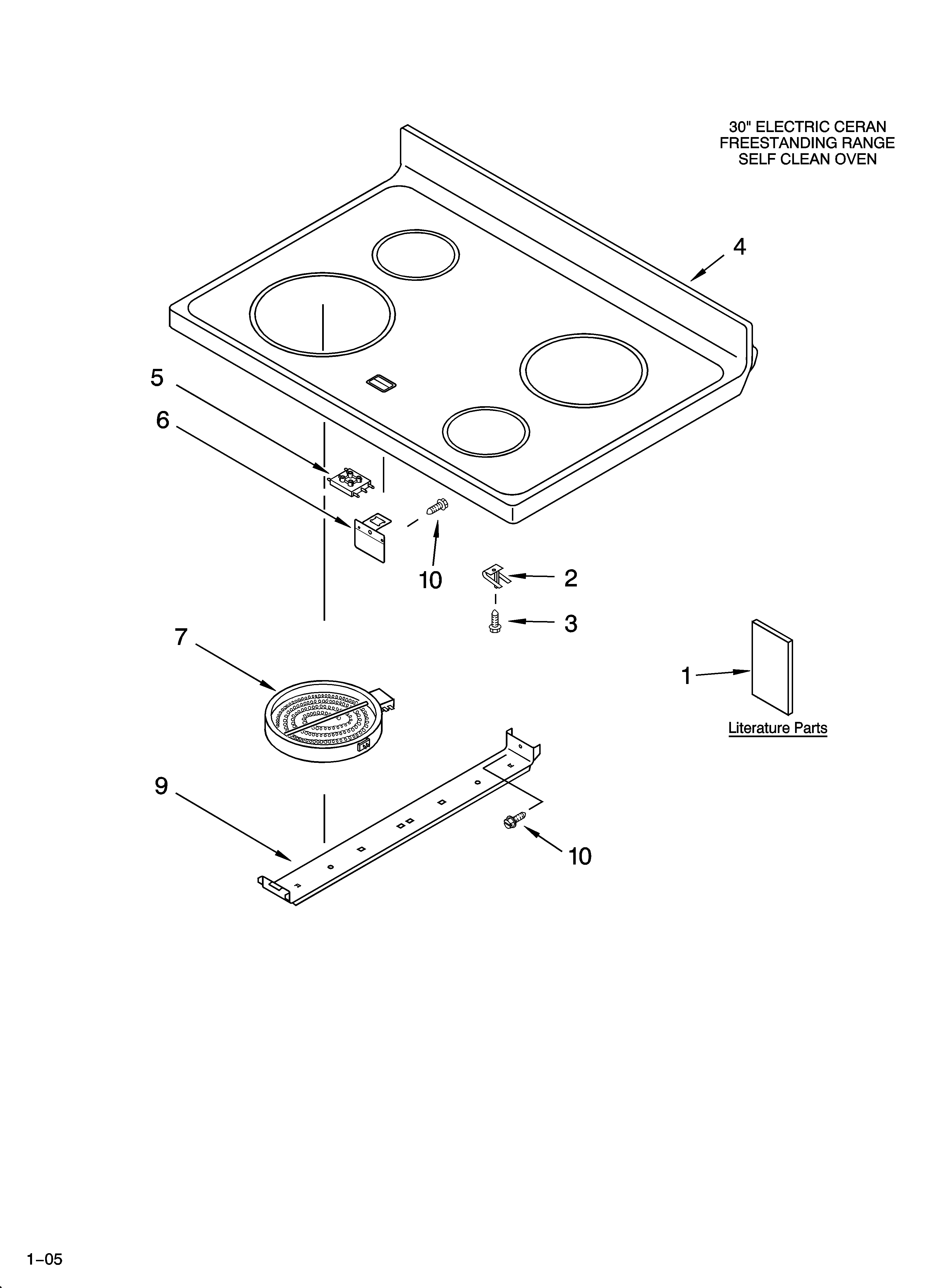

Cooktop parts diagram

Range radiant surface element, 7-in

Part #8523697

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 8523697. Substitute parts can look different from the original.
$72.35 |
8% OFF Phone Price : $78.35
In Stock
