Kenmore
Charcoal Grill

Model # 2582393580 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2582393580 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

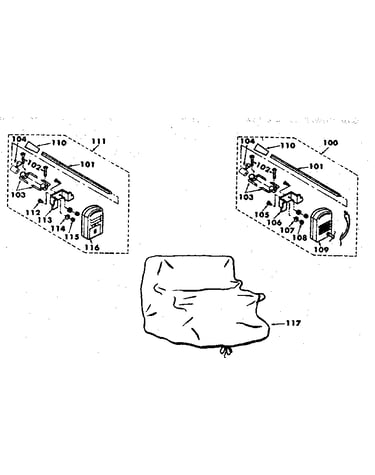

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Switch 10342-28
#32

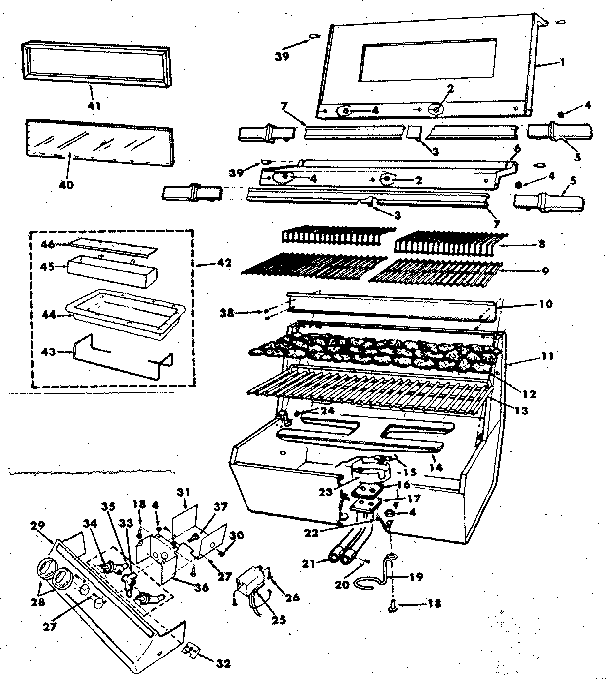

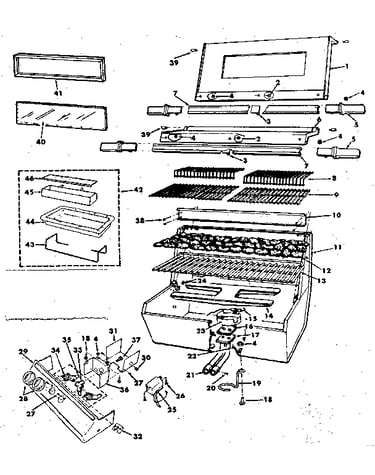

Grill & burner section diagram

Switch

Part #10342-28

The manufacturer no longer makes this part, and there's no substitute part

Lock Axle 10668-6
#73

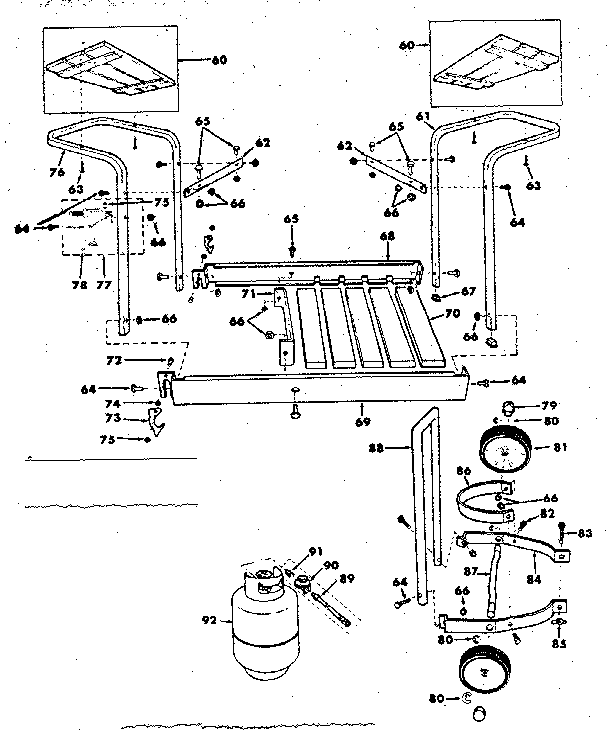

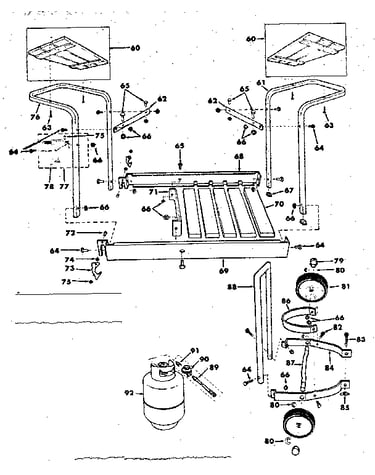

Cart diagram

Lock axle

Part #10668-6

The manufacturer no longer makes this part, and there's no substitute part

Grommet Y-11756
#30

Grill & burner section diagram

Grommet

Part #Y-11756

The manufacturer no longer makes this part, and there's no substitute part

Screw STD610602
#20

Grill & burner section diagram

Screw

Part #STD610602

The manufacturer no longer makes this part, and there's no substitute part

T-bolt Y-12427
#3

Grill & burner section diagram

T-bolt

Part #Y-12427

The manufacturer no longer makes this part, and there's no substitute part

Knob 10472-32
#28

Grill & burner section diagram

Knob

Part #10472-32

The manufacturer no longer makes this part, and there's no substitute part

Conversion Label 10083-885
#47E

Grill & burner section diagram

Conversion label

Part #10083-885

The manufacturer no longer makes this part, and there's no substitute part

Wheel 10892-13
#81

Cart diagram

Wheel

Part #10892-13

The manufacturer no longer makes this part, and there's no substitute part

Door Handle 10337-9
#5

Grill & burner section diagram

Door handle

Part #10337-9

The manufacturer no longer makes this part, and there's no substitute part

Burner 10390-31
#14

Grill & burner section diagram

Burner

Part #10390-31

The manufacturer no longer makes this part, and there's no substitute part
