Craftsman
Radial Arm Saw

Model # 113197702 Official Craftsman 10" radial saw

Here are the diagrams and repair parts for Official Craftsman 113197702 10" radial saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 235 parts  |
Lock Nut STD541431
Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Bevel Adjustment Knob 63660
#24

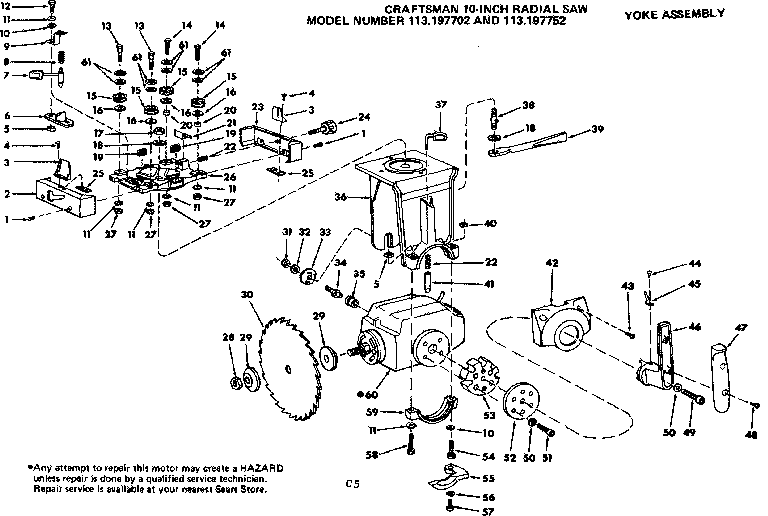

Yoke assembly diagram

Radial arm saw bevel adjustment knob

Part #63660

The manufacturer no longer makes this part, and there's no substitute part

Table Saw Washer 63465
#36

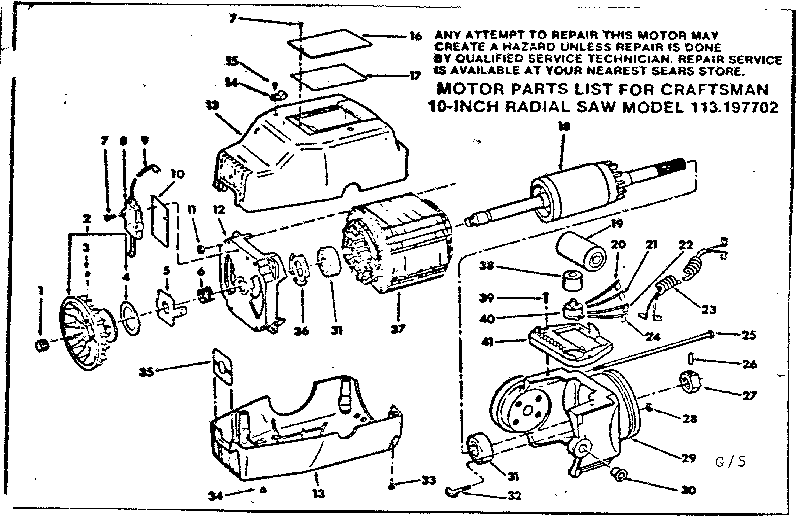

Motor assembly diagram

Table saw washer

Part #63465

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Handle Screw 60338
#48

Yoke assembly diagram

Radial arm saw handle screw

Part #60338

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Hex Wrench 63682
#44

Unit diagram

Radial arm saw hex wrench

Part #63682

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Arbor Nut 30495
#28

Yoke assembly diagram

Radial arm saw arbor nut

Part #30495

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Carriage Bearing (replaces 819039) 63777
#15

Yoke assembly diagram

Radial arm saw carriage bearing (replaces 819039)

Part #63777

The manufacturer no longer makes this part, and there's no substitute part

Radial Arm Saw Washer 60300
#23

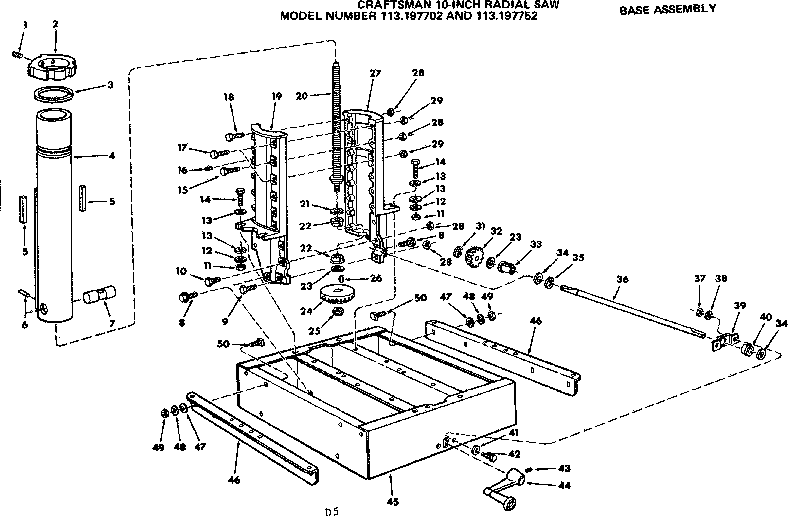

Base assembly diagram

Radial arm saw washer

Part #60300

The manufacturer no longer makes this part, and there's no substitute part

Emerson Cap Screw 9421620
#18

Unit diagram

Emerson cap screw

Part #9421620

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Clip Nut 37530
#29

Unit diagram

Power tool clip nut

Part #37530

The manufacturer no longer makes this part, and there's no substitute part
