Model # 25370107001 Official Kenmore room air conditioner

Here are the diagrams and repair parts for Official Kenmore 25370107001 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

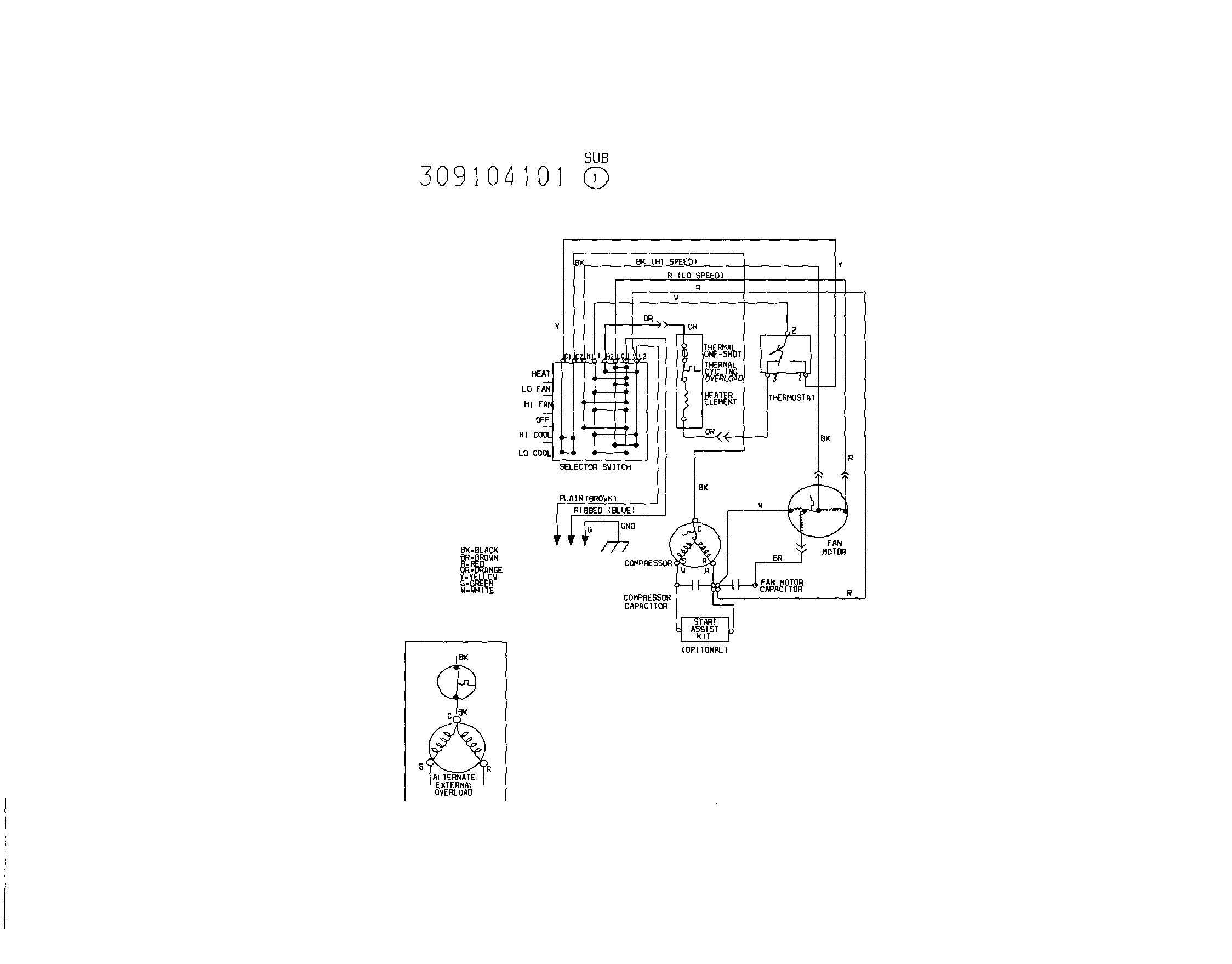

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Screw 3202975
#2

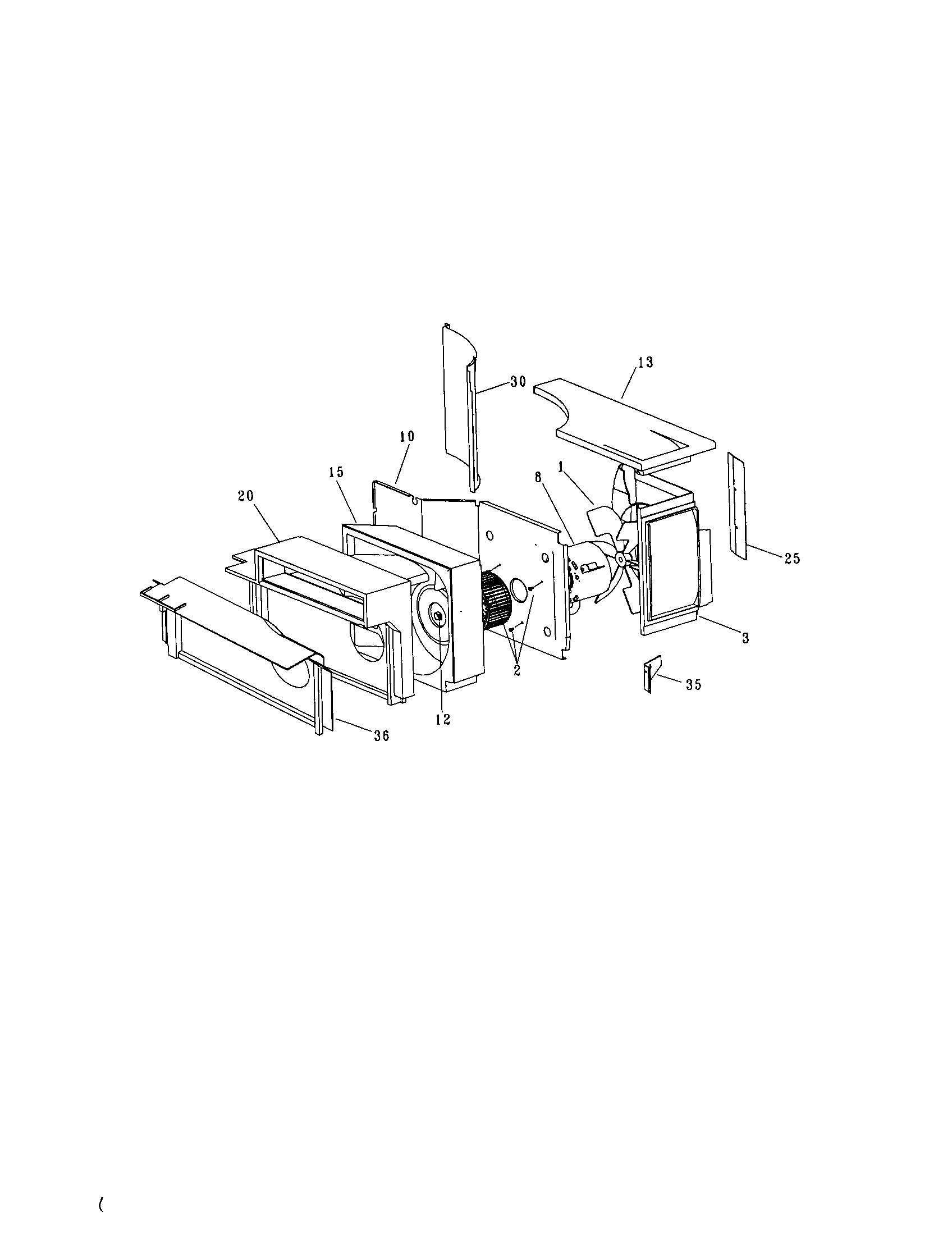

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Kit-mounting 309636002
#15

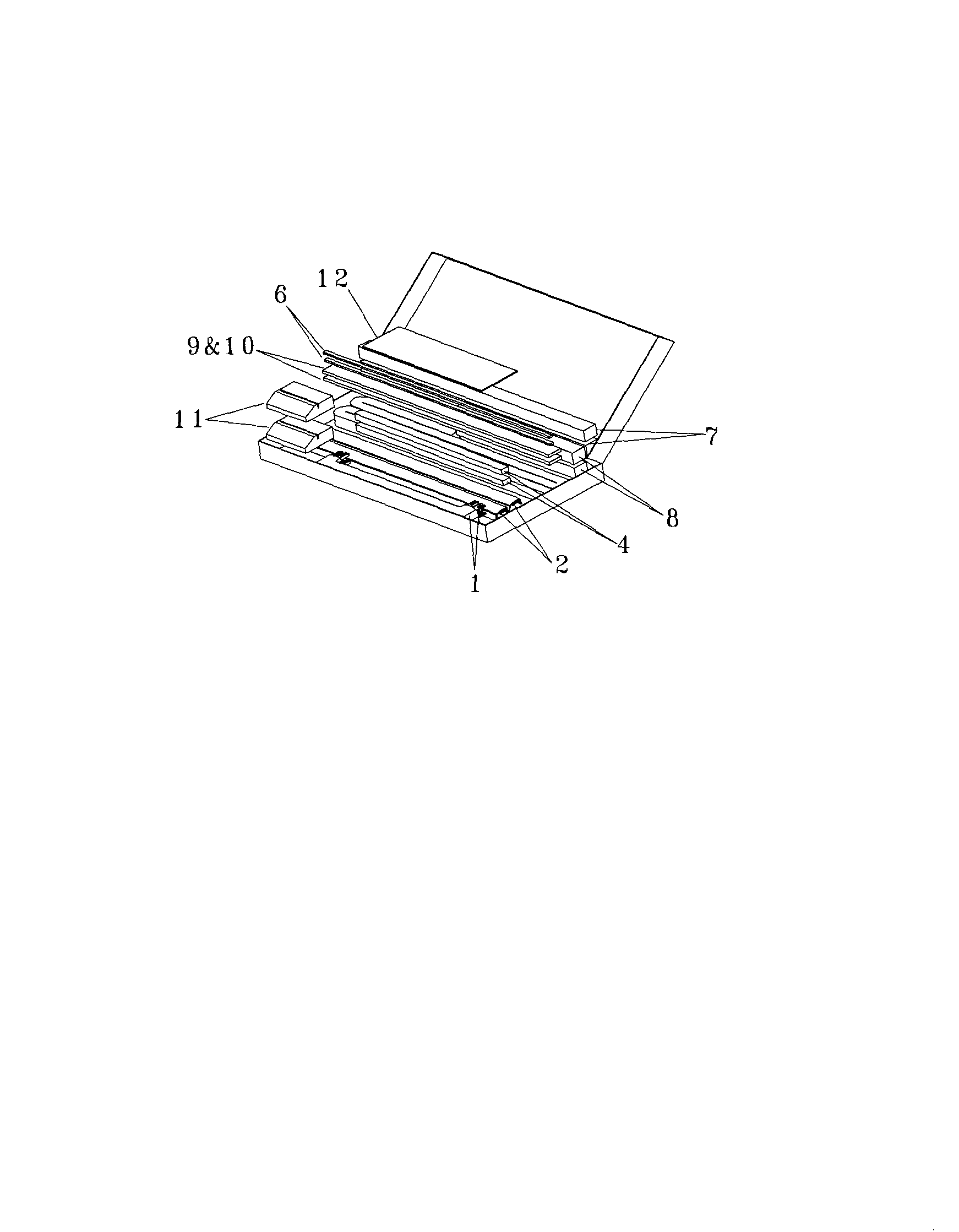

Window mountiing diagram

Kit-mounting

Part #309636002

The manufacturer no longer makes this part, and there's no substitute part

Seal-cond/re 5304409307
#8

Window mountiing diagram

Seal-cond/re

Part #5304409307

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 309631701
#11

Air handling diagram

Air conditioner blower wheel

Part #309631701

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 309343107
#17

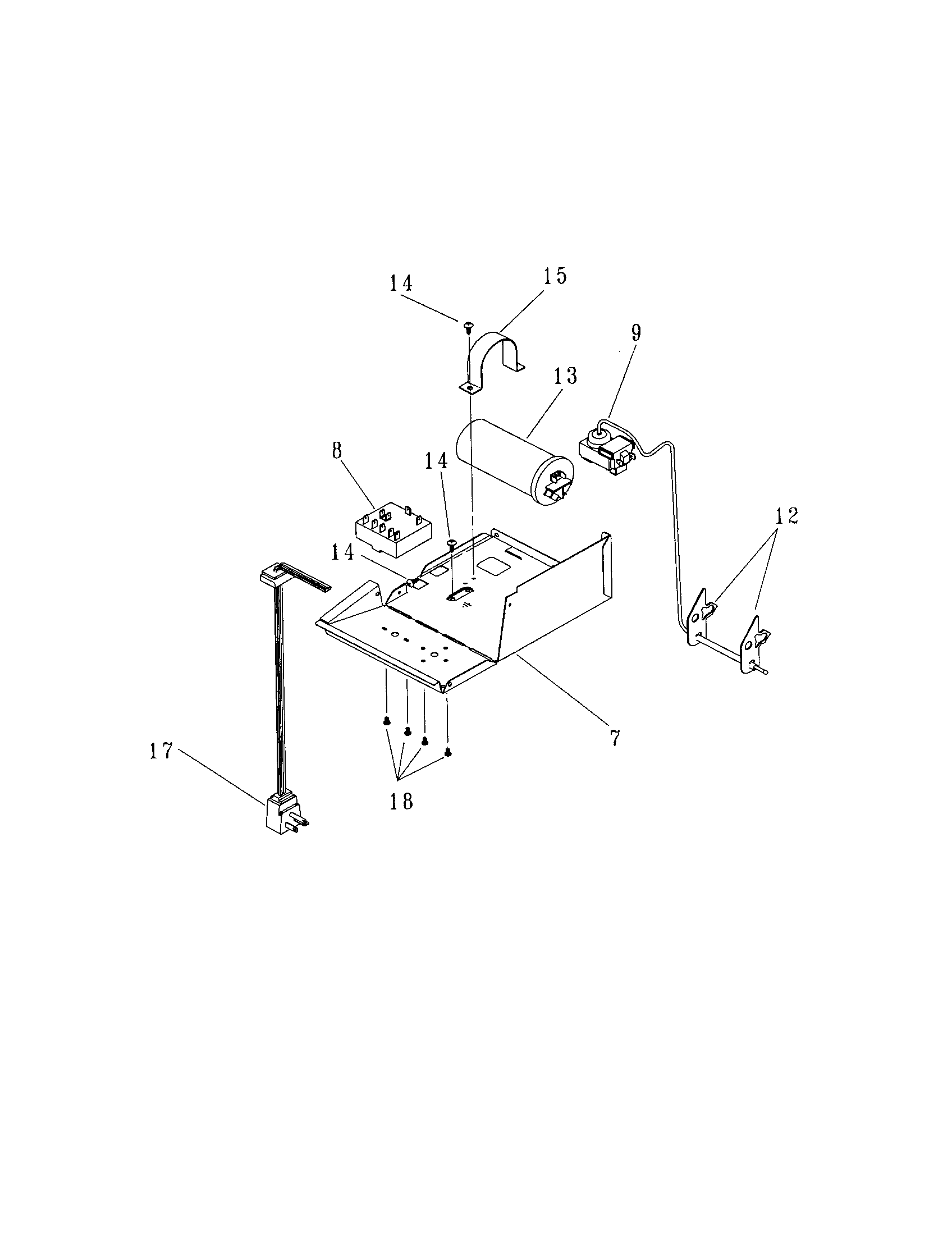

Control diagram

Power cord

Part #309343107

The manufacturer no longer makes this part, and there's no substitute part

Fr Cnt Label 309631808
#43

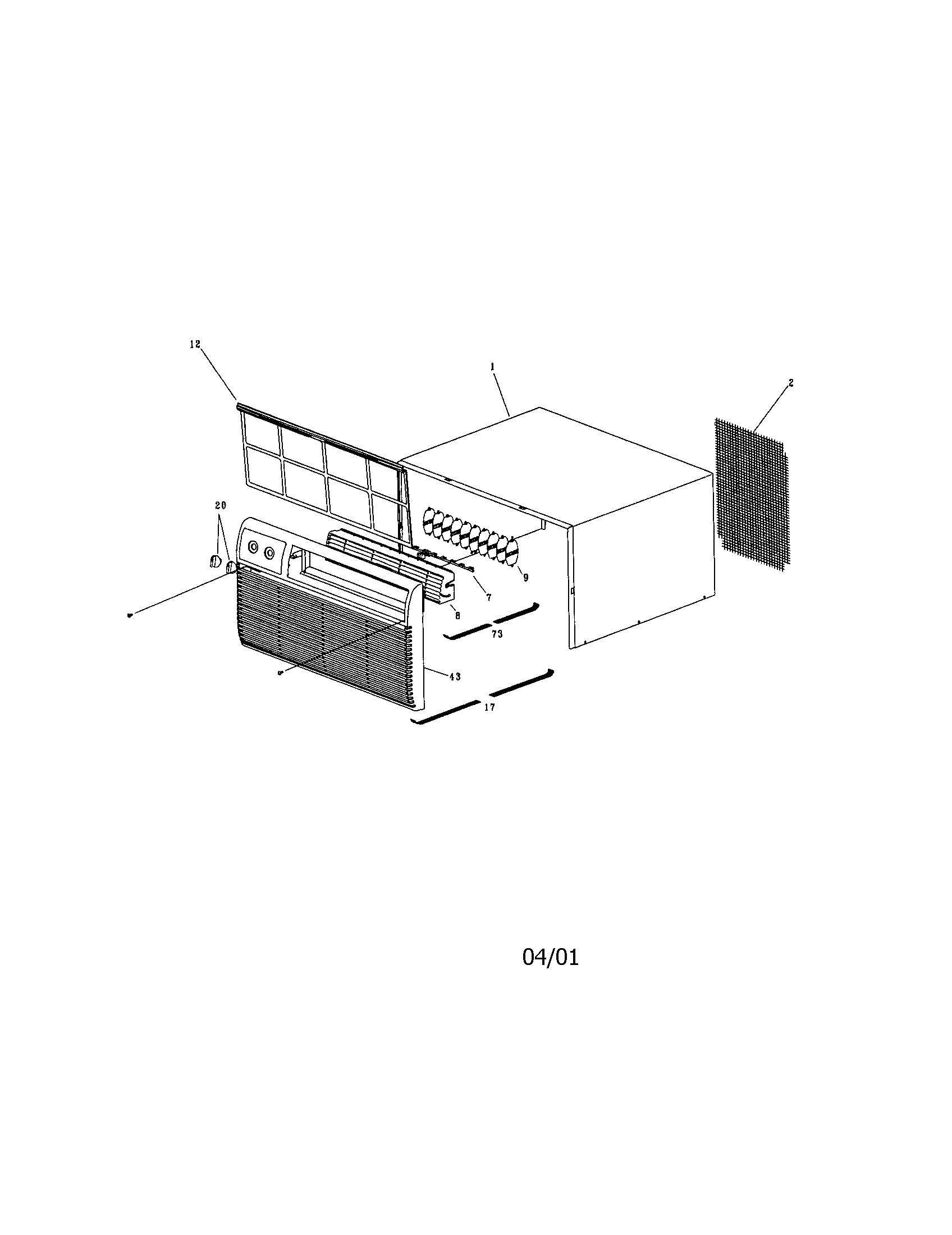

Cabinet front and wrapper diagram

Fr cnt label

Part #309631808

The manufacturer no longer makes this part, and there's no substitute part

Washer 5303293809
#21

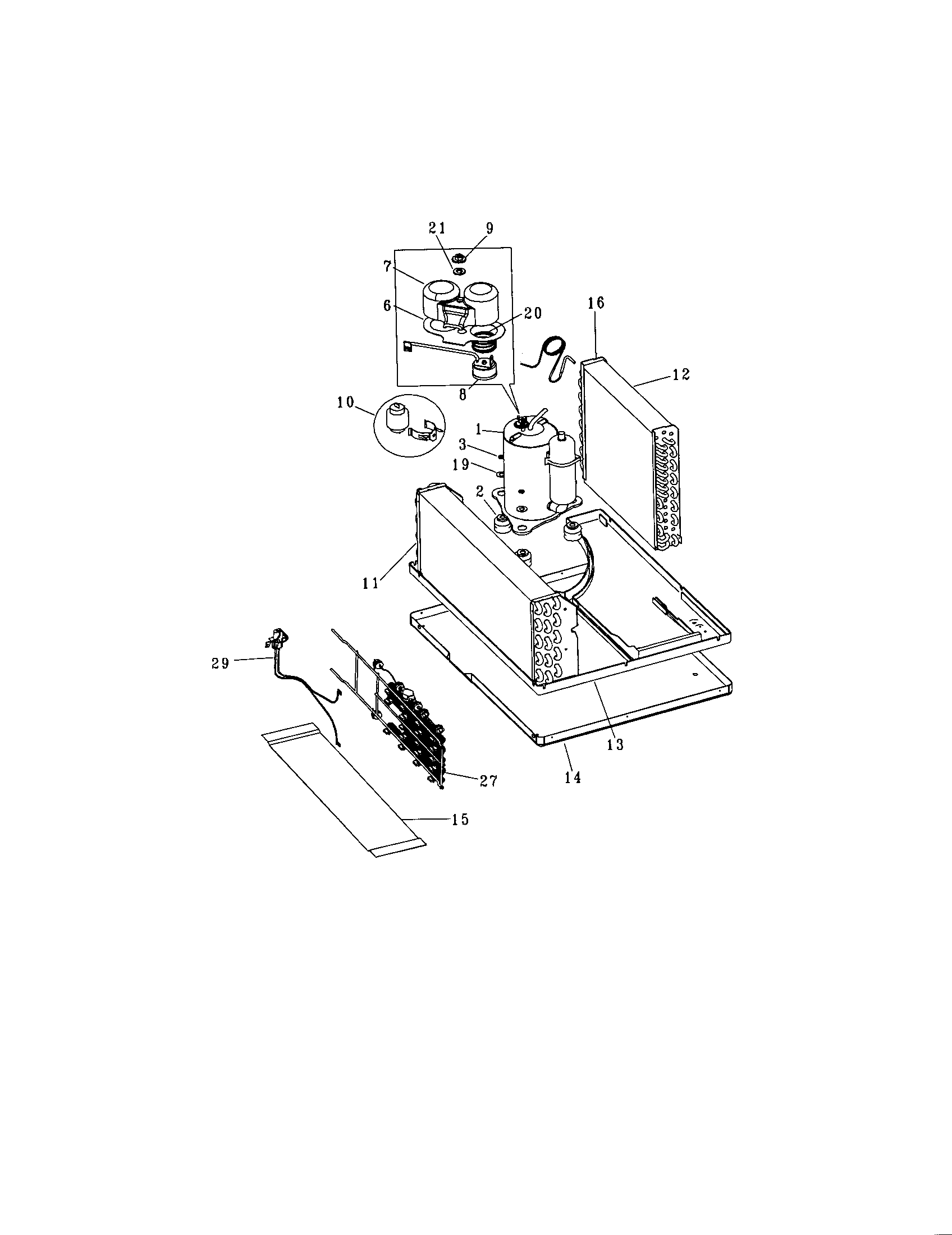

Compressor diagram

Washer

Part #5303293809

The manufacturer no longer makes this part, and there's no substitute part

#bulkhead-18 309627401
#10

Air handling diagram

#bulkhead-18

Part #309627401

The manufacturer no longer makes this part, and there's no substitute part

Louver 309628104
#9

Cabinet front and wrapper diagram

Louver

Part #309628104

The manufacturer no longer makes this part, and there's no substitute part

Safety Scren 309636101
#2

Cabinet front and wrapper diagram

Safety scren

Part #309636101

The manufacturer no longer makes this part, and there's no substitute part
