Model # CLJ60-1C Official Goodman split-system condensing unit

Here are the diagrams and repair parts for Official Goodman CLJ60-1C split-system condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 20 parts |

#131

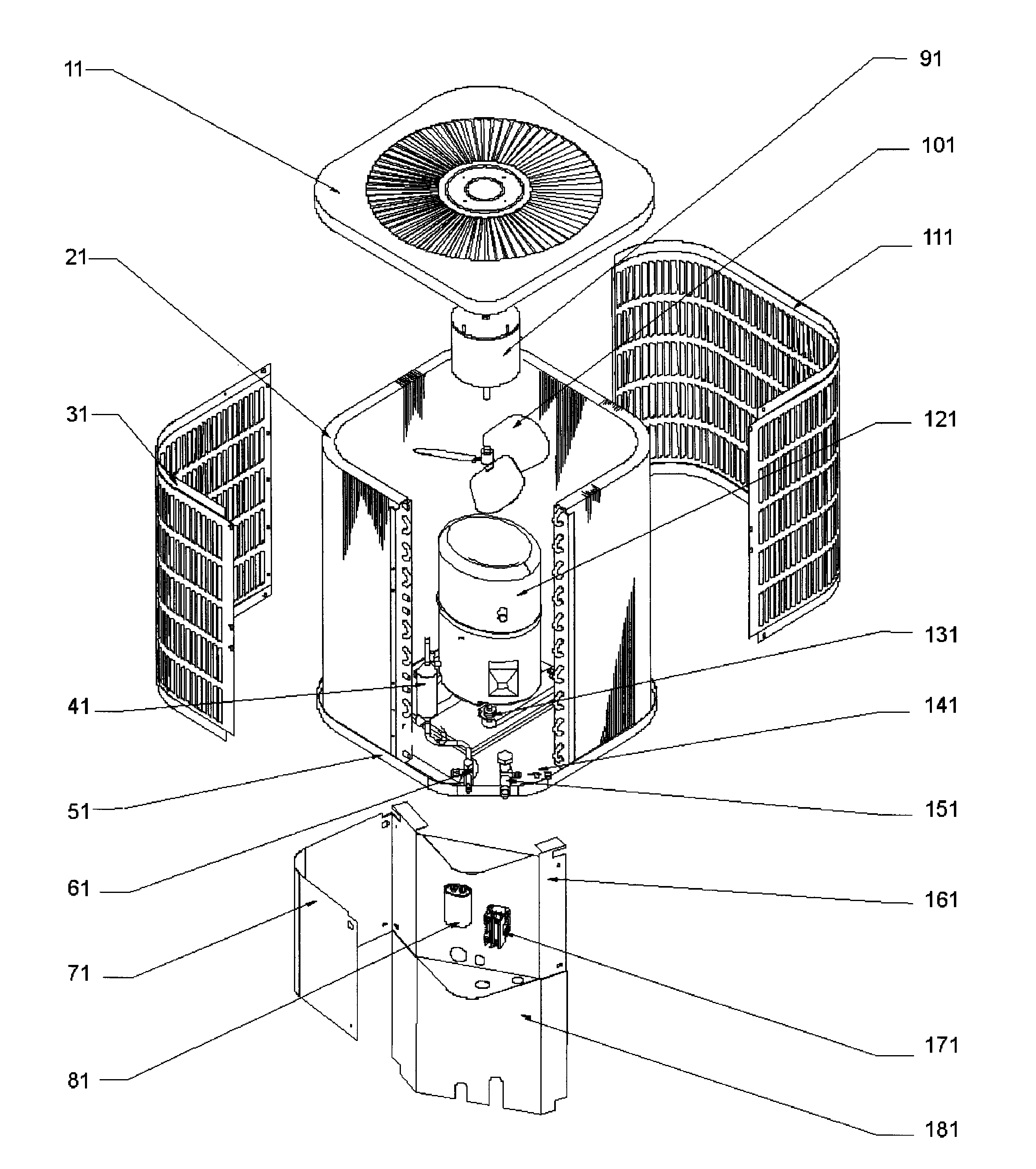

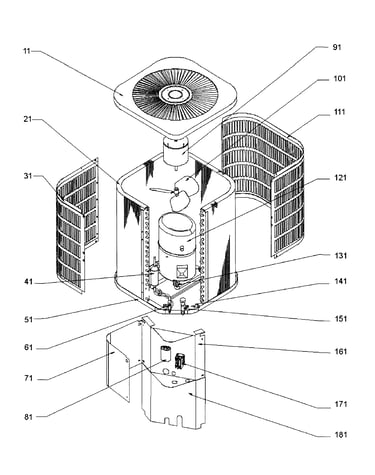

Main asy diagram

Grommet-co

Part #B1339533

$7.74

In Stock

Qty

#NI

Main asy diagram

Spray

Part #B260S8292

$91.80

In Stock

Qty

#141

Main asy diagram

Core,valve

Part #B1787000

$8.29

In Stock

Qty

#NI

Main asy diagram

Strap

Part #1284835

This item is not returnable

$2.86

In Stock

Qty

#181

Main asy diagram

Access panel

Part #1787718PDG

The manufacturer no longer makes this part, and there's no substitute part

#11

Main asy diagram

Top panel

Part #1779406PDG

The manufacturer no longer makes this part, and there's no substitute part

#111

Main asy diagram

Louvered panel-return side

Part #1259567PDG

The manufacturer no longer makes this part, and there's no substitute part

#31

Main asy diagram

Louvered panel-hairpin side

Part #1259563PDG

The manufacturer no longer makes this part, and there's no substitute part

#81

Main asy diagram

Capacitor dual section

Part #B94577600S

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Condenser Fan Blade B1086750S

#101

Main asy diagram

Central air conditioner condenser fan blade

Part #B1086750S

The manufacturer no longer makes this part, and there's no substitute part
