Model # SF370LEGW1 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF370LEGW1 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

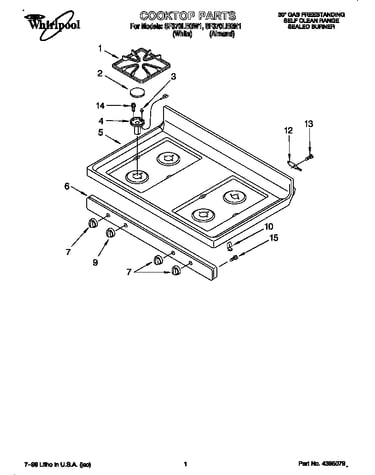

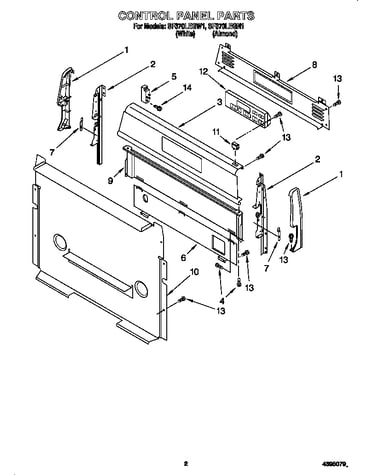

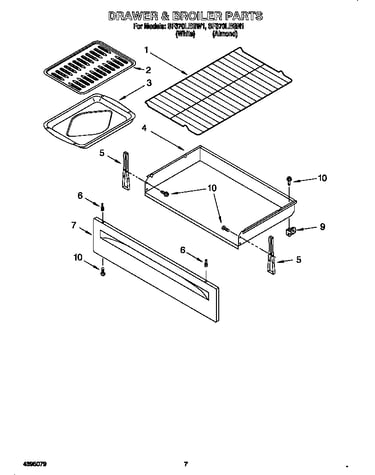

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Light Bulb 311255
#29

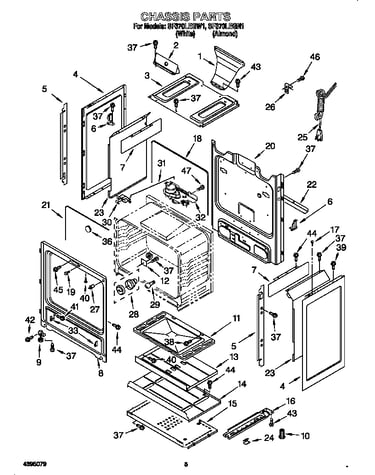

Chassis diagram

Light bulb

Part #311255

Replaced by #40A15

?
Manufacturer substitution
This part replaces 311255. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Appliance Touch-up Paint 72017

#NI

All parts diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930

#NI

All parts diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Touchup Al 72107

#NI

All parts diagram

Touchup al

Part #72107

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 72107. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Oven Igniter 3196447
#16

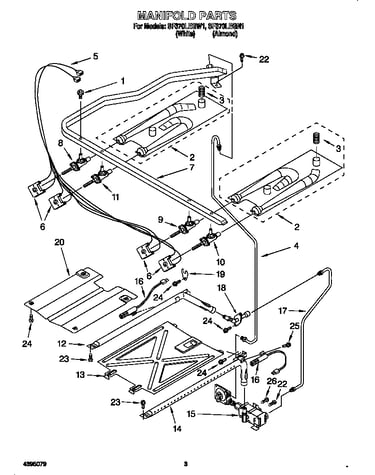

Manifold diagram

Oven igniter

Part #3196447

Replaced by #4342528

?
Manufacturer substitution
This part replaces 3196447. Substitute parts can look different from the original.
BEST SELLER
$34.30 |
15% OFF Phone Price : $40.30
Back Order
Door Glass 3186271
#6

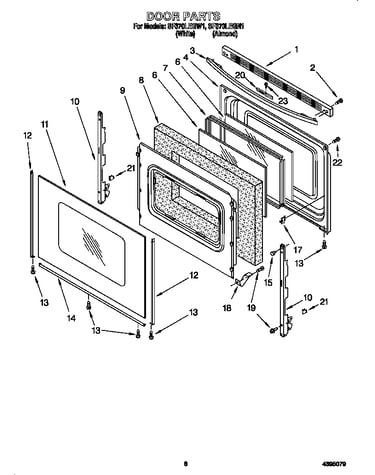

Door diagram

Door glass

Part #3186271

Replaced by #WP8053948

?
Manufacturer substitution
This part replaces 3186271. Substitute parts can look different from the original.
$101.26 |
11% OFF Phone Price : $113.26
In Stock
Range Screw 3196160
Range screw

Part #3196160

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw (black) 3196168
Screw (black)

Part #3196168

Replaced by #WP3400832

?
Manufacturer substitution
This part replaces 3196168. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Range Oven Bottom Liner 3195097
#11

Chassis diagram

Range oven bottom liner

Part #3195097

Replaced by #WP3195097

?
Manufacturer substitution
This part replaces 3195097. Substitute parts can look different from the original.
$98.65 |
11% OFF Phone Price : $110.65
In Stock
Door Hinge 3186068
#10

Door diagram

Door hinge

Part #3186068

Replaced by #WP8053807

?
Manufacturer substitution
This part replaces 3186068. Substitute parts can look different from the original.
$80.05 |
7% OFF Phone Price : $86.05
In Stock
