Model # WAS24460UC/28 Official Bosch washer

Here are the diagrams and repair parts for Official Bosch WAS24460UC-28 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

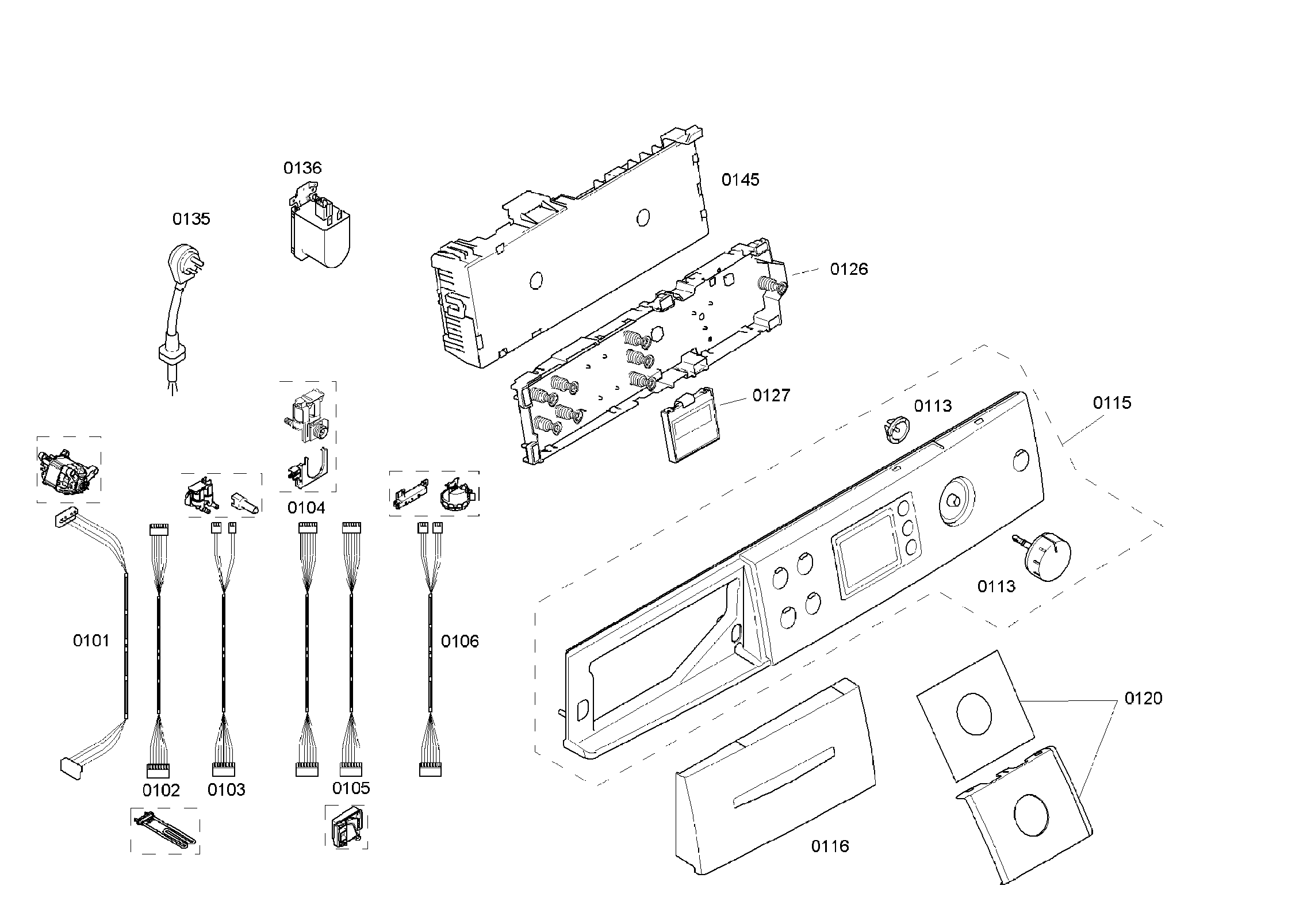

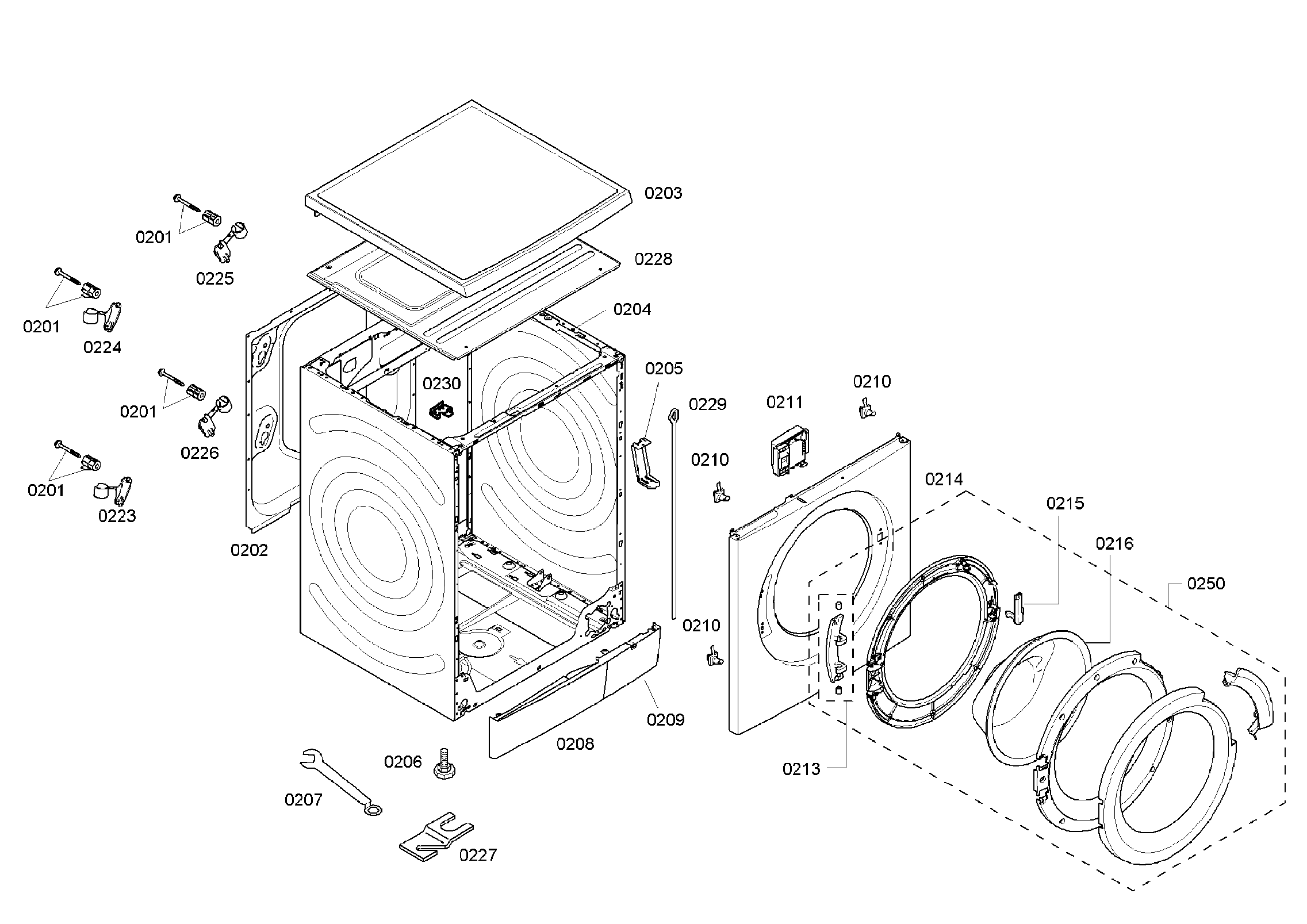

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Washer Door Boot Kit 680768
#324

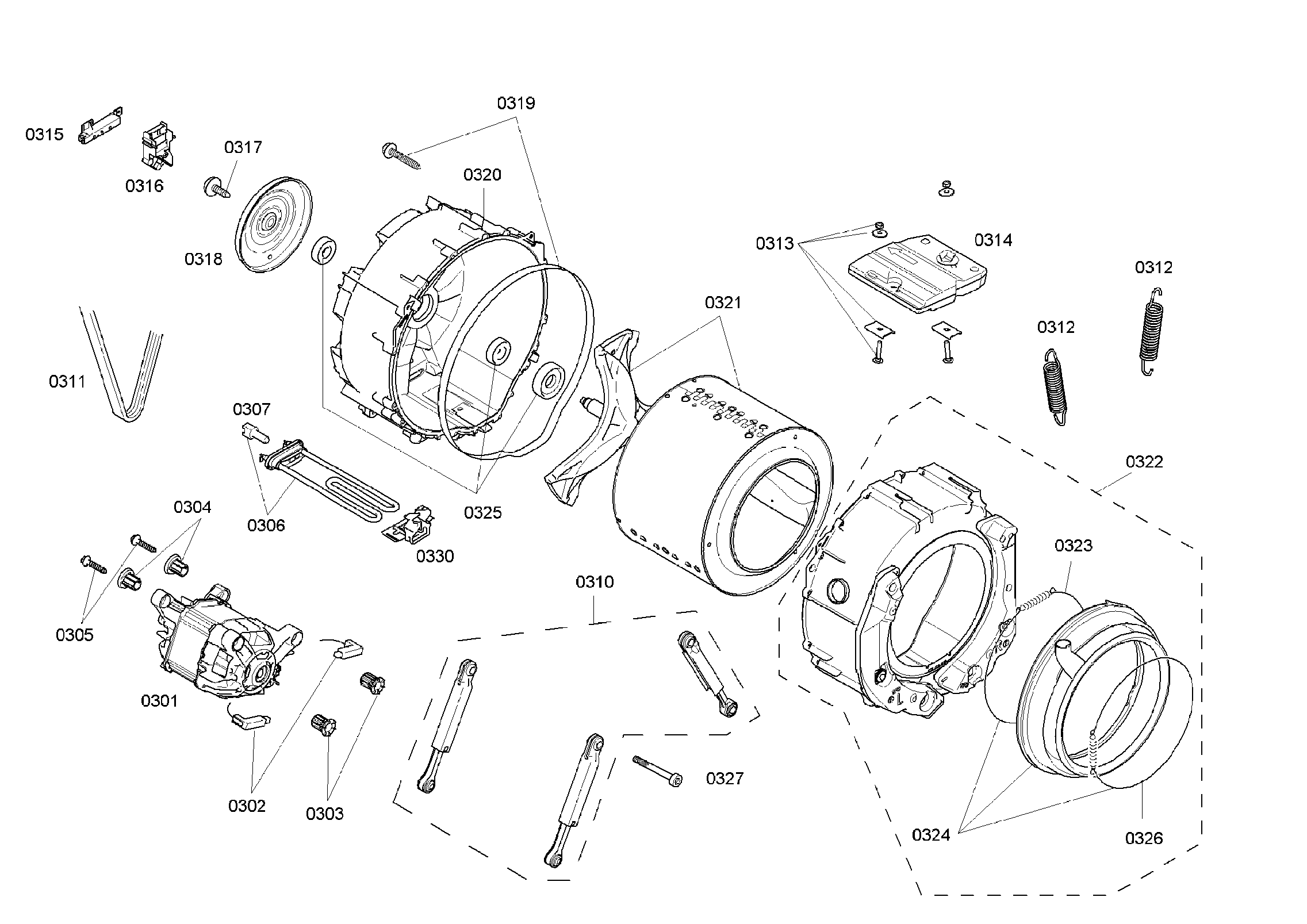

Drum assy diagram

Washer door boot kit

Part #680768

Replaced by #00772658

?
Manufacturer substitution
This part replaces 680768. Substitute parts can look different from the original.
$77.49 |
7% OFF Phone Price : $83.49
In Stock
Absorber 673541
#310

Drum assy diagram

Absorber

Part #673541

Replaced by #00742719

?
Manufacturer substitution
This part replaces 673541. Substitute parts can look different from the original.
$64.49 |
9% OFF Phone Price : $70.49
In Stock
Washer Water Inlet Valve 611703
#407

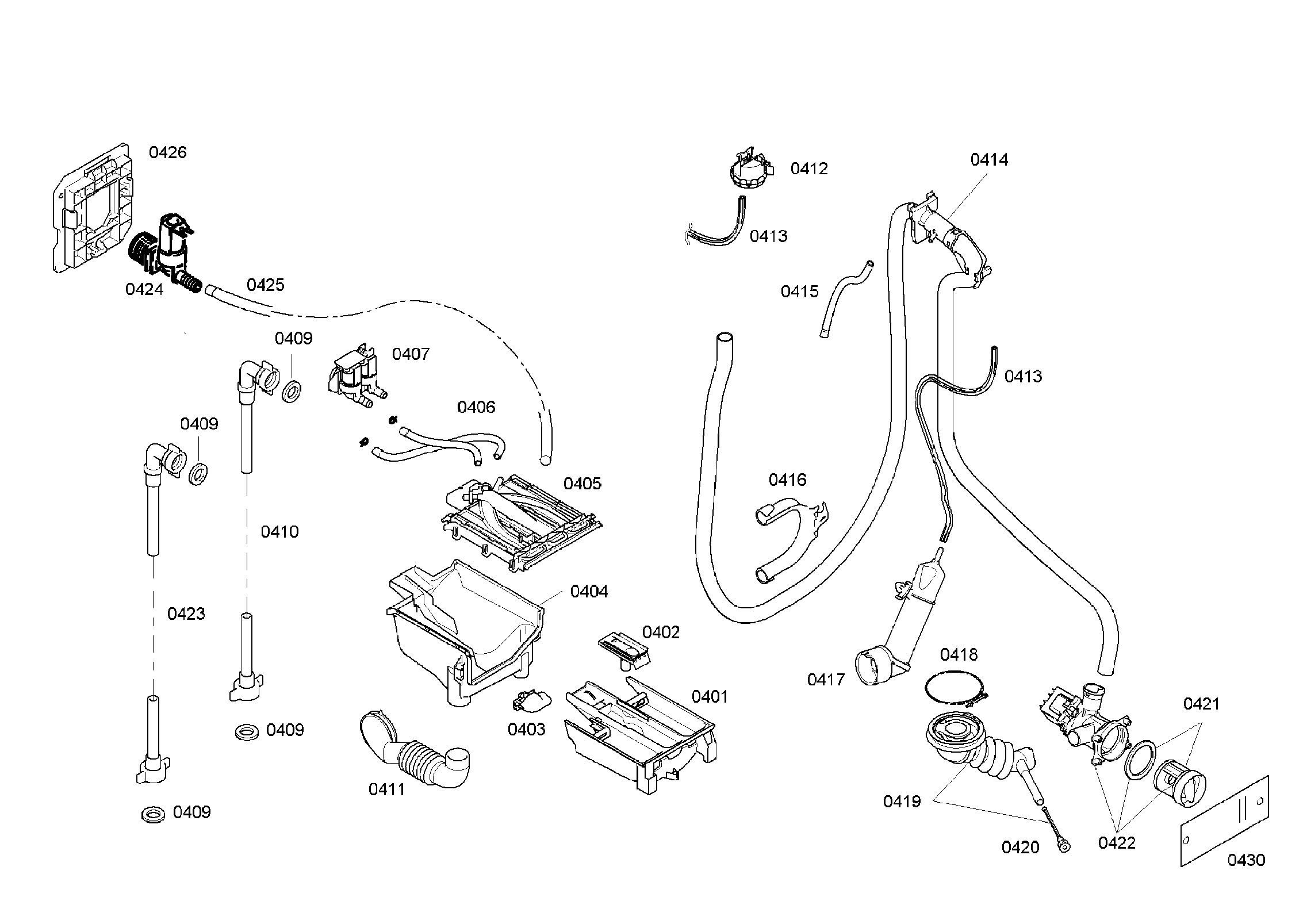

Pump assy diagram

Washer water inlet valve

Part #611703

Replaced by #00611703

?
Manufacturer substitution
This part replaces 611703. Substitute parts can look different from the original.
$67.59 |
8% OFF Phone Price : $73.59
In Stock
Washer Water Inlet Valve 611702
#424

Pump assy diagram

Washer water inlet valve

Part #611702

Replaced by #00611702

?
Manufacturer substitution
This part replaces 611702. Substitute parts can look different from the original.
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Washer Inlet Hose 493766
#410

Pump assy diagram

Washer inlet hose

Part #493766

Replaced by #00493766

?
Manufacturer substitution
This part replaces 493766. Substitute parts can look different from the original.
$43.98
In Stock
Washer Drive Motor 145327
#301

Drum assy diagram

Washer drive motor

Part #145327

$192.99
In Stock
Tray 660683
#401

Pump assy diagram

Tray

Part #660683

Replaced by #00660683

?
Manufacturer substitution
This part replaces 660683. Substitute parts can look different from the original.
$46.00
In Stock
Pulley 668431
#318

Drum assy diagram

Pulley

Part #668431

Replaced by #00668431

?
Manufacturer substitution
This part replaces 668431. Substitute parts can look different from the original.
$112.16
In Stock
Bearing 619808
#325

Drum assy diagram

Bearing

Part #619808

Replaced by #00619808

?
Manufacturer substitution
This part replaces 619808. Substitute parts can look different from the original.
$109.49 |
10% OFF Phone Price : $121.49
In Stock
Washer Drain Hose 701710
#414

Pump assy diagram

Washer drain hose

Part #701710

Replaced by #00701710

?
Manufacturer substitution
This part replaces 701710. Substitute parts can look different from the original.
$108.14 |
10% OFF Phone Price : $120.14
In Stock
