Kenmore
Electric Range

Model # 79092208014 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79092208014 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Universal/multiflex (frigidaire) Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

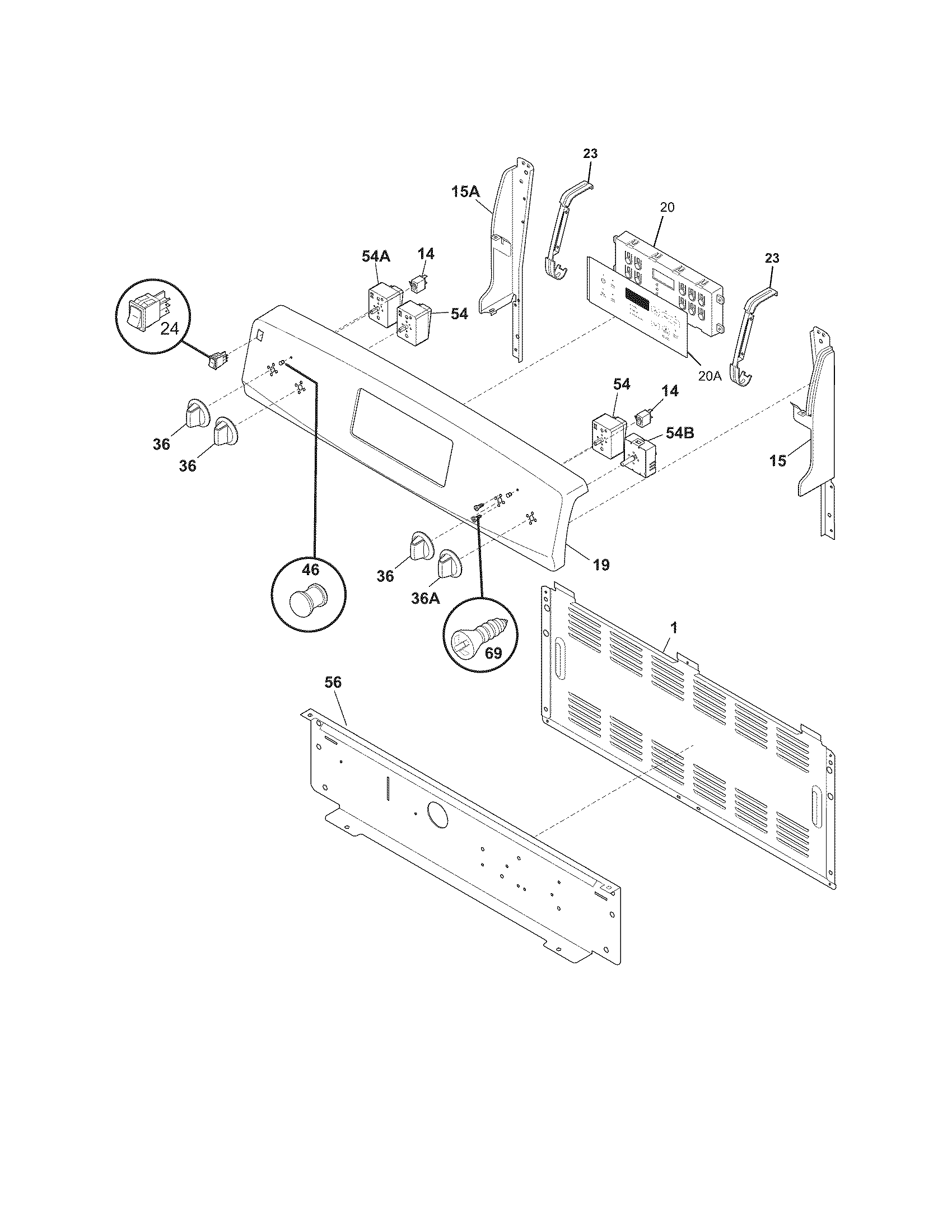

Backguard diagram

Universal/multiflex (frigidaire) range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

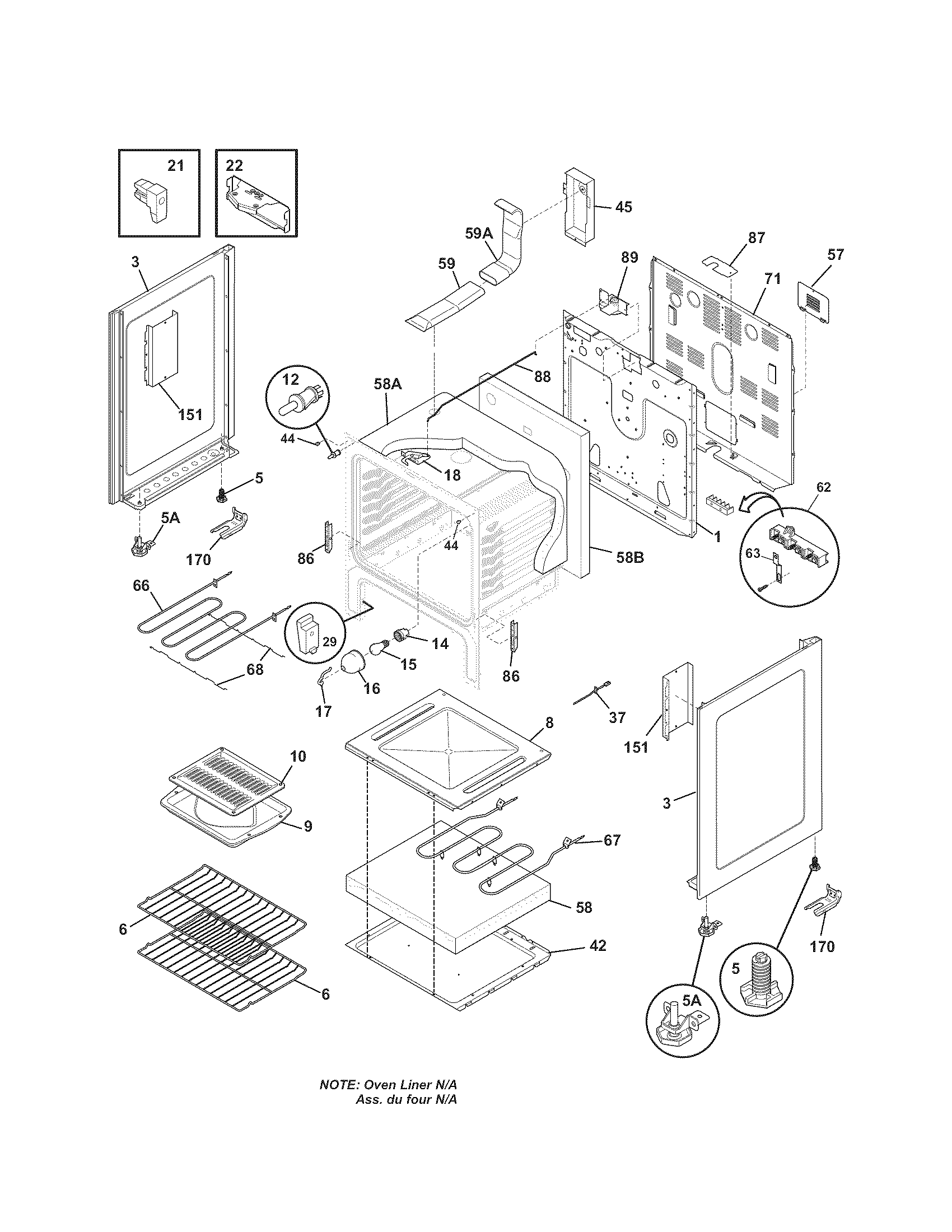

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$55.76 |
10% OFF Phone Price : $61.76
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Cooktop Surface Element Control Switch 316238200
#54B

Backguard diagram

Cooktop surface element control switch

Part #316238200

Replaced by #316238201

?
Manufacturer substitution
This part replaces 316238200. Substitute parts can look different from the original.
BEST SELLER
$75.89 |
7% OFF Phone Price : $81.89
In Stock
Frigidaire Range Oven Control Board (replaces 316418208) 316557118
#20

Backguard diagram

Frigidaire range oven control board (replaces 316418208)

Part #316557118

BEST SELLER
$166.77 |
7% OFF Phone Price : $178.77
In Stock
Range Dual Radiant Surface Element 316418401
#15B

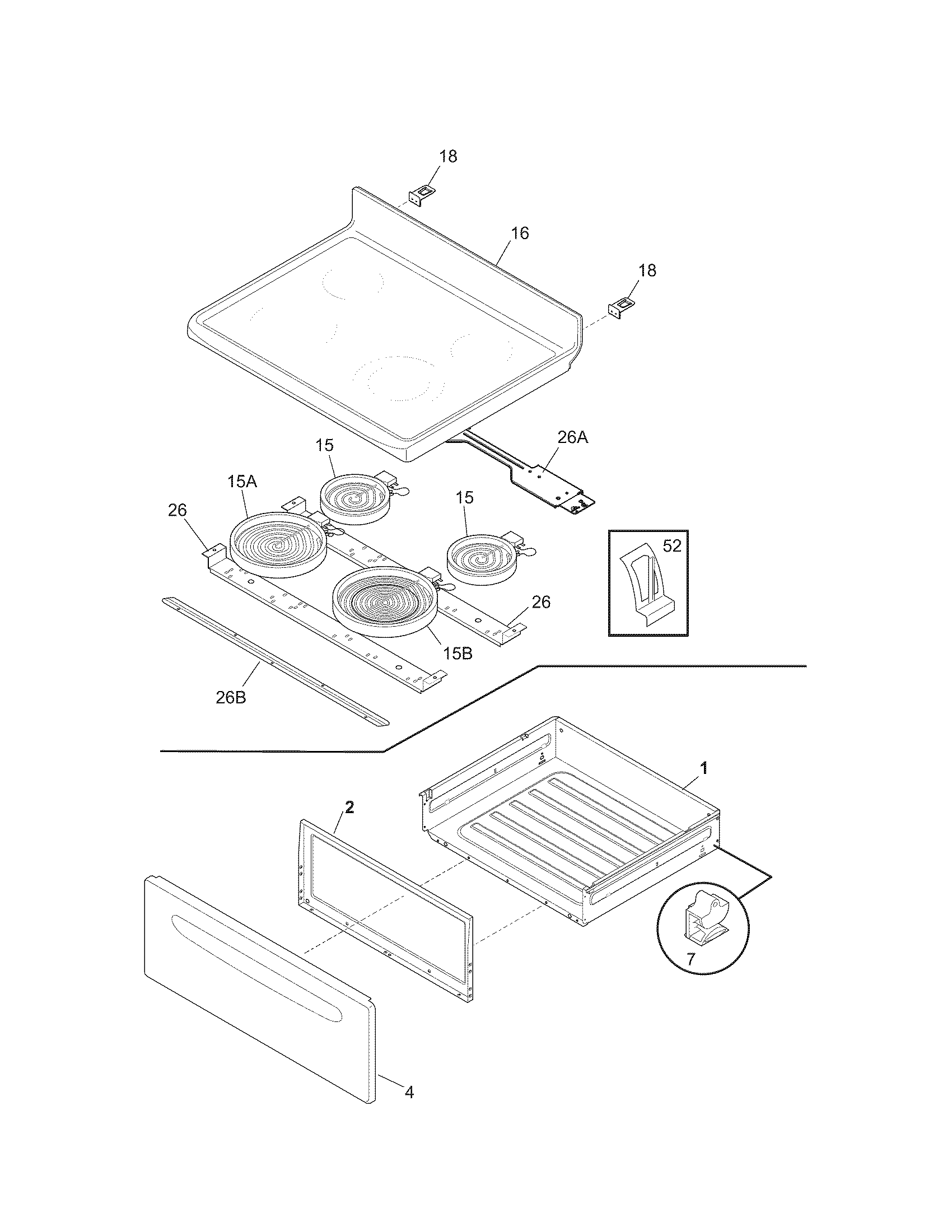

Top/drawer diagram

Range dual radiant surface element

Part #316418401

Replaced by #316555800

?
Manufacturer substitution
This part replaces 316418401. Substitute parts can look different from the original.
BEST SELLER
$159.22 |
7% OFF Phone Price : $171.22
In Stock
Range Broil Element (replaces 316200600) 316203301
#66

Body diagram

Range broil element (replaces 316200600)

Part #316203301

BEST SELLER
$127.11 |
9% OFF Phone Price : $139.11
In Stock
Range Oven Door Inner Glass 316117504
#16

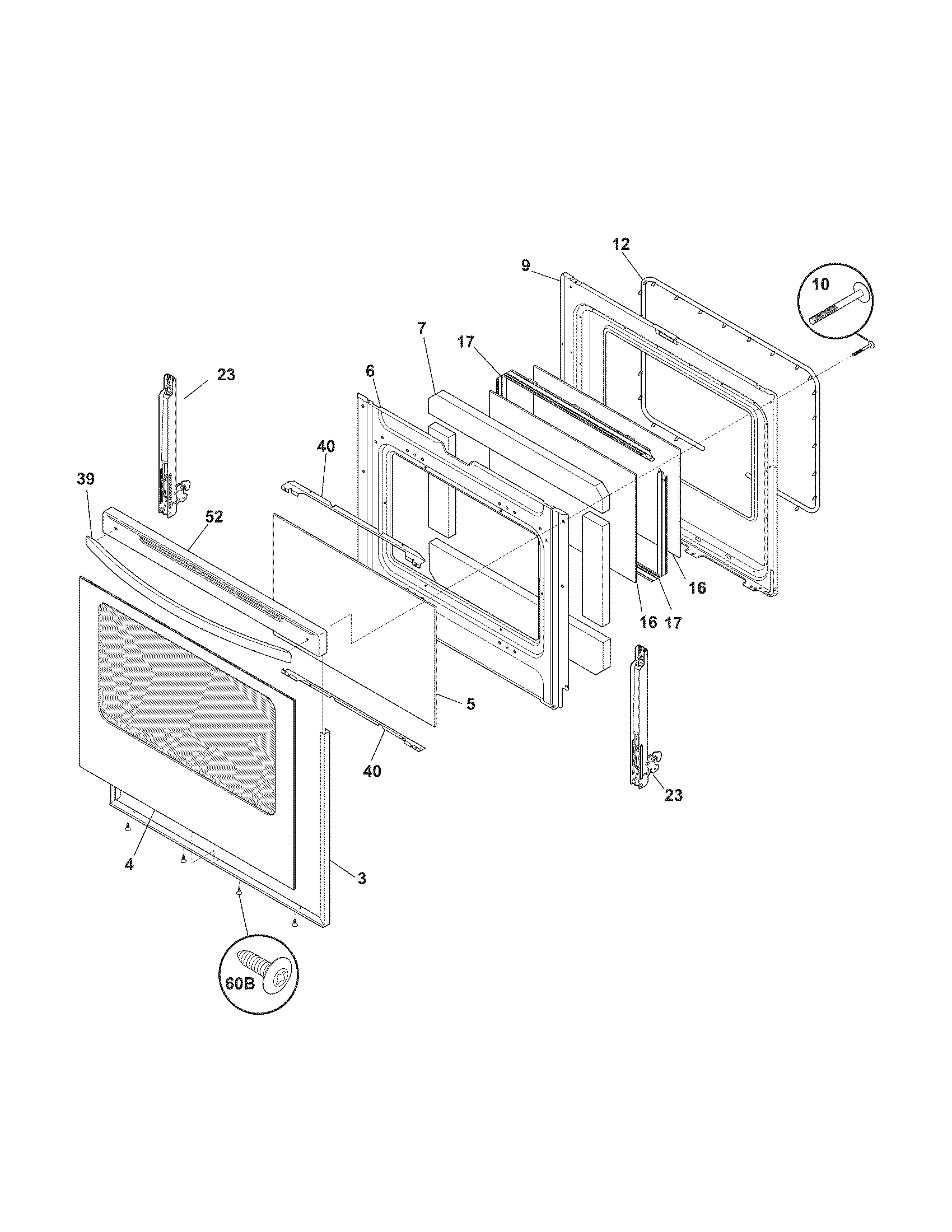

Door diagram

Range oven door inner glass

Part #316117504

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117504. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Oven Control Overlay 316352004
#20A

Backguard diagram

Range oven control overlay

Part #316352004

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316352004. Substitute parts can look different from the original.
BEST SELLER
$37.99 |
14% OFF Phone Price : $43.99
In Stock
