Model # SHU33A06UC/47 Official Bosch dishwasher
Here are the diagrams and repair parts for Official Bosch SHU33A06UC/47 dishwasher, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

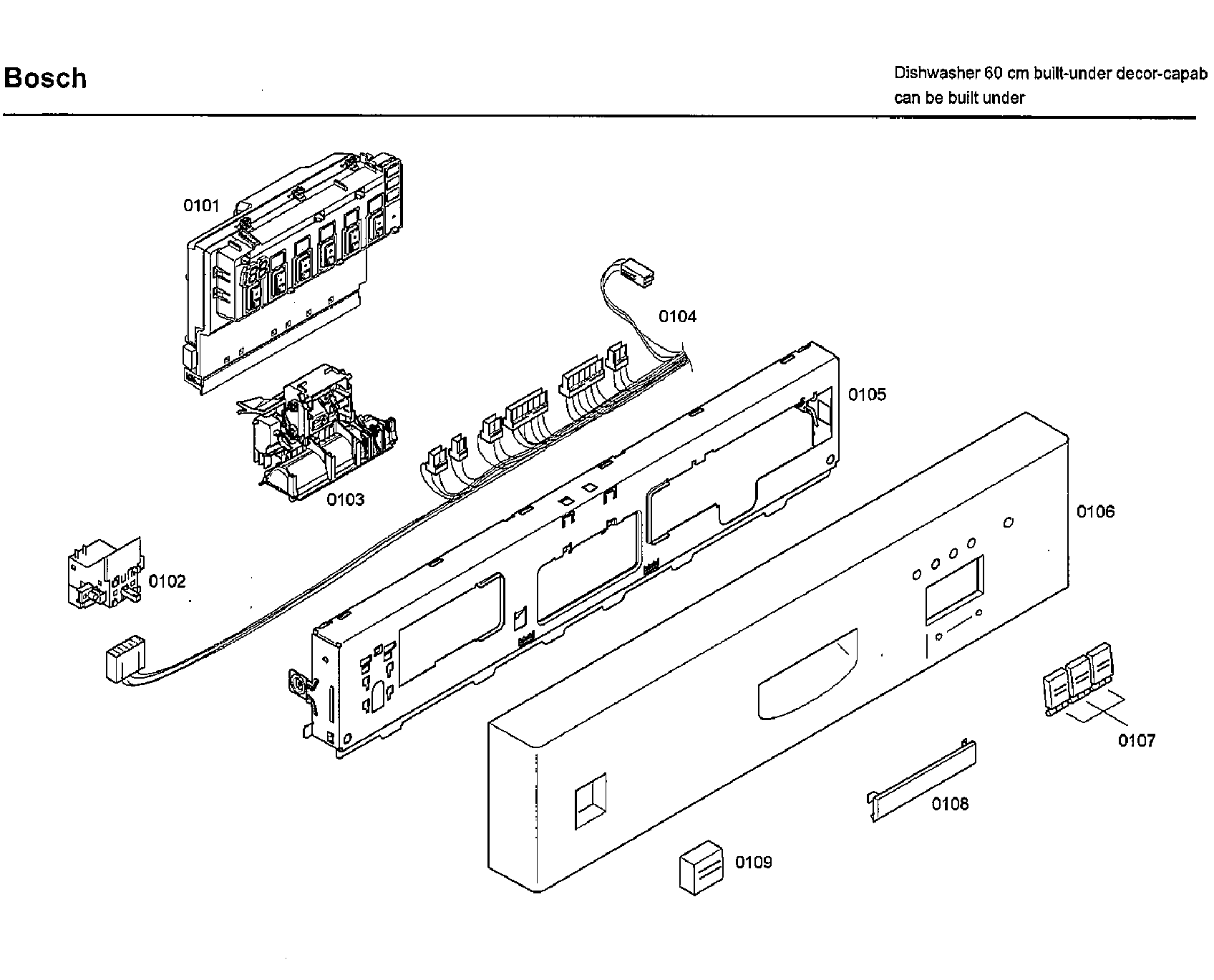

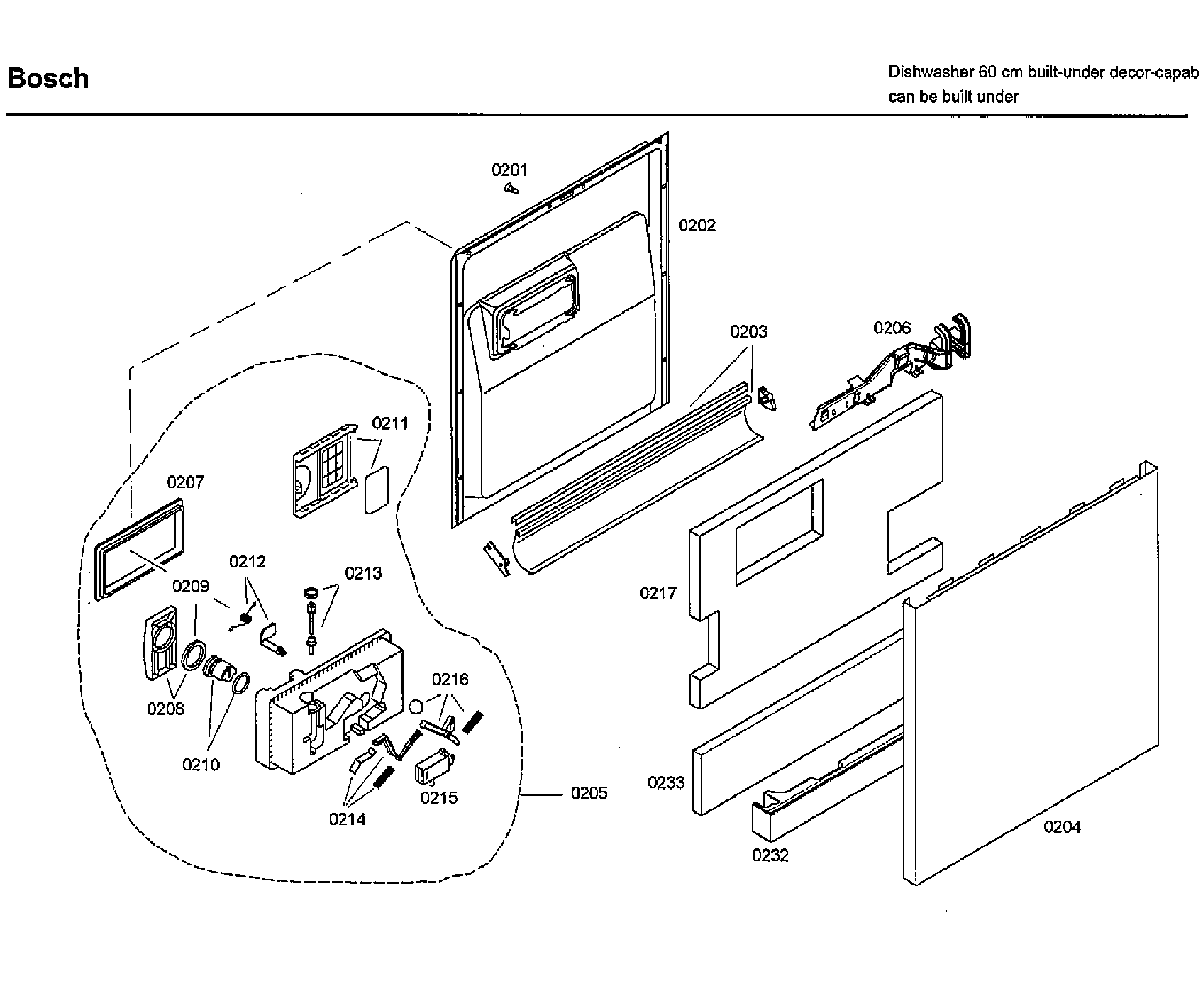

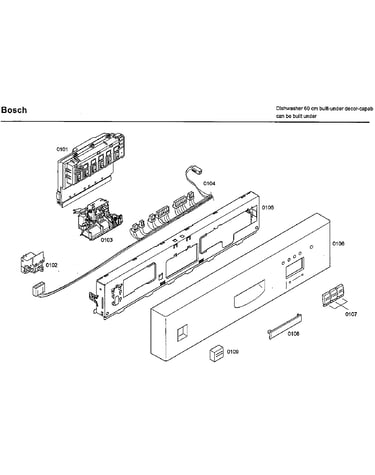

SELECT DIAGRAM
Browse Parts forSHU33A06UC/47 Dishwasher
- #419

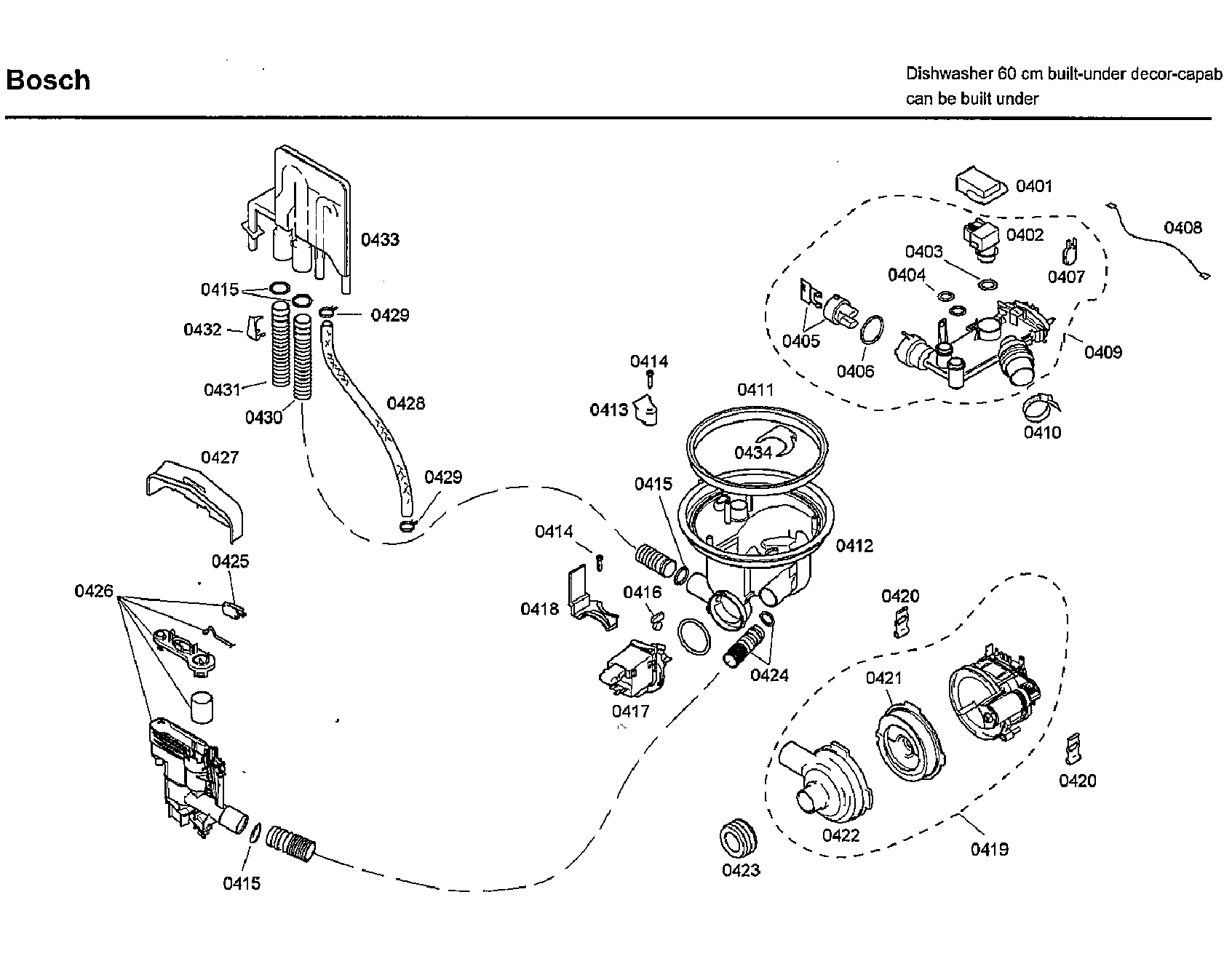

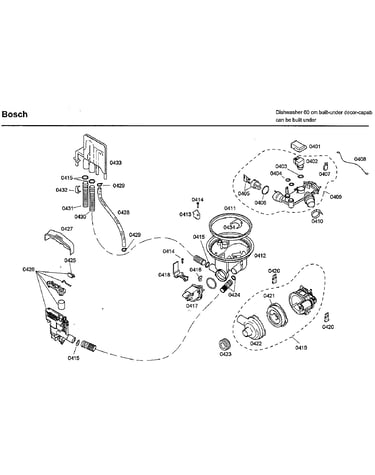

Pump diagram
Dishwasher circulation pumpPart #00442548
$236.57 |5% OFF Phone Price : $248.57In Stock - #307

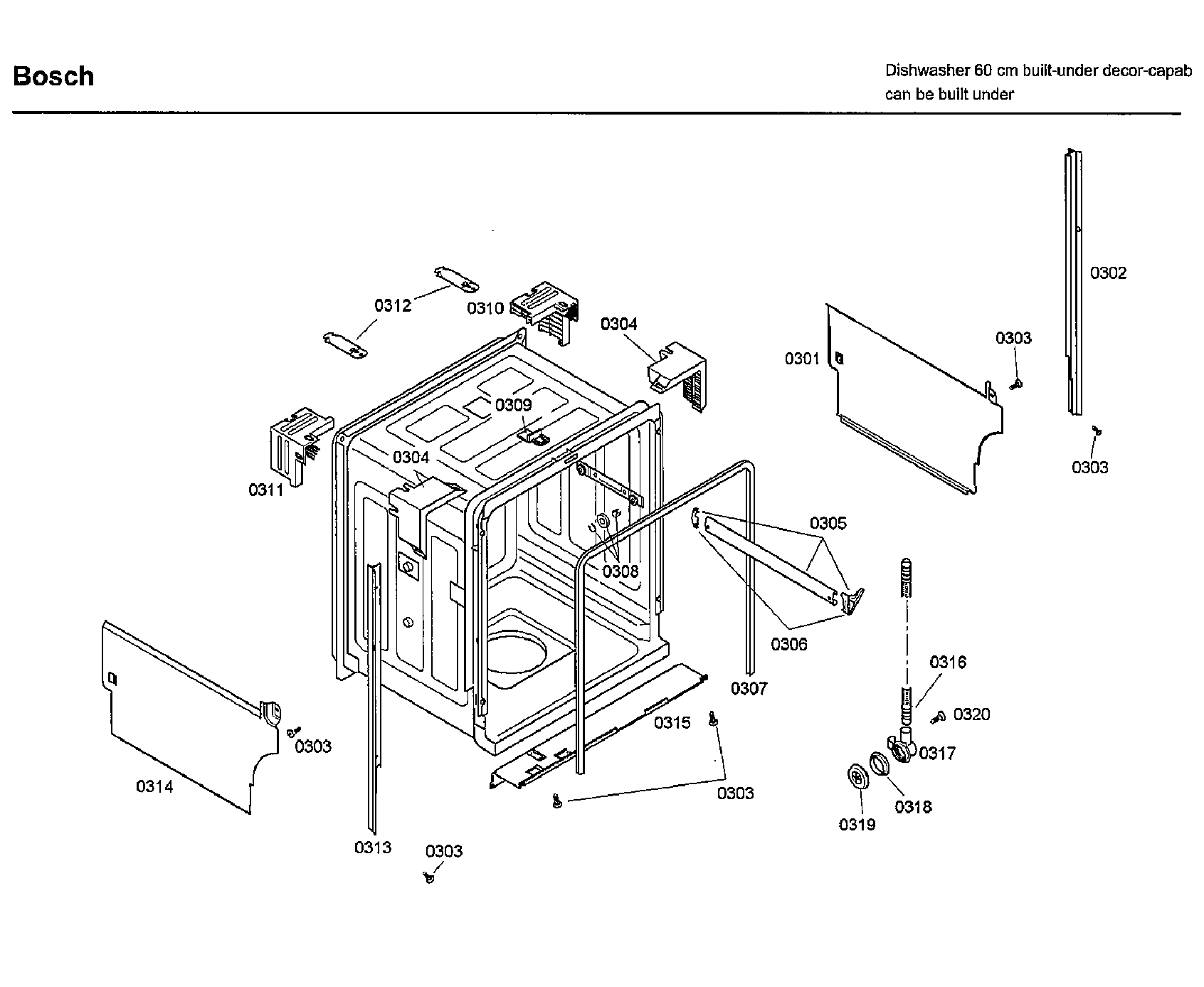

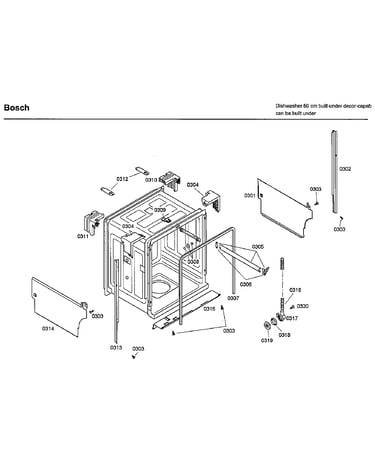

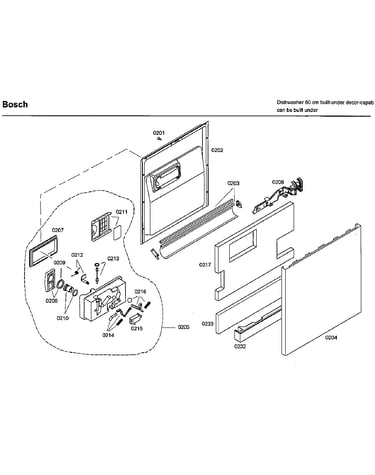

Frame diagram
Dishwasher door sealPart #00494772
$30.61 |16% OFF Phone Price : $36.61In Stock - #410
Pump diagram
Dishwasher hose clampPart #00172272
$28.11 |18% OFF Phone Price : $34.11In Stock - #417
Pump diagram
Dishwasher drain pumpPart #00642239
$130.15 |8% OFF Phone Price : $142.15In Stock - #423
Pump diagram
Dishwasher circulation pump gasketPart #00171598
$28.09 |18% OFF Phone Price : $34.09In Stock - #312
Frame diagram
Mounting bracketPart #00605007
Replaced by #00619985
?Manufacturer substitutionThis part replaces 00605007. Substitute parts can look different from the original.$13.89 |13% OFF Phone Price : $15.89In Stock - #612

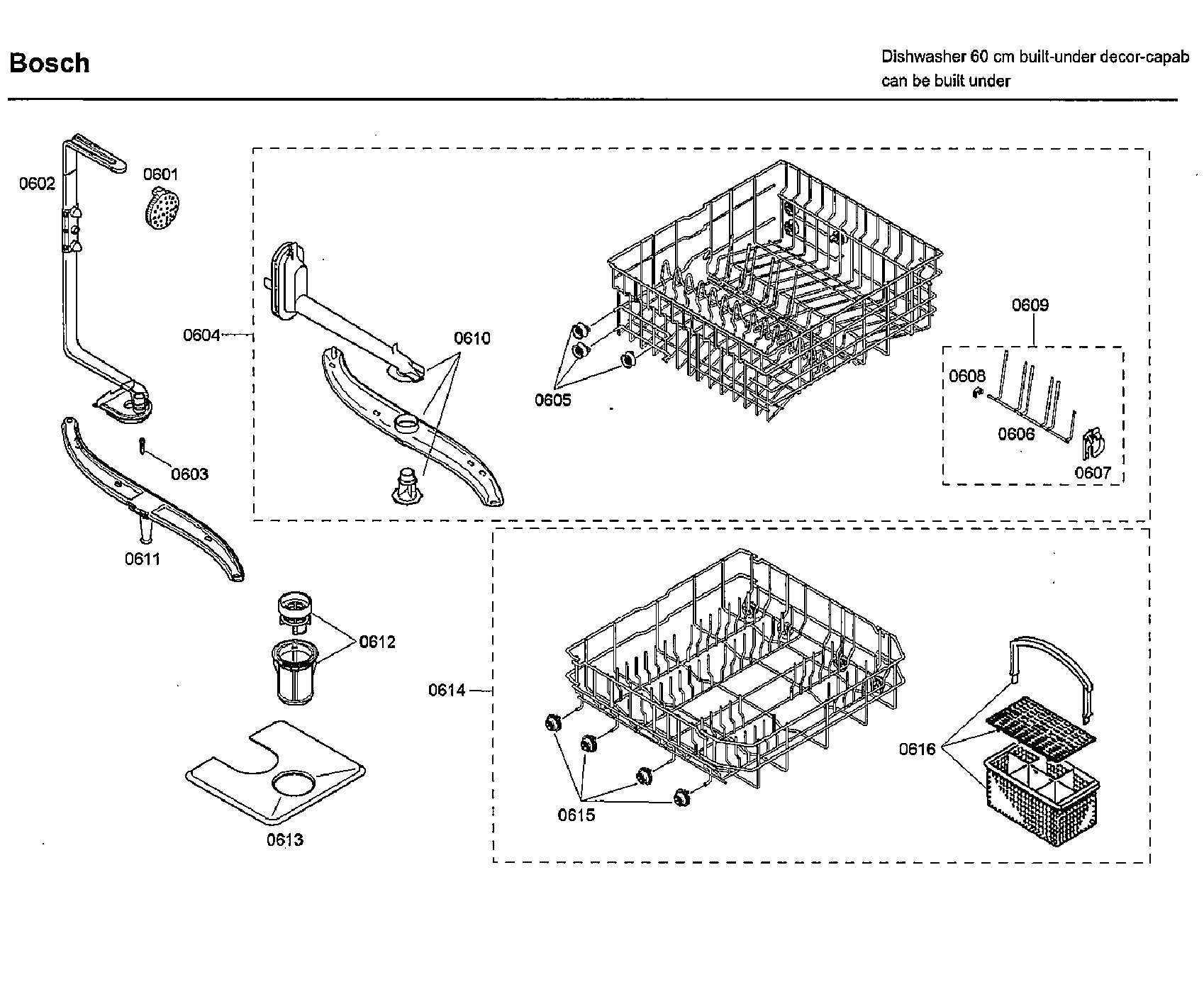

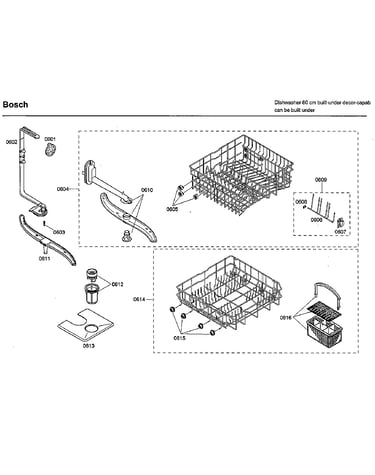

Rack diagram
FilterPart #00170841
Replaced by #00615079
?Manufacturer substitutionThis part replaces 00170841. Substitute parts can look different from the original.$48.75 |11% OFF Phone Price : $54.75In Stock - Dishwasher drain hose
Part #00298564
$31.39 |16% OFF Phone Price : $37.39In Stock - #505

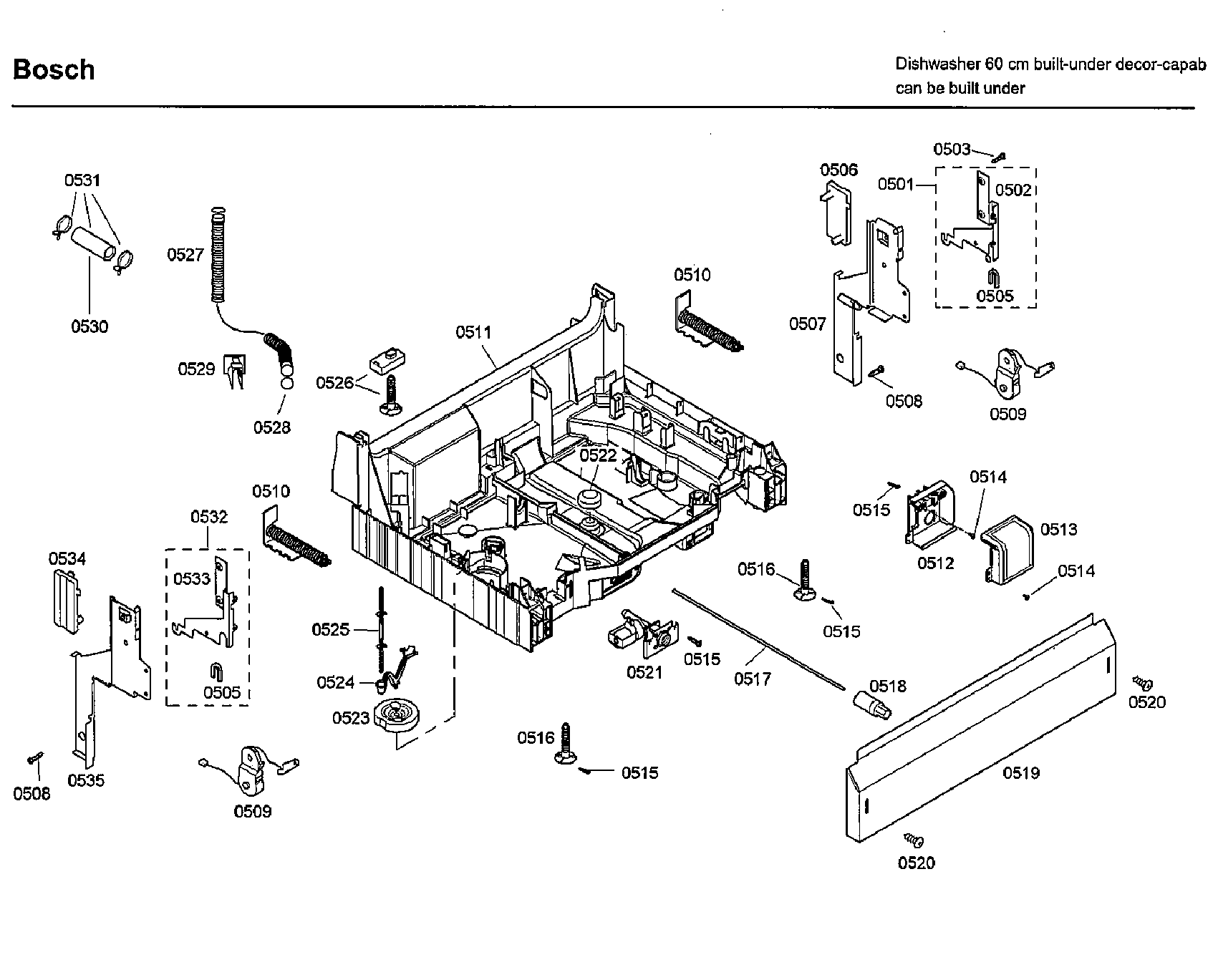

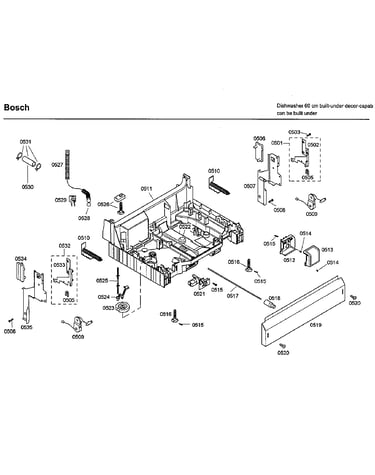

Base diagram
Dishwasher door hinge lever bearingPart #00165296
This item is not returnable$17.89 |10% OFF Phone Price : $19.89In Stock - #430
Pump diagram
Dishwasher drain hosePart #00263099
$17.16 |10% OFF Phone Price : $19.16In Stock
