Model # KWCU360WSS0 Official KitchenAid 36" professional hood

Here are the diagrams and repair parts for Official KitchenAid KWCU360WSS0 36" professional hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 15 parts |

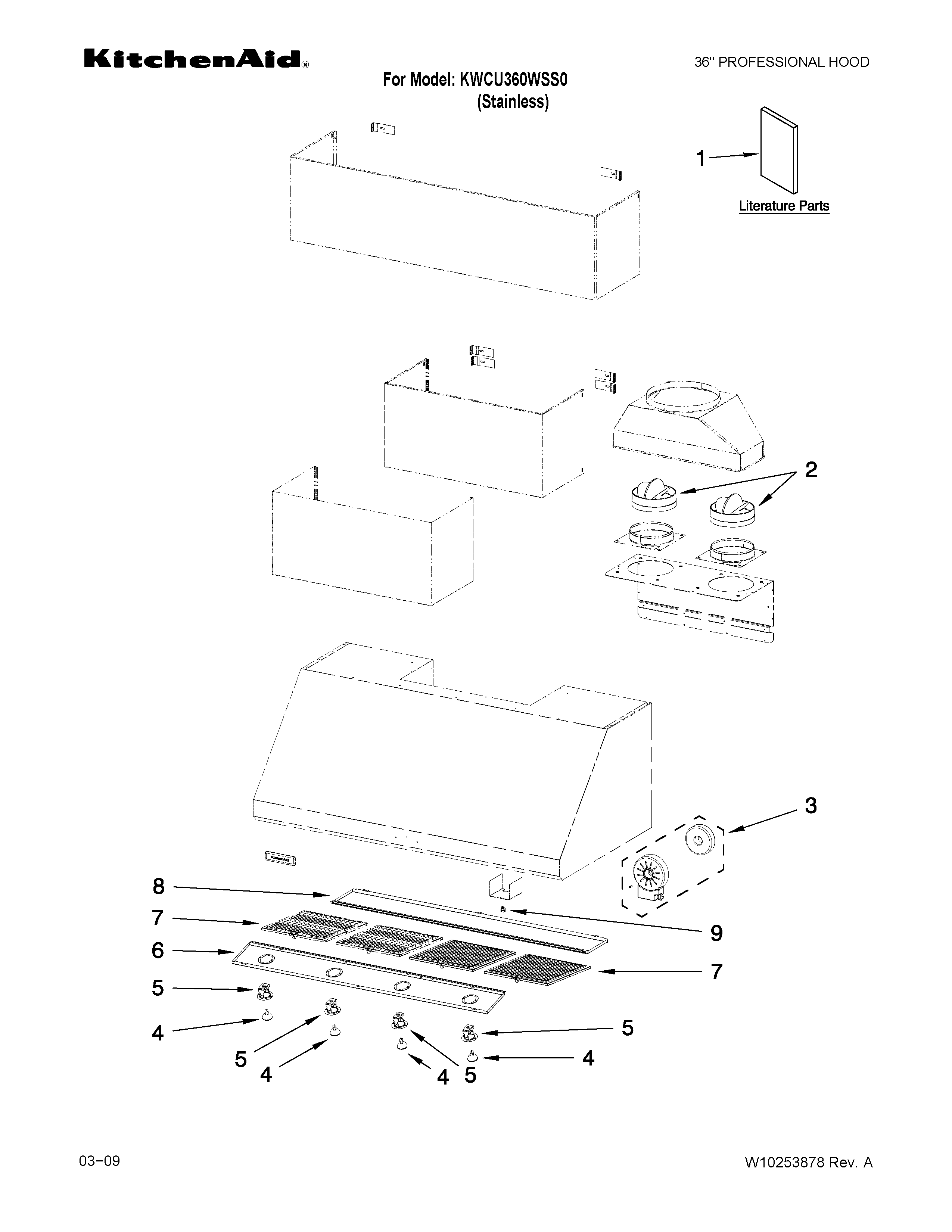

Hood parts diagram

Range hood grease filter

Part #W10252087

Replaced by #WPW10252087

$181.41 |

6% OFF Phone Price : $193.41

Back Order

Qty

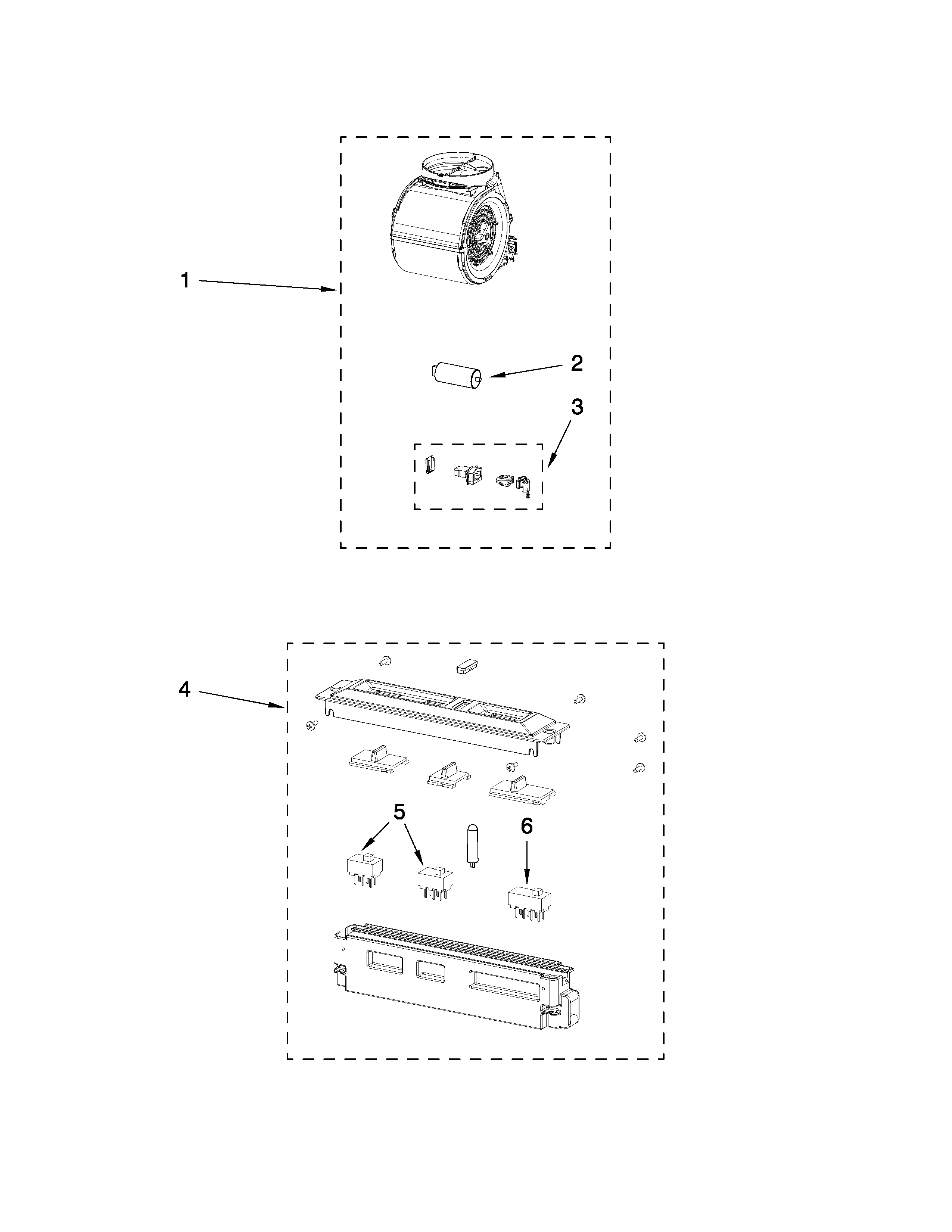

Ventilation parts diagram

Slide switch

Part #W10252122

Replaced by #WPW10252122

$107.27 |

10% OFF Phone Price : $119.27

In Stock

Qty

Hood parts diagram

Socket

Part #W10252116

$205.33

In Stock

Qty

Hood parts diagram

Range hood light bulb

Part #W10252088

Replaced by #WPW10252088

$70.71 |

8% OFF Phone Price : $76.71

In Stock

Qty

Ventilation parts diagram

Range hood slide switch

Part #W10252121

Replaced by #W11731942

$38.56

In Stock

Qty

Hood parts diagram

Transformer

Part #W10252120

Replaced by #WPW10252120

$394.53 |

$12.00 OFF Phone Price : $406.53

In Stock

Qty

Ventilation parts diagram

Control panel

Part #W10252132

The manufacturer no longer makes this part, and there's no substitute part

Hood parts diagram

Damper hood

Part #W10252123

The manufacturer no longer makes this part, and there's no substitute part

Hood parts diagram

Support

Part #W10252126

The manufacturer no longer makes this part, and there's no substitute part

Hood parts diagram

Support

Part #W10252129

The manufacturer no longer makes this part, and there's no substitute part
