Frigidaire
Top-Mount Refrigerator

Model # FRT13GRHW1 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT13GRHW1 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

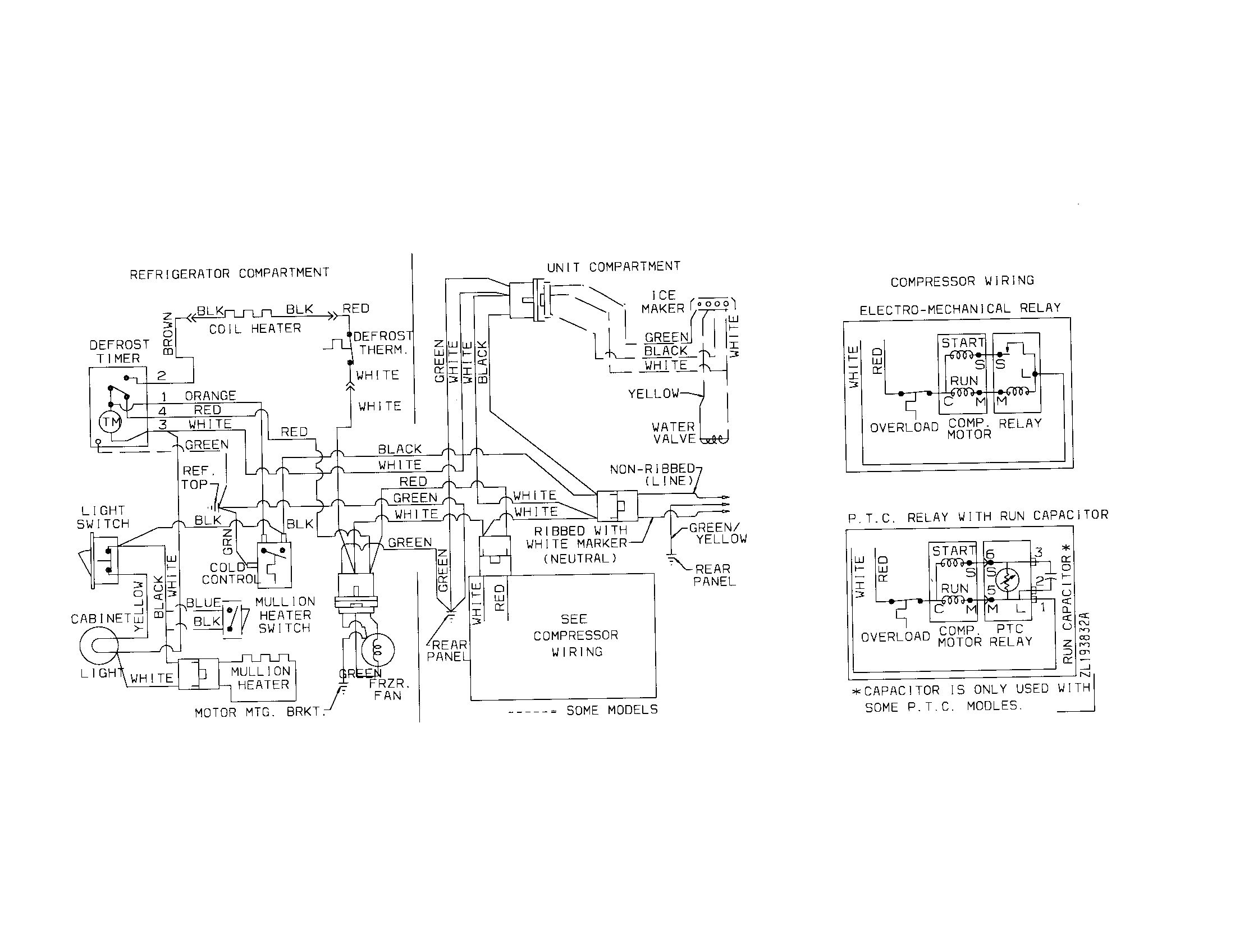

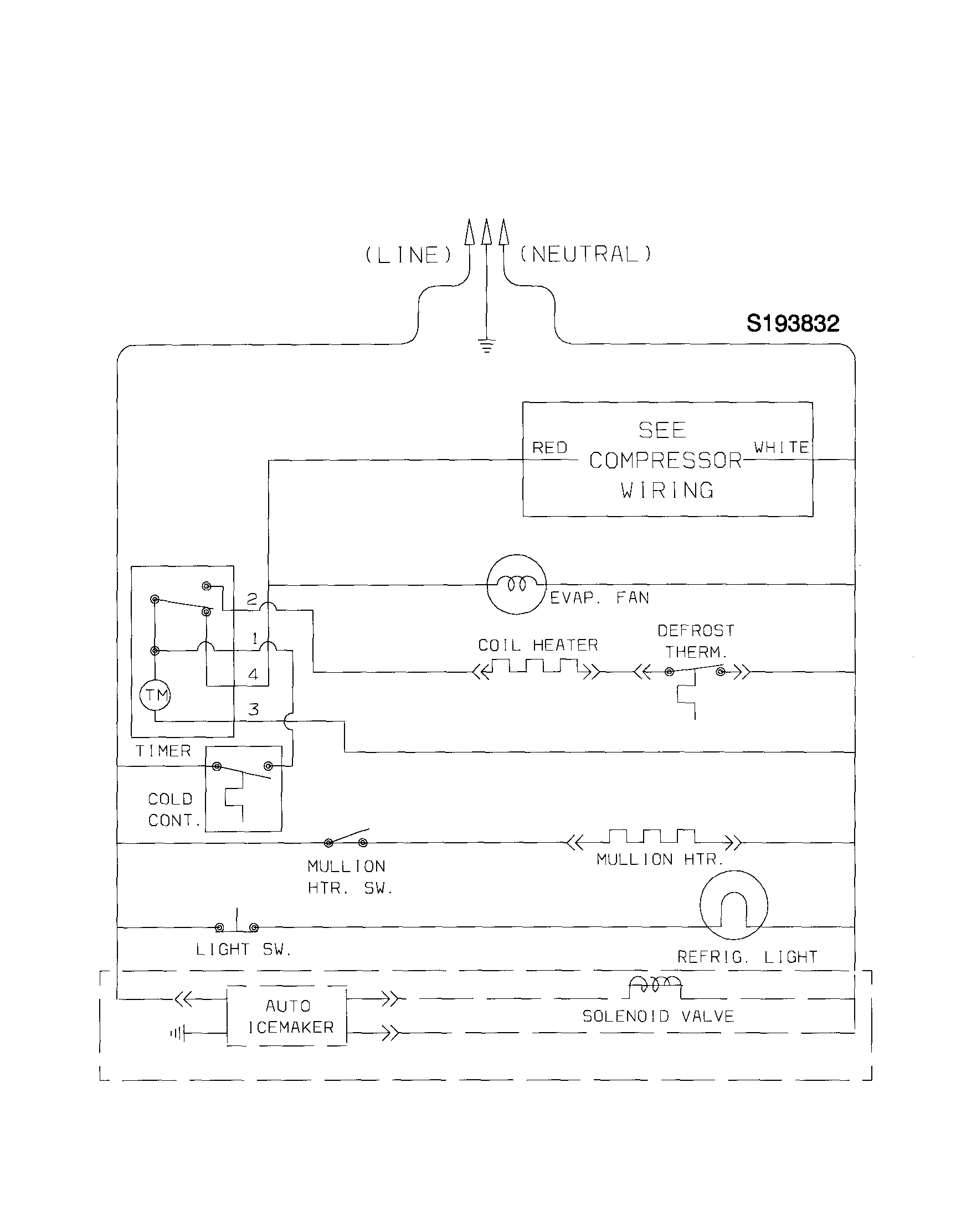

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Refrigerator Filter Drier 218944001
#4

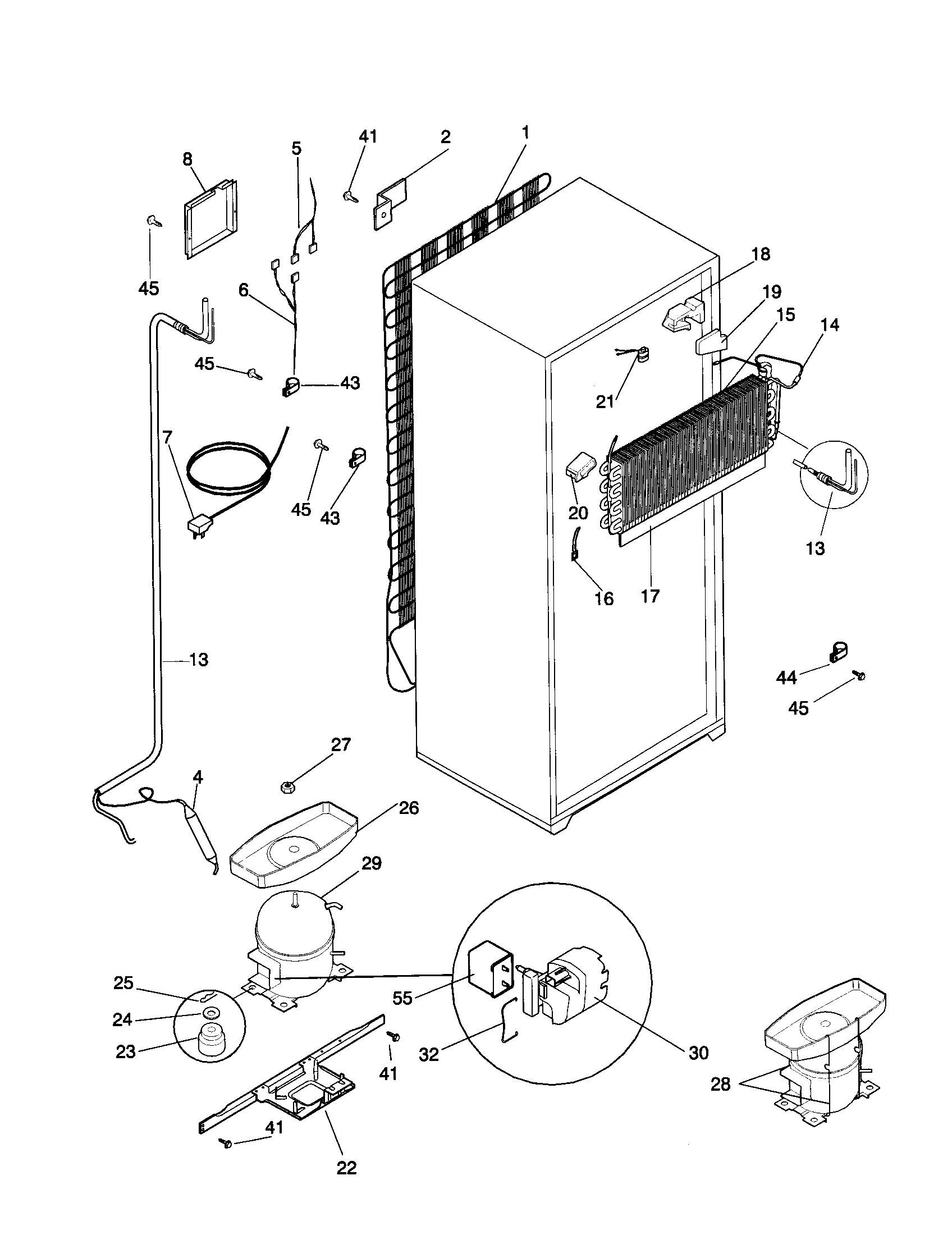

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
#15

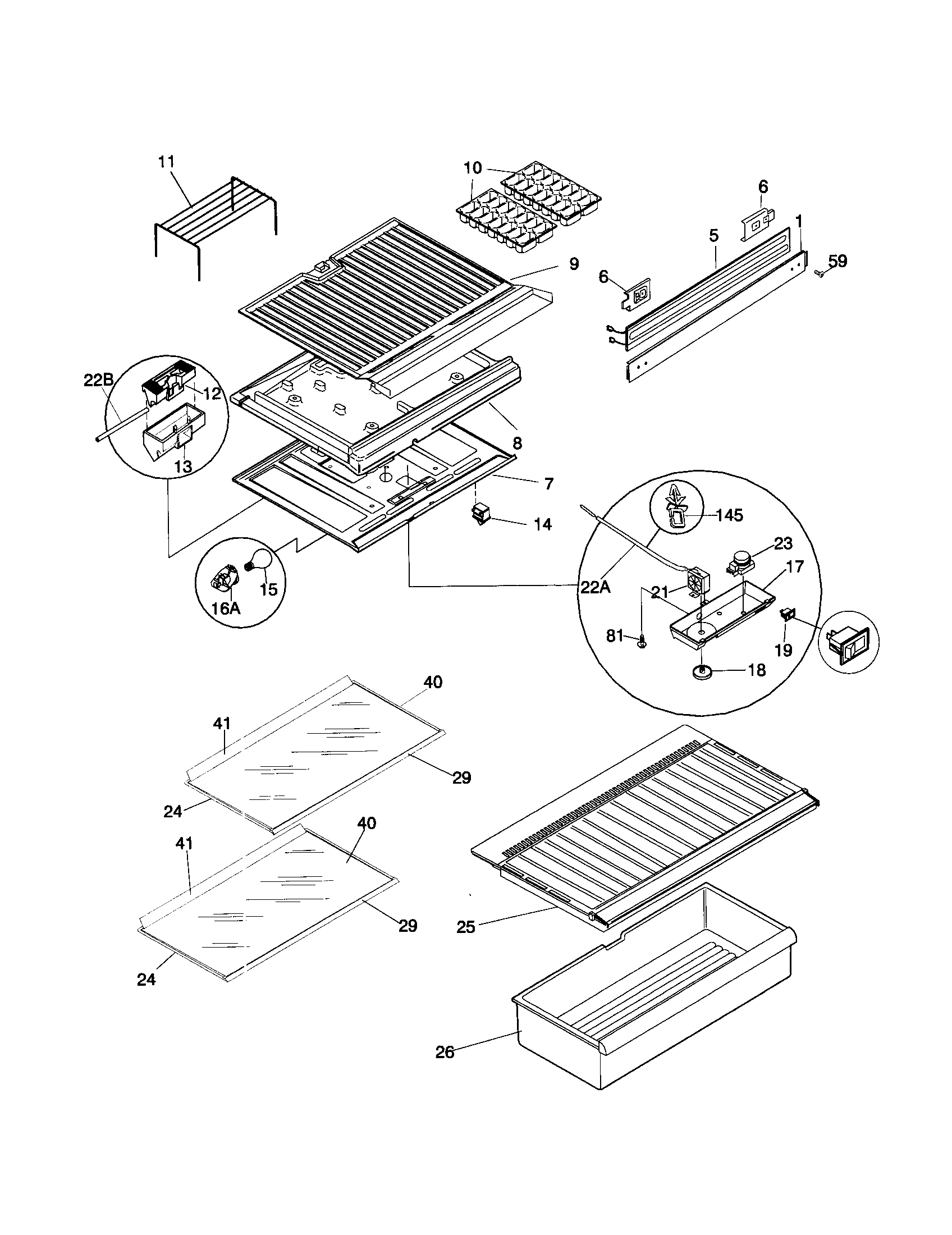

Shelves diagram

Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Thermostat 218969902
#21

System diagram

Thermostat

Part #218969902

Replaced by #297216600

?
Manufacturer substitution
This part replaces 218969902. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Refrigerator Defrost Timer 215846605
#23

Shelves diagram

Refrigerator defrost timer

Part #215846605

Replaced by #215846602

?
Manufacturer substitution
This part replaces 215846605. Substitute parts can look different from the original.
BEST SELLER
$30.82 |
16% OFF Phone Price : $36.82
In Stock
Refrigerator Compressor 218846902
#29

System diagram

Refrigerator compressor

Part #218846902

Replaced by #5304511983

?
Manufacturer substitution
This part replaces 218846902. Substitute parts can look different from the original.
BEST SELLER
$493.71 |
$12.00 OFF Phone Price : $505.71
In Stock
Refrigerator Evaporator Fan Motor 218878901
#13

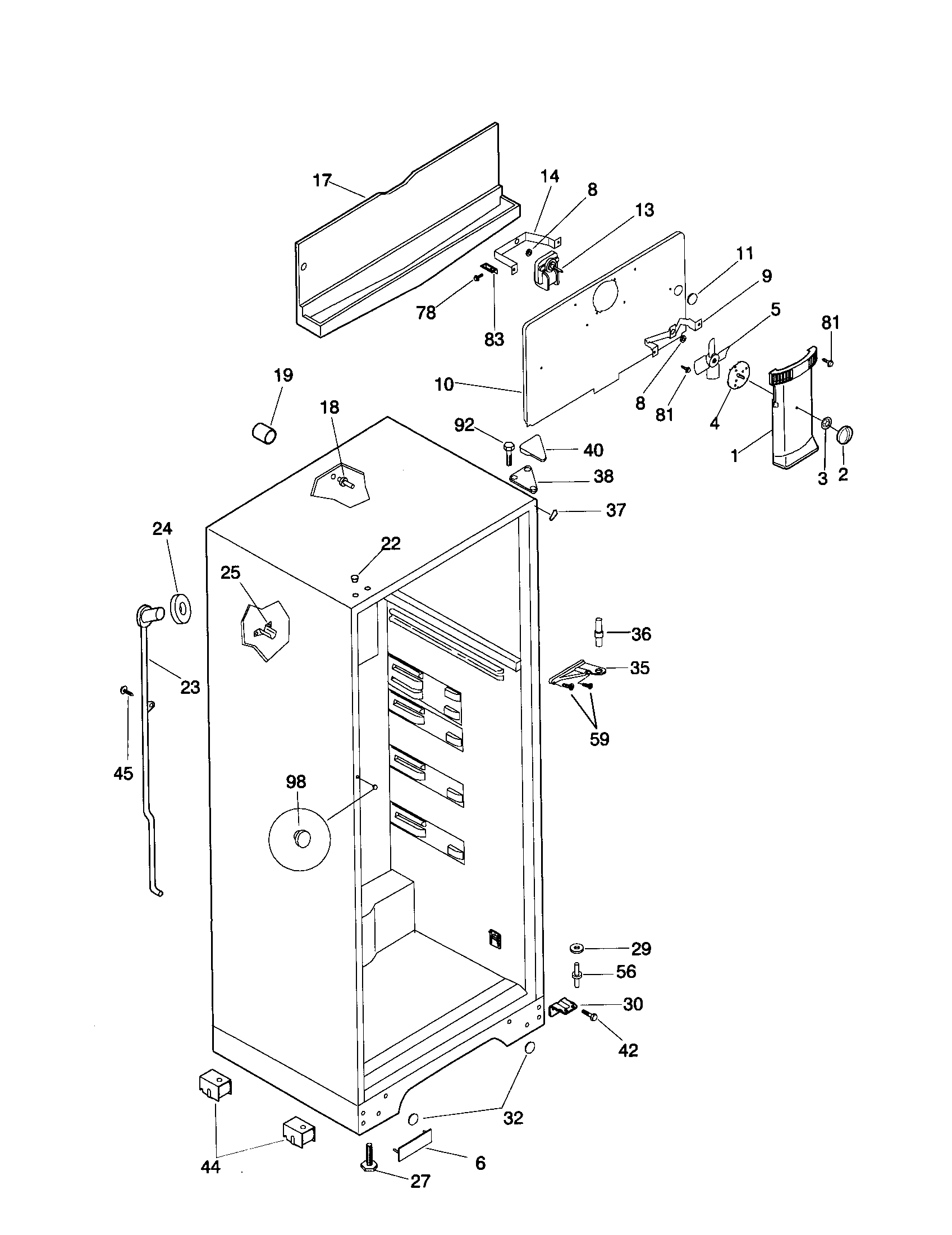

Cabinet diagram

Refrigerator evaporator fan motor

Part #218878901

Replaced by #5300158289

?
Manufacturer substitution
This part replaces 218878901. Substitute parts can look different from the original.
$88.69 |
6% OFF Phone Price : $94.69
In Stock
Refrigerator Light Socket 218906801
#16A

Shelves diagram

Refrigerator light socket

Part #218906801

Replaced by #218906802

?
Manufacturer substitution
This part replaces 218906801. Substitute parts can look different from the original.
This item is not returnable
$18.49 |
10% OFF Phone Price : $20.49
In Stock
Refrigerator Start Relay 218721103
#30

System diagram

Refrigerator start relay

Part #218721103

Replaced by #5304491944

?
Manufacturer substitution
This part replaces 218721103. Substitute parts can look different from the original.
$100.68 |
11% OFF Phone Price : $112.68
In Stock
Refrigerator Door Rack 5303280367
#4

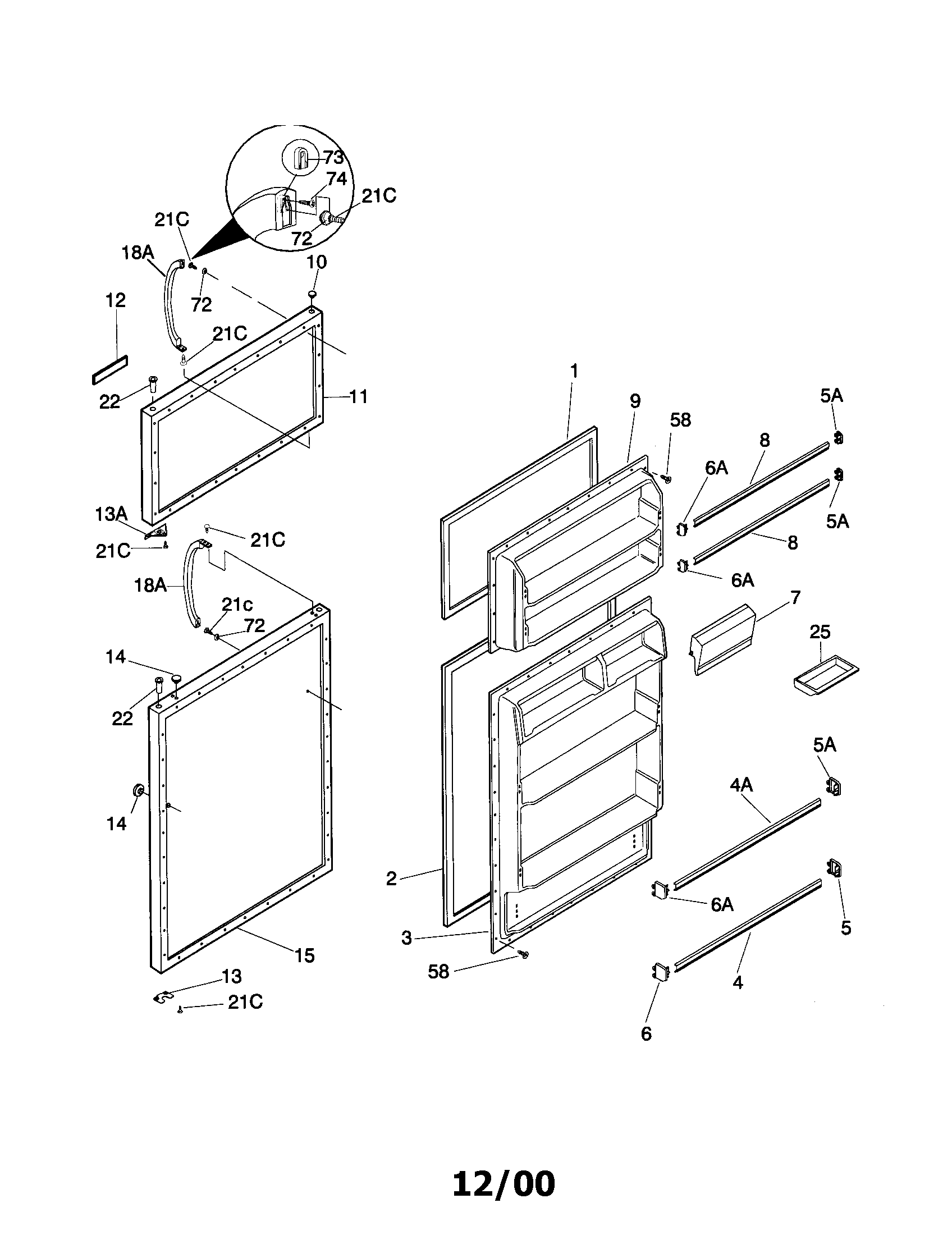

Door diagram

Refrigerator door rack

Part #5303280367

Replaced by #215366002

?
Manufacturer substitution
This part replaces 5303280367. Substitute parts can look different from the original.
$43.63 |
12% OFF Phone Price : $49.63
In Stock
Refrigerator Door Handle Assembly (white) (replaces 241711801) 218428101
#18AA

Door diagram

Refrigerator door handle assembly (white) (replaces 241711801)

Part #218428101

$43.06 |
12% OFF Phone Price : $49.06
