Frigidaire
Electric Wall Oven

Model # FGEW3045PFE Official Frigidaire electric wall oven

Here are the diagrams and repair parts for Official Frigidaire FGEW3045PFE electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

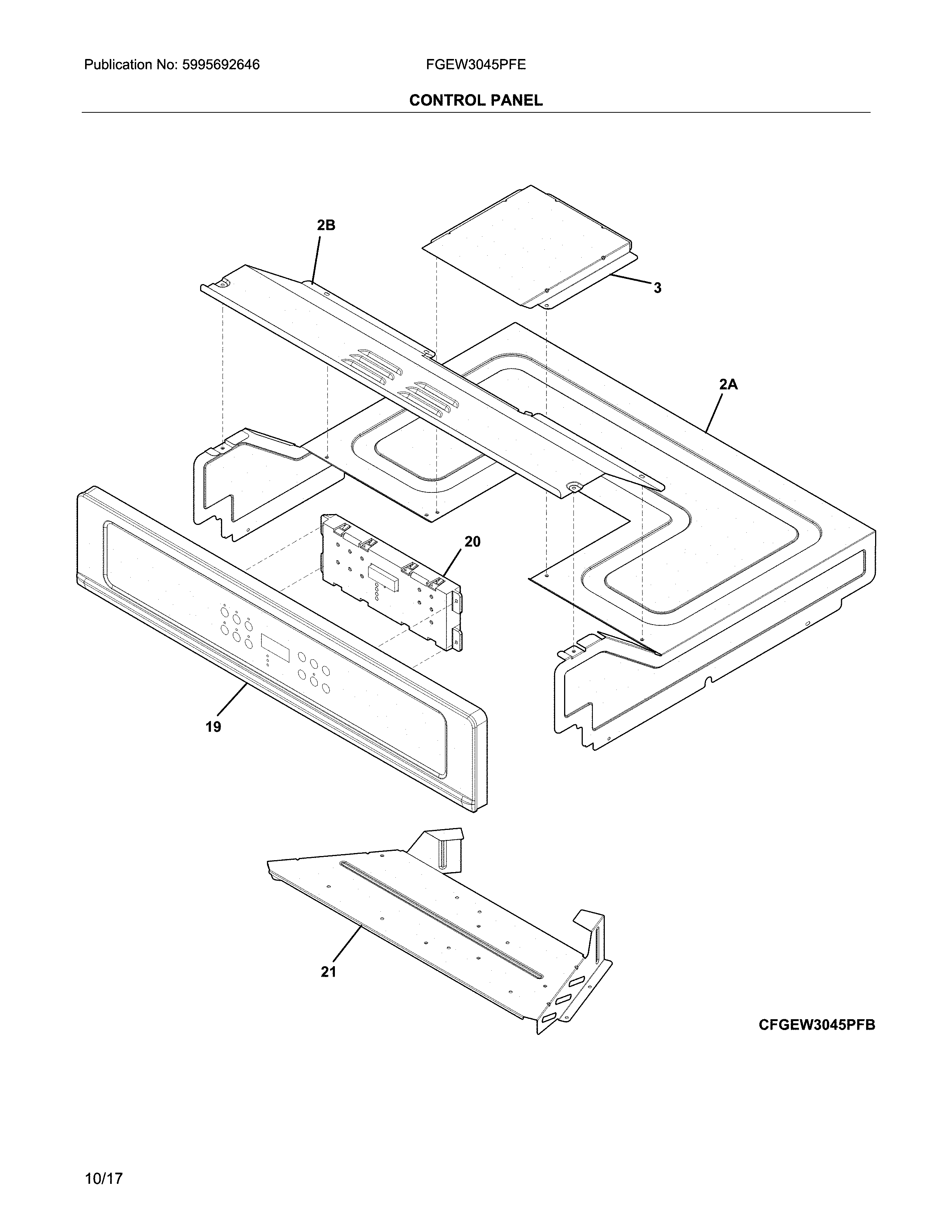

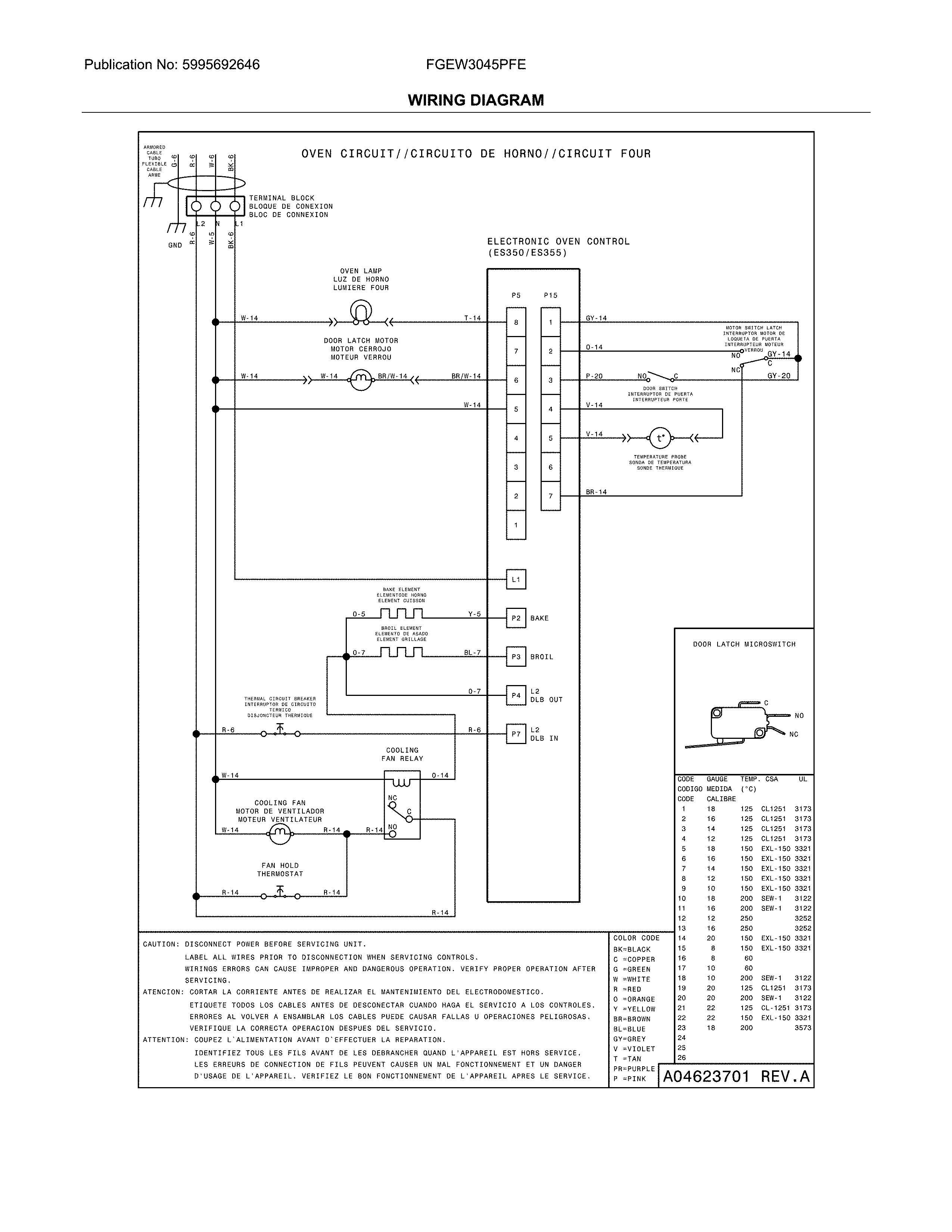

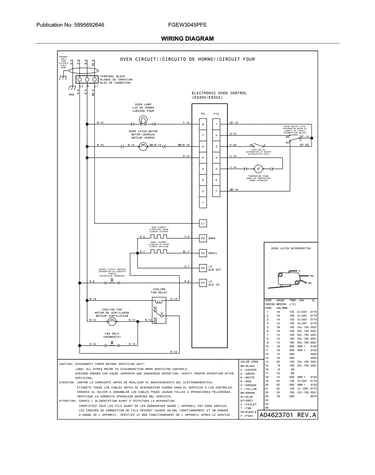

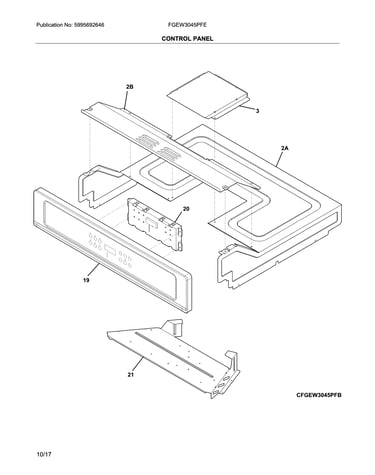

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Range Oven Door Inner Glass 316117503
#8

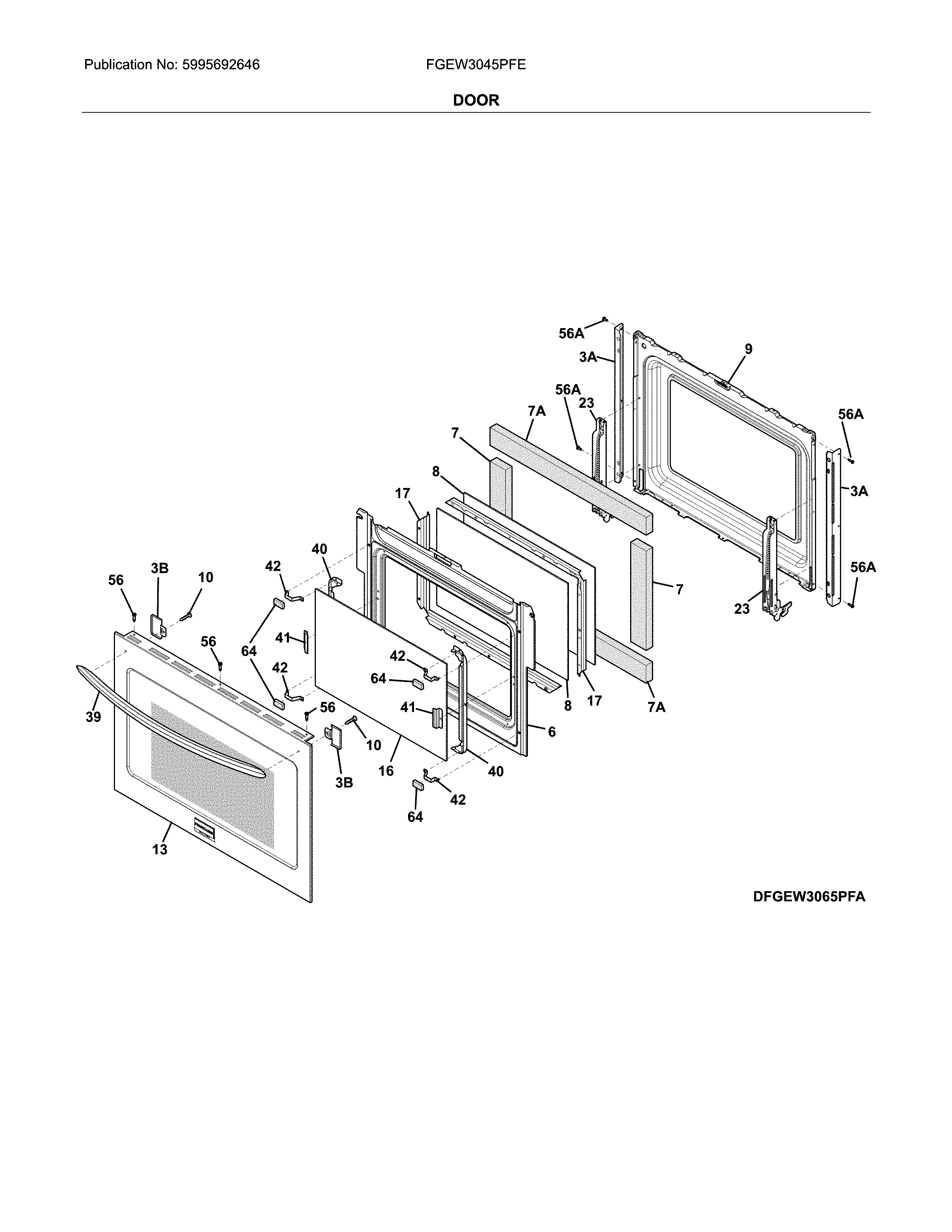

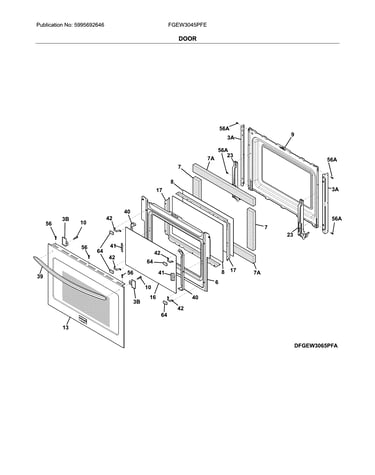

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

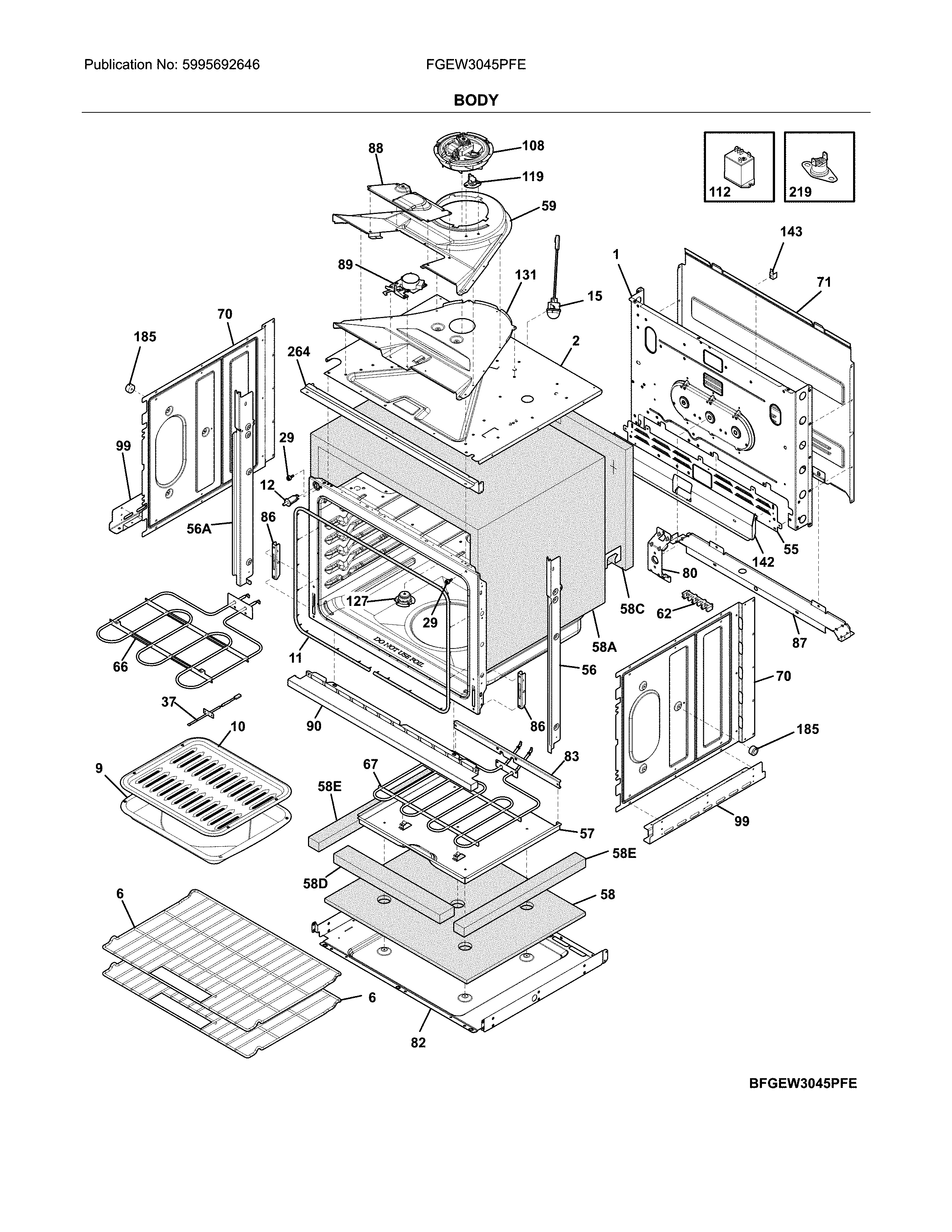

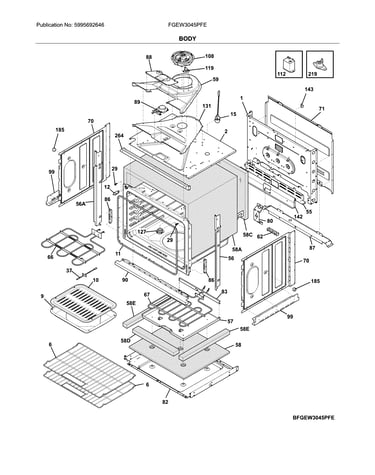

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Terminal Block 316056000
#62

Body diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Broil Element 139008900
#66

Body diagram

Range broil element

Part #139008900

Replaced by #5304521498

?
Manufacturer substitution
This part replaces 139008900. Substitute parts can look different from the original.
BEST SELLER
$57.76 |
9% OFF Phone Price : $63.76
In Stock
Range Control Panel Cooling Fan 318575612
#108

Body diagram

Range control panel cooling fan

Part #318575612

$167.94 |
7% OFF Phone Price : $179.94
In Stock
Range High-limit Thermostat (replaces 318003613) 318003624
#219

Body diagram

Range high-limit thermostat (replaces 318003613)

Part #318003624

This item is not returnable
$24.59 |
20% OFF Phone Price : $30.59
In Stock
Range Oven Light Bulb 139009000
#15

Body diagram

Range oven light bulb

Part #139009000

Replaced by #5304528790

?
Manufacturer substitution
This part replaces 139009000. Substitute parts can look different from the original.
$23.49 |
20% OFF Phone Price : $29.49
In Stock
Range Door Light Switch 318394802
#12

Body diagram

Range door light switch

Part #318394802

Replaced by #808136601

?
Manufacturer substitution
This part replaces 318394802. Substitute parts can look different from the original.
$32.29 |
16% OFF Phone Price : $38.29
In Stock
Wall Oven Bake Element 5304506946
#67

Body diagram

Wall oven bake element

Part #5304506946

$91.19 |
6% OFF Phone Price : $97.19
In Stock
Range Screw 5308014215
#112

Body diagram

Range screw

Part #5308014215

This item is not returnable
$2.49
In Stock
