Model # GDU4050XPW4 Official Whirlpool dishwasher

Here are the diagrams and repair parts for Official Whirlpool GDU4050XPW4 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

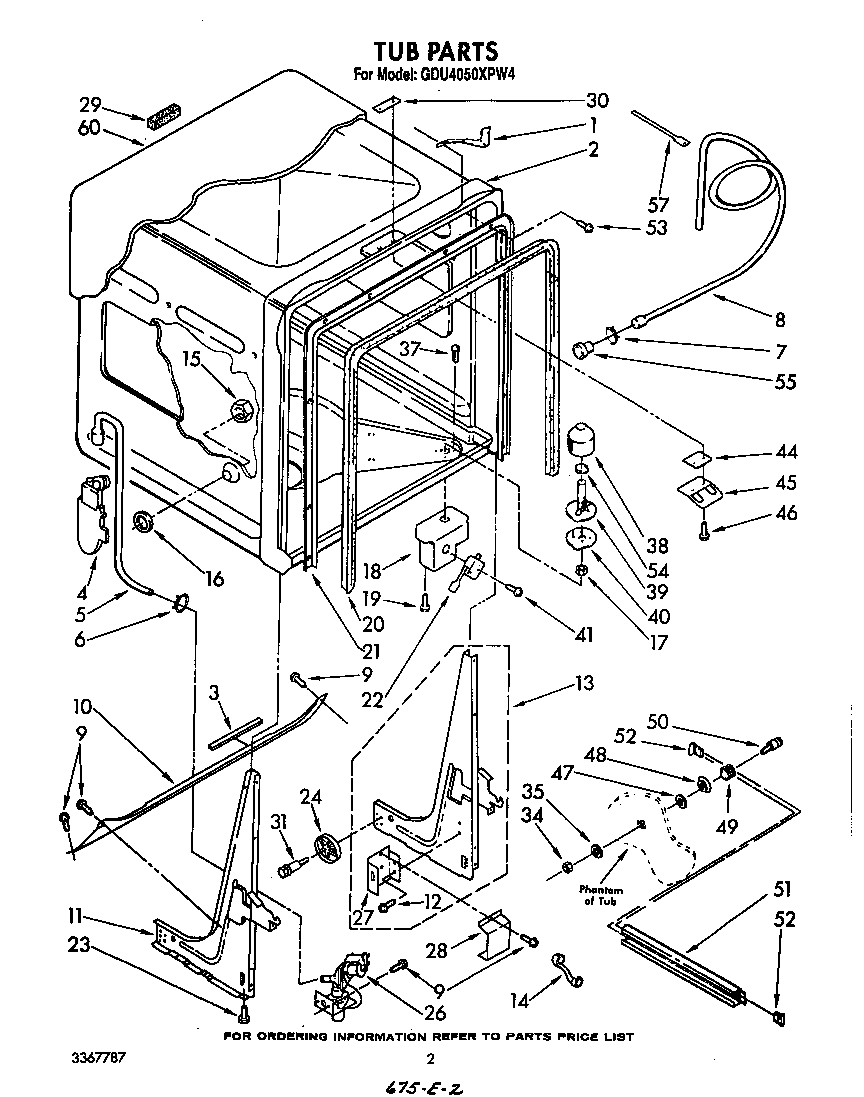

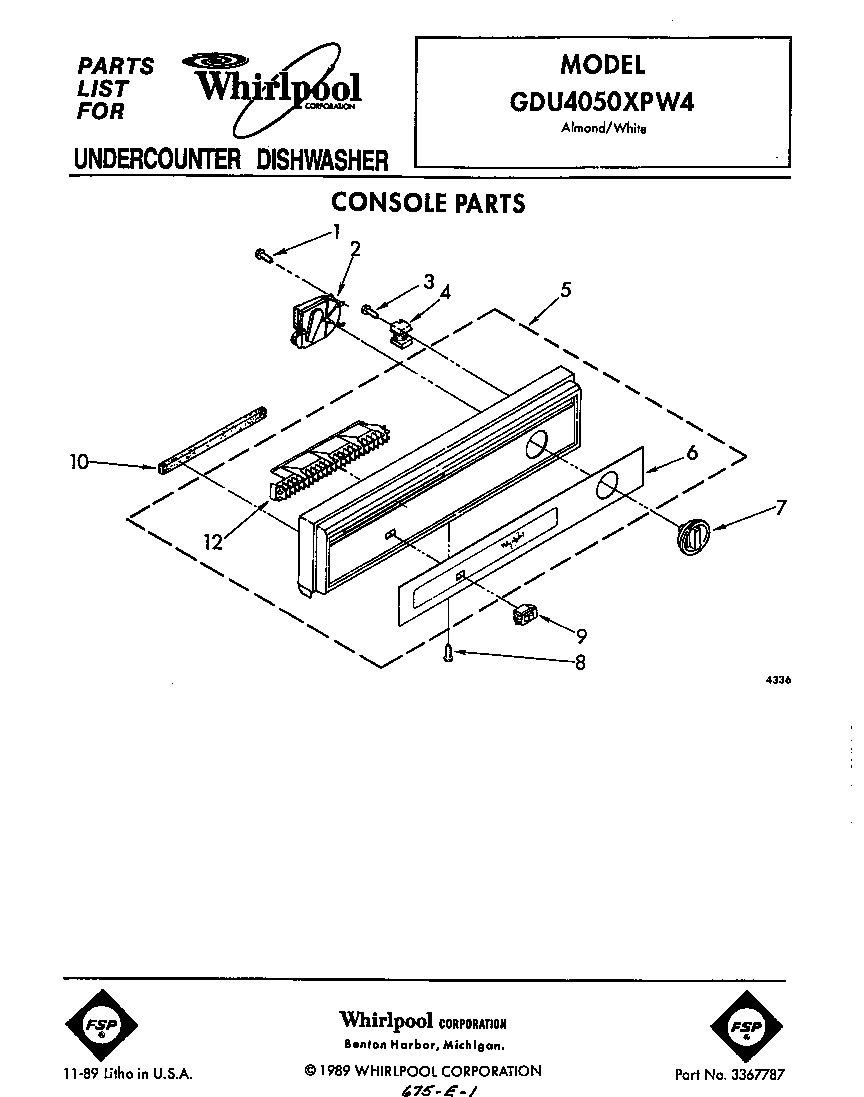

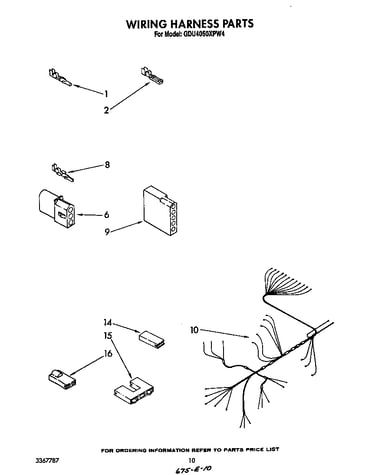

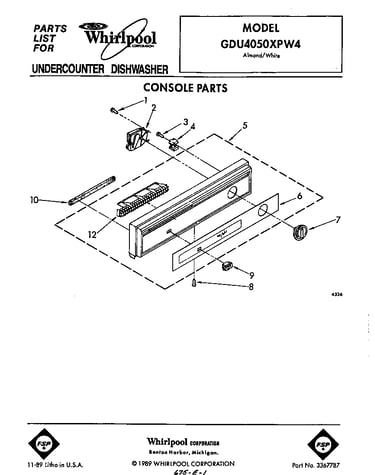

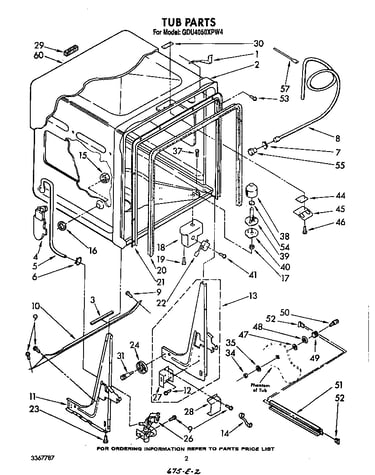

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Dishwasher Heating Element Rubber Washer 717273
#42

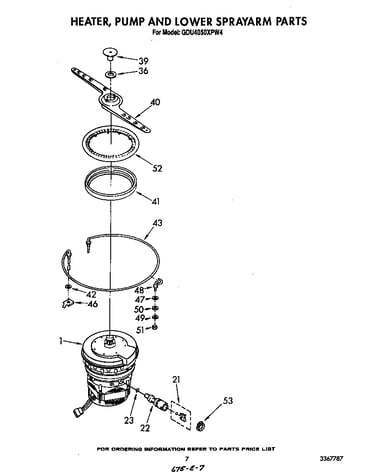

Heater, pump and lower spray arm diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Spring 300106
#27

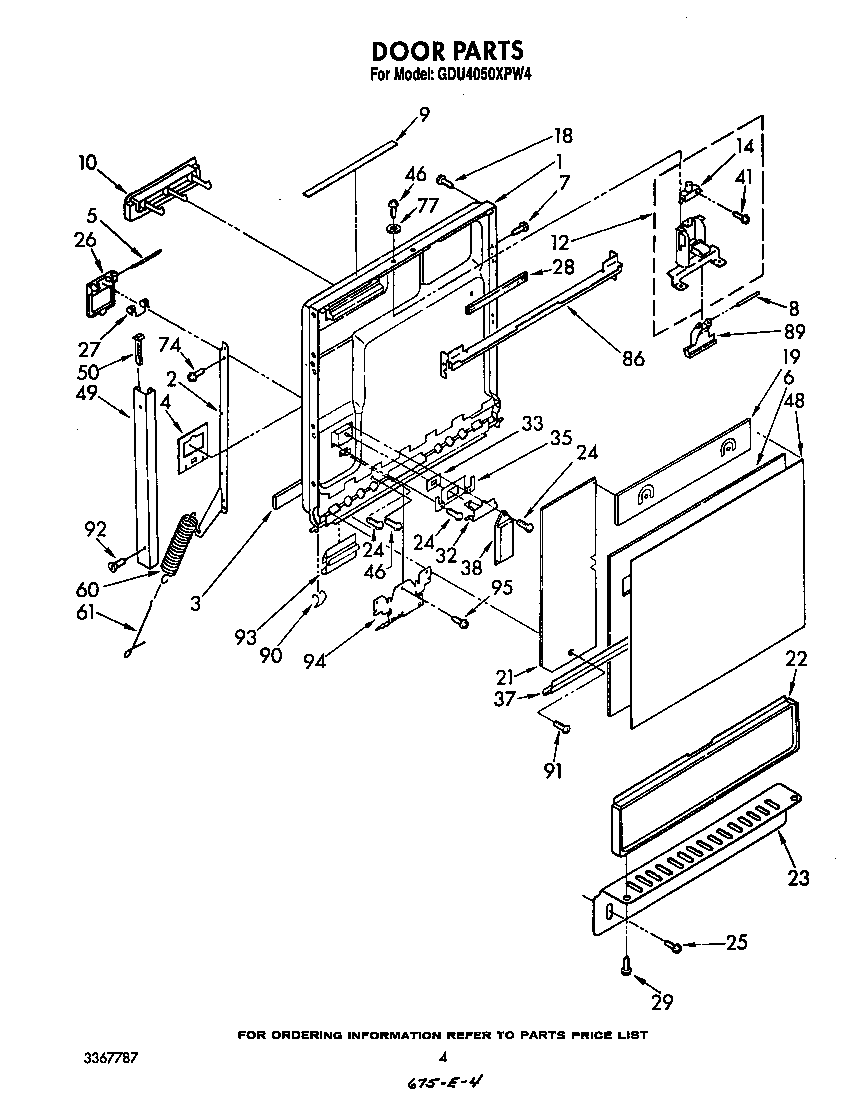

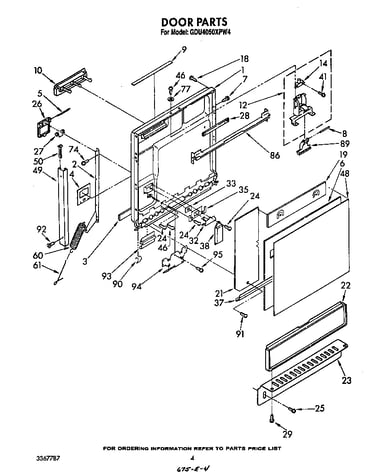

Door diagram

Spring

Part #300106

Replaced by #WP8066018

?
Manufacturer substitution
This part replaces 300106. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 718258
#21

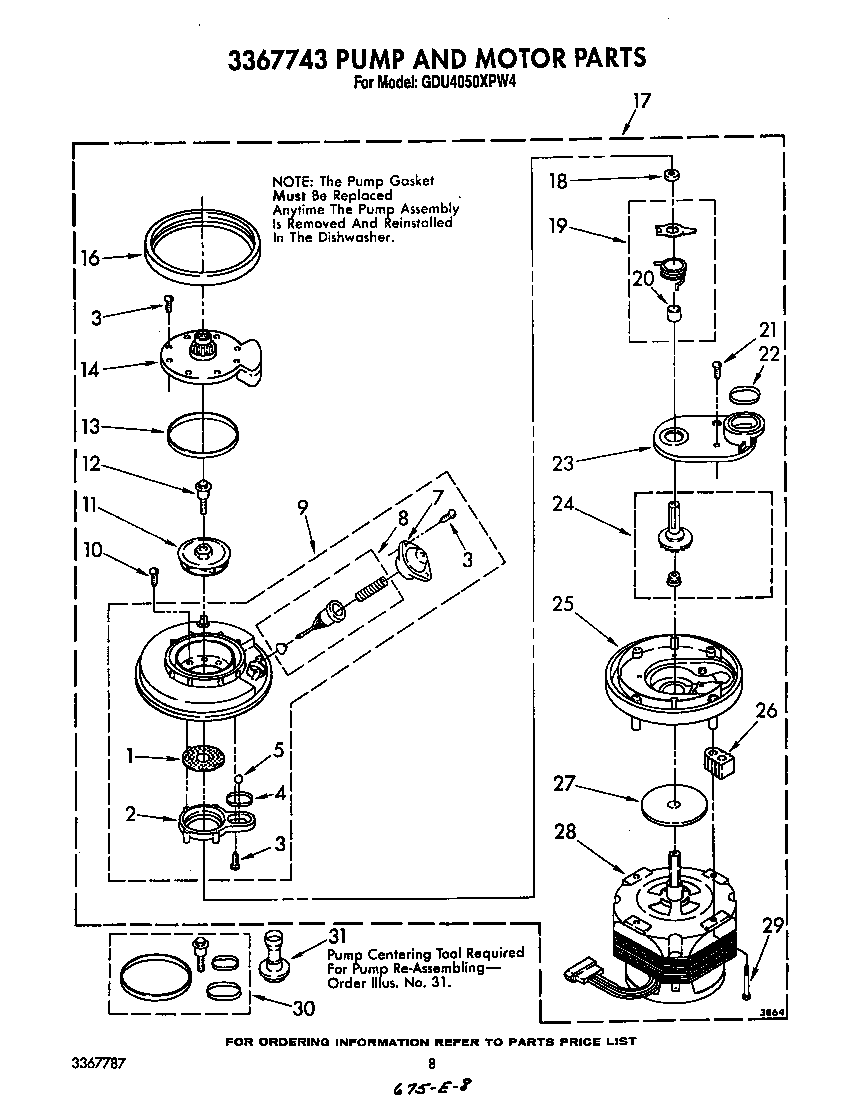

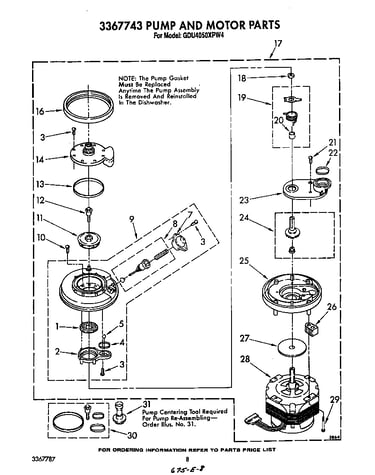

3367743 pump and motor diagram

Screw

Part #718258

Replaced by #WP9741232

?
Manufacturer substitution
This part replaces 718258. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 303573
#3

3367743 pump and motor diagram

Screw

Part #303573

Replaced by #WP9741232

?
Manufacturer substitution
This part replaces 303573. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Screw 302868
#29

Door diagram

Dishwasher screw

Part #302868

Replaced by #WP302868

?
Manufacturer substitution
This part replaces 302868. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dishwasher Circulation Pump Gasket (replaces 302371, 661633, 8057506) 717000
Dishwasher circulation pump gasket (replaces 302371, 661633, 8057506)

Part #717000

This item is not returnable
$30.11 |
17% OFF Phone Price : $36.11
In Stock
Impeller 303539
#24

3367743 pump and motor diagram

Impeller

Part #303539

Replaced by #675806

?
Manufacturer substitution
This part replaces 303539. Substitute parts can look different from the original.
$87.96 |
6% OFF Phone Price : $93.96
In Stock
Dishrack 304177
#12

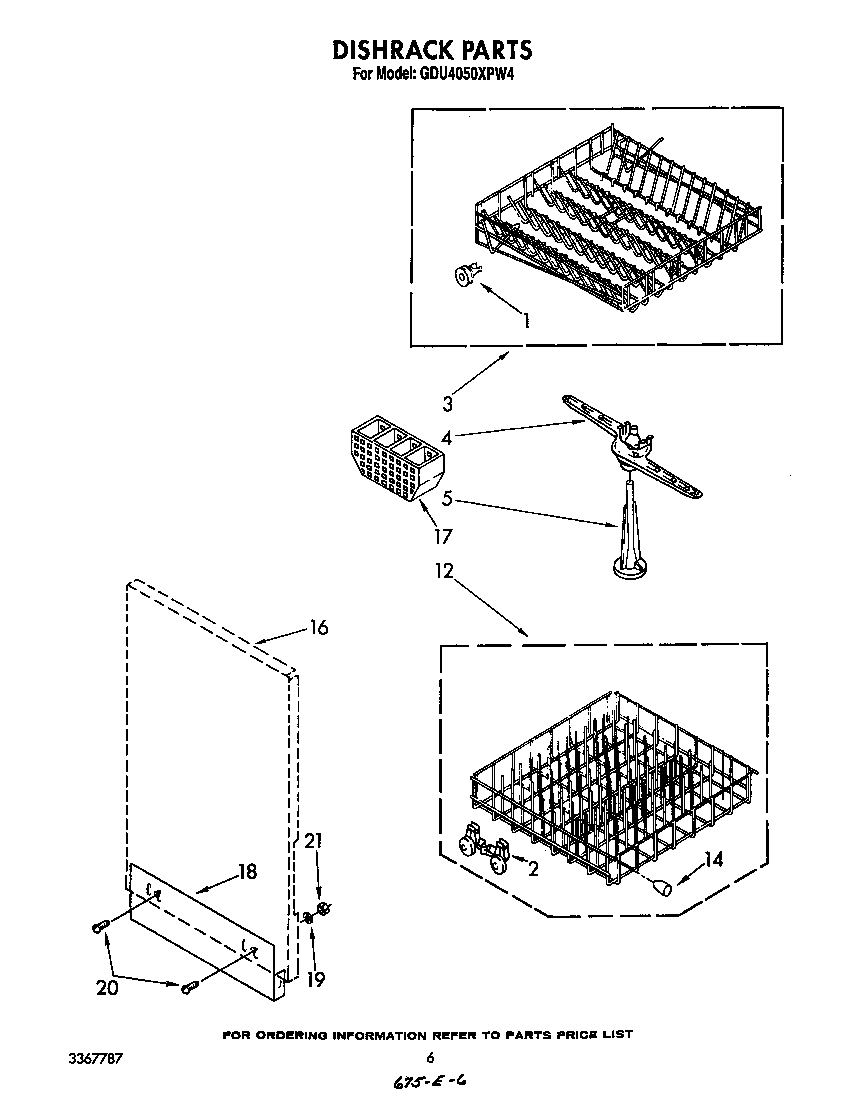

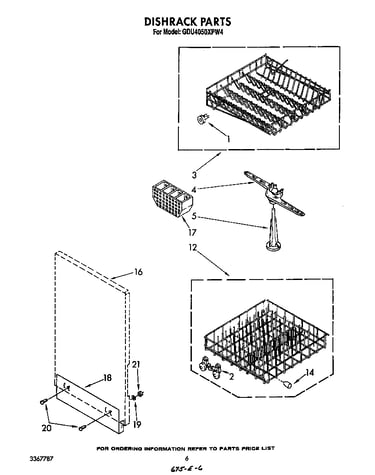

Dishrack diagram

Dishrack

Part #304177

Replaced by #W10311986

?
Manufacturer substitution
This part replaces 304177. Substitute parts can look different from the original.
$187.57 |
10% OFF Was : $208.41
In Stock
Impeller 303510
#11

3367743 pump and motor diagram

Impeller

Part #303510

Replaced by #675806

?
Manufacturer substitution
This part replaces 303510. Substitute parts can look different from the original.
$87.96 |
6% OFF Phone Price : $93.96
In Stock
Dishwasher Chopper 302718
#19

3367743 pump and motor diagram

Dishwasher chopper

Part #302718

Replaced by #675806

?
Manufacturer substitution
This part replaces 302718. Substitute parts can look different from the original.
$87.96 |
6% OFF Phone Price : $93.96
In Stock
