Model # 2335248510 Official Kenmore range hood

Here are the diagrams and repair parts for Official Kenmore 2335248510 range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Cook Top Side Trim Kit Range Hood Grease Filter, 2-pack (replaces 970007894) 97007894
#27

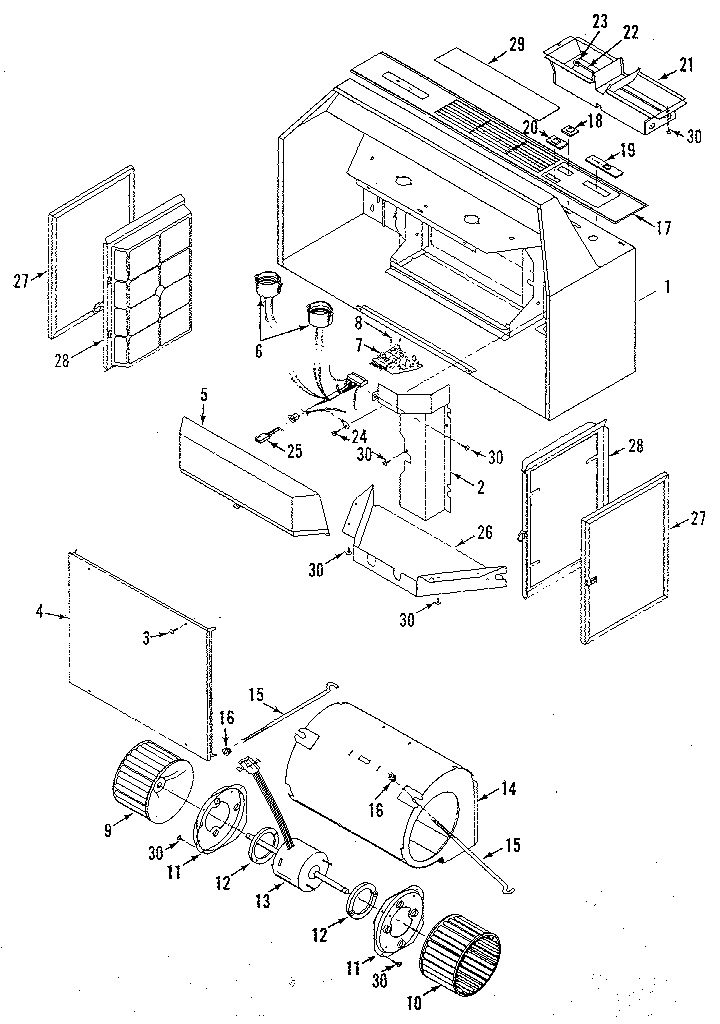

Range hood diagram

Cook top side trim kit range hood grease filter, 2-pack (replaces 970007894)

Part #97007894

BEST SELLER
$29.91 |
17% OFF Phone Price : $35.91
Back Order
Range Hood Light Lens 99110605
#5

Range hood diagram

Range hood light lens

Part #99110605

The manufacturer no longer makes this part, and there's no substitute part

Motor 99080140
#13

Range hood diagram

Motor

Part #99080140

Replaced by #S97010736

?
Manufacturer substitution
This part replaces 99080140. Substitute parts can look different from the original.
$120.10 |
9% OFF Phone Price : $132.10
In Stock
Bulb Holder 99270536
#6

Range hood diagram

Bulb holder

Part #99270536

Replaced by #99270530

?
Manufacturer substitution
This part replaces 99270536. Substitute parts can look different from the original.
This item is not returnable
$4.99
In Stock
Range Hood Wire Harness 97007682
#31

Range hood diagram

Range hood wire harness

Part #97007682

Replaced by #S97007682

?
Manufacturer substitution
This part replaces 97007682. Substitute parts can look different from the original.
$31.62 |
16% OFF Phone Price : $37.62
In Stock
Range Hood Vent Damper Cover 98005221
#22

Range hood diagram

Range hood vent damper cover

Part #98005221

Replaced by #S98005221

?
Manufacturer substitution
This part replaces 98005221. Substitute parts can look different from the original.
This item is not returnable
$3.70
In Stock
Rod (silver) 99420464
#15

Range hood diagram

Rod (silver)

Part #99420464

Replaced by #S99420464

?
Manufacturer substitution
This part replaces 99420464. Substitute parts can look different from the original.
This item is not returnable
$4.72
In Stock
Range Hood Clockwise Blower Wheel Assembly 99020138
#9

Range hood diagram

Range hood clockwise blower wheel assembly

Part #99020138

The manufacturer no longer makes this part, and there's no substitute part

Housing 97007314
#14

Range hood diagram

Housing

Part #97007314

Replaced by #S97007314

?
Manufacturer substitution
This part replaces 97007314. Substitute parts can look different from the original.
$43.45
In Stock
Range Hood Motor Retainer Ring 98005212
#11

Range hood diagram

Range hood motor retainer ring

Part #98005212

Replaced by #S98005212

?
Manufacturer substitution
This part replaces 98005212. Substitute parts can look different from the original.
This item is not returnable
$4.72
In Stock
