Roper
Top-Mount Refrigerator

Model # 8624W1B Official Roper refrigerator

Here are the diagrams and repair parts for Official Roper 8624W1B refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

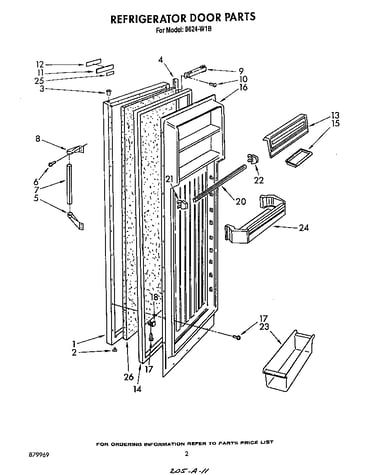

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 330 parts  |
Drier Tube 4339936
#11

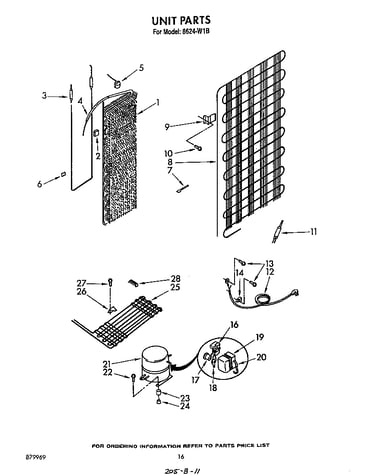

Unit diagram

Drier tube

Part #4339936

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4339936. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Switch 4339985
#16

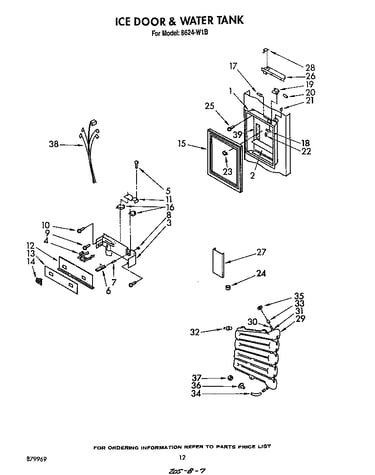

Ice door and water tank diagram

Switch

Part #4339985

$34.42
In Stock
Refrigerator Closure 4339802
#25

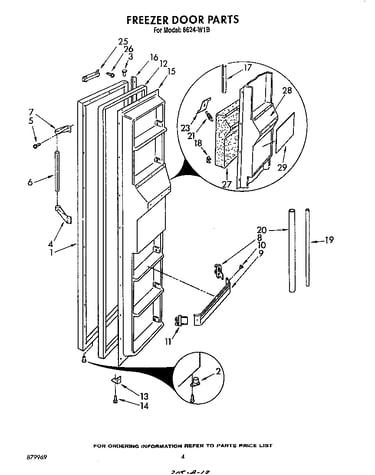

Freezer door diagram

Refrigerator closure

Part #4339802

$62.89
In Stock
Light Switch, Bumper 4339791
#13

Freezer door diagram

Light switch, bumper

Part #4339791

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 4339677
#4

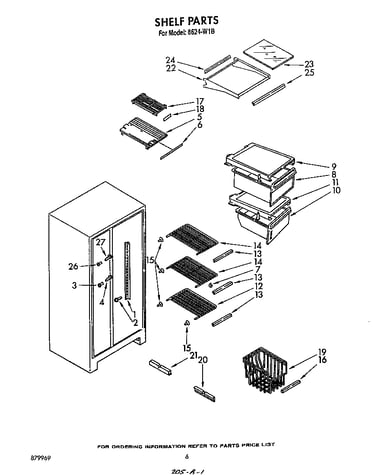

Shelf diagram

Refrigerator screw

Part #4339677

The manufacturer no longer makes this part, and there's no substitute part

Harvest 4340057
#22C

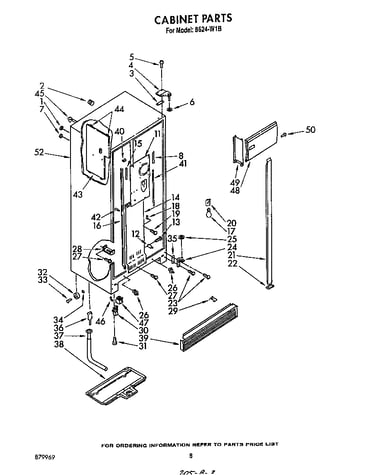

Cabinet diagram

Harvest

Part #4340057

The manufacturer no longer makes this part, and there's no substitute part

Housing, Mechanism 4340014
#5

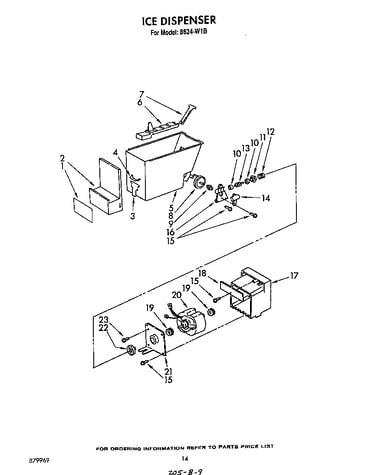

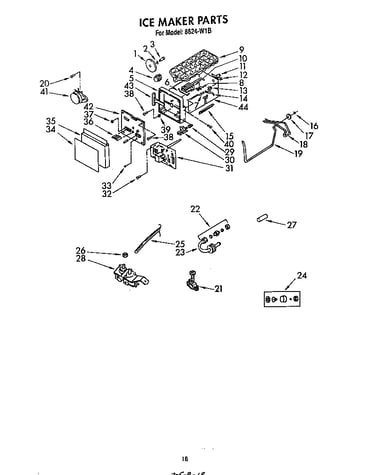

Ice maker diagram

Housing, mechanism

Part #4340014

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 4339944
#22

Unit diagram

Refrigerator screw

Part #4339944

The manufacturer no longer makes this part, and there's no substitute part

Sleeve, Compressor 4339945
#23

Unit diagram

Sleeve, compressor

Part #4339945

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Control Capillary 4339862
#10

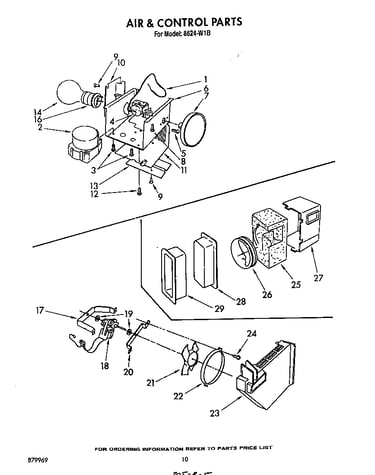

Air and control diagram

Bracket, control capillary

Part #4339862

The manufacturer no longer makes this part, and there's no substitute part
