Model # 758144523 Official Kenmore humidifier

Here are the diagrams and repair parts for Official Kenmore 758144523 humidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Humidifier Wick Filter Float Plate 823905
#20

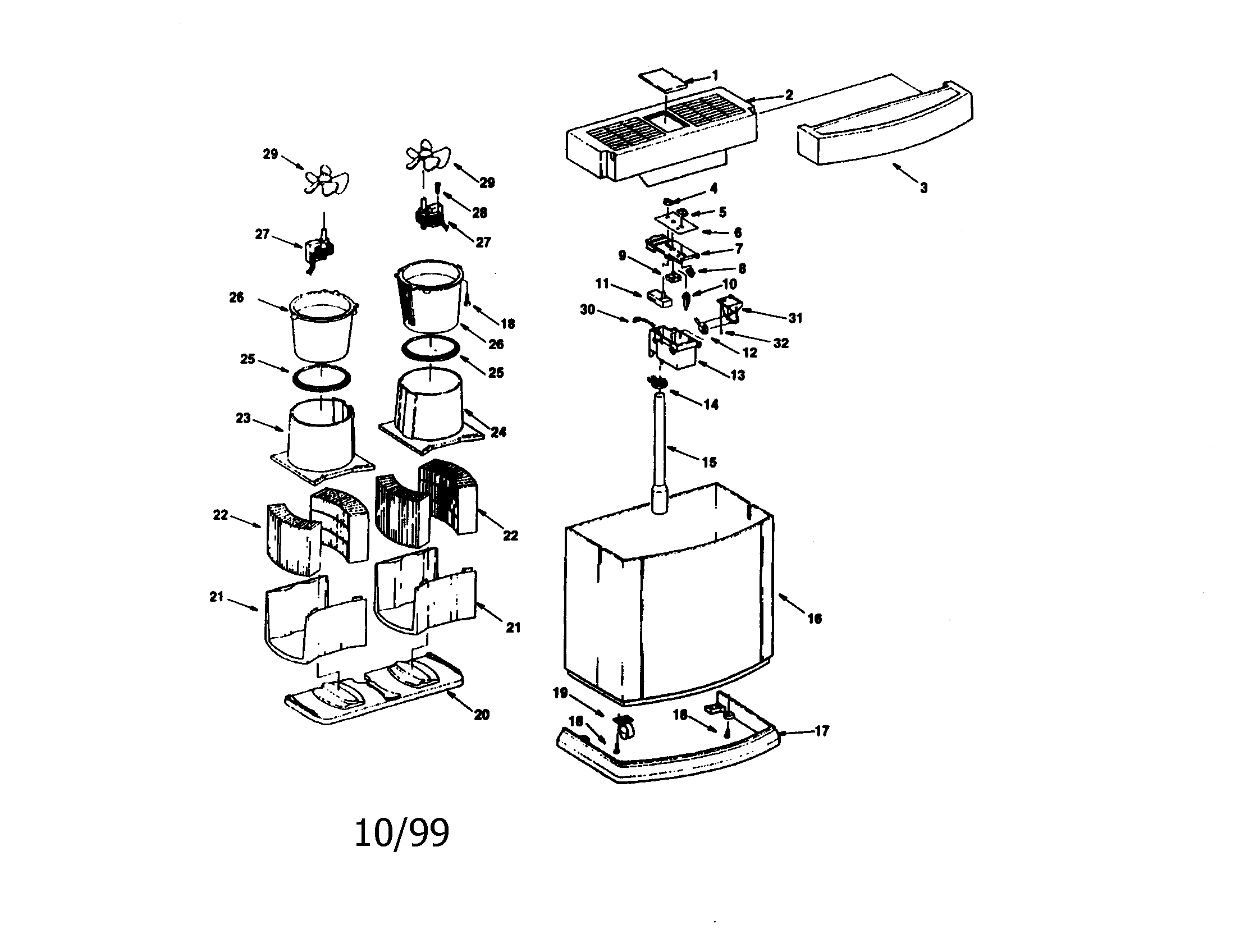

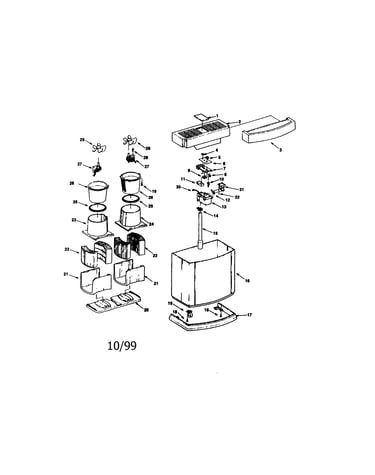

Humidifier diagram

Humidifier wick filter float plate

Part #823905

The manufacturer no longer makes this part, and there's no substitute part

Emerson Humidifier Fan Blade 822406-1
#29

Humidifier diagram

Emerson humidifier fan blade

Part #822406-1

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Float Retainer 824101-1
#14

Humidifier diagram

Humidifier float retainer

Part #824101-1

The manufacturer no longer makes this part, and there's no substitute part

Filter 42-14911
#22

Humidifier diagram

Filter

Part #42-14911

The manufacturer no longer makes this part, and there's no substitute part

Support 823714
#24

Humidifier diagram

Support

Part #823714

The manufacturer no longer makes this part, and there's no substitute part

Motor 822405-3
#27

Humidifier diagram

Motor

Part #822405-3

The manufacturer no longer makes this part, and there's no substitute part

Knob 826544-1
#4

Humidifier diagram

Knob

Part #826544-1

The manufacturer no longer makes this part, and there's no substitute part

Ac Power Cord With Plug 824120
#30

Humidifier diagram

Ac power cord with plug

Part #824120

The manufacturer no longer makes this part, and there's no substitute part

Humidifier Speed Switch 823912
#9

Humidifier diagram

Humidifier speed switch

Part #823912

The manufacturer no longer makes this part, and there's no substitute part

Water Level 823712-1
#15

Humidifier diagram

Water level

Part #823712-1

The manufacturer no longer makes this part, and there's no substitute part
