Top-Mount Refrigerator

Model # TBT14DABKRAA Official GE refrigerator - b series

Here are the diagrams and repair parts for Official GE TBT14DABKRAA refrigerator - b series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

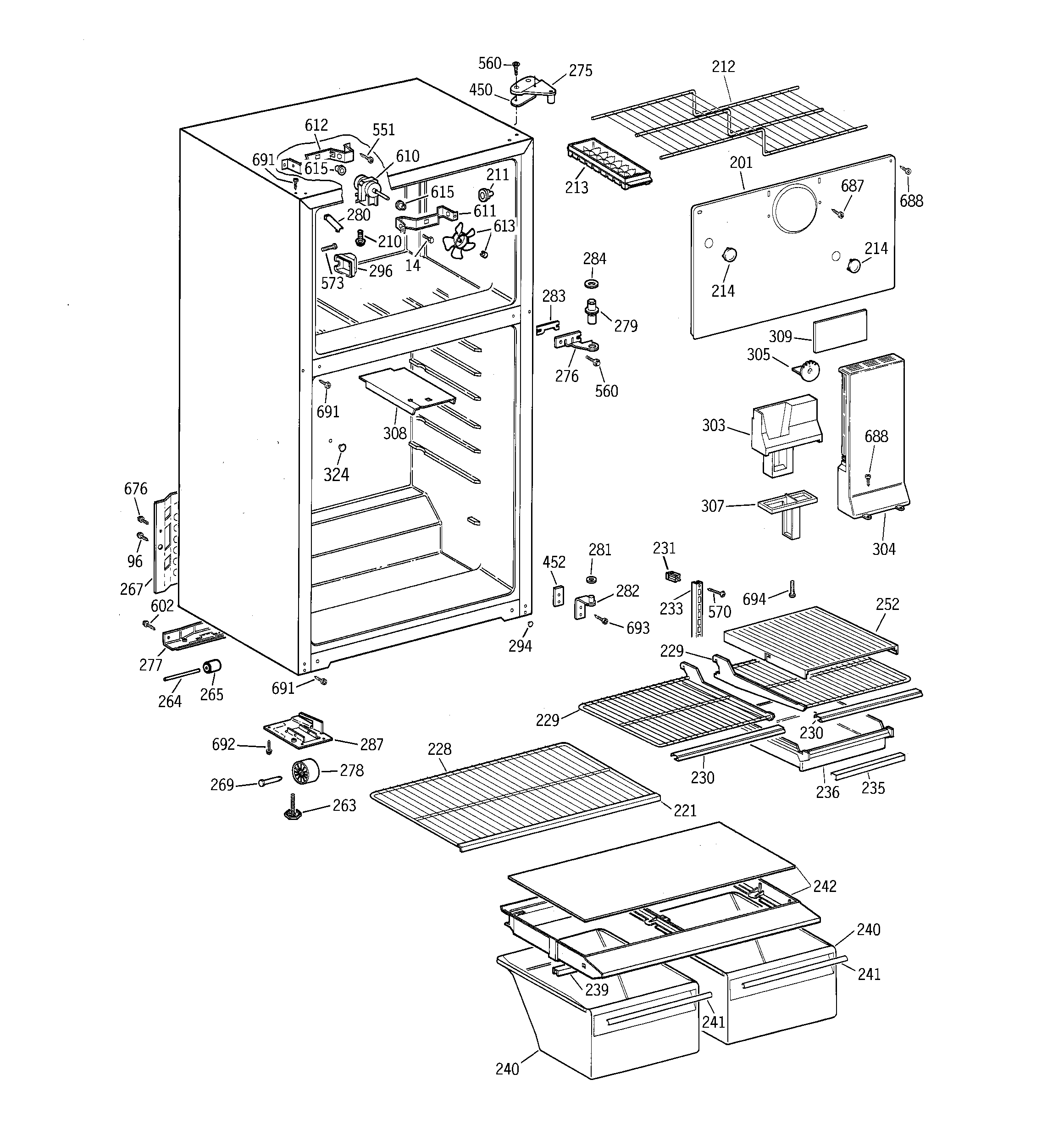

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Dryer Filter WR86X0096
#740

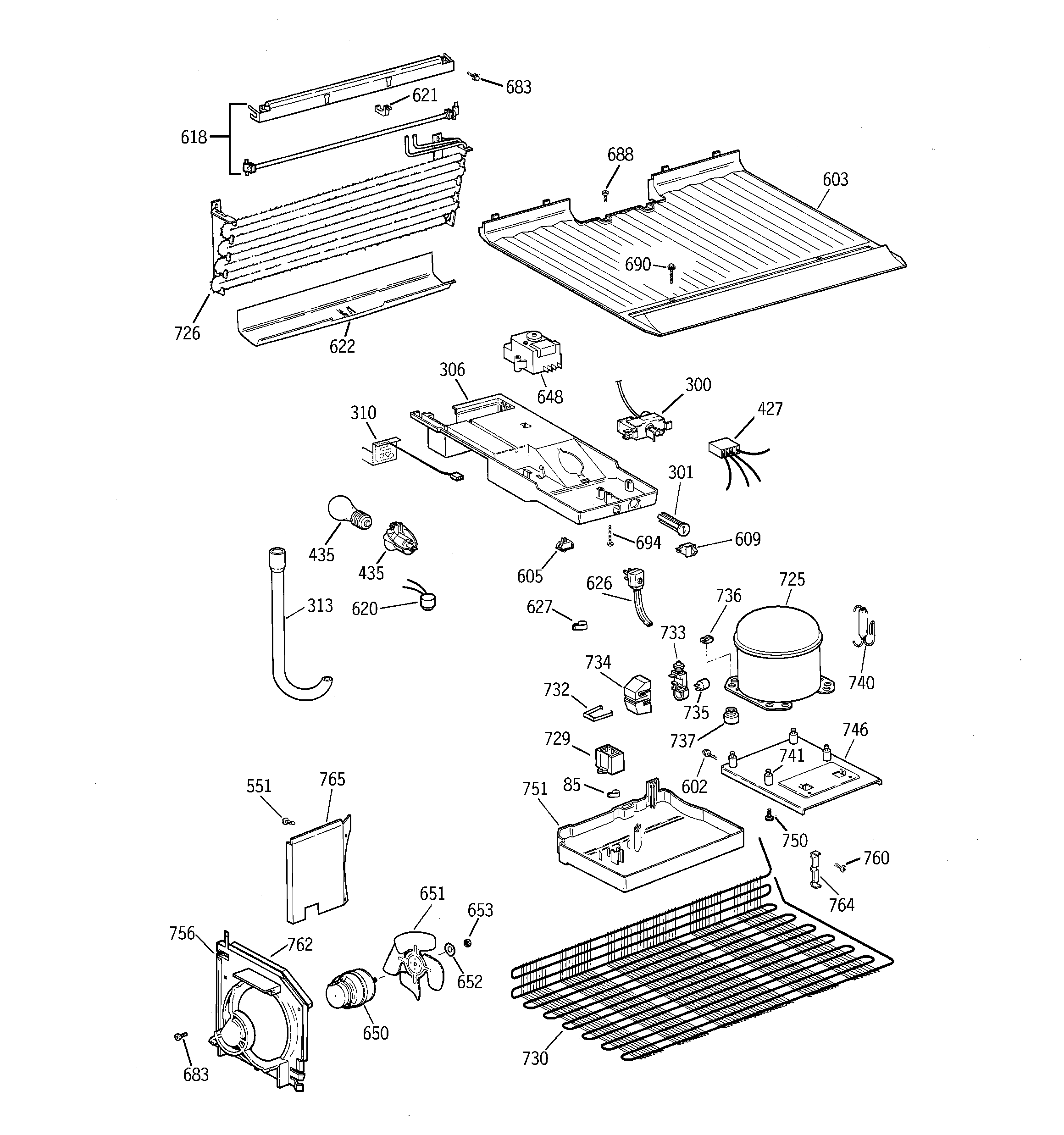

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
#435

Unit parts diagram

40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Comp Repl Kt WR87X0479
#725

Unit parts diagram

Comp repl kt

Part #WR87X0479

Replaced by #WR87X20798

?
Manufacturer substitution
This part replaces WR87X0479. Substitute parts can look different from the original.
BEST SELLER
$382.57 |
$12.00 OFF Phone Price : $394.57
In Stock
Refrigerator Gasket WR24X0524
#23

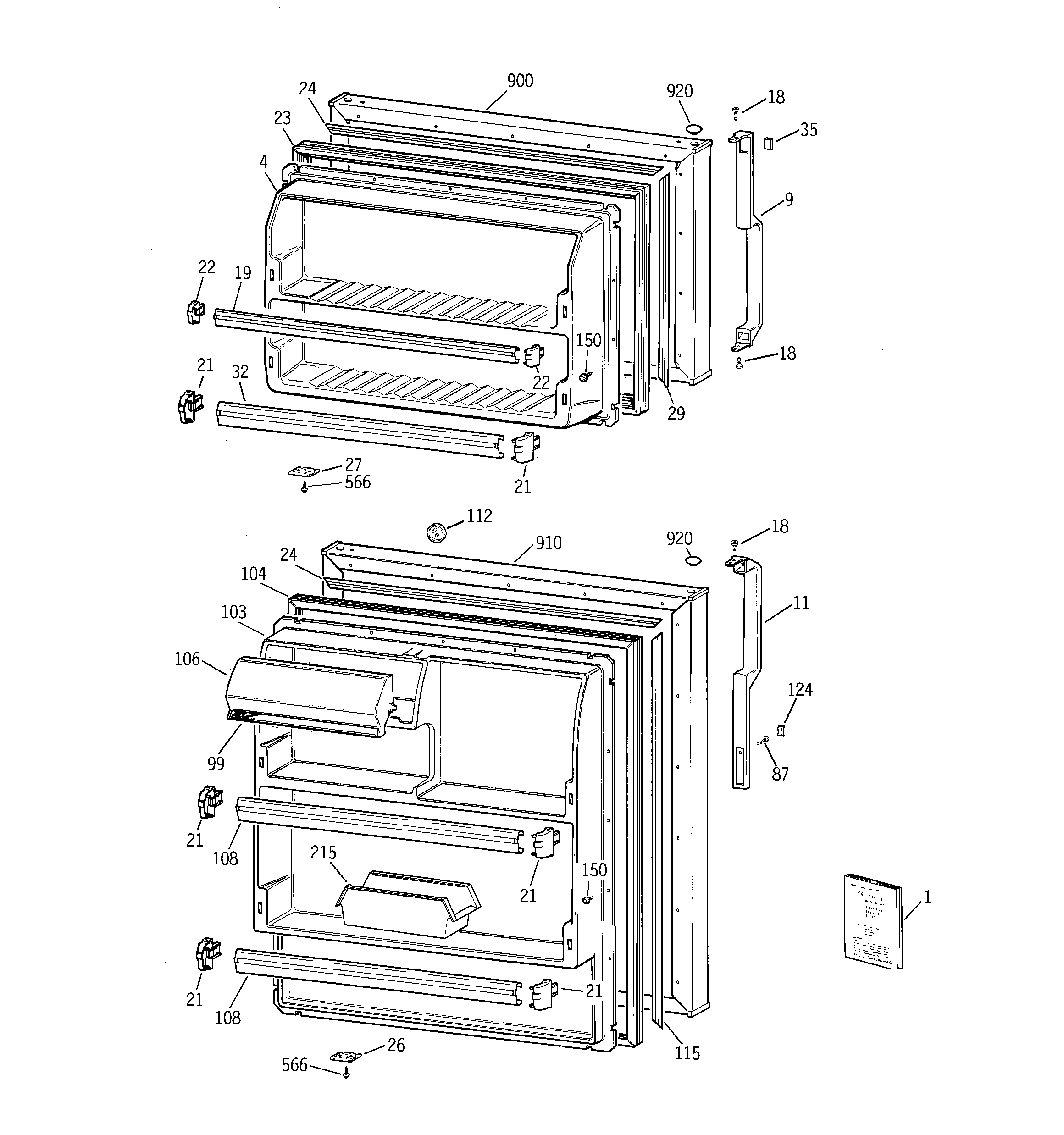

Doors diagram

Refrigerator gasket

Part #WR24X0524

Replaced by #WR24X10228

?
Manufacturer substitution
This part replaces WR24X0524. Substitute parts can look different from the original.
$71.05 |
8% OFF Phone Price : $77.05
In Stock
Refrigerator Dairy Door WR22X0503
#106

Doors diagram

Refrigerator dairy door

Part #WR22X0503

Replaced by #WR22X10068

?
Manufacturer substitution
This part replaces WR22X0503. Substitute parts can look different from the original.
This item is not returnable
$13.84 |
13% OFF Phone Price : $15.84
In Stock
Terminal Socket WR02X9391
#435

Unit parts diagram

Terminal socket

Part #WR02X9391

Replaced by #WR2X9391

?
Manufacturer substitution
This part replaces WR02X9391. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Refrigerator Gasket WR24X0518
#104

Doors diagram

Refrigerator gasket

Part #WR24X0518

Replaced by #WR24X10231

?
Manufacturer substitution
This part replaces WR24X0518. Substitute parts can look different from the original.
$68.27 |
8% OFF Phone Price : $74.27
In Stock
Refrigerator Shelf Cap WR02X8345
#21

Doors diagram

Refrigerator shelf cap

Part #WR02X8345

Replaced by #WR2X8345

?
Manufacturer substitution
This part replaces WR02X8345. Substitute parts can look different from the original.
This item is not returnable
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Light Switch WR23X0193
#609

Unit parts diagram

Light switch

Part #WR23X0193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X0193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
